Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CNN275

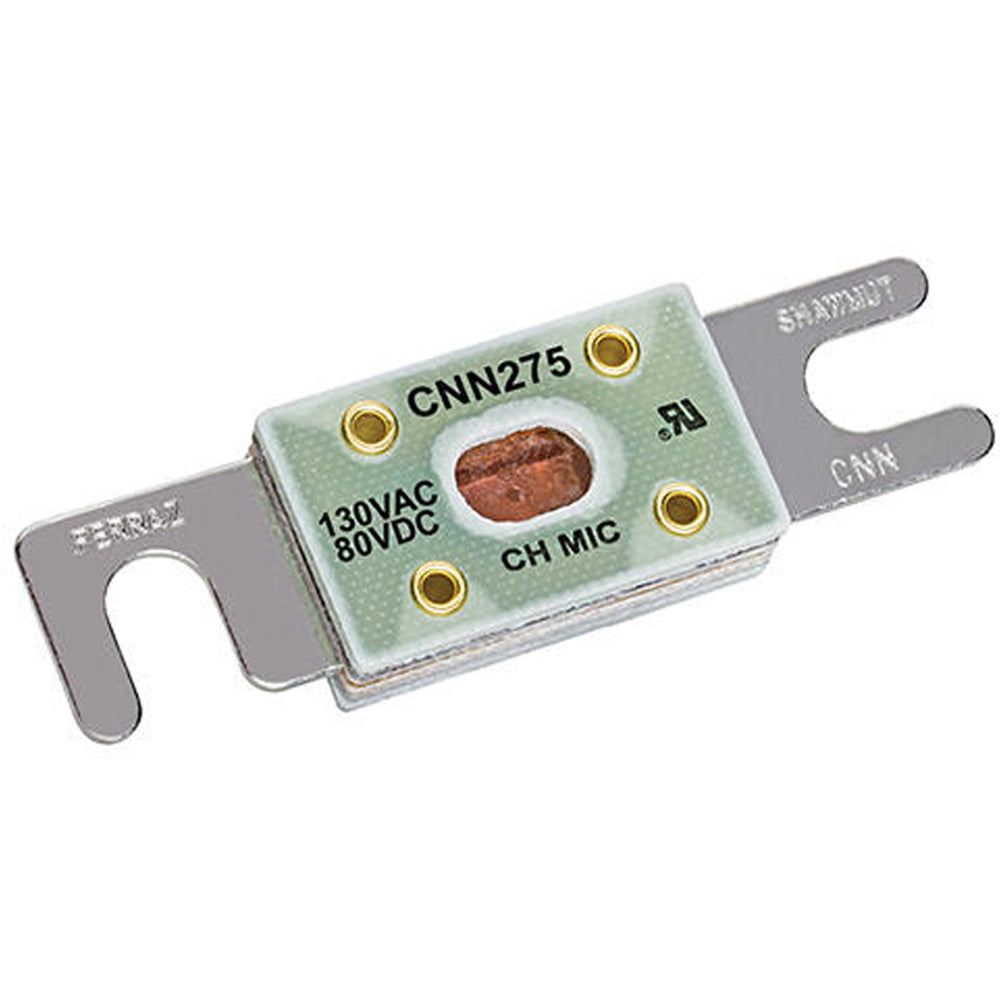

CNN275 is a 275 ampere, 48VDC stud mounted lift truck fuse designed for forklift and electrical vehicle applications with fast-acting protection. This specialty power fuse delivers reliable overcurrent protection in compact form factor, rated for applications up to 80V DC with a 2,700 ampere interrupting rating at 48VDC. The fuse features a visible link window for easy inspection and is RoHS compliant for environmental standards compliance.
- Current Rating: 275 Amperes
- Voltage Rating: 125 VAC / 48 VDC
- Mounting Type: Stud Mount
- Interrupting Rating: 2,700 Amperes at 48 VDC
- Response Time: Very Fast Acting
- Maximum DC Protection: Up to 80V DC
- Physical Size: 3.188 inches x 0.75 inches
- Fuse Type: Lift Truck Fuse
- Certifications: UL Approved, RoHS Compliant
- Link Visibility: Visible Through Window
Specifications
- Part Number: CNN275
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CNN
- Type : CNN
- Voltage : 130
- Amperage : 275
- AIC rating : 2500kA@130Vac
- Connection : Forklift
- Barrels : 1
Product Data
- UPC : 782001790516
- GTIN : 00079458009057
- Country of Origin : China
- Dimensions : 3/4 in x 3-3/16 in x
- Weight : 0.08
- Certification : UL Recognized Component To Standard 248-1, File E60314 JFHR2
