2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
CNN250

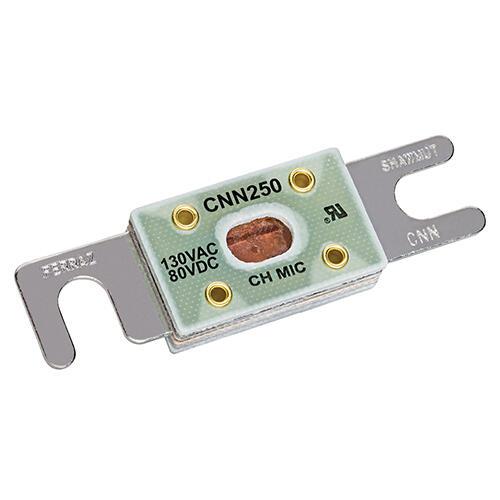

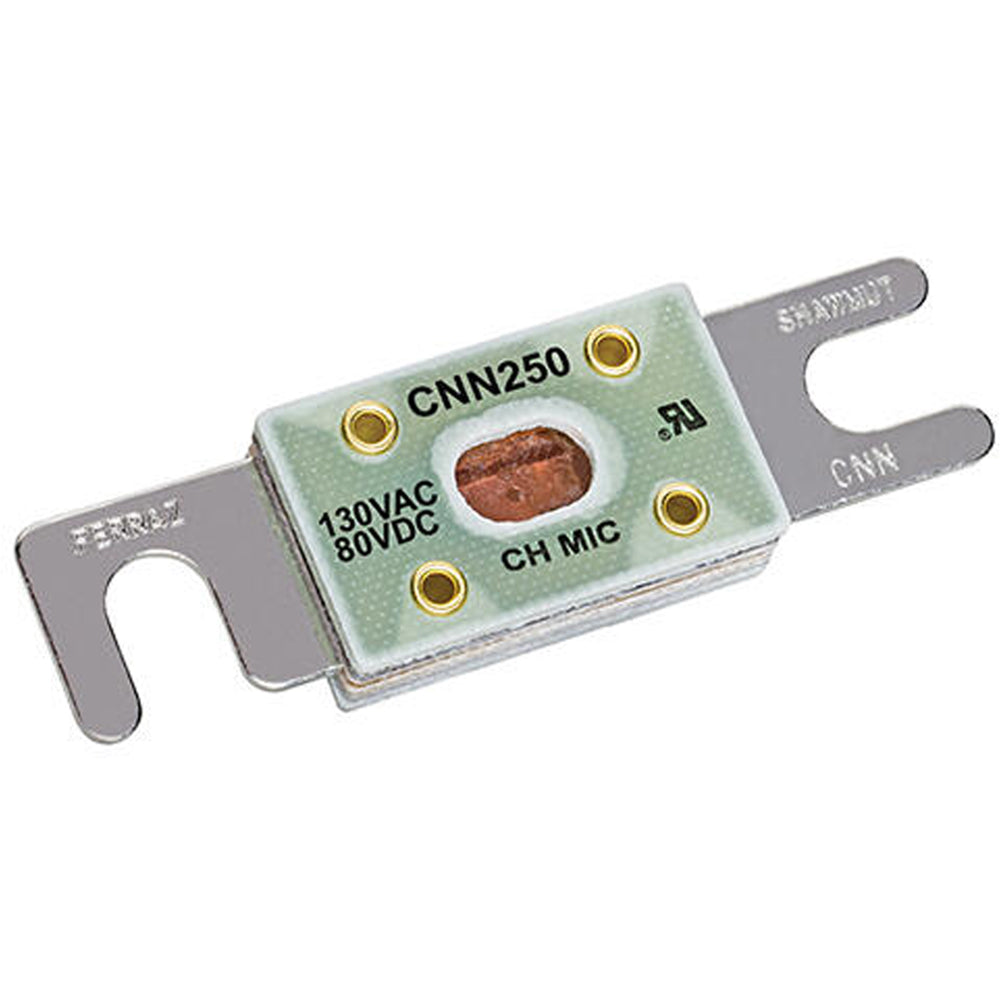

CNN250 is a Littelfuse POWR-GARD fast acting automotive fuse designed for lift trucks, scissor lifts, pallet movers, and other low voltage battery powered equipment. This fuse features a compact size, blade terminal, and stud mounting for easy installation and reliable protection. The CNN250 fuse is rated for 250A current, 125VAC/48VDC voltage, and has a 2.5kA interrupt rating. It includes a window to indicate fuse status and is RoHS compliant. This fuse is ideal for applications requiring fast-acting protection in demanding environments.
- Amperage Rating: 250 A
- Voltage Rating: 125 VAC / 48 VDC
- Interrupt Rating: 2.5 kA
- Mounting Type: Stud
- Terminal Type: Blade
- Series: CNN
- Response Time: Fast Acting
- Indicator Type: Indicating
- RoHS Compliant
- Applications: Lift Trucks, Scissor Lifts, Pallet Movers
- Compact Size
- Window Shows Fuse Status
Specifications
- Part Number: CNN250
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : CNN
- Type : CNN
- Voltage : 130
- Amperage : 250
- AIC rating : 2500kA@130Vac
- Connection : Forklift
- Barrels : 1
Product Data
- UPC : 782001790509
- GTIN : 00079458009040
- Country of Origin : China
- Dimensions : 3/4" x 3-3/16" x
- Weight : 0.08
- Certification : UL Recognized Component To Standard 248-1, File E60314 JFHR2
