2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Appleton
- Sub-Category:Cartridge fuses
Description
CNN100

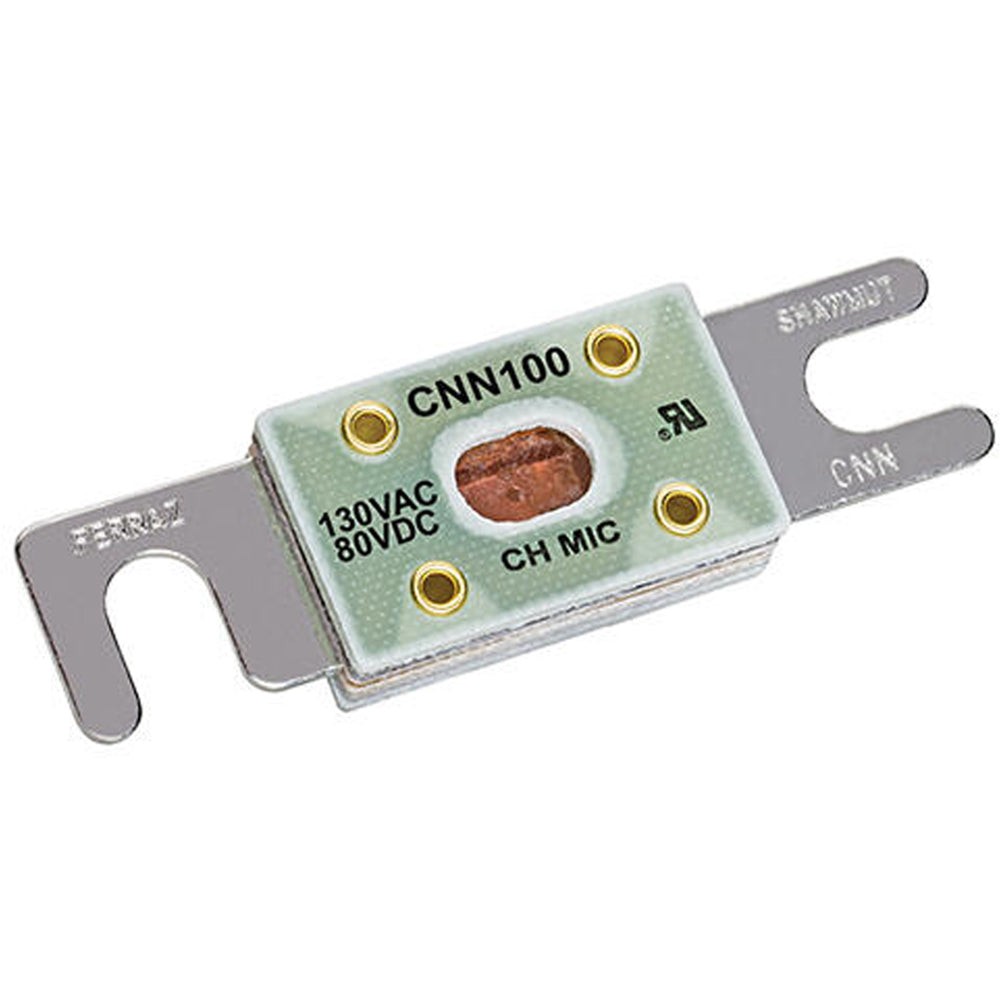

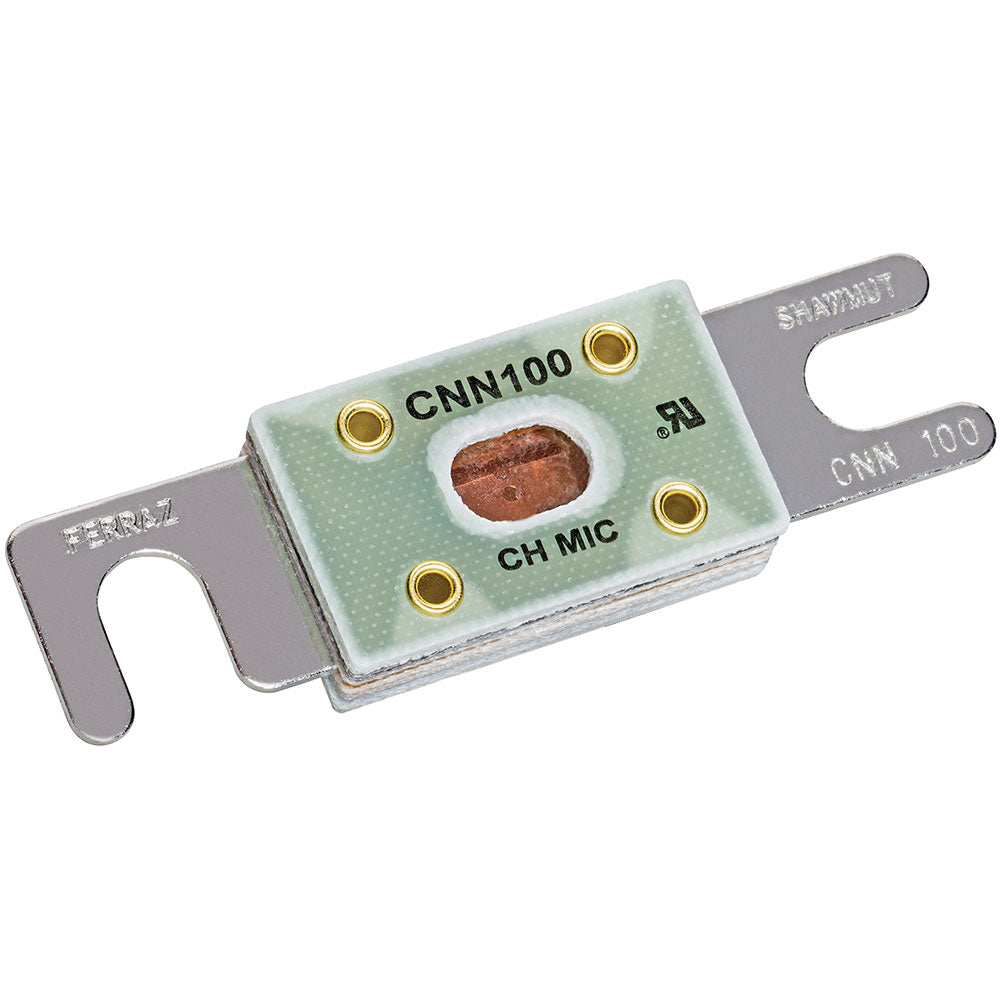

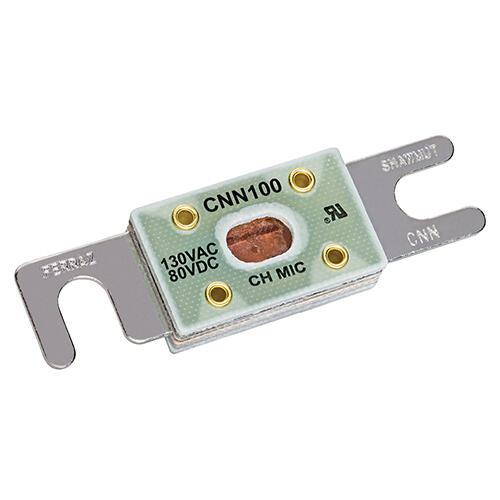

CNN100 is a 100A, 130VAC/80VDC low voltage cartridge fuse designed for forklift trucks and similar battery-powered equipment. This fast-acting fuse features a bolt-on blade terminal and visual indicator for easy status monitoring. The CNN100 is a single barrel cartridge fuse with a very fast-acting response, suitable for applications requiring high interrupt capacity and reliable protection. It is RoHS compliant and features a silver-plated copper blade terminal for secure mounting. The fuse is designed for use in forklift trucks, scissor lifts, pallet movers, and other low voltage battery-operated equipment.
- Part Number: CNN100
- Manufacturer: Appleton
- Amperage Rating: 100A
- Voltage Rating: 130VAC / 80VDC
- Interrupt Rating: 2500A
- Mounting Type: Bolt-On Blade
- Series/Frame: CNN
- Response Time: Fast-Acting
- Visual Indicator: Yes
- RoHS Compliant: Yes
- Terminal Material: Silver-Plated Copper
- Application: Forklift Trucks, Battery Equipment
Specifications
- Part Number: CNN100
- Manufacturer : Appleton
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Cartridge fuses
- Family : CNN
- Type : CNN
- Voltage : 130 /80 DC
- Amperage : 100
- AIC rating : 2500kA@130Vac
- Connection : Forklift
- Barrels : 1
Product Data
- UPC : 782001790448
- GTIN : 00079458008982
- Country of Origin : China
- Dimensions : 0.94 in Dia x 0.59 in L
- Weight : 0.06
- Certification : UL Recognized Component To Standard 248-1, File E60314 JFHR2
