CNN400 O-Z/Gedney NEER 1-1/4 In Non-Insulated Bushed Conduit Nipple, Die Cast Zinc

CNN-400

CNN400 O-Z/Gedney NEER 1-1/4 In Non-Insulated Bushed Conduit Nipple, Die Cast Zinc

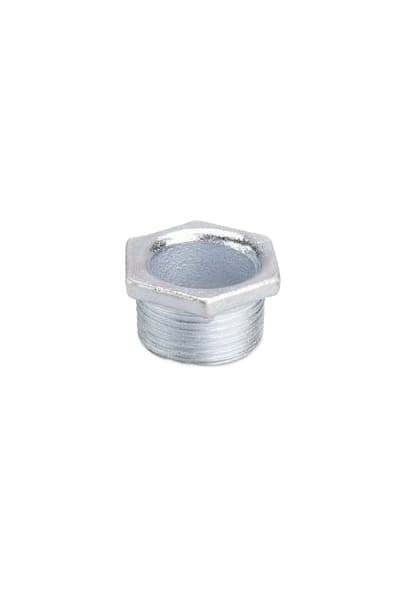

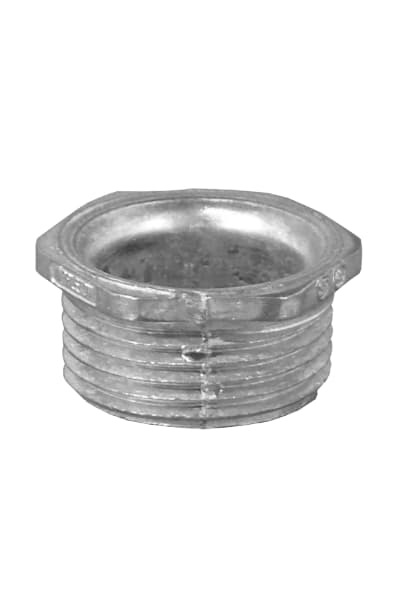

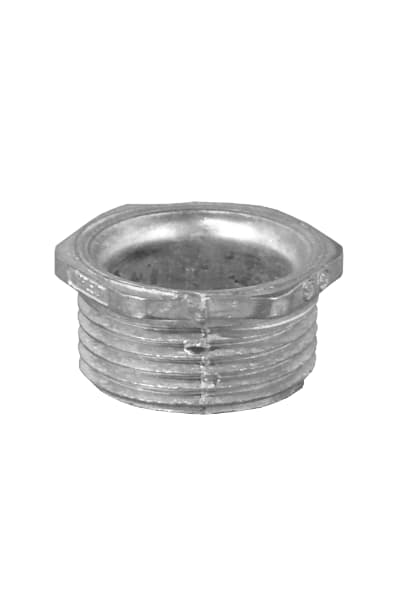

The CNN400 (manufacturer catalog number CNN-400) is a 1-1/4 in O-Z/Gedney NEER bushed conduit nipple built for rigid conduit installations. It is manufactured from die cast zinc with a non-insulated throat and NPS male threaded hex head connections, and it is UL 514B Listed and CSA C22.2 Certified to NEMA FB-1 for use in ordinary (unclassified) locations.

Overall dimensions are 1.74 in in diameter by 0.87 in in length (product measurement), sized to pass through a standard knockout while providing a full threaded connection on each end.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Passes through a box or enclosure knockout to connect to a conduit coupling
• Paired with a locknut to join two boxes side by side or back to back
• Connects a fixture housing to a continuous run of rigid conduit

Key Features

• Material: Die cast zinc construction for corrosion resistance and durability
• Throat type: Non-insulated throat
• Connection: NPS threaded male hex head on both ends
• Listings: UL 514B Listed and CSA C22.2 Certified, meets NEMA FB-1

Specifications

• Catalog Number: CNN400 (CNN-400)
• Manufacturer: O-Z/Gedney, NEER series (Appleton Group, Emerson Electric Co.)
• Trade Size: 1-1/4 in
• Type: Bushed conduit nipple, threaded male/hex head
• Material: Die cast zinc
• Throat Type: Non-insulated
• Diameter: 1.74 in (product measurement)
• Length: 0.87 in (product measurement)
• Used On: Rigid conduit
• Standards: UL 514B Listed, CSA C22.2 Certified, NEMA FB-1

Product Identification

• UPC: 687855949038
• GTIN: 00687855949038

FAQ

• What is the CNN400? It is an O-Z/Gedney NEER 1-1/4 in bushed conduit nipple, die cast zinc, with a non-insulated throat, used to connect a box to a conduit coupling through a knockout.
• What trade size is the CNN400? The CNN400 is sized for 1-1/4 in rigid conduit.
• Is the CNN400 insulated? No. The CNN400 has a non-insulated throat. O-Z/Gedney lists the insulated-throat version under a separate catalog number.
• What standards does the CNN400 meet? It is UL 514B Listed and CSA C22.2 Certified, and it meets NEMA FB-1.
• What material is the CNN400 made from? Die cast zinc.
• What is the CNN400 used for? It passes through a knockout to connect a box to a conduit coupling, and it can be paired with a locknut to join two boxes or connect a fixture housing to a conduit run.

Specifications

• Part Number: CNN-400
• Manufacturer : O-Z/Gedney
• Brand : O-Z/Gedney

Product Data

• UPC : 687855949038
• GTIN : 00687855949038
