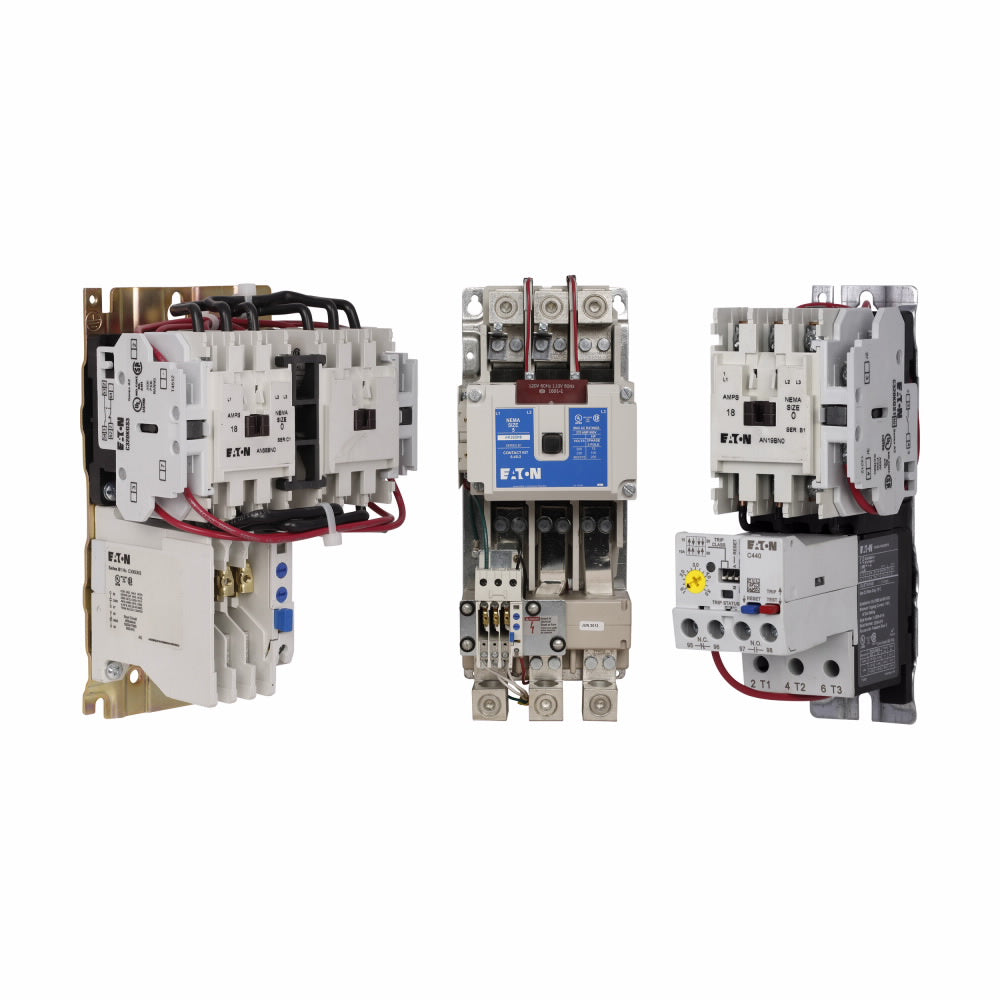

CN55SN3A - Cutler Hammer Eaton 270A 3-Pole NEMA Size 5 Full Voltage Reversing Contactor 120VAC Coil

CN55SN3A

CN55SN3A is a Cutler Hammer Eaton NEMA Size 5 full voltage reversing contactor rated for 270 amps with a 3-pole configuration and 120VAC coil voltage.This Eaton CN55SN3A contactor features a NEMA Size 5 open enclosure design suitable for motor control applications. It supports full voltage reversing operation with a coil voltage of 120VAC at 60 Hz or 110VAC at 50 Hz. The contactor is rated for 270 amps and designed for three-phase power systems. It measures approximately 13.12 inches in height, 7.05 inches in width, and 7.78 inches in length, weighing about 65 pounds.

Key Specifications
• Amperage: 270 Amps
• Poles: 3
• Coil Voltage: 120VAC (60 Hz) / 110VAC (50 Hz)
• Frame Size: NEMA Size 5
• Enclosure Type: Open
• Operation: Full Voltage Reversing
• Manufacturer: Cutler Hammer (Eaton)
• Dimensions (HxWxL): 13.12" x 7.05" x 7.78"
• Weight: 65 lbs
• Phase: 3-Phase
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This NEMA Reversing Contactor includes a 110 VAC coil.




Specifications

• Part Number: CN55SN3A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN55SN
• Voltage : 600
• Amperage : 270
• Phase : 3
• Poles : 3
• Temp Rating : -13–158 °F (-25–70 °C)
• Horse Power : HP @ 3 Phase - 208V 75 hp HP @ 3 Phase - 240V 100 hp HP @ 3 Phase - 480V 200 hp
• Configuration : Reversing
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 120
• Full Load Amps : 270 A
• Coil Voltage Minimum : 110
• Nema Starter Size : 5
• Frequency : 50 Hz



Product Data

• UPC : 782113604183
• GTIN : 00782113604183
• Country of Origin : Dominican Republic
• Dimensions : 7.78 in x 13.12 in x 7.05 in (Length/Depth x Height x Width)
• Weight : 65
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, UL Listed
