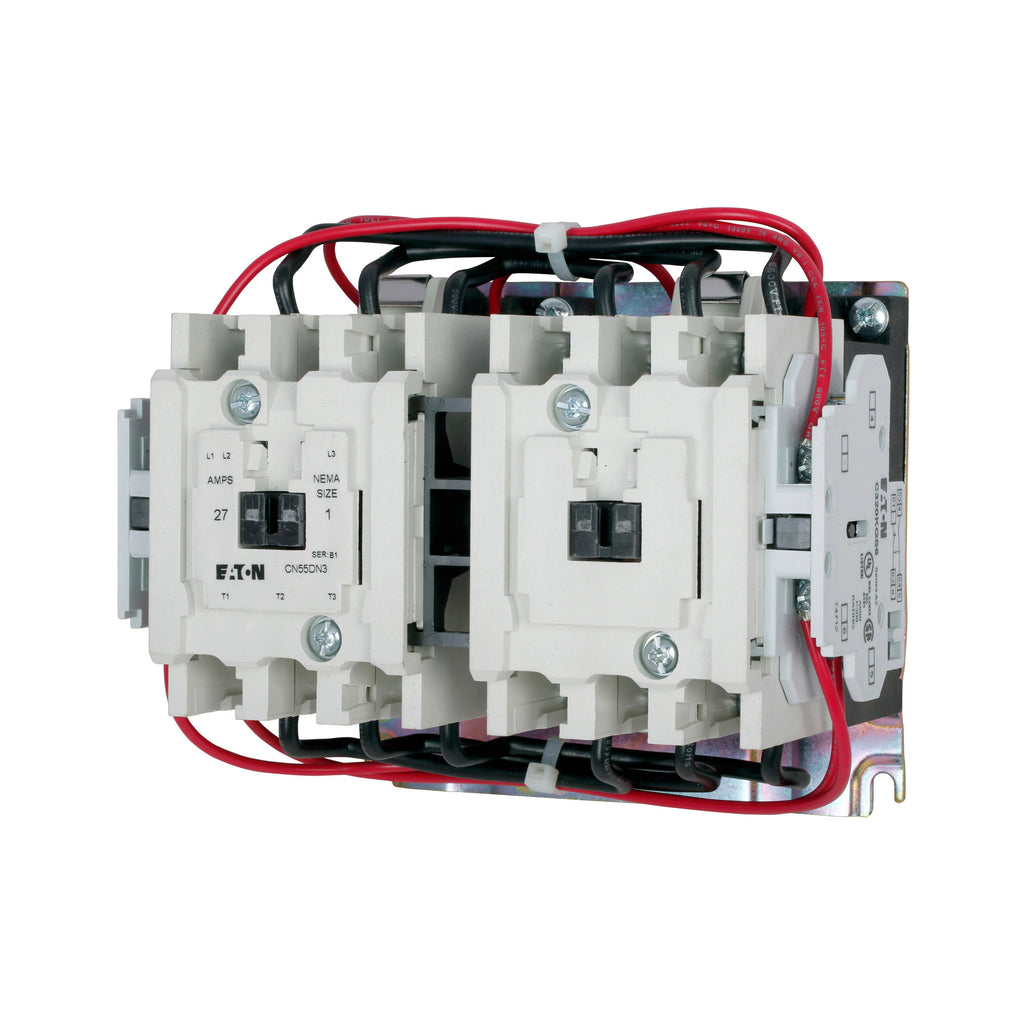

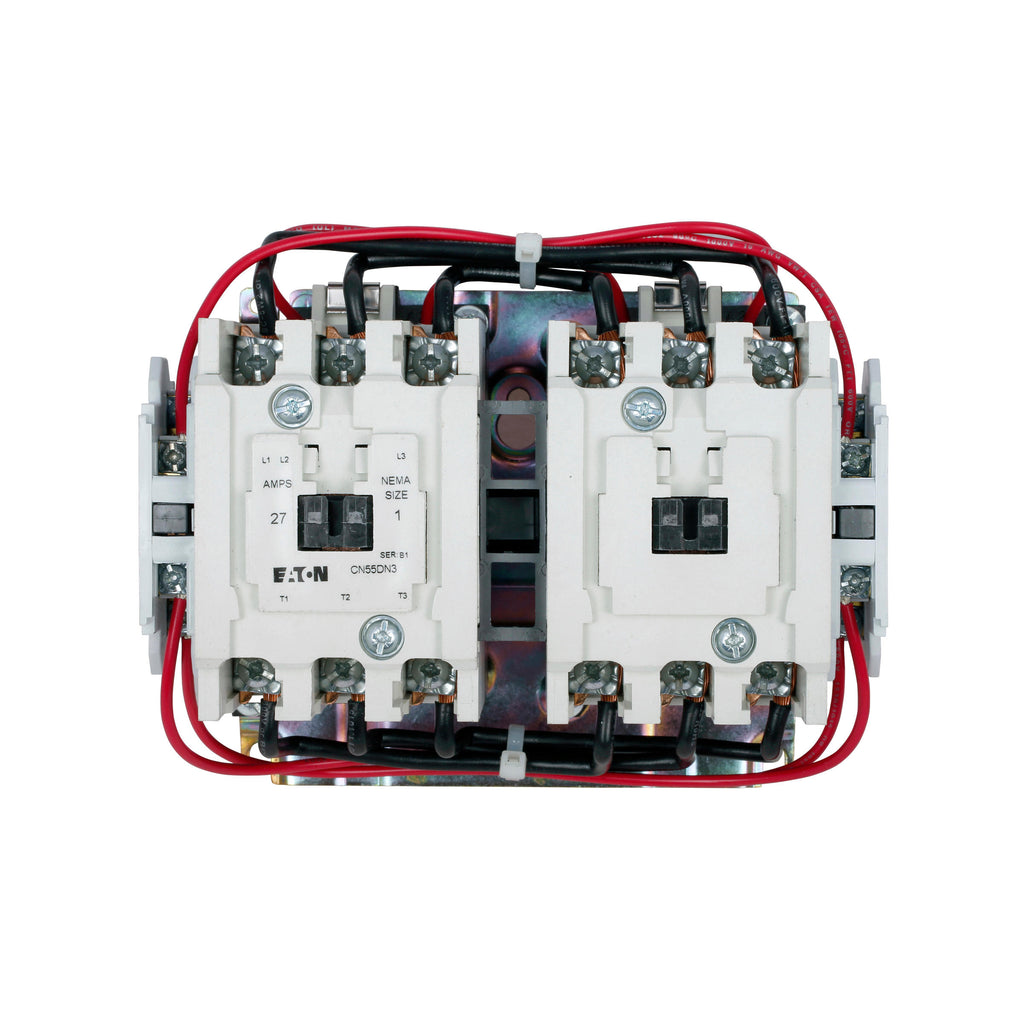

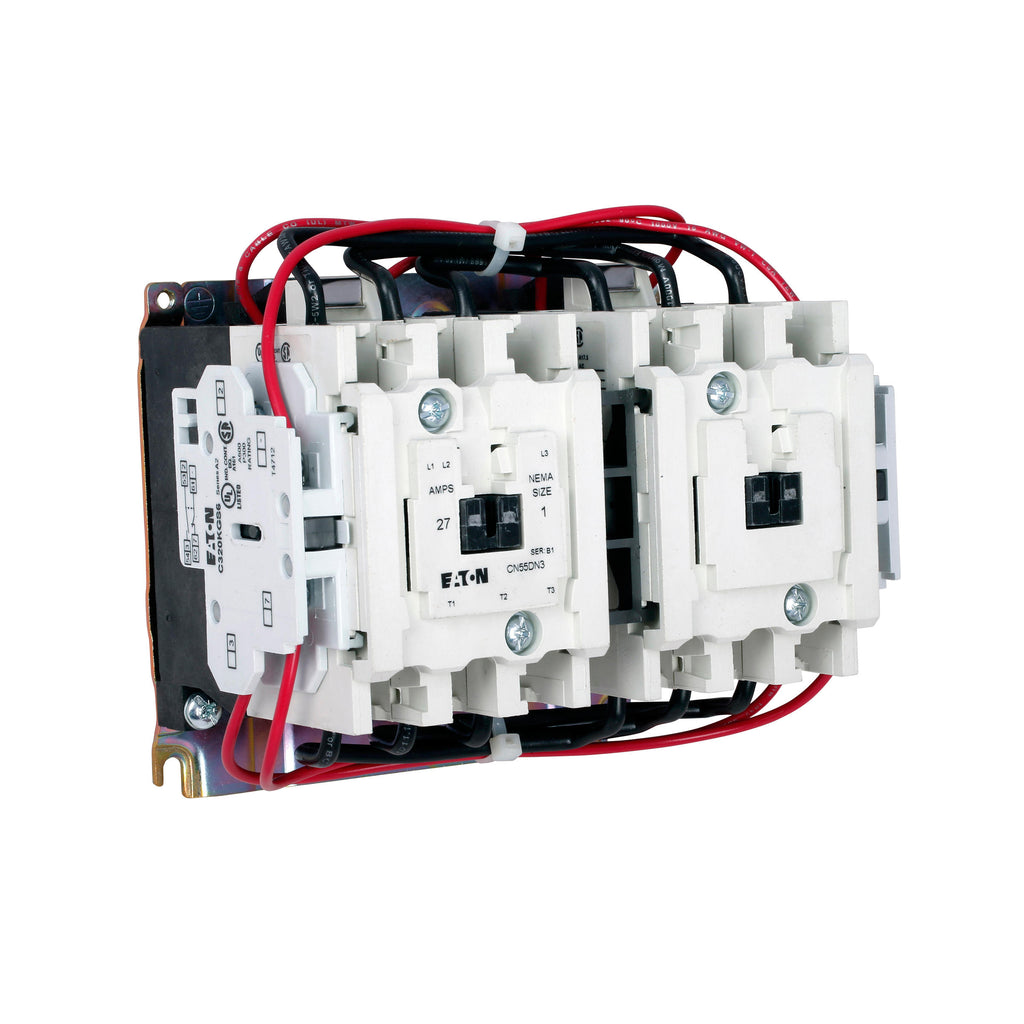

CN55DN3AB - Cutler Hammer Freedom Series 27A 3 Pole NEMA Reversing Motor Contactor 120V Coil

CN55DN3AB

CN55DN3AB is a Cutler Hammer Freedom Series motor control contactor designed for reversing applications with a 27 amp rating and three poles.This Eaton Freedom NEMA motor control contactor supports single-phase and three-phase motors with horsepower ratings of 2 hp at 115V, 3 hp at 230V, 7.5 hp at 208/240V, and 10 hp at 480/600V. It features a 120V/60 Hz or 110V/50 Hz coil voltage, Size 1 frame, and is UL Listed and CSA Certified for safety and reliability.

Key Specifications
• Amperage Rating: 27A
• Voltage: 120V coil, supports motor voltages up to 600V
• Number of Poles: Three-pole
• Mounting Type: NEMA Freedom Series
• Interrupt Rating: Suitable for motor control reversing applications
• Series/Frame: Freedom Series, Size 1
• Trip Unit: Common Control
• Certifications: UL Listed, CSA Certified
• Phase: Single-phase and three-phase compatible
• Horsepower Ratings: 2 hp @ 115V, 3 hp @ 230V, 7.5 hp @ 208/240V, 10 hp @ 480/600V
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This NEMA Reversing Contactor includes a 120 VAC coil.




Specifications

• Part Number: CN55DN3AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN55DN
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
• Configuration : Reversing
• Aux Contacts : 1NO/1NC
• Coil Voltage Maximum : 120
• Full Load Amps : 27 A
• Coil Voltage Minimum : 110
• Nema Starter Size : 1
• Frequency : 50 Hz



Product Data

• UPC : 782113973579
• GTIN : 00782113973579
• Country of Origin : Dominican Republic
• Dimensions : 4.44 in x 5.05 in x 2.56 in (Length/Depth x Height x Width)
• Weight : 23 lb
• Certification : CSA, UL Listed
