CN35KN3A - Cutler Hammer 100A 3-Pole 600V Electrically Held Lighting Contactor CN35 Series

CN35KN3A

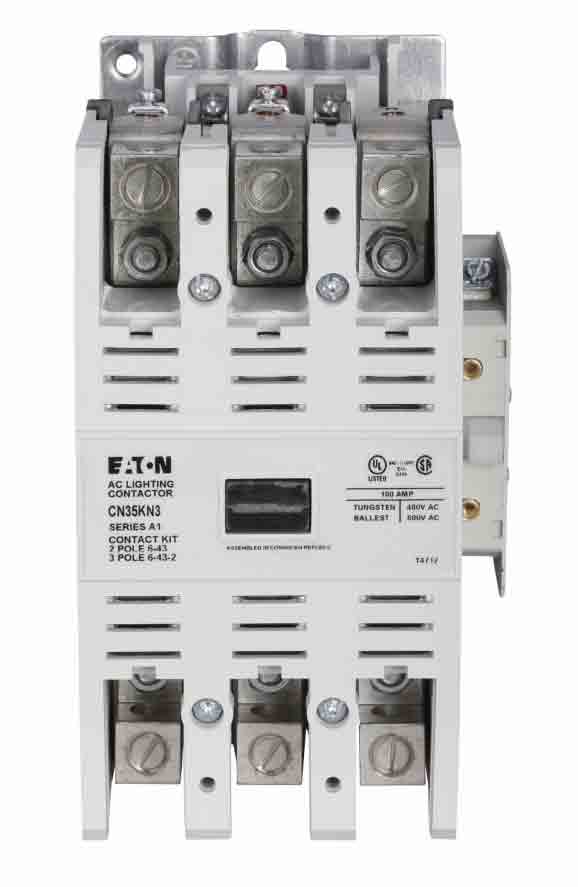

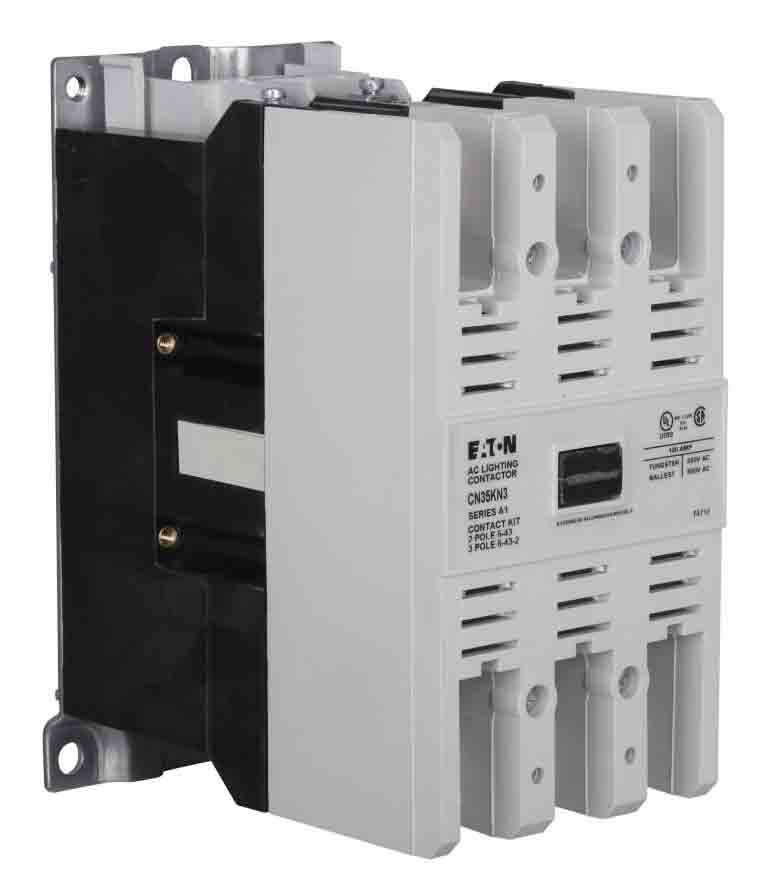

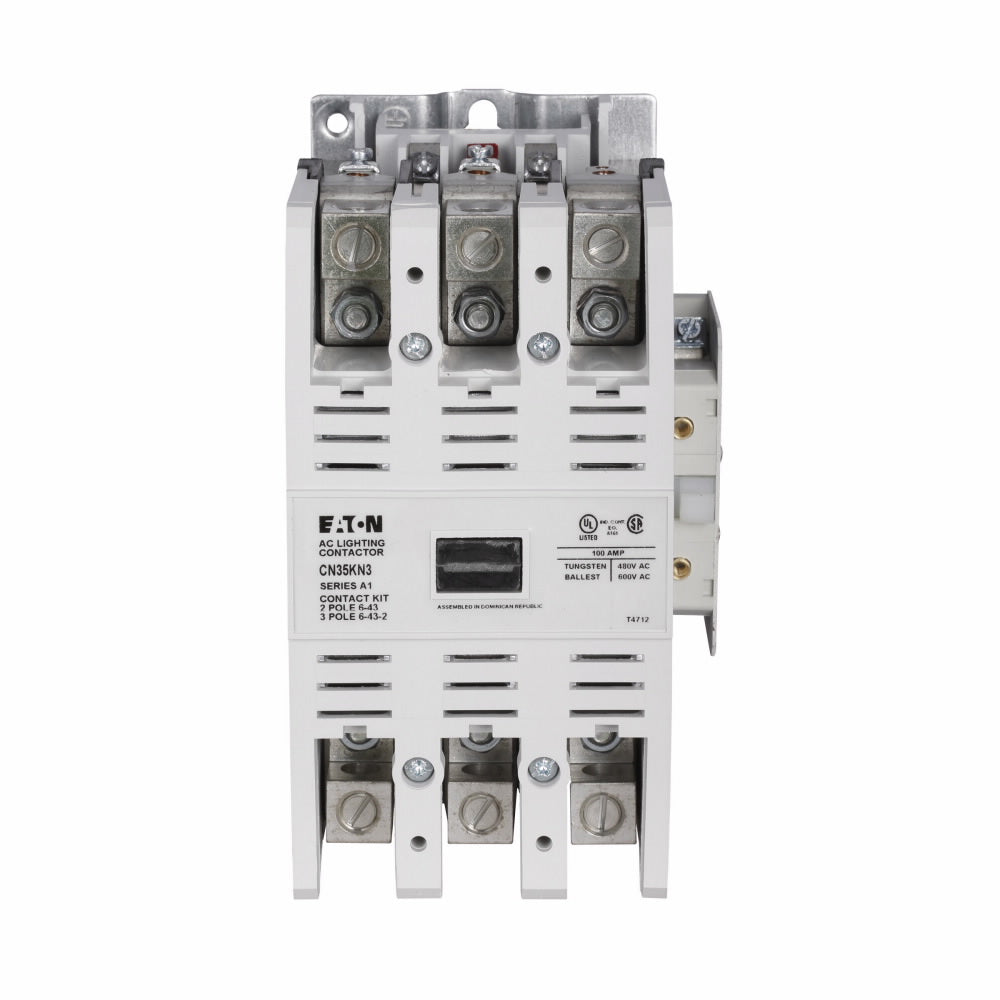

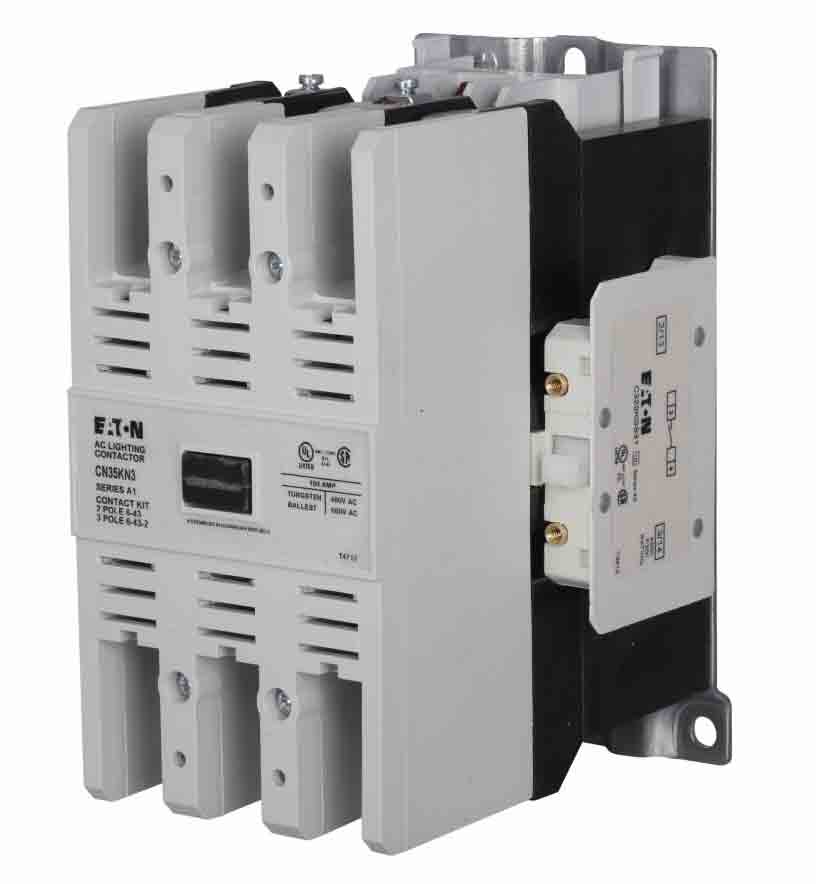

CN35KN3A is a Cutler Hammer electrically held lighting contactor designed for motor control applications.This CN35 series contactor features a 3-pole configuration rated for 100 amps at 480V (filament lamp) or 600V (ballast lamp) applications. It includes a 1 normally open auxiliary contact and operates with a coil voltage of 110V (50 Hz) or 120V (60 Hz). The device is open type, NEMA size 3 frame, suitable for use in lighting control and motor control systems. Certified by CSA and UL, it weighs approximately 9 lbs and measures 7.17" H x 3.54" W x 5.94" D.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: CN35KN3A
• Amperage: 100 A
• Voltage: 480V (filament lamp), 600V (ballast lamp)
• Poles: 3
• Coil Voltage: 110V 50Hz / 120V 60Hz
• Auxiliary Contacts: 1 Normally Open (NO)
• Type: Electrically Held Lighting Contactor
• Series/Frame: CN35, NEMA Size 3
• Mounting Type: Open Type
• Certifications: CSA Certified, UL Listed
• Weight: 9 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This Electrically Held includes a 120 VAC coil.

Specifications

• Part Number: CN35KN3A
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : CN35
• Type : CN35
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• Aux Contacts : 1 NO
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110
• Frequency : 50 Hz

Product Data

• UPC : 782113618937
• GTIN : 00782113618937
• Dimensions : 5.94 in x 7.17 in x 3.54 in (Length/Depth x Height x Width)
• Weight : 9 lb
• Certification : UL, CSA
