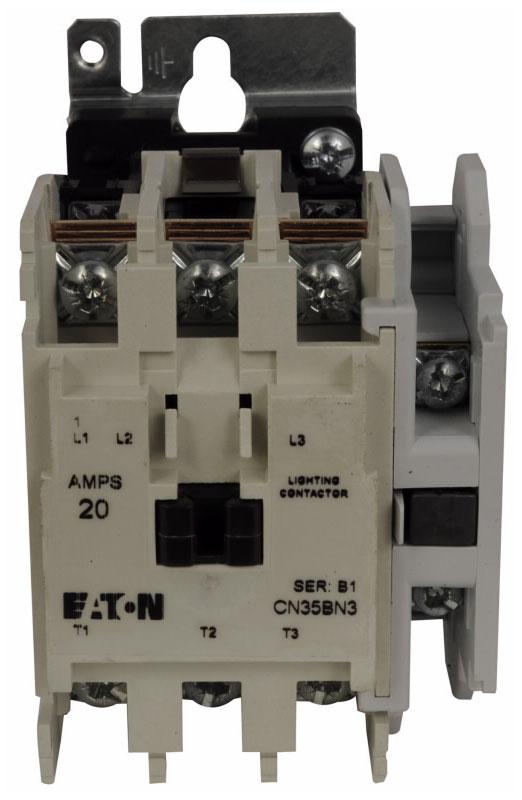

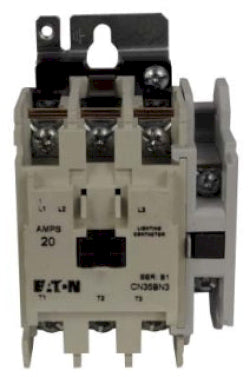

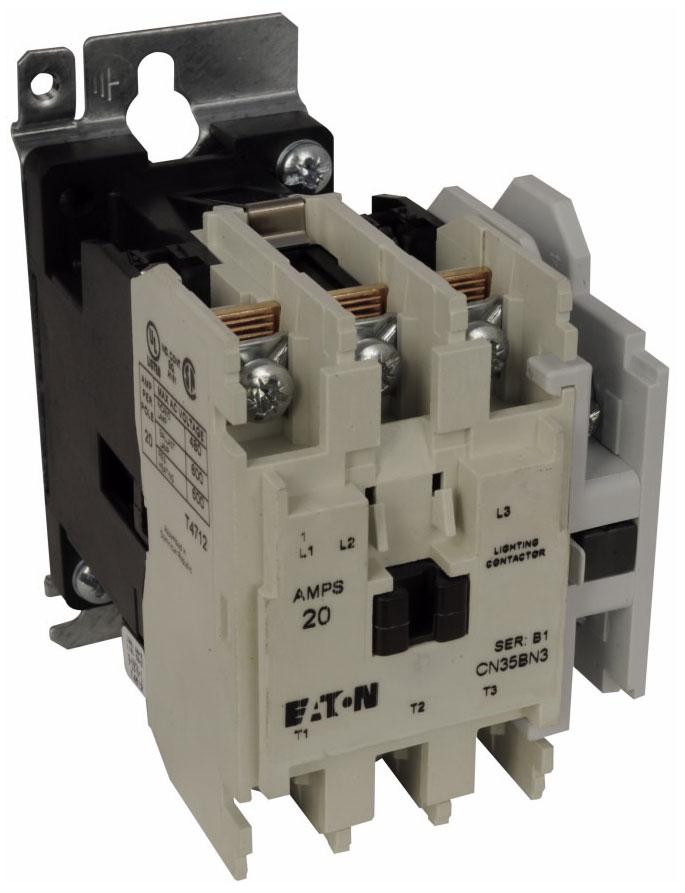

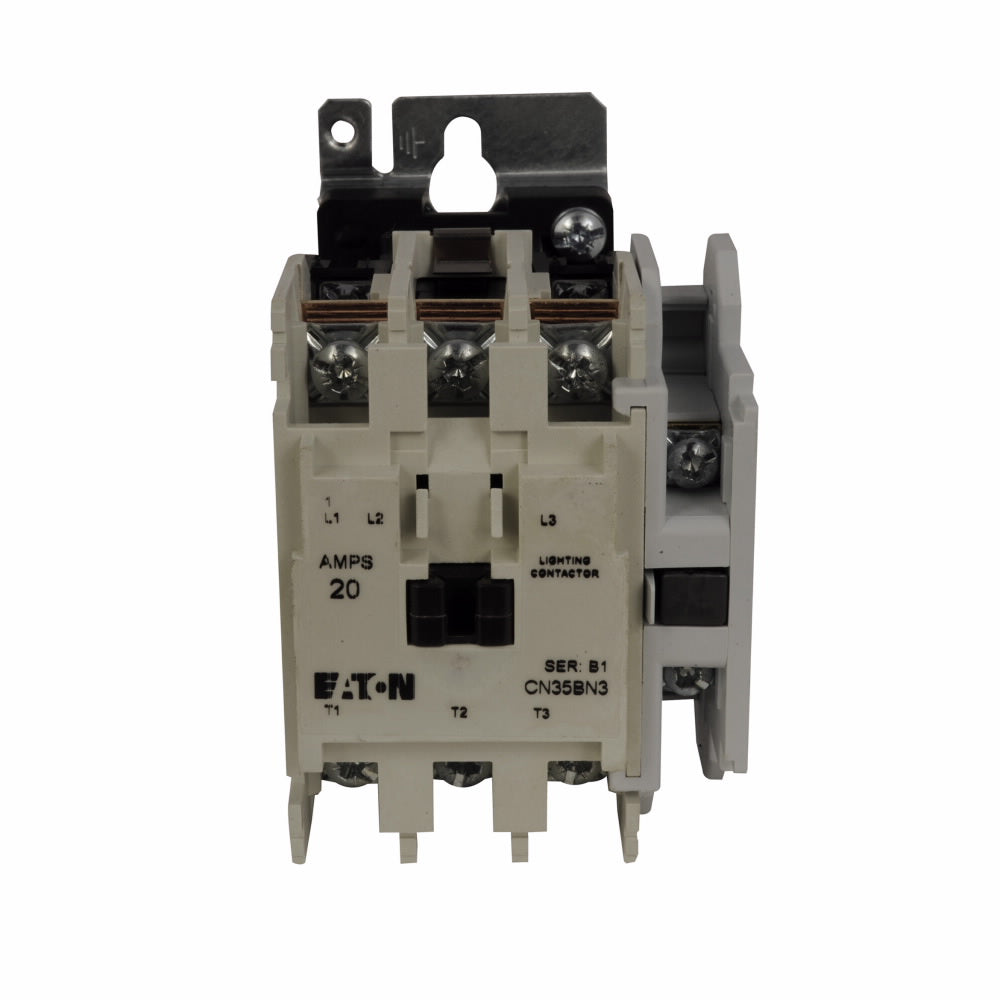

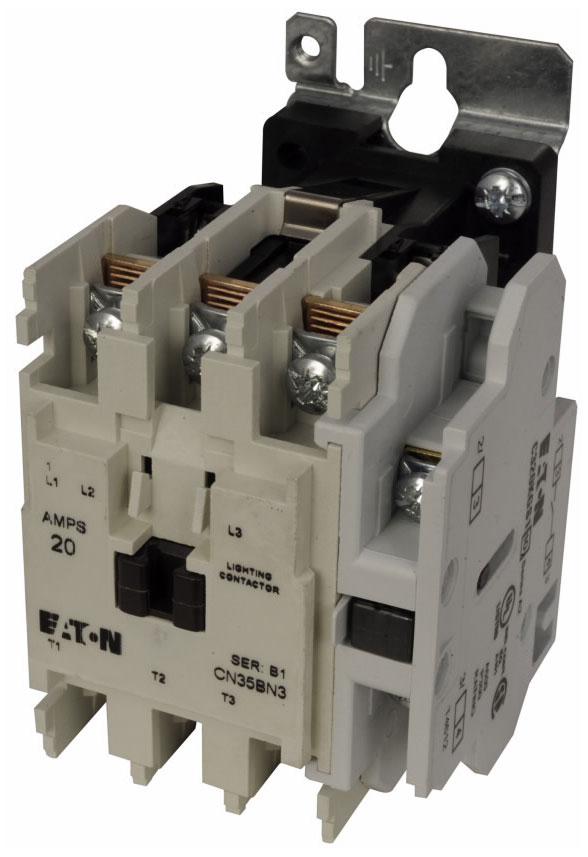

CN35BN3AB - Cutler Hammer 20A 3-Pole Electrically Held Lighting Contactor 120V Coil Panel Mount

CN35BN3AB

CN35BN3AB is a Cutler Hammer electrically held lighting contactor designed for reliable motor control and lighting applications.This 3-pole contactor features a 20 amp rating suitable for tungsten or ballast lamp loads, with a coil voltage of 110V at 50Hz or 120V at 60Hz. It is panel mounted and includes 1 normally open auxiliary contact with screw terminals for easy installation and removal. The contactor supports up to 600V operation and is part of the CN35 series, ideal for commercial and industrial lighting control systems.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: CN35BN3AB
• Amperage: 20A
• Voltage: 600V max, Coil Voltage 110V 50Hz / 120V 60Hz AC
• Poles: 3
• Mounting Type: Panel Mount
• Auxiliary Contact: 1 Normally Open (N/O)
• Series/Frame: CN35
• Type: Electrically Held Lighting Contactor
• Application: Tungsten and Ballast Lamp Loads
• Dimensions: 3.5" x 4.5" x 4.7"
• Weight: 1.25 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CN35BN3AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : CN35
• Type : CN35
• Voltage : 600
• Amperage : 20
• Phase : 3
• Poles : 3
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 110

Product Data

• UPC : 078211378078
• GTIN : 00782113780788
• Country of Origin : United States
• Dimensions : 4.7 in x 3.5 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 1.25 lb
• Certification : UL Listed,CSA Certified
