Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description
CN15DN3BB

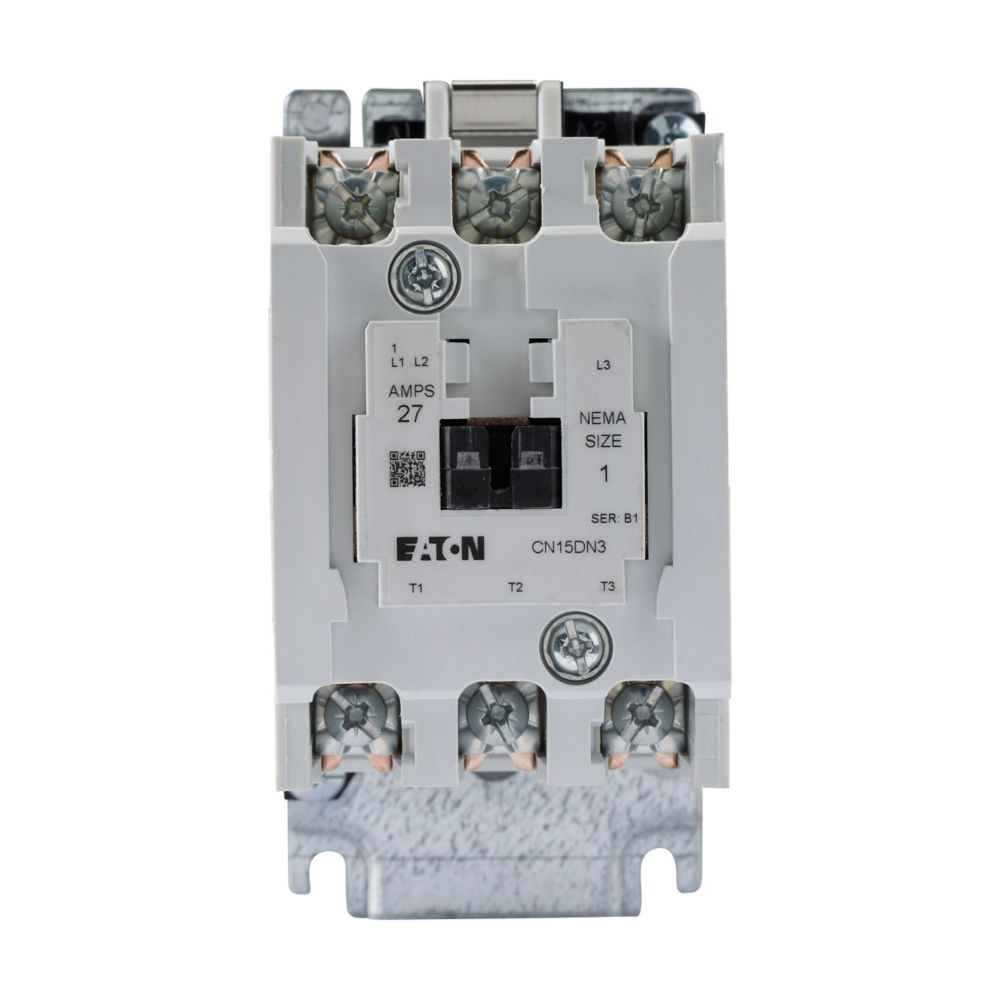

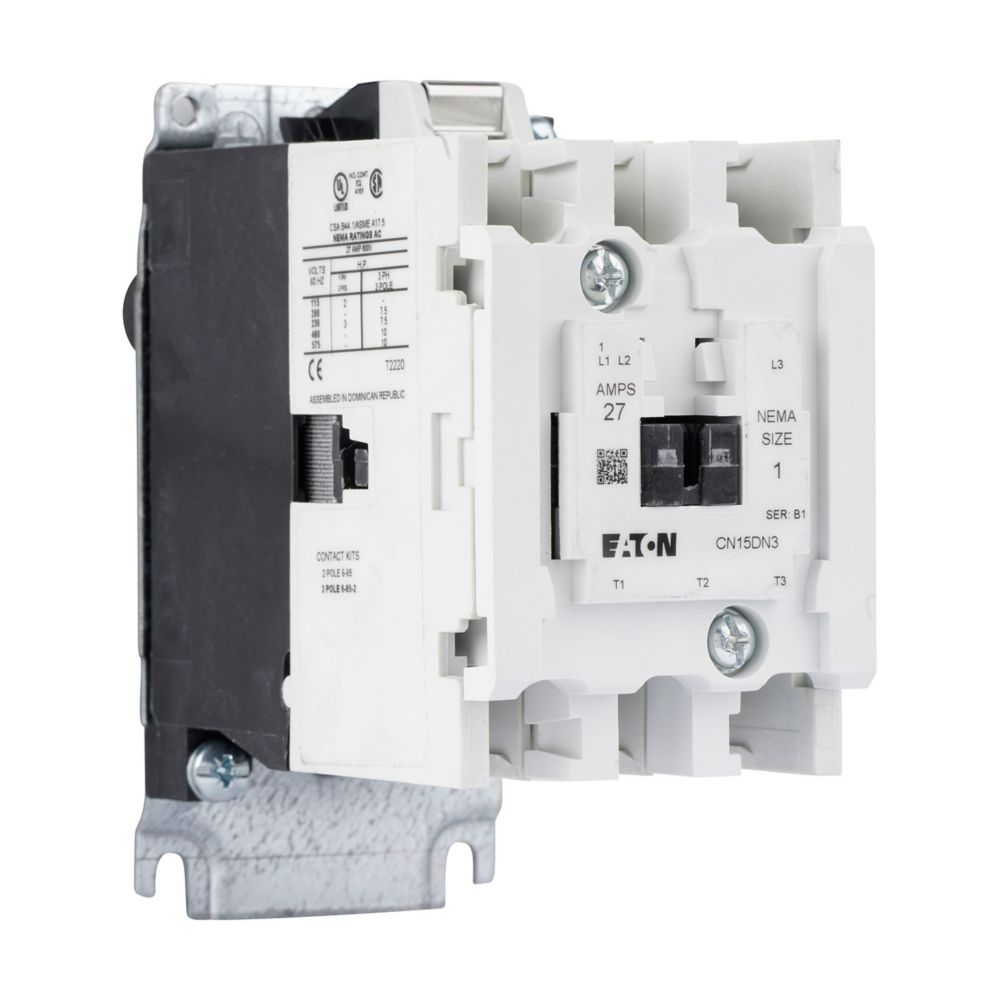

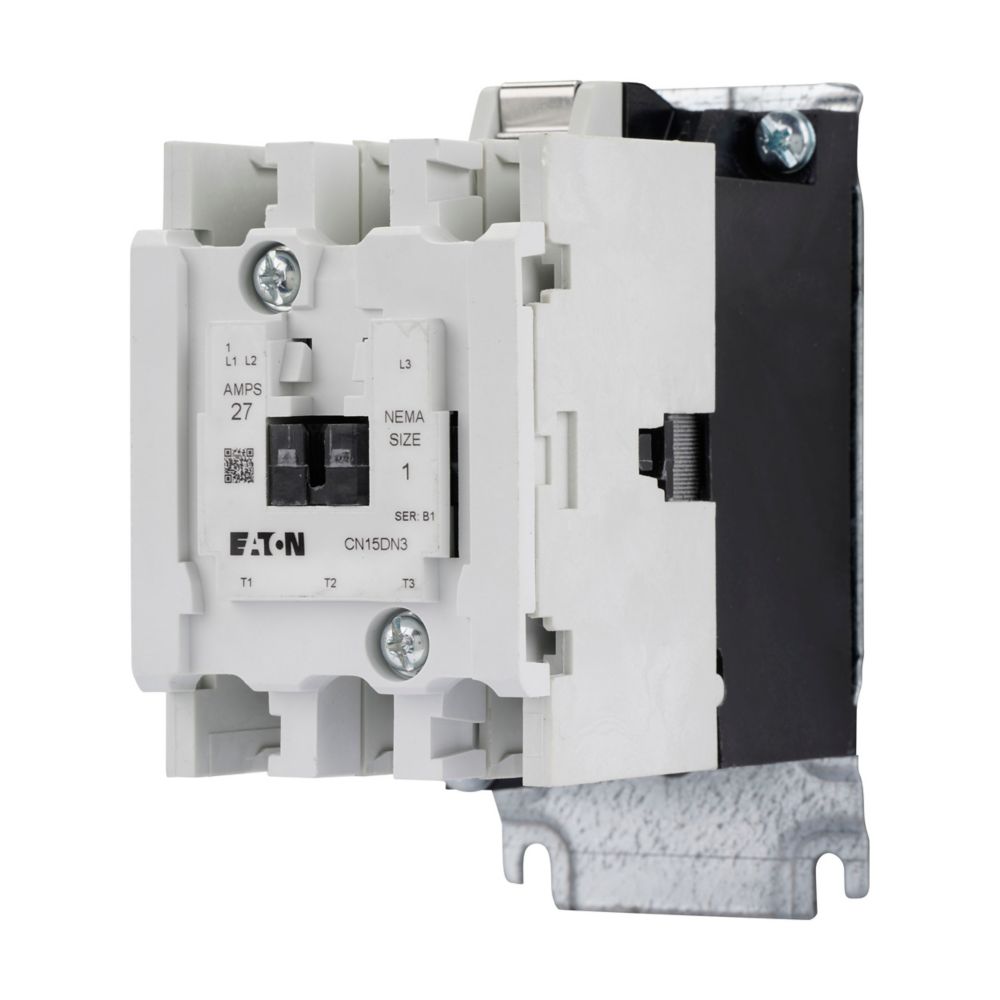

CN15DN3BB is a Cutler Hammer Freedom Series motor control contactor designed for reliable motor switching applications.This 3-pole, size 1 contactor features a 27 amp rating and supports voltages up to 600V. It is suitable for single-phase and three-phase motors with horsepower ratings of 2 hp at 115V, 3 hp at 230V, 7.5 hp at 208/240V, and 10 hp at 480/600V. The contactor is non-reversing and CSA certified, ensuring compliance with safety standards. It is built for durability with a NEMA Freedom frame and designed for common control applications.
- Key Specifications
- Amperage: 27A
- Voltage Rating: 600V
- Number of Poles: 3-Pole
- Size: 1
- Horsepower Ratings: 2 hp at 115V, 3 hp at 230V, 7.5 hp at 208/240V, 10 hp at 480/600V
- Type: Non-Reversing Motor Contactor
- Series: Freedom NEMA
- Certifications: CSA Certified
- Phase: Single-phase and Three-phase
- Part Number: CN15DN3BB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Freedom Series
- Type : CN15DN
- Voltage : 600
- Amperage : 27
- Phase : 3
- Poles : 3
- Temp Rating : -13–158 °F (-25–70 °C)
- Coil Voltage Maximum : 240
- Coil Voltage Minimum : 220
- UPC : 782113981420
- GTIN : 00782113981420
- Country of Origin : Dominican Republic
- Dimensions : 4.44 in x 5.05 in x 2.56 in (Length/Depth x Height x Width)
- Weight : 3.1
- Temp Rating : -13–158 °F (-25–70 °C)
- Certification : CSA, UL Listed
