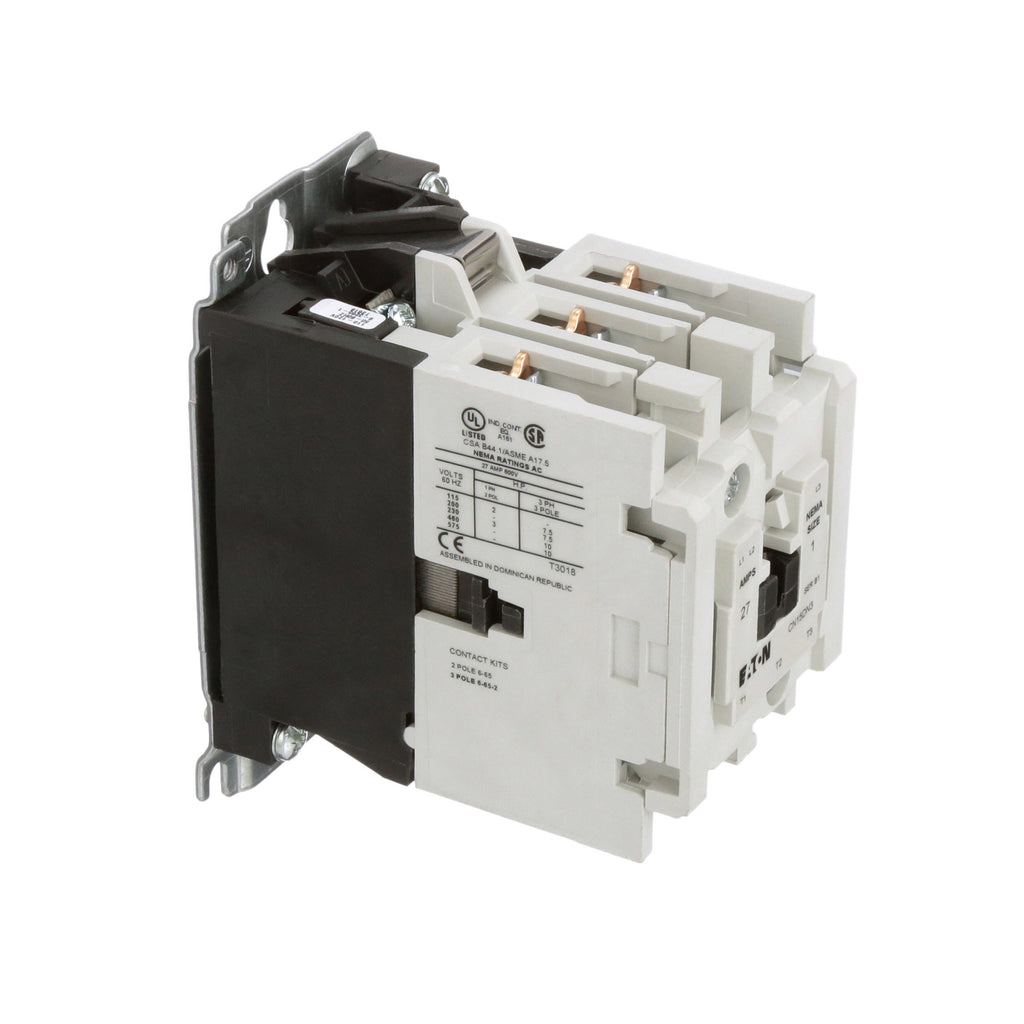

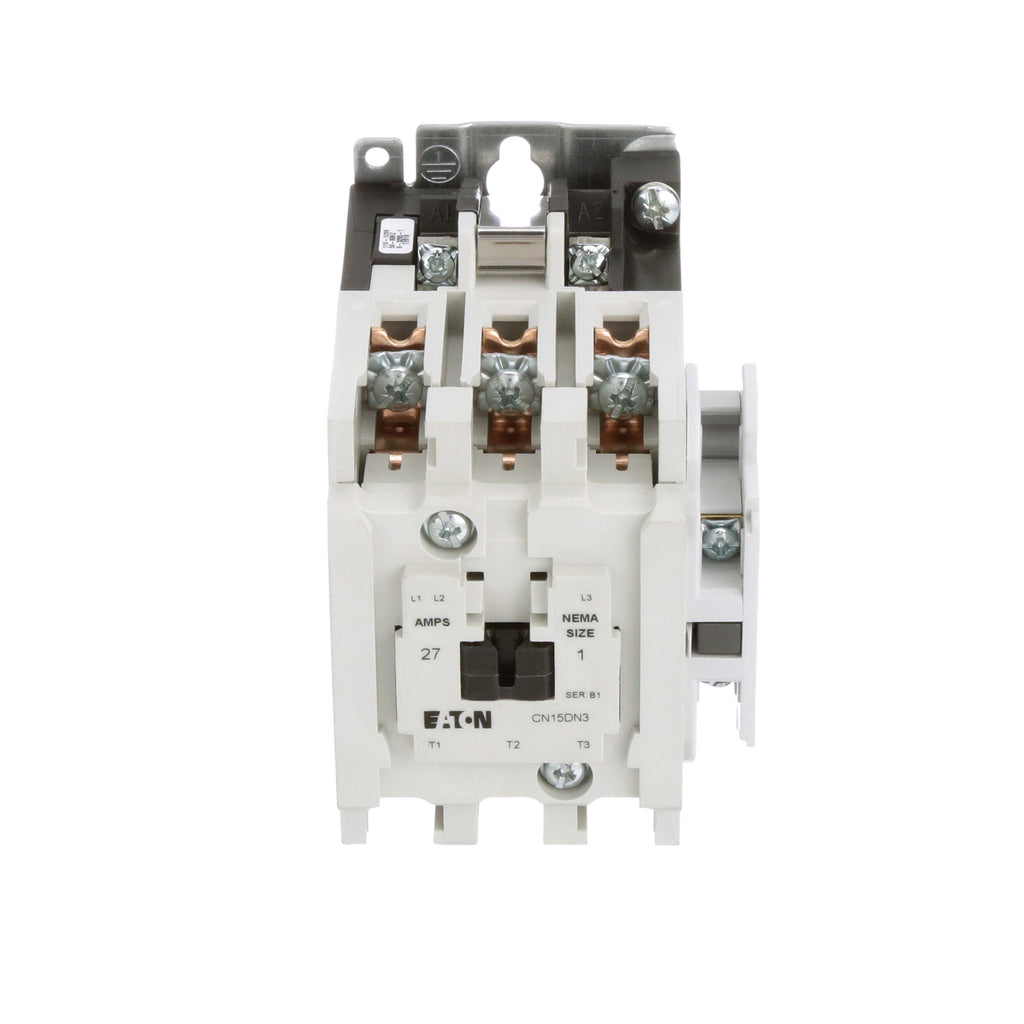

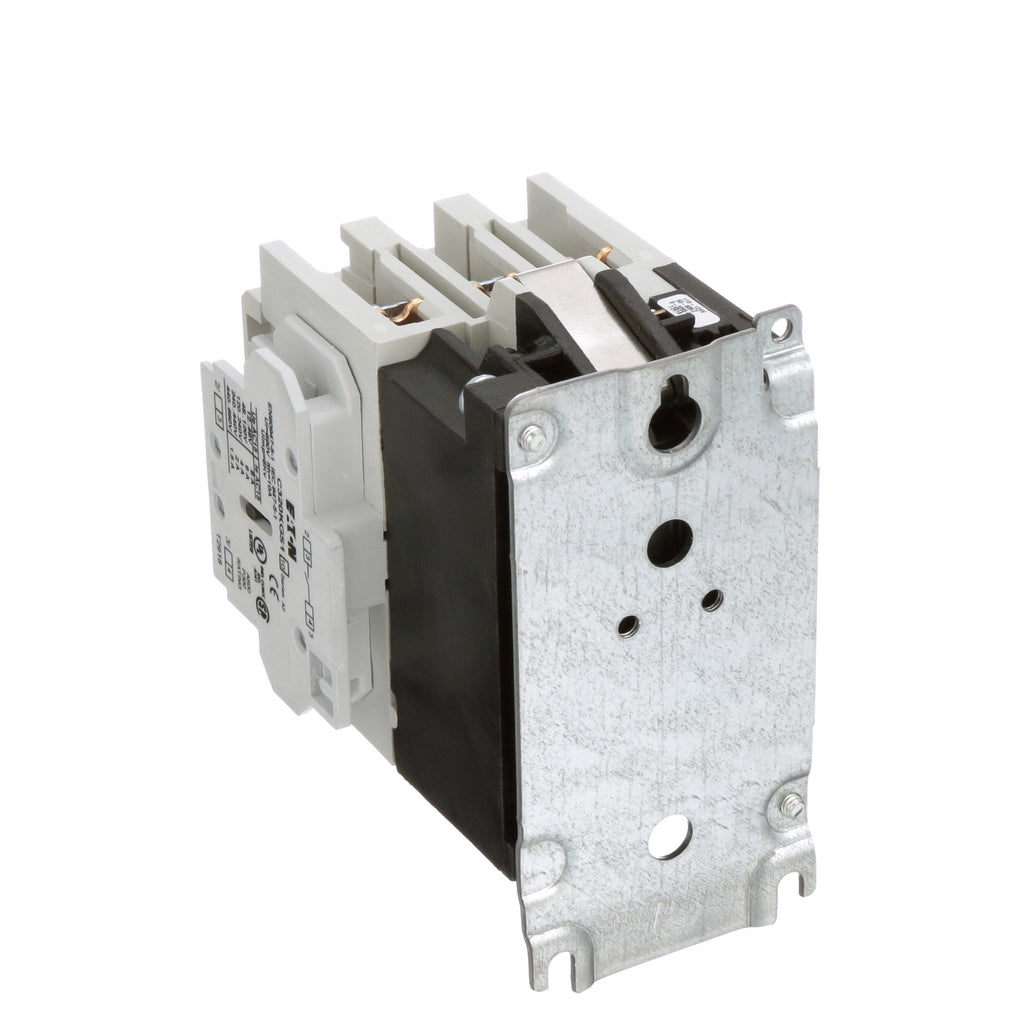

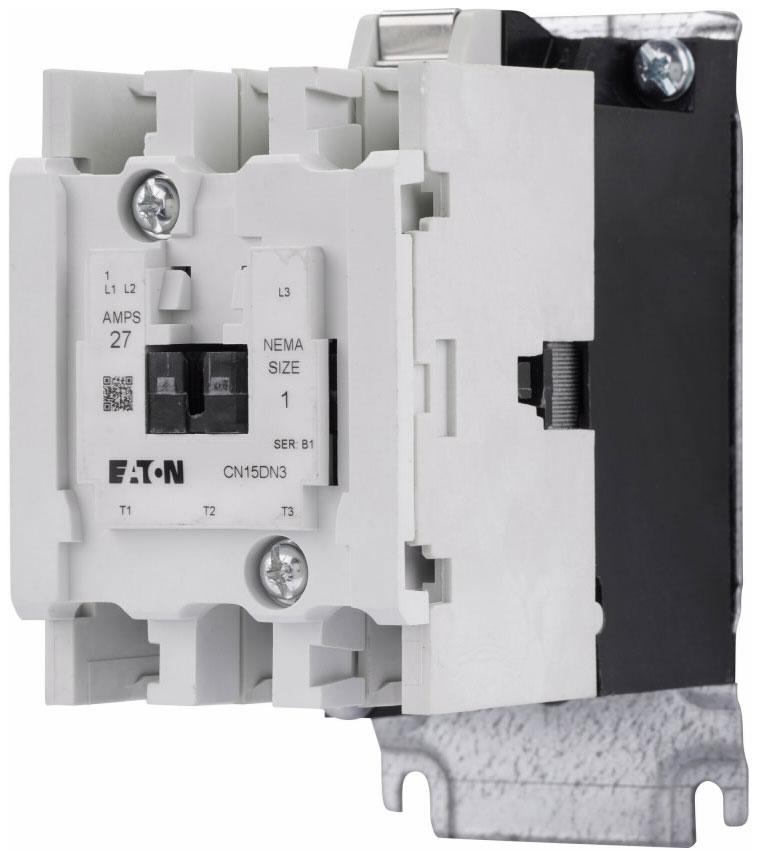

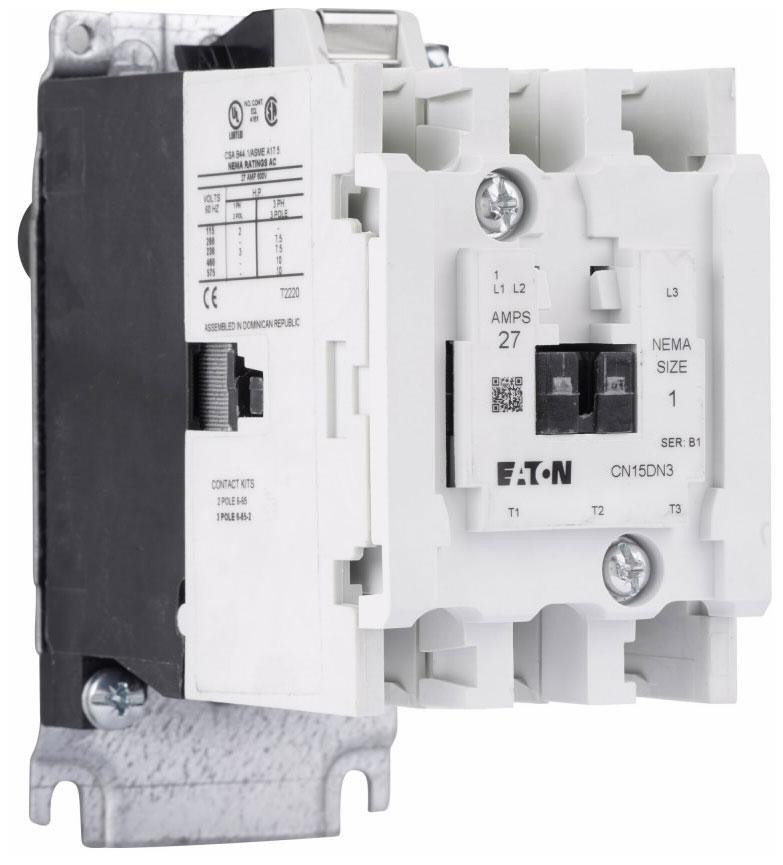

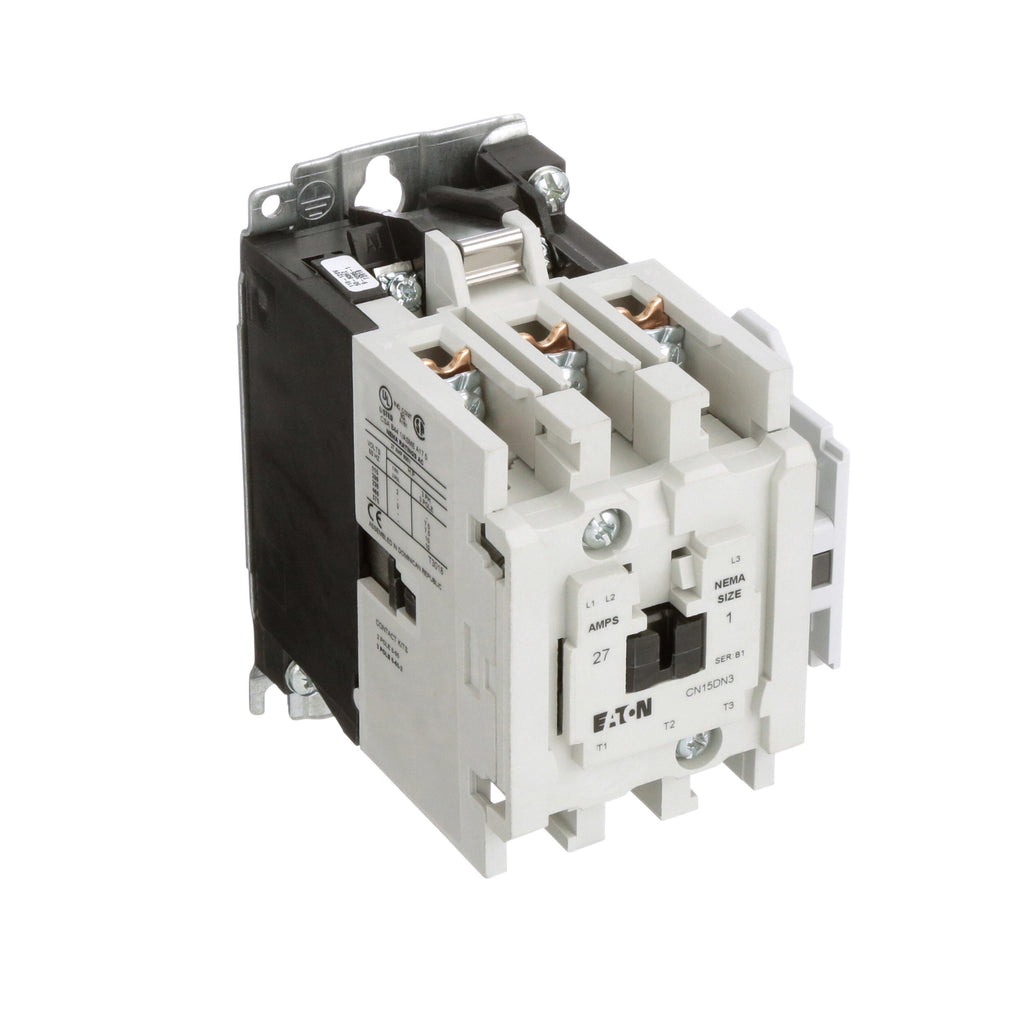

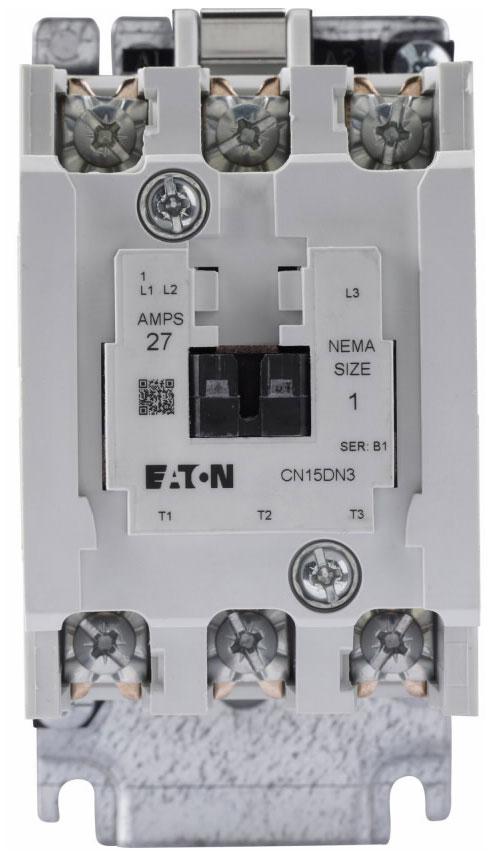

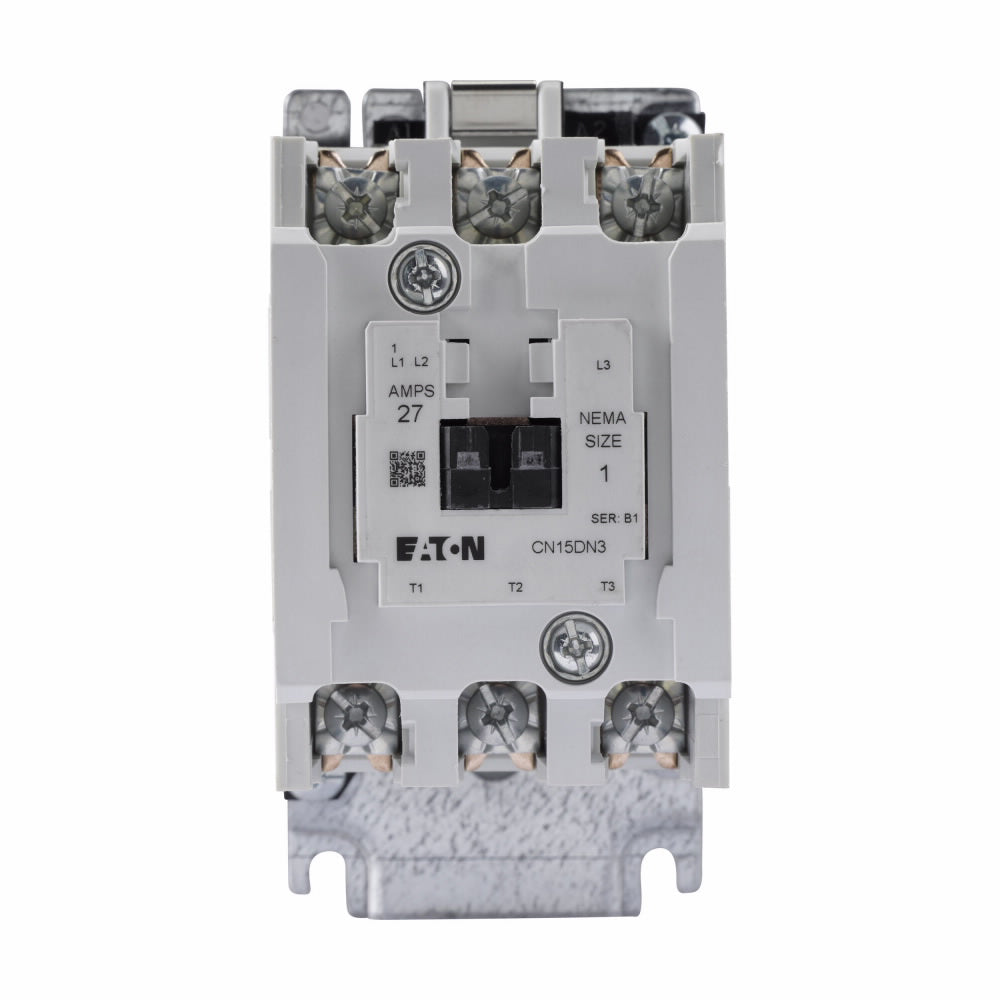

CN15DN3AB - Cutler Hammer NEMA Size 1 Non-Reversing Magnetic Motor Contactor 27A 3P 120V AC Coil

CN15DN3AB

CN15DN3AB is a NEMA Size 1 non-reversing magnetic motor contactor designed for reliable motor control applications. This Cutler Hammer contactor features a 120V AC coil, 27A amperage rating, and is suitable for both single-phase and three-phase systems. It is built for durability and performance in general duty environments. This contactor is part of the Freedom Series, offering robust construction and compatibility with Cutler Hammer motor control systems. The open style design allows for easy installation and maintenance. It is rated for full voltage up to 600VAC and is suitable for use in a wide range of industrial and commercial applications.

• NEMA Size 1
• 27A Amperage Rating
• 3 Poles
• 120V AC Coil
• Full Voltage 600VAC
• Non-Reversing
• Open Style, No Enclosure
• Single-phase and Three-phase Compatible
• UL Listed, CSA Certified
• Maximum HP: 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208/240V, 10 hp at 480/600V
• 2,000,000 Electrical Operations
• 20,000,000 Mechanical Operations

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CN15DN3AB
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Motor Control
• Item Subcategory : Contactor
• Family : Freedom Series
• Type : CN15DN
• Voltage : 600
• Amperage : 27
• Phase : 3
• Poles : 3
• Horse Power : HP @ 3 Phase - 208V 7 1/2 hp HP @ 3 Phase - 240V 7 1/2 hp HP @ 3 Phase - 480V 10 hp
• Aux Contacts : 1NO
• Coil Voltage Maximum : 120
• Full Load Amps : 27 A
• Coil Voltage Minimum : 110

Product Data

• UPC : 782113973524
• GTIN : 00782113973524
• Country of Origin : Dominican Republic
• Dimensions : 4.44 in x 5.05 in x 2.56 in (Length/Depth x Height x Width)
• Weight : 3.1 lb
• Certification : CSA, UL Listed
