Description

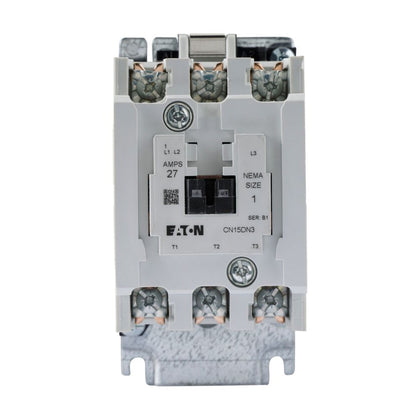

CN15DN3A4B
CN15DN3A4B is an Eaton Freedom NEMA motor control contactor designed for reliable motor switching applications.This non-reversing contactor features a 27 Amp current rating, 3 poles, and a 600VAC voltage rating. It supports motor horsepower ratings of 2 hp at 115V, 3 hp at 230V, 7.5 hp at 208/240V, and 10 hp at 480/600V. The coil voltage is 110/120V AC at 50/60Hz. It is part of Eaton's Freedom Series and is suitable for various industrial motor control needs.
- Key Specifications
- Manufacturer: Eaton
- Part Number: CN15DN3A4B
- Current Rating: 27 Amps
- Voltage Rating: 600VAC
- Poles: 3
- Coil Voltage: 110/120V AC, 50/60Hz
- Motor HP Ratings: 2 hp @ 115V, 3 hp @ 230V, 7.5 hp @ 208/240V, 10 hp @ 480/600V
- Series/Frame: Freedom NEMA
- Type: Non-Reversing Contactor
- Part Number: CN15DN3A4B
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Contactor
- UPC : 78211447433
- GTIN : 00782114474334
- Country of Origin : Dominican Republic
- Dimensions : 4.44 in x 3.5 in x 2.56 in (Length/Depth x Height x Width)
- Weight : 2.79
- Certification : UL Listed,NEMA,CSA,BS,VDE
