Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Contactor
Description

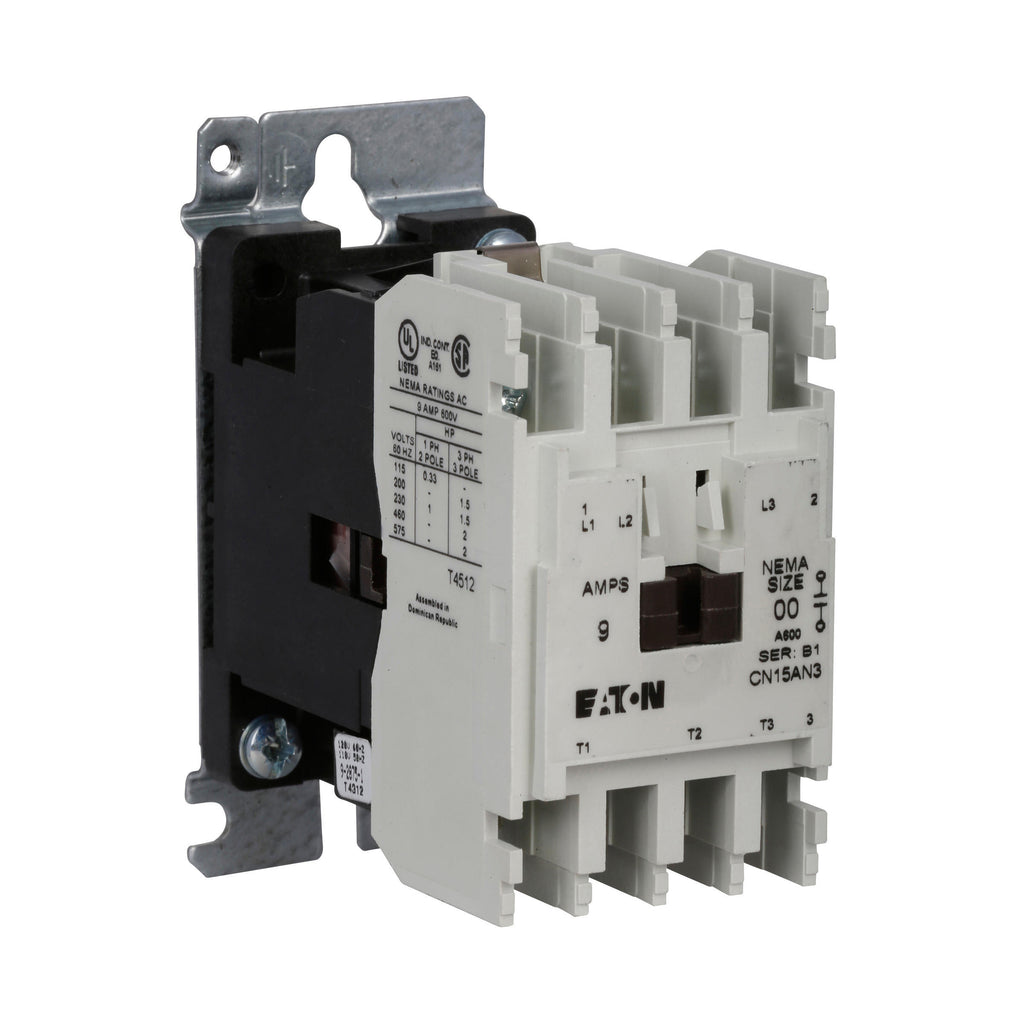

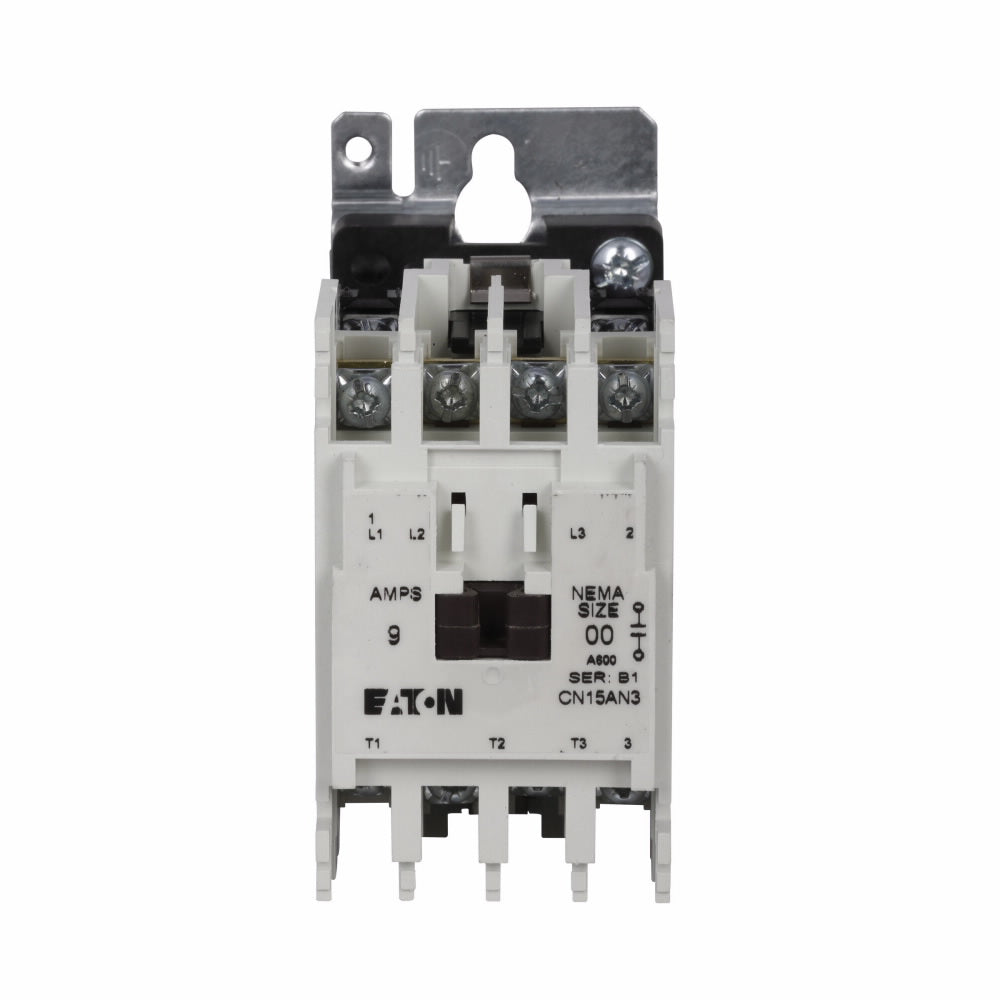

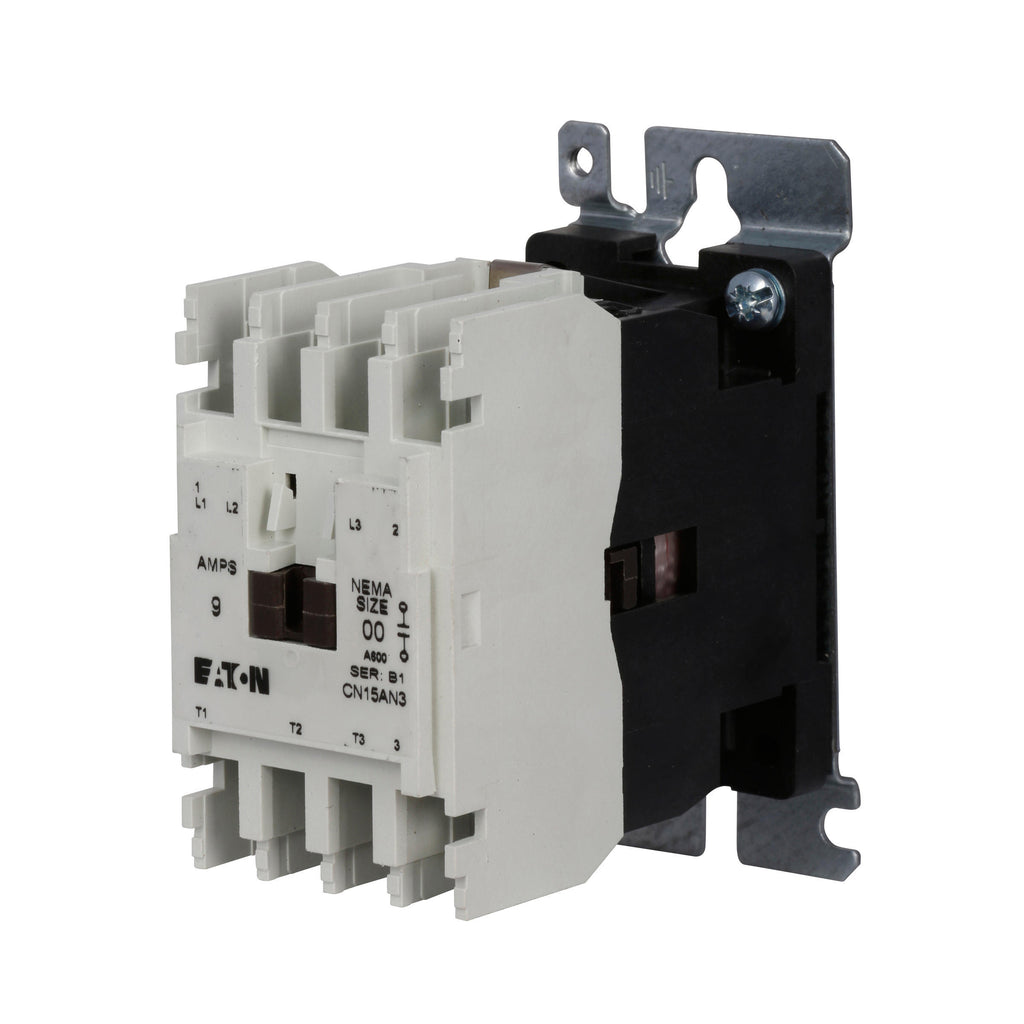

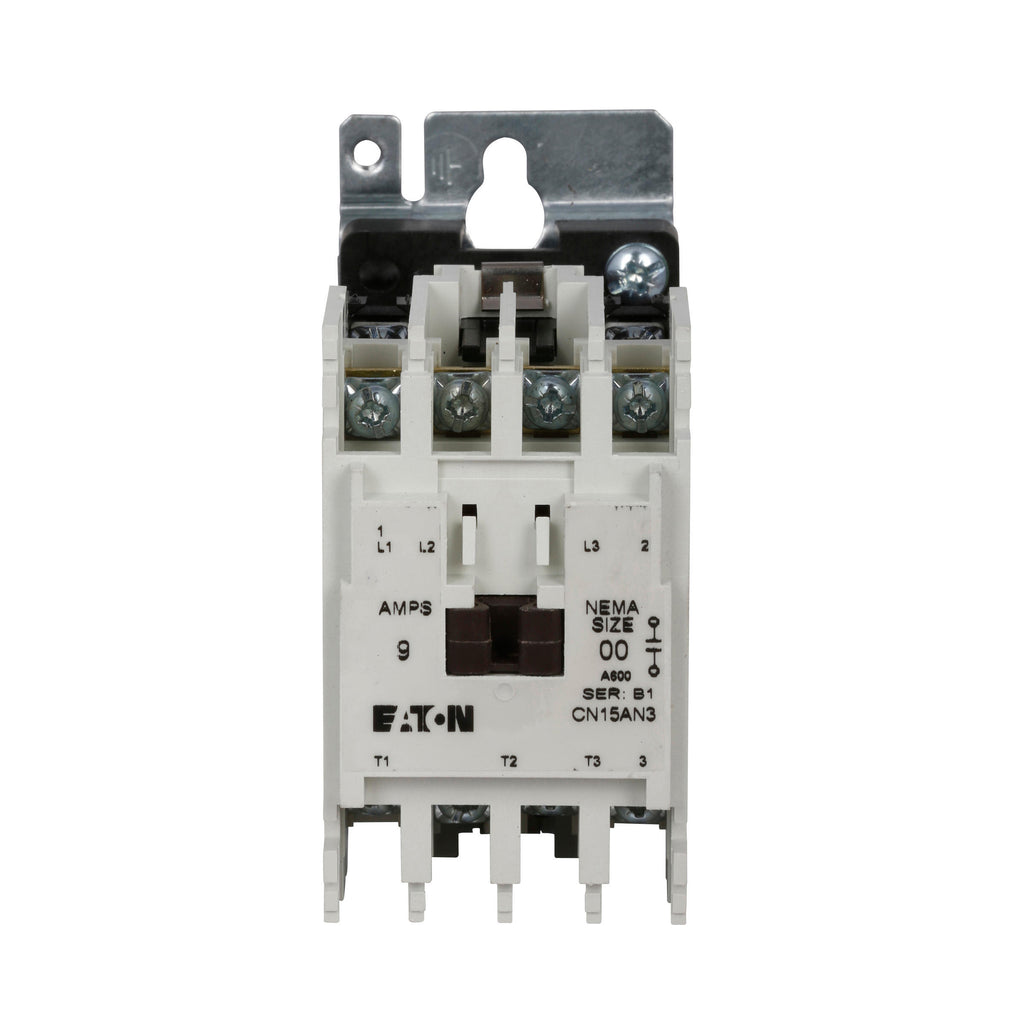

CN15AN3AB
CN15AN3AB is a Cutler Hammer Freedom Series motor control contactor designed for reliable motor starting and control.This 3 pole contactor features a 9 ampere rating and supports voltages up to 600V AC. It is a NEMA Size 00 non-reversing contactor suitable for various motor control applications. The coil voltage is 110-120 VAC at 50/60 Hz. It has a horsepower rating of 1/3 hp at 115V, 1 hp at 230V, 1-1/2 hp at 208/240V, and 2 hp at 480/600V. The contactor is UL Listed and built for durability with a high electrical operation rating.
- Key Specifications
- Amperage: 9A
- Voltage Rating: 600V AC
- Poles: 3
- Mounting Type: NEMA Size 00
- Coil Voltage: 110-120 VAC, 50/60 Hz
- Horsepower Ratings: 1/3 hp at 115V, 1 hp at 230V, 1-1/2 hp at 208/240V, 2 hp at 480/600V
- Series: Freedom Series
- Type: Non-Reversing Contactor
- Certifications: UL Listed
- Electrical Operations: 3,000,000
Specifications
- Part Number: CN15AN3AB
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Freedom Series
- Type : CN15AN
- Voltage : 600
- Amperage : 9
- Phase : 3
- Poles : 3
- Horse Power : HP @ 3 Phase - 208V 1 1/2 hp HP @ 3 Phase - 240V 1 1/2 hp HP @ 3 Phase - 480V 2 hp
- Aux Contacts : 1NO
- Coil Voltage Maximum : 120
- Full Load Amps : 9 A
- Coil Voltage Minimum : 110
Product Data
- UPC : 782113777153
- GTIN : 00782113777153
- Country of Origin : Dominican Republic
- Dimensions : 3.49 in x 3.88 in x 1.75 in (Length/Depth x Height x Width)
- Weight : 1.1 lb
- Certification : CSA, UL Listed
