Description
CLM0C09120

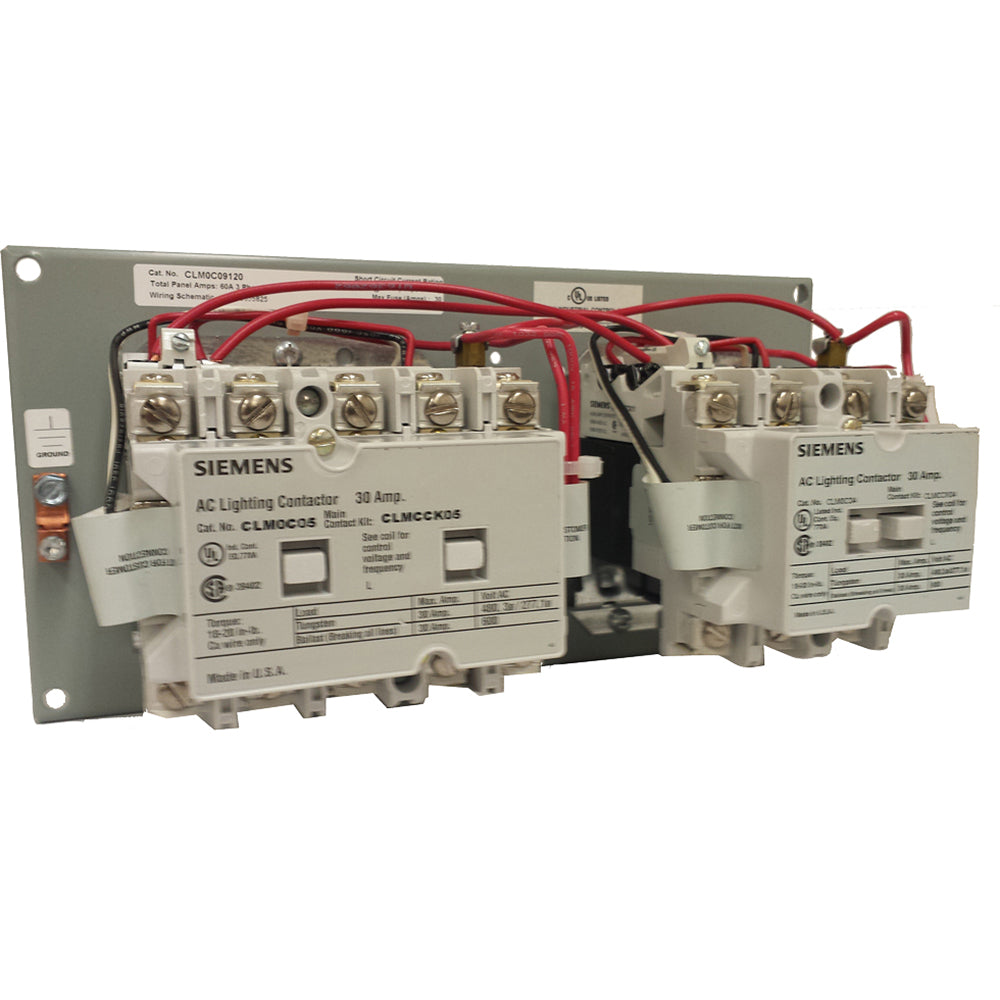

CLM0C09120 is a Siemens 9 pole, 3 phase contactor rated for 30 amps and 600 volts with a 120V coil.CLM0C09120 is designed for motor control applications requiring reliable switching of three-phase power. It features 9 normally open poles, a 120V coil voltage for operation, and is suitable for use in lighting and motor control circuits. The contactor supports a maximum switching voltage of 600VAC and is built for durability and consistent performance.
- Amperage: 30A
- Voltage: 600V AC max
- Poles: 9 normally open (N.O.)
- Phase: 3 phase
- Coil Voltage: 120V AC (60Hz)
- Mounting Type: Panel mount (typical for this series)
- Interrupt Rating: Not explicitly specified, typical for lighting contactors
- Series/Frame: Siemens CLM0 series
- Trip Unit: Not applicable (contactor, not circuit breaker)
- Certifications: Siemens standard industrial certifications (CSA, UL likely but not explicitly listed)
Specifications
- Part Number: CLM0C09120
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 9
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Coil Voltage Maximum : 120
- Coil Voltage Minimum : 120
- Protection : Solid State
Product Data
- UPC : 783087771437
- GTIN : 00783088000000
- Weight : 9.998
