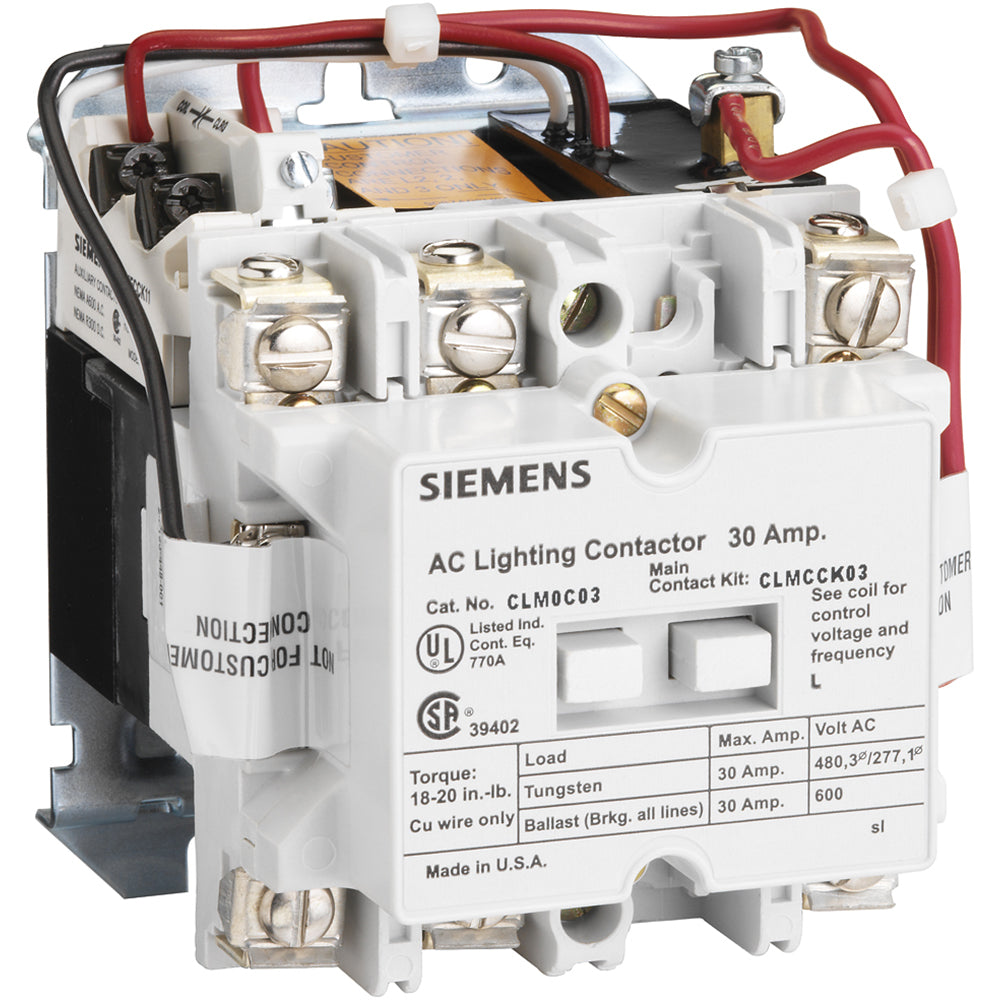

CLM0C03120 - Siemens 30A 600V 3-Pole Lighting Contactor 110/120V Coil

CLM0C03120

CLM0C03120 is a Siemens lighting contactor designed for motor control applications with a 30 amp rating and 3-pole configuration.This Siemens CLM0C03120 contactor features a 110/120 VAC coil voltage suitable for 50/60 Hz operation, supports 3 normally open (3NO) contacts, and is rated for 30 amps at 600 VAC. It is a mechanically held, non-combination type contactor with screw-type terminals and an open NEMA enclosure type. The compact design measures approximately 4.38 in H x 3.31 in W x 4.78 in D and is suitable for ceiling or surface mounting.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 600 VAC max
• Coil Voltage: 110/120 VAC, 50/60 Hz
• Poles: 3 (3NO contacts)
• Mounting Type: Ceiling/Surface mount
• Contact Configuration: 3 Normally Open (3NO)
• Contact Type: Non-combination
• Termination Style: Screw terminals
• Enclosure Type: Open (NEMA type)
• Dimensions: 4.38 in H x 3.31 in W x 4.78 in D
• Mechanically held contactor
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CLM0C03120
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactor
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Coil Voltage Maximum : 120
• Coil Voltage Minimum : 120
• Protection : Solid State



Product Data

• UPC : 754554244341
• GTIN : 00887621915360
• Country of Origin : Dominican Republic
• Dimensions : 0.976 x 0.866 x 0.839 inch
• Weight : 2.91 lb
