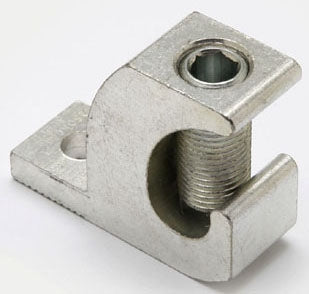

CL501TN - Burndy Copper Lay-In Lug, Tin Plated, 14-4 AWG, #10 Stud, Direct Burial, UL2703 Solar Rated

CL501TN

This lug accommodates 14 to 4 AWG copper solid and stranded conductors and features a #10 stud with a 0.22 inch hole size. It is UL2703 listed for solar applications and UL467 certified for direct burial use. The tin-plated mechanical lug includes stainless steel hardware and is CSA certified and RoHS compliant, ensuring reliable performance in harsh environments.

Key Specifications
• Conductor Range: 14-4 AWG Copper
• Stud Size: #10 with 0.22 inch hole
• Material: Tin-plated Copper
• Mounting: Direct Burial Rated
• UL Listings: UL2703 for Solar, UL467 for Grounding
• Hardware: Stainless Steel
• Certifications: CSA Certified, RoHS Compliant
• Recommended Torque: 20 in-lbs (10-14 AWG), 25 in-lbs (8 AWG), 35 in-lbs (4-6 AWG)
• Dimensions: 0.38" x 1.13" x 0.85"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: CL501TN
• Manufacturer : Burndy
• Brand : Burndy



Product Data

• UPC : 781810352342
• GTIN : 00781810352342
• Country of Origin : United States
• Dimensions : 0.85 in x 1.13 in x
• Weight : 185 lb
• Certification : CSA Certified, UL Listed
