2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CKD3400Y

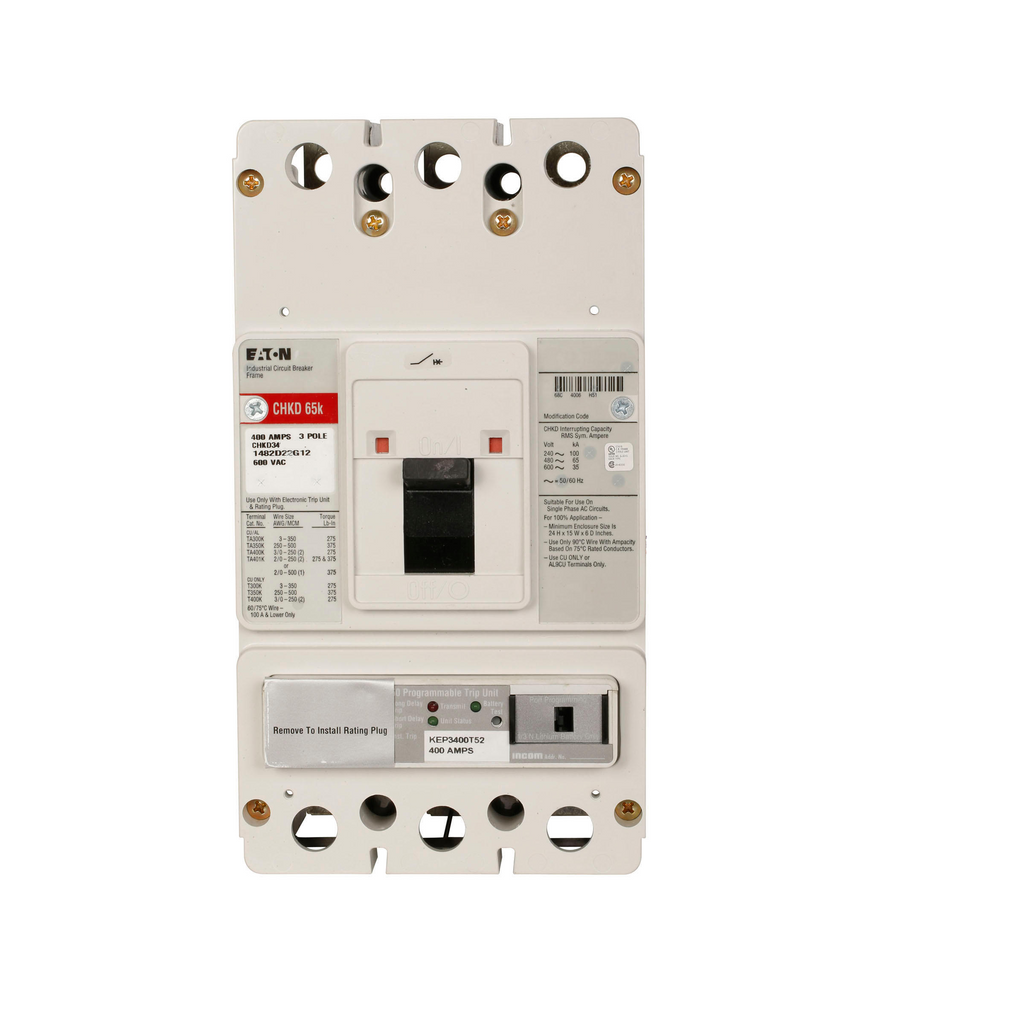

CKD3400Y is an Eaton Series C molded case circuit breaker designed for reliable protection in commercial and industrial power distribution systems. This three-pole breaker features a 400A current rating and is rated for 600V AC, making it suitable for a wide range of applications requiring robust circuit protection. The CKD3400Y utilizes a fixed thermal and fixed magnetic trip unit, providing dependable overcurrent and short-circuit protection. It is constructed with a K-frame and is compatible with standard mounting configurations. The breaker is designed for use with aluminum conductors and supports both line and load connections. It is rated for 65 kAIC at 240V AC and 35 kAIC at 480V AC, ensuring high interrupt capacity for demanding environments.
- Series C molded case circuit breaker
- Three-pole configuration
- 400A amperage rating
- 600V AC, 250V DC voltage rating
- 65 kAIC interrupt rating at 240V AC
- 35 kAIC interrupt rating at 480V AC
- K-frame construction
- Fixed thermal and fixed magnetic trip unit
- Compatible with aluminum conductors
- Line and load connections
- UL Listed
- 50/60 Hz frequency rating
Specifications
- Part Number: CKD3400Y
- Manufacturer : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : CKD
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : 6" X 6.3" X 7"
- Weight : 12 lb
