Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
CKD3400X

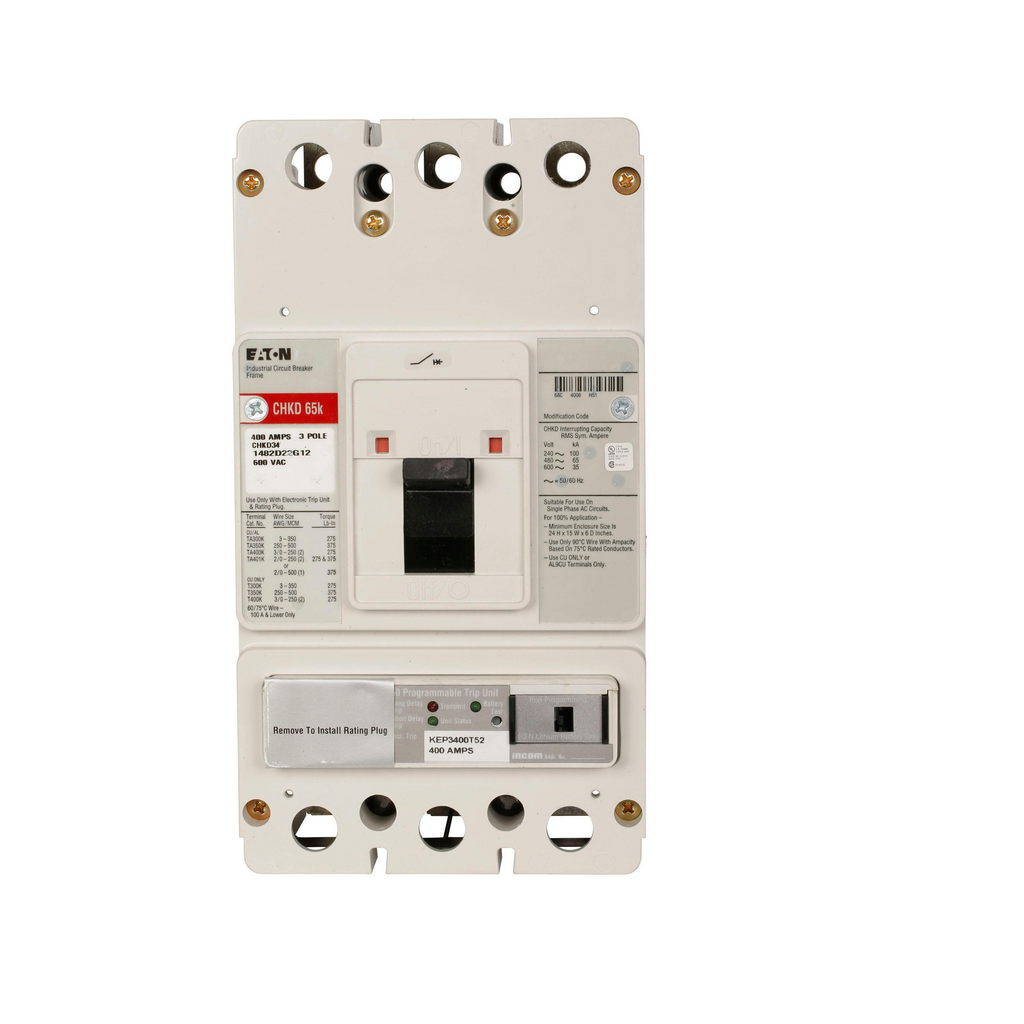

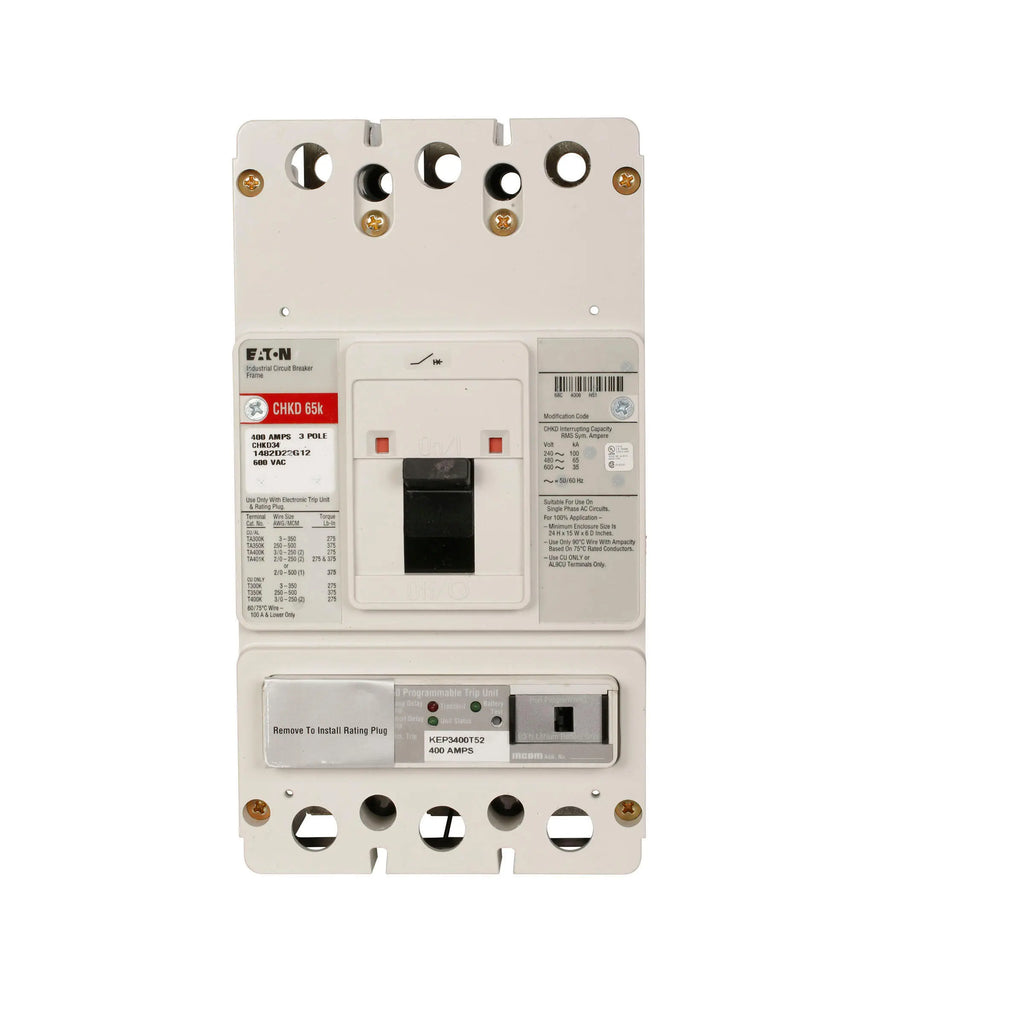

CKD3400X is a Eaton Series C complete molded case circuit breaker designed for reliable protection in electrical distribution systems.
This circuit breaker features a K-frame, KD type, with fixed thermal and fixed magnetic trip units. It is rated for 400 amps and supports a maximum voltage of 600 VAC and 250 VDC. The breaker is three-pole and offers interrupt ratings of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC. It is constructed with aluminum terminals and is suitable for line and load applications at 50/60 Hz frequency.
- Manufacturer: Eaton
- Part Number: CKD3400X
- Amperage: 400 Amp
- Voltage Rating: 600 VAC / 250 VDC
- Poles: 3
- Frame Type: K-Frame
- Series: C (KD type)
- Trip Type: Fixed Thermal, Fixed Magnetic
- Interrupt Rating: 65 kAIC at 240 VAC, 35 kAIC at 480 VAC
- Terminal Material: Aluminum
- Frequency: 50/60 Hz
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CKD3400X
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : CKD
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- Dimensions : 6" X 6.3" X 7"
- Weight : 12 lb
