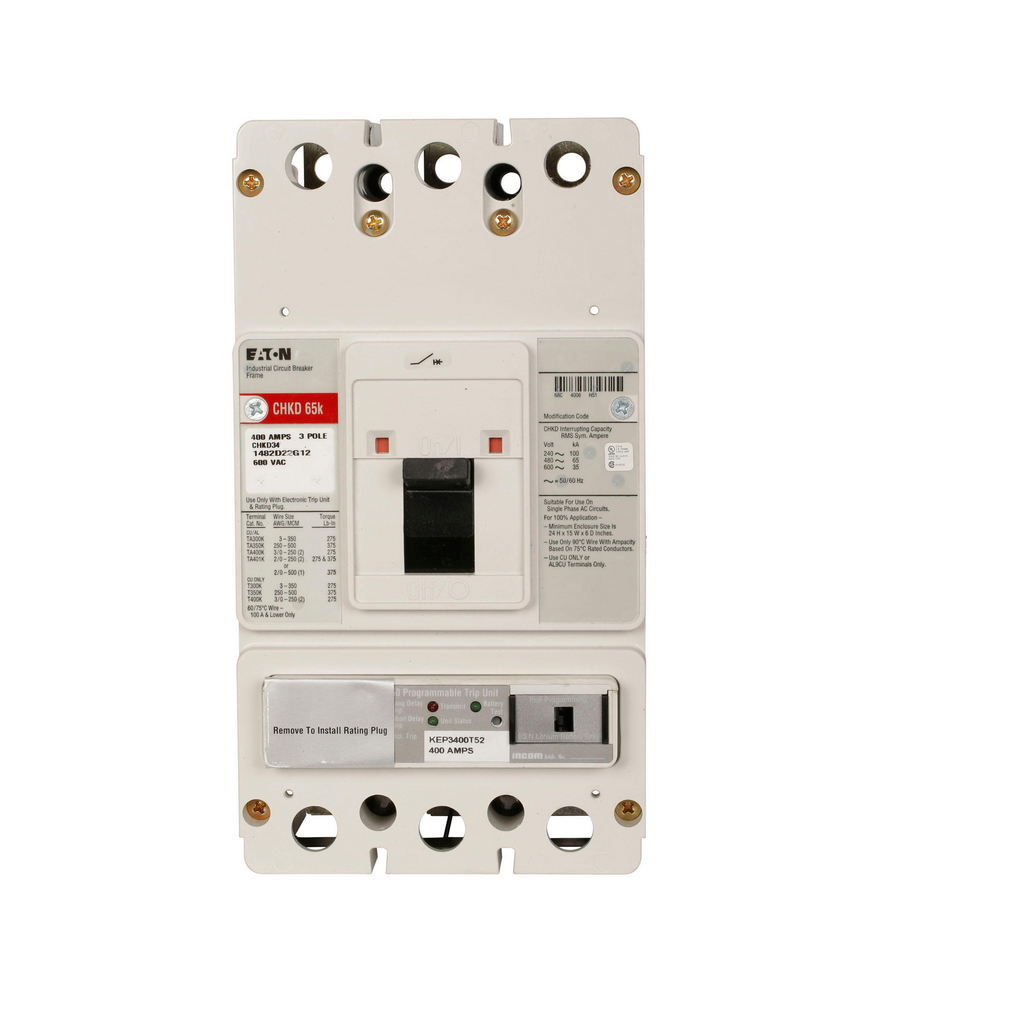

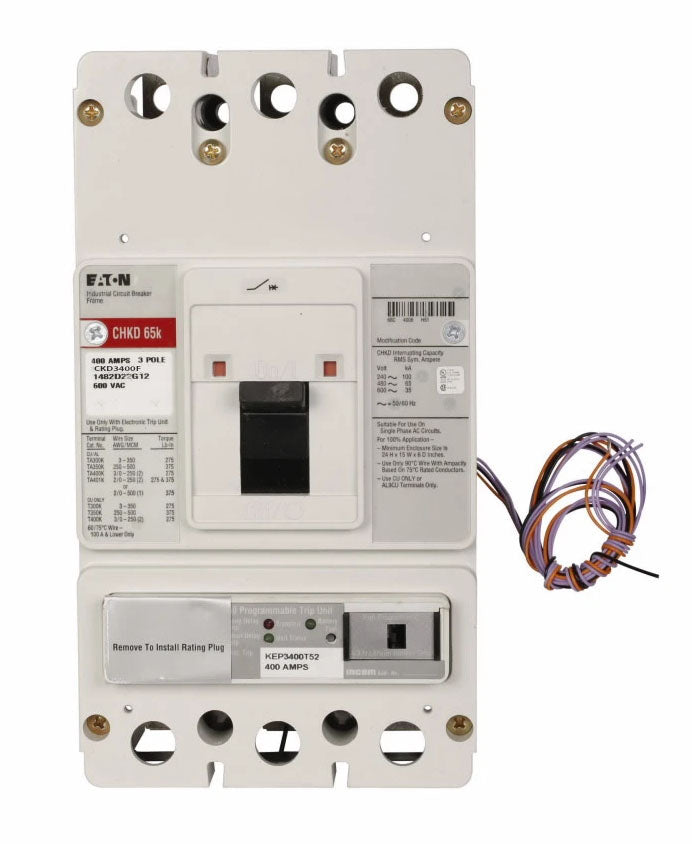

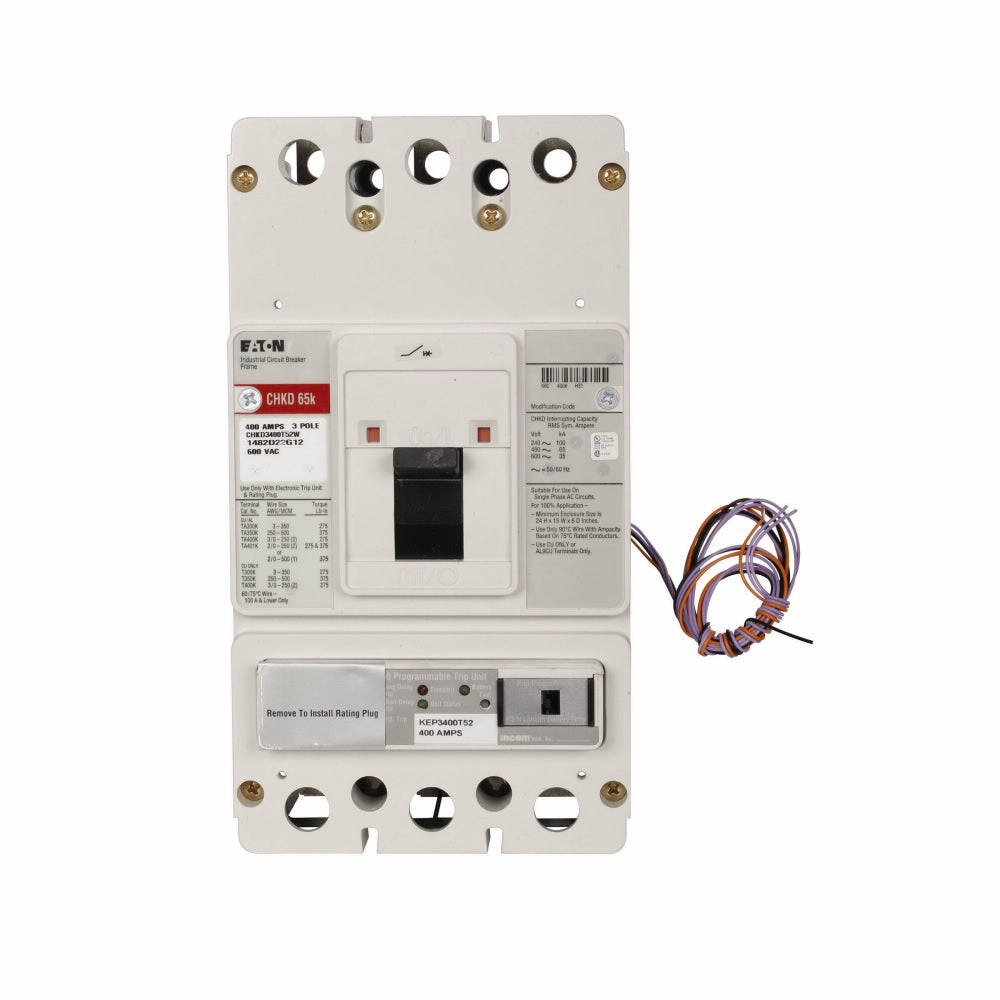

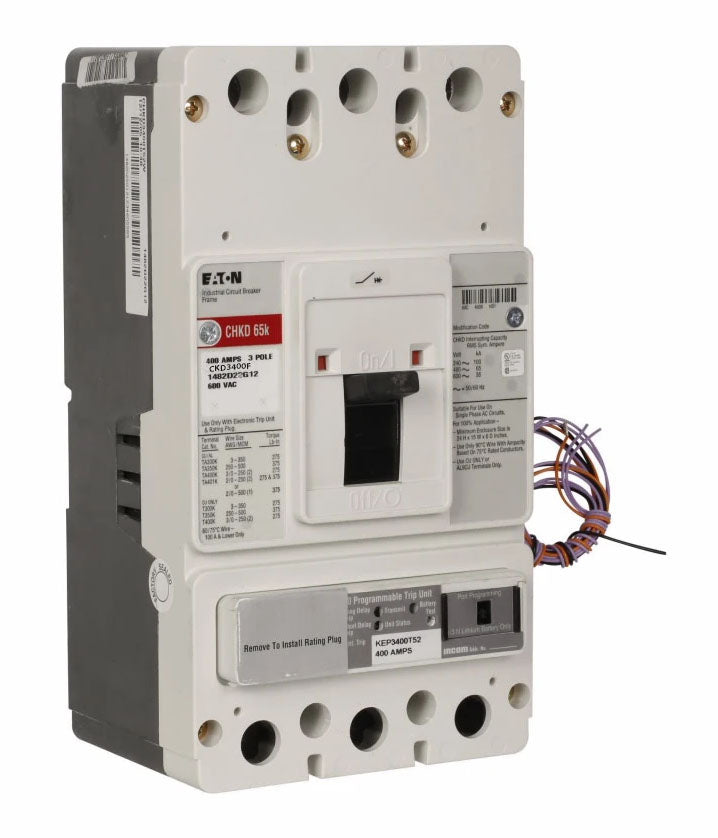

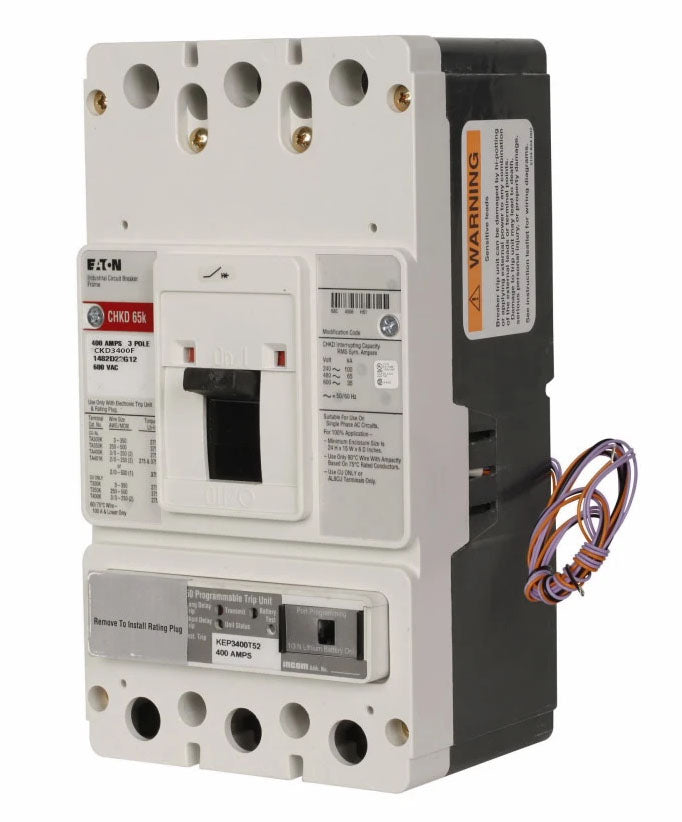

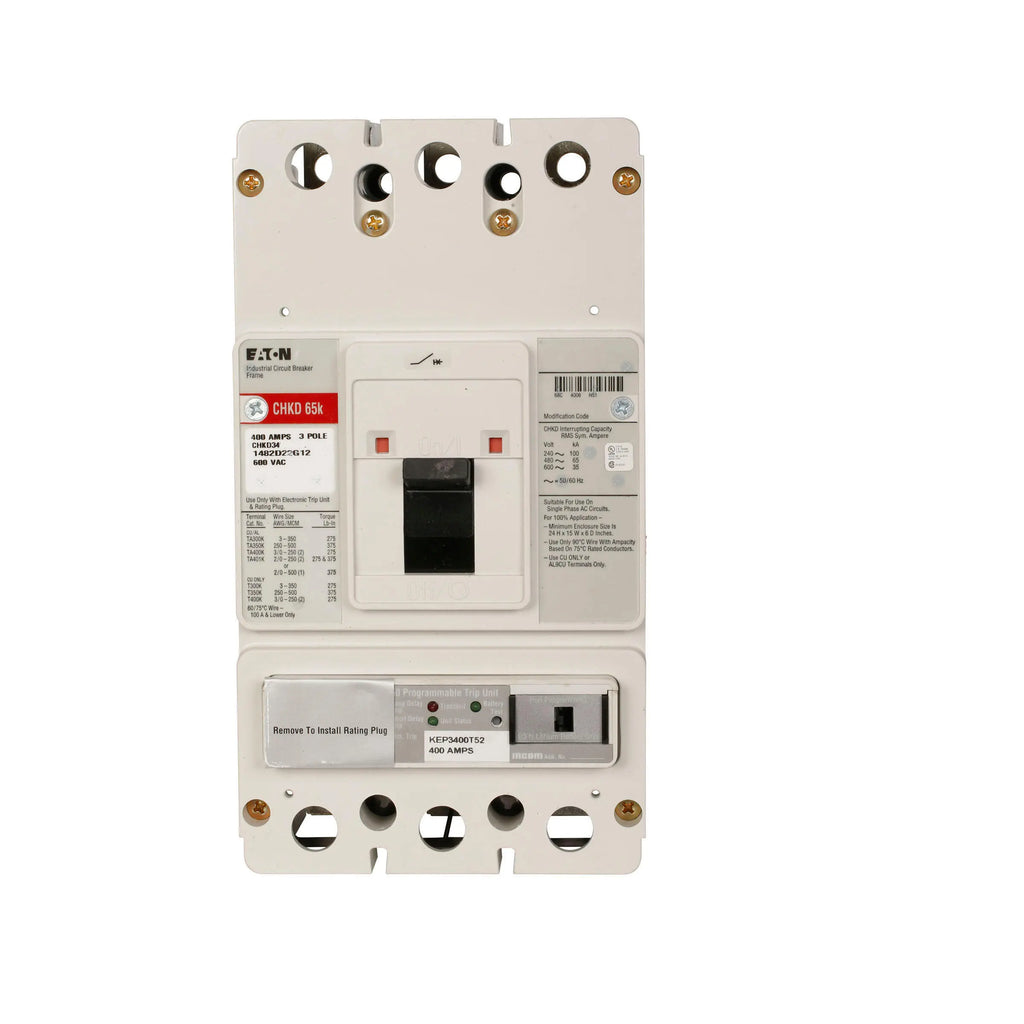

CKD3400F - Cutler Hammer 400A 600V 3-Pole Molded Case Circuit Breaker Frame

CKD3400F

CKD3400F is a Cutler Hammer molded case circuit breaker frame designed for industrial power distribution applications.CKD3400F features a 400 ampere rating, 600 volt AC and 250 volt DC voltage rating, and a 3-pole configuration with bolt-on mounting. It is part of the Eaton Series C CKD frame family with fixed thermal and magnetic trip units, rated for 35 kA interrupt capacity at 480 VAC and 25 kA at 600 VAC. This frame-only breaker supports 50/60 Hz operation and is 100% rated for continuous duty.

Key Specifications
• Amperage: 400 A
• Voltage: 600 VAC / 250 VDC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 35 kAIC at 480 VAC, 25 kAIC at 600 VAC
• Frame/Series: CKD, Eaton Series C
• Trip Unit: Fixed thermal, fixed magnetic
• Frequency: 50/60 Hz
• Phase: 3
• Dimensions: Approximately 6.3" H x 7" W x 6" D
• Weight: Approx. 9.9 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Frame only, Trip unit and lugs not included.

Specifications

• Part Number: CKD3400F
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : CKD
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679346402
• GTIN : 00786679346402
• Country of Origin : Dominican Republic
• Dimensions : 6 in x 6.3 in x 7 in (Length/Depth x Height x Width)
• Weight : 9.9
• Certification : UL Listed
