Product Info
- Manufacturer:EATON
- Sub-Category:Molded Case
Description
CHPSURGE

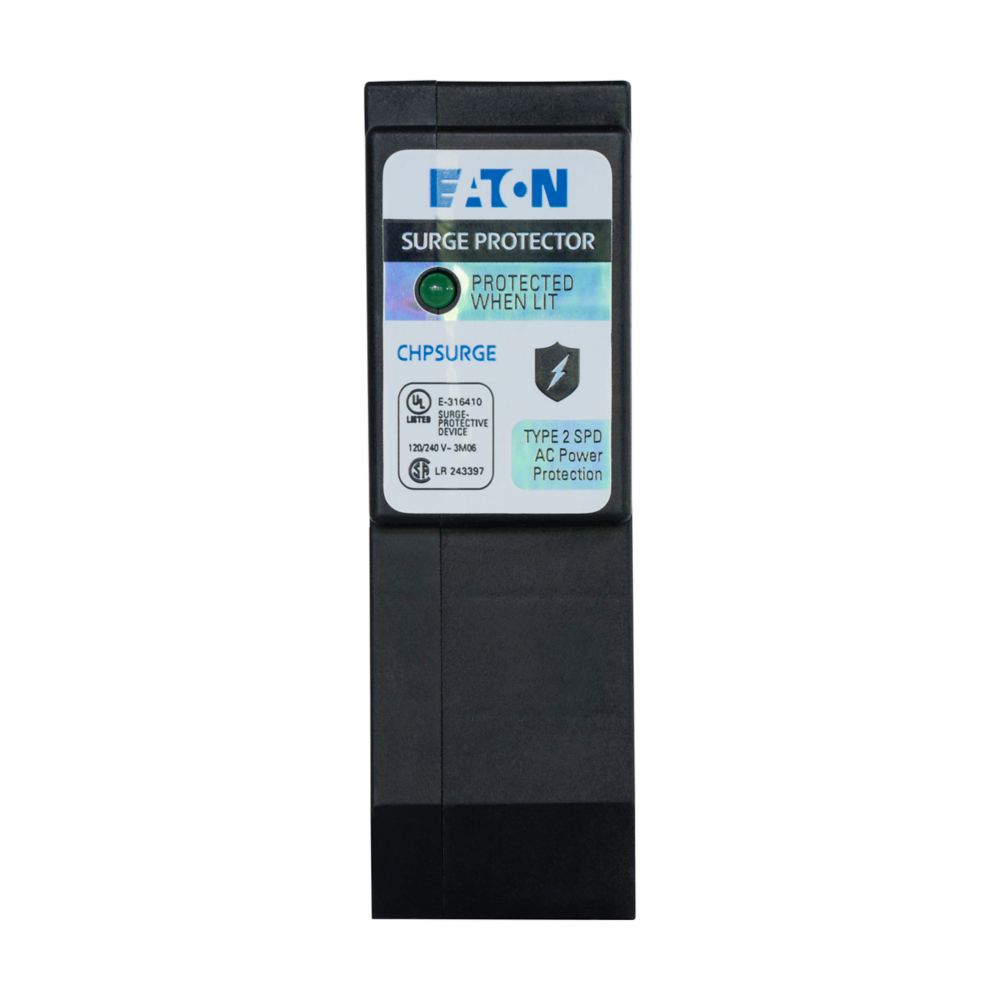

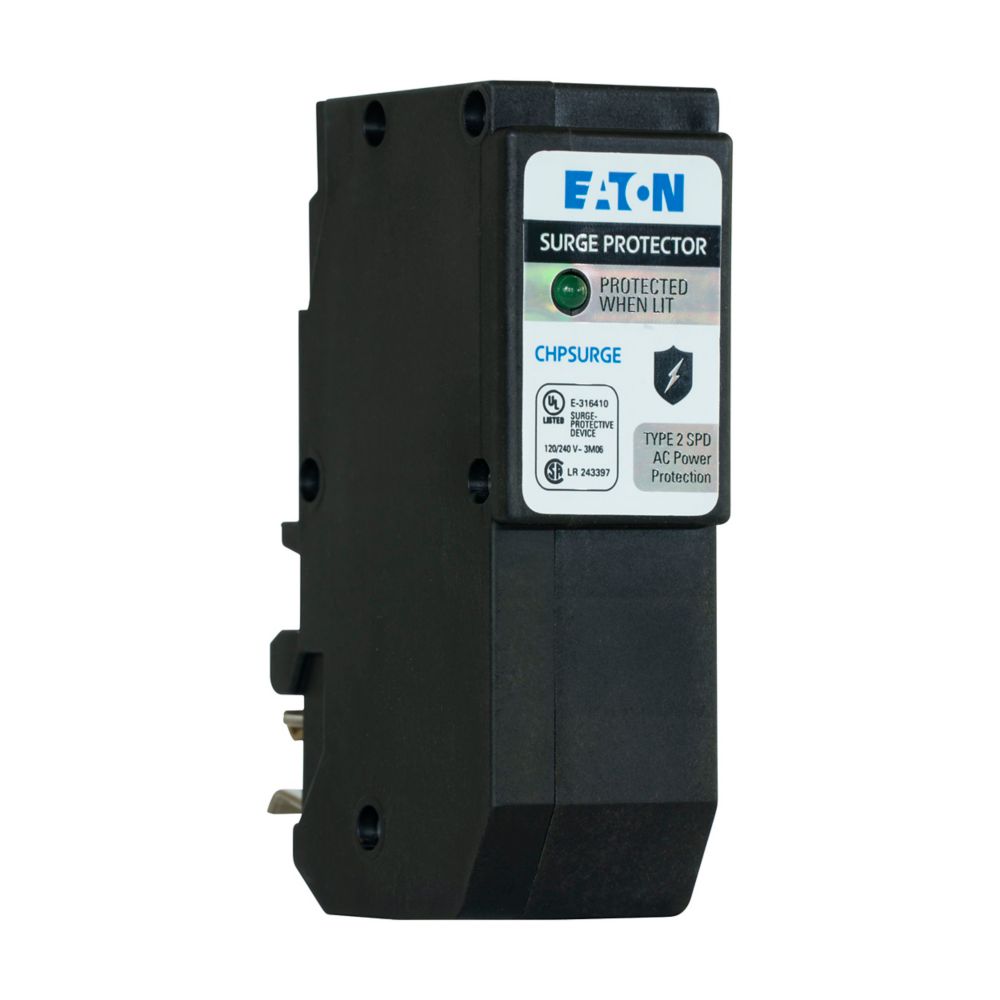

CHPSURGE is a 2-pole, 240VAC circuit breaker surge protective device by Eaton designed for residential and facility applications.This surge protective device features a 18000 amp surge current capacity per phase, a 10kA interrupting rating (AIC), and a BR frame type with plug-on neutral connection. It provides Type 2 surge protection with a maximum continuous operating voltage of 150V L-N and 300V L-L, suitable for 120/240V single split-phase systems. The device is UL 1449 listed and CSA certified, ensuring compliance with safety standards.
- Key Specifications
- Amperage: 18000 Amps surge current capacity per phase
- Voltage: 240VAC (120/240V split-phase system)
- Poles: 2
- Mounting Type: Plug-On Neutral
- Interrupt Rating: 10kAIC
- Series/Frame: CH Series, BR Frame
- Trip Unit: Surge Protective Device (Type 2 SPD)
- Certifications: UL 1449 Listed, CSA C22.2 No. 269.2 Certified
- Maximum Continuous Operating Voltage: 150V L-N, 300V L-L
- Protection Modes: L-N, L-L
- Frequency: 50/60 Hz
Specifications
- Part Number: CHPSURGE
- Manufacturer : EATON
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BR
- Type : CH
- Voltage : 240VAC
- Amperage : 18000
- Poles : 2
- AIC rating : 10kAIC
- Connection : Plug-on
- Compatible Frames : BR
Product Data
- UPC : 078668935367
- GTIN : 00786689353674
- Dimensions : 3.5 in x 2.4 in x 6.1 in (Length/Depth x Height x Width)
- Weight : 0.45 lb
- Certification : UL, CUL
