Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description

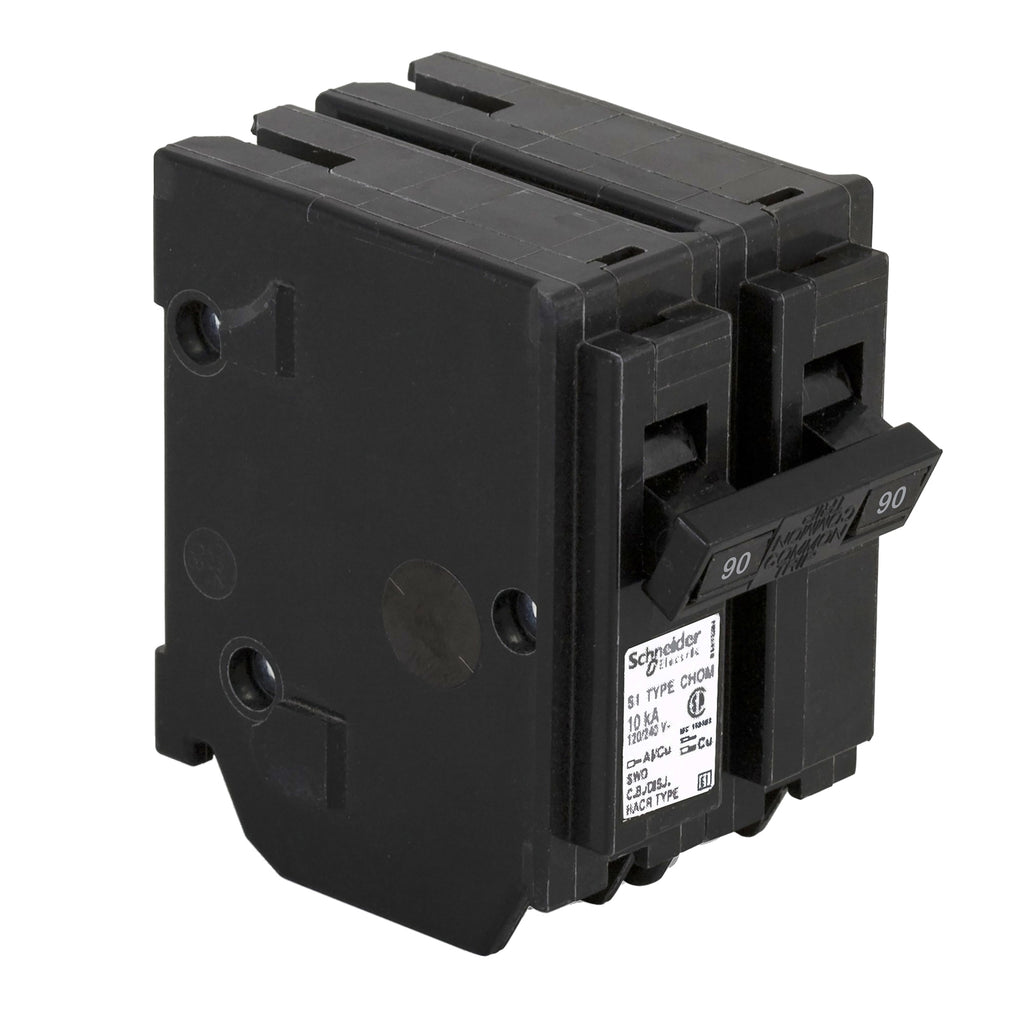

CHOM290
CHOM290 is a Schneider Electric Homeline 90 amp, 2 pole circuit breaker designed for 120/240 volt applications with plug-in mounting.CHOM290 provides reliable overcurrent protection with a 10kA interrupting rating at 120/240 VAC. It features a compact plug-on design suitable for residential and light commercial electrical panels. This miniature circuit breaker supports clamp-type electrical connections and meets industry standards for safety and performance.
- Amperage: 90 Amps
- Voltage: 120/240 Volts AC
- Poles: 2 Pole (Double Pole)
- Mounting Type: Plug-In
- Interrupt Rating: 10kA at 120/240V
- Series/Frame: Homeline
- Breaker Style: Miniature Circuit Breaker
- Connection Type: Clamp terminals
- Application: Residential and light commercial
Specifications
- Part Number: CHOM290
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : HOMELINE
- Type : HOM
- Voltage : 240
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : 104 °F (40 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782634786245
- GTIN : 00782634786245
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 0.85
- Certification : CSA
- Wire Size : AWG 4...AWG 2/0 aluminum/copper
