CHOM280 - Schneider Electric Homeline 80A 240V 2 Pole Plug-In Circuit Breaker 10kA AIC

CHOM280

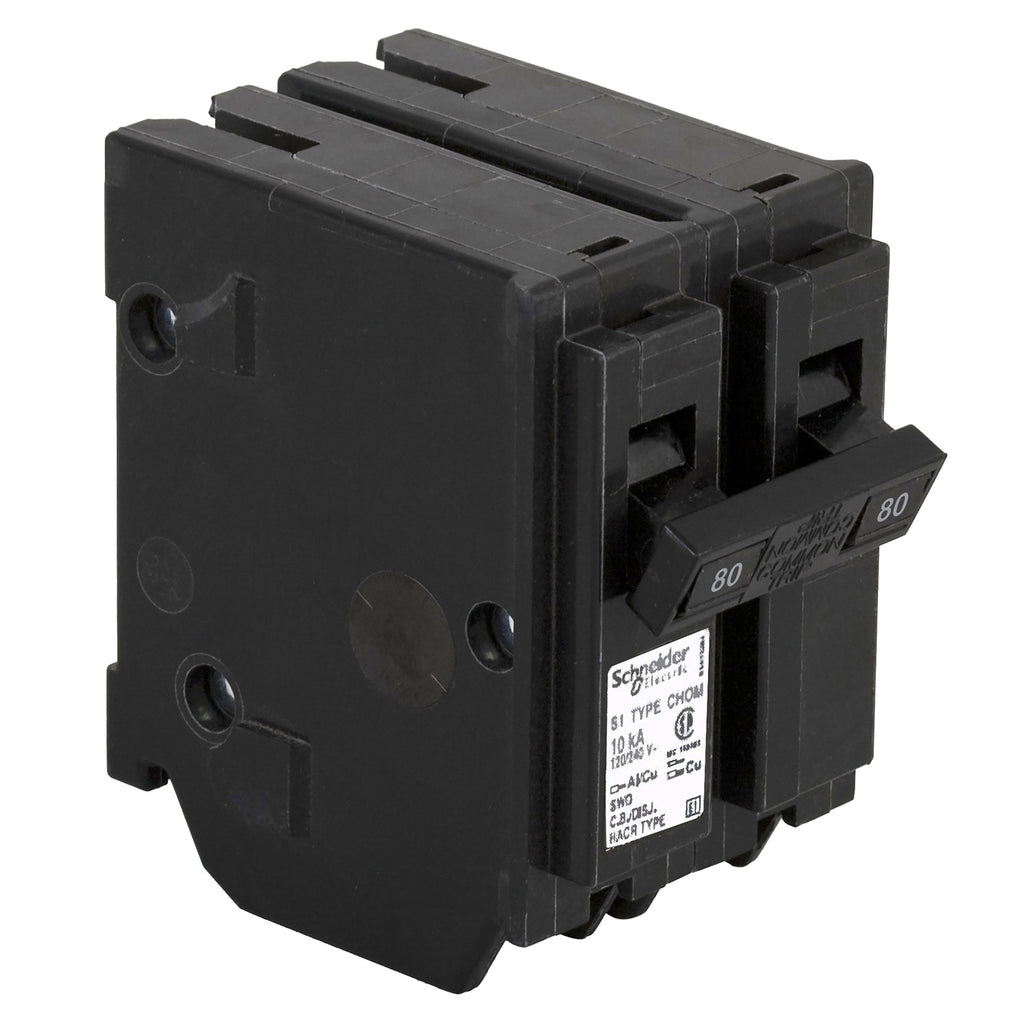

CHOM280 is a Schneider Electric Homeline 2 pole circuit breaker rated for 80 amps at 240 volts with plug-in mounting and a 10kA interrupt rating.

This Homeline miniature circuit breaker provides reliable thermal magnetic protection with long-time and instantaneous trip functions. It is designed for fast installation in Homeline load centers and is HACR rated for use with heating, air conditioning, and refrigeration equipment. The breaker accepts wire sizes from 4 AWG to 2/0 AWG copper or aluminum and features a compact design with dimensions approximately 3.75 x 2 x 2.5 inches.

• Manufacturer: Schneider Electric
• Series: Homeline
• Poles: 2
• Amperage: 80A
• Voltage: 120/240 VAC
• Mounting Type: Plug-In
• Interrupt Rating: 10kA @ 240V
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• HACR Rated
• Wire Range: 4 AWG to 2/0 AWG copper or aluminum
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOM280
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOM
• Voltage : 240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.86
• Certification : CSA
• Wire Size : AWG 4...AWG 2/0 aluminum/copper
