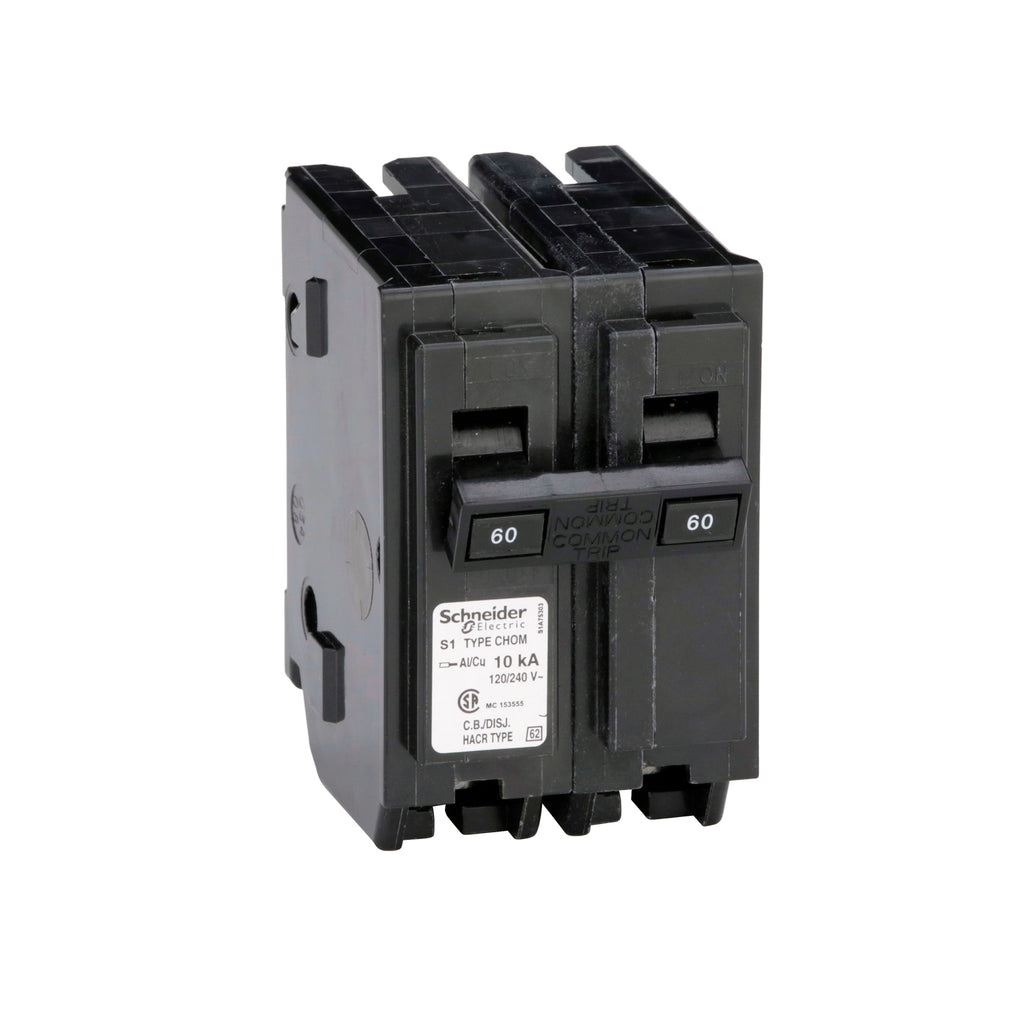

CHOM260 - Schneider Electric Homeline 60A 2-Pole 120/240V Plug-In Circuit Breaker

CHOM260

CHOM260 is a 2-pole miniature circuit breaker from Schneider Electric's Homeline Canadian series, designed for reliable overload and short circuit protection in residential load centers.

This plug-in circuit breaker is rated 60 amperes at 120/240 VAC with a 10,000 amperes interrupting rating (AIR). The breaker features thermal-magnetic protection and accepts aluminum or copper conductors in the lug range of #8 to #2 AWG. It is CSA certified for HACR (Heating, Air-Conditioning and Refrigeration) applications and designed for installation in Canadian Homeline load centers. The breaker accommodates 60/75°C wire up to 40A and 75°C wire over 40A.

• Part Number: CHOM260
• Manufacturer: Schneider Electric
• Amperage: 60A
• Voltage: 120/240 VAC
• Poles: 2 (Double Pole)
• Mounting Type: Plug-In
• Interrupting Rating: 10 kA
• Wire Range: #8 to #2 AWG (Copper or Aluminum)
• Protection Type: Thermal Magnetic
• Certifications: CSA Listed, HACR Rated
• Assembled Height: 3.0 inches
• Assembled Width: 2.0 inches
• Assembled Depth: 3.0 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOM260
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOM
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.7
• Certification : CSA
• Wire Size : AWG 8...AWG 2 aluminum/copper
