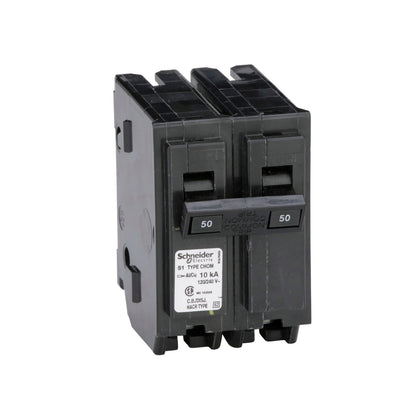

CHOM250 - Schneider Electric Homeline 50A 2 Pole 120/240V Plug-In Circuit Breaker

CHOM250

CHOM250 is a 2 pole miniature circuit breaker from the Schneider Electric Homeline series, designed for reliable circuit protection in residential and light commercial applications. This breaker features plug-in mounting for fast and easy installation into compatible Homeline load centers. It provides standard thermal magnetic protection with a 50A current rating and is suitable for use on 120/240V AC circuits. The breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment, and offers a 10kA interrupt rating for enhanced safety. The electrical connection is a clamp terminal type, compatible with copper or aluminum wire. The CHOM250 is UL Listed and meets industry standards for circuit protection. Key Specifications

• Part Number: CHOM250
• Manufacturer: Schneider Electric
• Series: Homeline
• Poles: 2
• Amperage: 50A
• Voltage: 120/240V AC
• Mounting Type: Plug-In
• Interrupt Rating: 10kA @ 240V
• Trip Unit: Thermal Magnetic
• Protection Type: HACR
• Terminal Type: Clamp
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOM250
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOM
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.7
• Certification : CSA
• Wire Size : AWG 8...AWG 2 aluminum/copper
