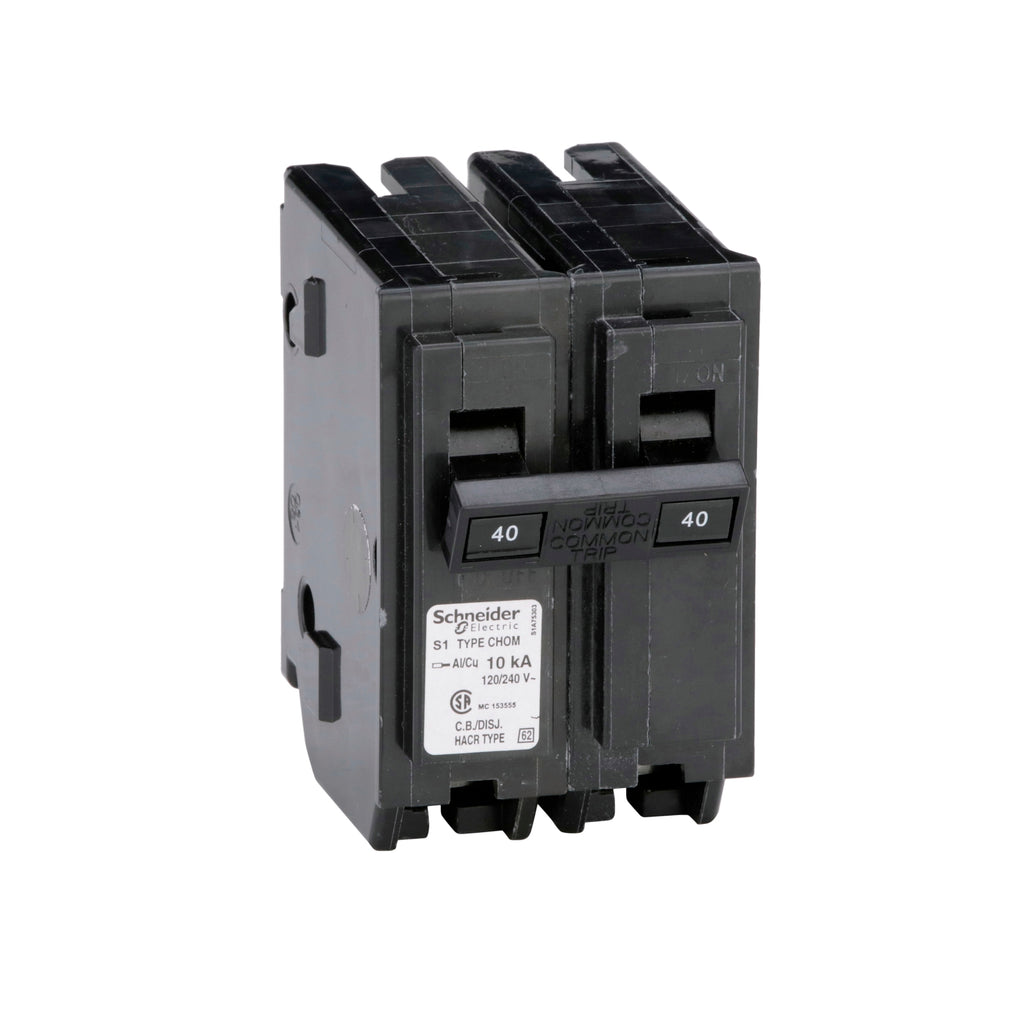

CHOM240 - Schneider Electric Homeline 40A 2 Pole 120/240V Mini Circuit Breaker Plug-In Mount

CHOM240

CHOM240 is a 2 pole, 40A miniature circuit breaker from the Schneider Electric Homeline series, designed for reliable plug-in installation in load centers. This breaker provides overload and short circuit protection for a variety of residential and light commercial applications, including electric ranges and HVAC equipment. It is rated for 120/240V AC and features a 10kA interrupt rating for dependable circuit protection. The breaker is HACR rated and UL Listed, making it suitable for use in heating, air conditioning, and refrigeration circuits. The plug-in mounting design allows for fast and secure installation without the need for tools. Electrical connections are clamp type, compatible with copper or aluminum wire from 8 AWG to 2 AWG. This breaker is engineered for durability and safety in demanding environments.Key Specifications

• Part Number: CHOM240
• Manufacturer: Schneider Electric
• Series: Homeline
• Poles: 2
• Amperage: 40A
• Voltage: 120/240V AC
• Mounting Type: Plug-In
• Interrupt Rating: 10kA
• Trip Unit: Thermal Magnetic
• Protection Type: Overload and Short Circuit
• Certifications: UL Listed, HACR Rated
• Wire Range: 8 AWG to 2 AWG (Copper or Aluminum)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOM240
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOM
• Voltage : 240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.7
• Certification : CSA
• Wire Size : AWG 8...AWG 2 aluminum/copper
