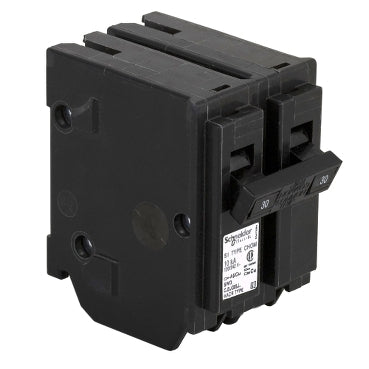

CHOM230 - Schneider Electric 30A 2-Pole Plug-In Circuit Breaker 240V 10kA AIC

CHOM230

CHOM230 is a 30A, 2-pole, 240V plug-in circuit breaker designed for reliable protection in residential and light commercial applications. This breaker features Qwik-Open technology for fast and safe operation, and is compatible with Homeline load centers. The breaker is built for durability and ease of installation with a compact design and clamp-style terminal connections. The CHOM230 breaker is engineered for use in 120/240VAC systems and offers a 10kA interrupt rating for robust fault protection. It supports conductor sizes from 14 AWG to 8 AWG and is designed for plug-on mounting in Homeline panels. The breaker is suitable for a wide range of branch circuit protection needs and is UL listed for safety and performance.

• 30A Amperage Rating
• 2-Pole Configuration
• 120/240VAC Voltage Rating
• Plug-In Mounting Type
• 10kA Interrupt Rating
• Homeline Series
• Qwik-Open Trip Unit
• UL Listed
• Clamp-Style Terminal Connection
• Conductor Size: 14-8 AWG
• Compact Design: 2.5" L x 2" W x 3.75" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHOM230
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Homeline
• Type : HOM
• Voltage : 240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : 104 °F (40 °C)
• Protection : Thermal Magnetic

Product Data

• Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
• Weight : 0.67
• Certification : CSA
• Wire Size : AWG 14...AWG 8 aluminum/copper
