Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Parts And Accessories
Description
CHM3DIU

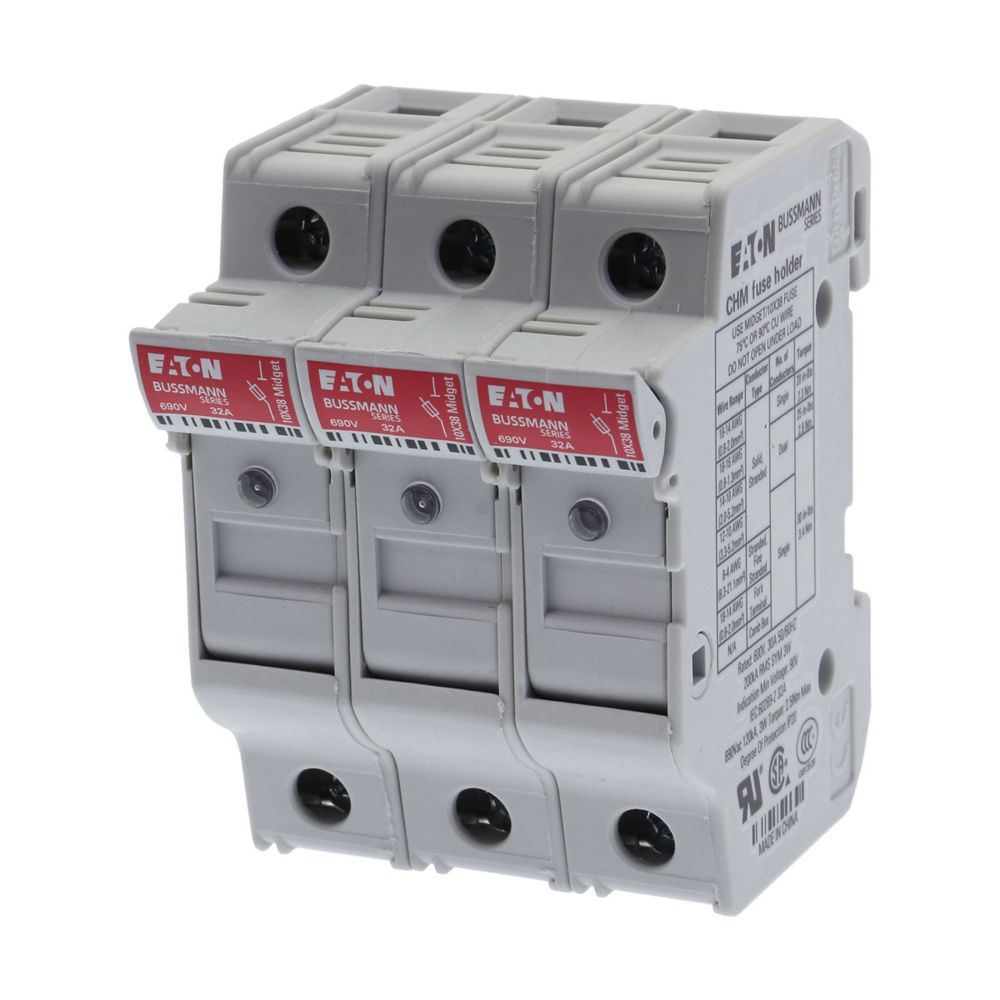

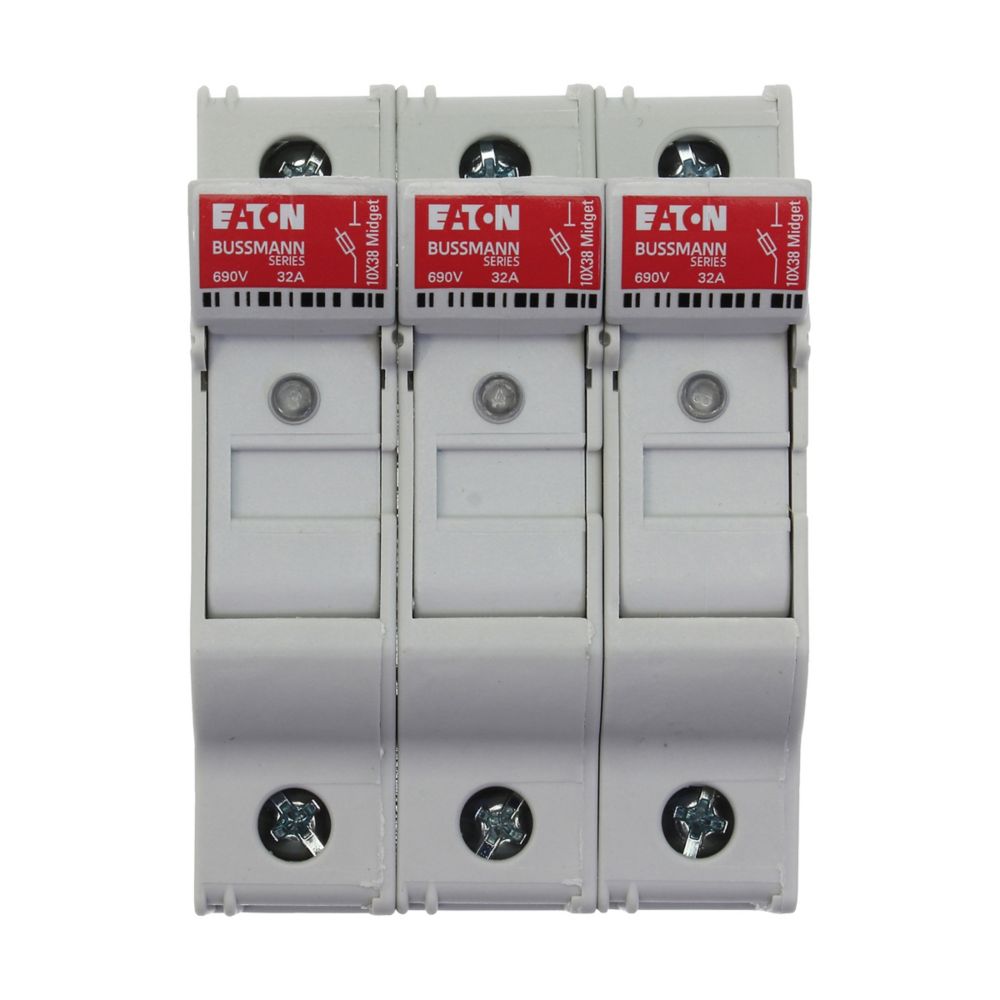

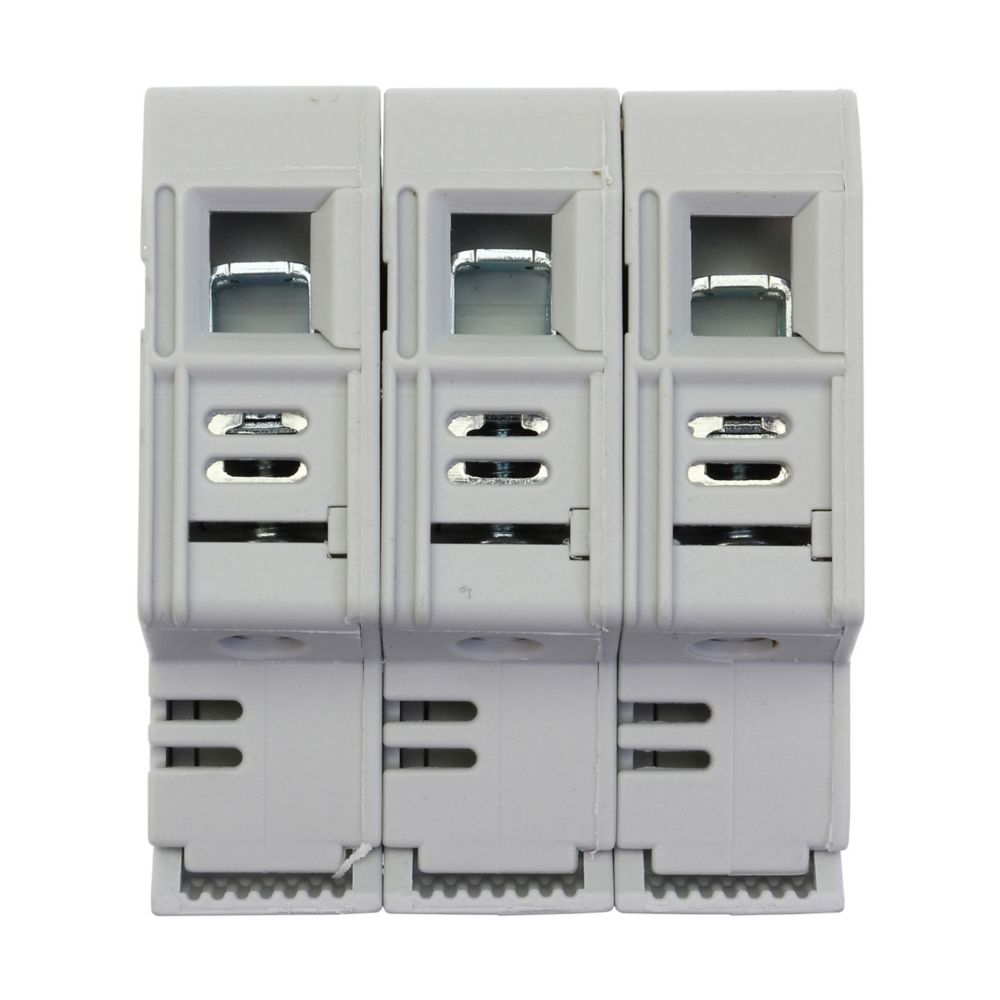

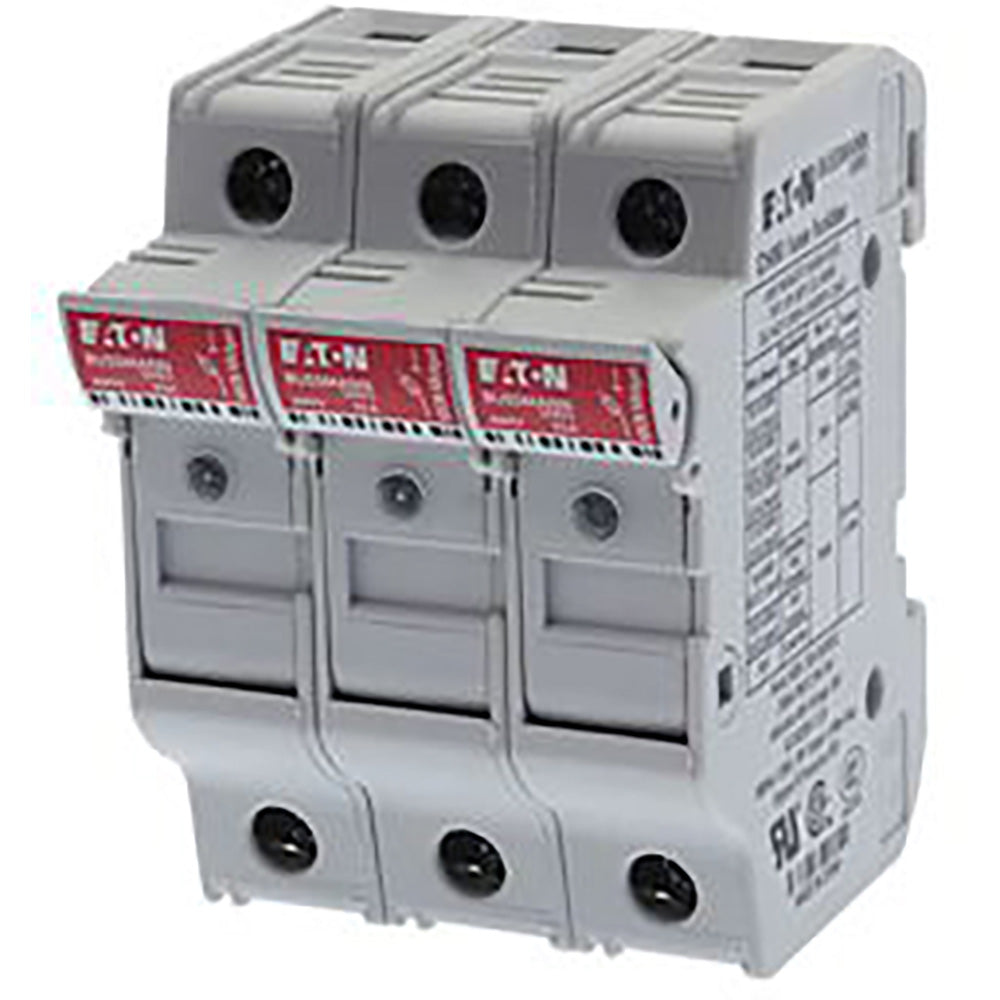

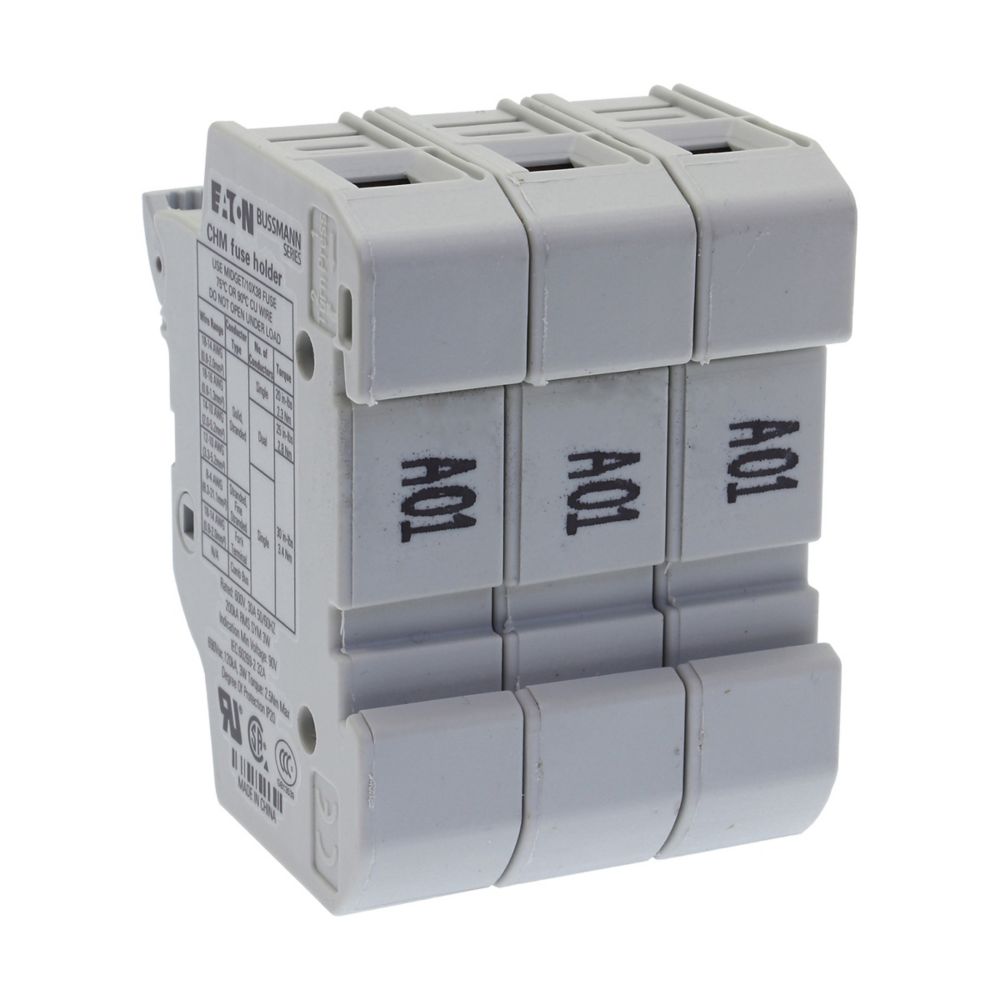

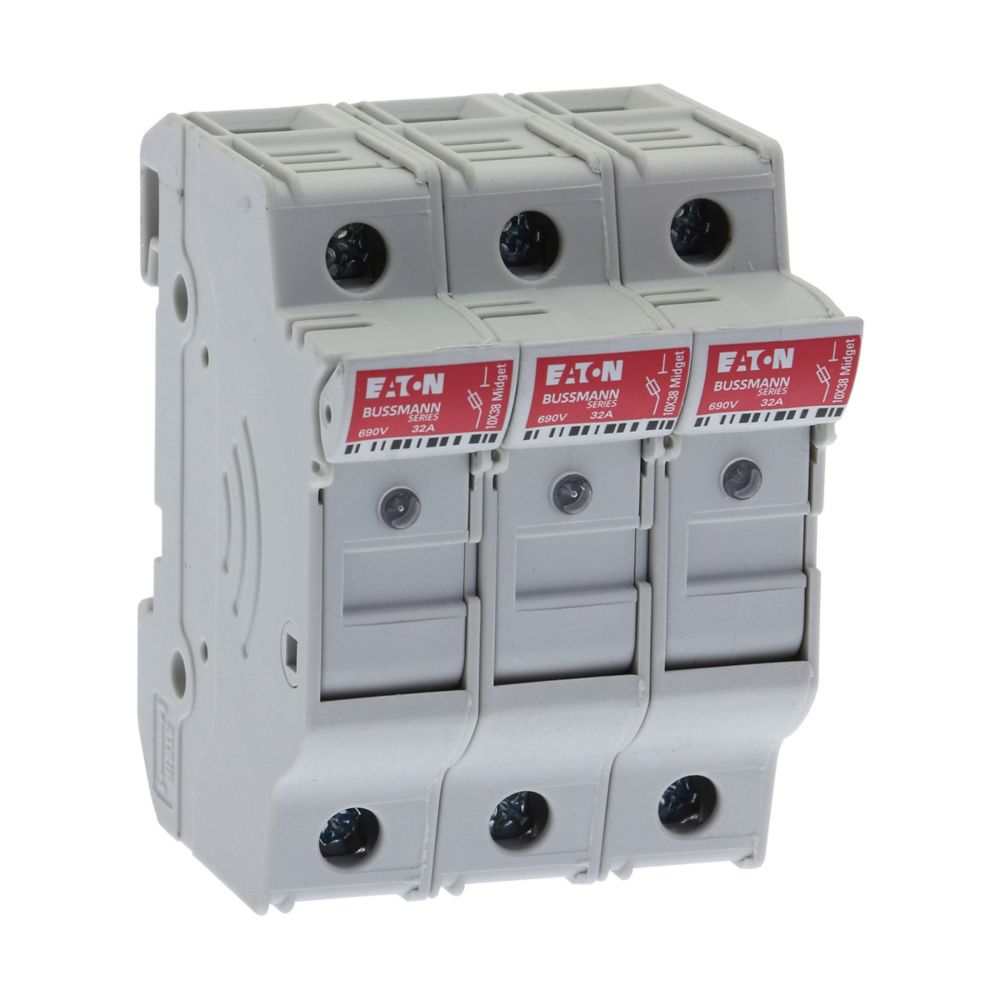

CHM3DIU is an Eaton Bussmann series CHM modular fuse holder designed for 3-pole applications with a 30 amp and 600 volt rating.This modular fuse holder supports 10 x 38 mm cylindrical/ferrule fuses and is rated for 600 V (UL) and 690 V (IEC) with a current rating of 30A (UL) and 32A (IEC). It features a DIN rail mounting style and screw termination for secure installation. The device operates within a temperature range of -20 °C to 90 °C and complies with RoHS standards. It is suitable for low voltage applications requiring reliable fuse protection.
- Key Specifications
- Manufacturer: Eaton
- Series: Bussmann CHM
- Part Number: CHM3DIU
- Amperage Rating: 30A (UL), 32A (IEC)
- Voltage Rating: 600 V (UL), 690 V (IEC)
- Number of Poles: 3
- Mounting Type: DIN Rail
- Fuse Size Compatibility: 10 x 38 mm cylindrical/ferrule
- Termination Style: Screw
- Operating Temperature: -20 °C to 90 °C
- RoHS Compliant
- Part Number: CHM3DIU
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Parts And Accessories
- Family : CH Series
- Type : CHM
- UPC : 05171236278
- GTIN : 00051712362788
- Country of Origin : China
- Dimensions : 2.06 in x 2.44 in x 2.91 in
- Weight : 0.3956
- Certification : UL
