Description

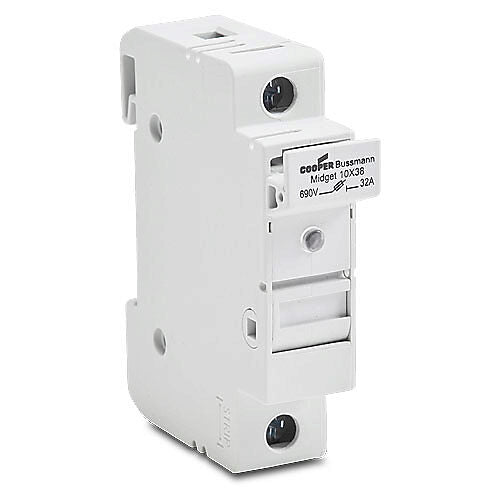

CHM1DI
CHM1DI is an Eaton Bussmann series modular fuse holder designed for single-pole applications with a 48 Vdc rating and 30A amperage (UL). It supports 10 mm x 38 mm fuses and features a DIN rail mounting style.
This modular fuse holder is rated for 30 amps at 48 Vdc under UL standards and 32 amps under IEC standards. It is designed for use with Bussmann series CHM fuses and provides finger-safe protection with an IP20 construction. The unit includes a fuse access door that accommodates a 4 mm lockout/tagout device for enhanced safety. It is suitable for industrial and electrical distribution applications requiring reliable fuse protection and easy installation on DIN rails.
- Amperage: 30A (UL), 32A (IEC)
- Voltage: 48 Vdc (UL/IEC)
- Poles: Single-pole
- Fuse Size: 10 mm x 38 mm
- Mounting Type: DIN rail
- Finger-safe IP20 construction
- Fuse access door with lockout/tagout capability
- Compatible with Bussmann CHM series fuses
- UL 508 certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CHM1DI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Part And Accessory
- Section : Fuse Holders
- Family : CH Series
- Type : CHM
Product Data
- Weight : 5
