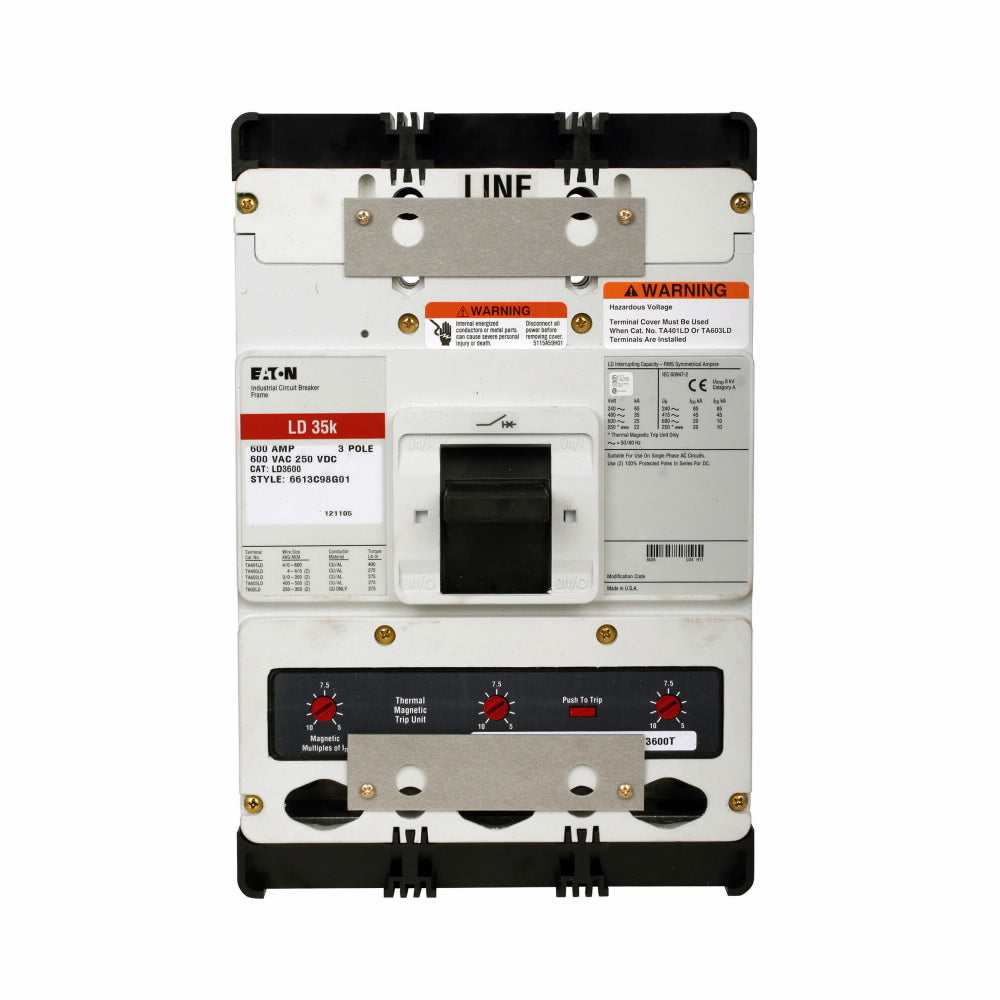

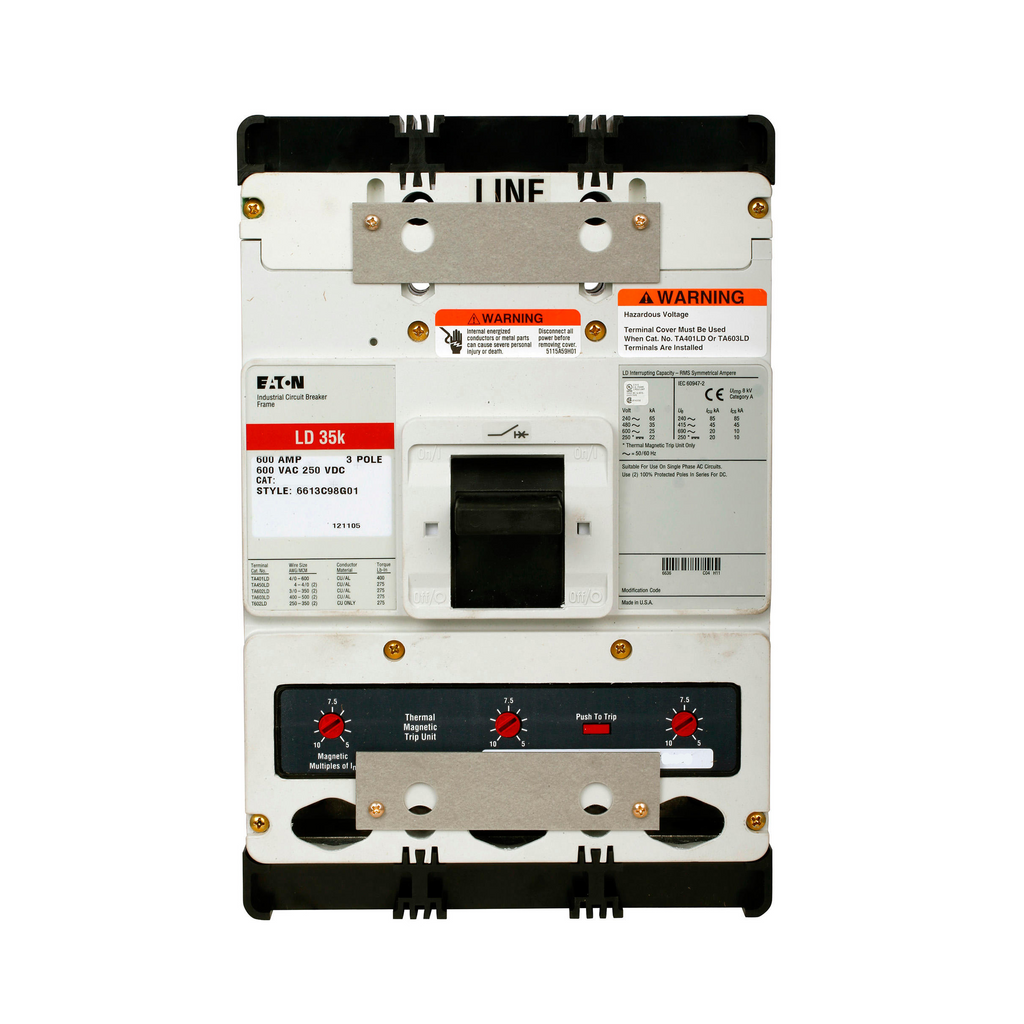

CHLD3600T52W - Eaton Series C 600A 600VAC 3-Pole Molded Case Circuit Breaker

CHLD3600T52W

CHLD3600T52W is an Eaton Series C electronic molded case circuit breaker designed for industrial power distribution applications requiring high-capacity protection.

This L-frame complete breaker features an Electronic LSI (Level Sensing Instantaneous) trip unit with adjustable thermal and magnetic settings. The unit is rated for 600 amperes at 600 volts AC (250 volts DC) with a 65 kAIC interrupt rating at 480 VAC and 100 kAIC at 240 VAC. It utilizes bolt-on connection for secure panel mounting and includes zone selective interlock communication capability for coordinated protection in multi-breaker systems.

Key Specifications

• Amperage Rating: 600 A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: Three-pole
• Frame Size: L-frame
• Trip Type: Electronic LSI with adjustable thermal and magnetic
• Interrupt Rating: 65 kAIC at 480 VAC; 100 kAIC at 240 VAC
• Connection Type: Bolt-on
• Breaker Type: Complete breaker
• Series: Series C OPTIM 550
• Certifications: UL Listed
• Communication: Zone selective interlock

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHLD3600T52W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : CHLD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Frame Size : L Frame
• Protection : Solid State

Product Data

• UPC : 078211440242
• GTIN : 00782114402429
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 20
