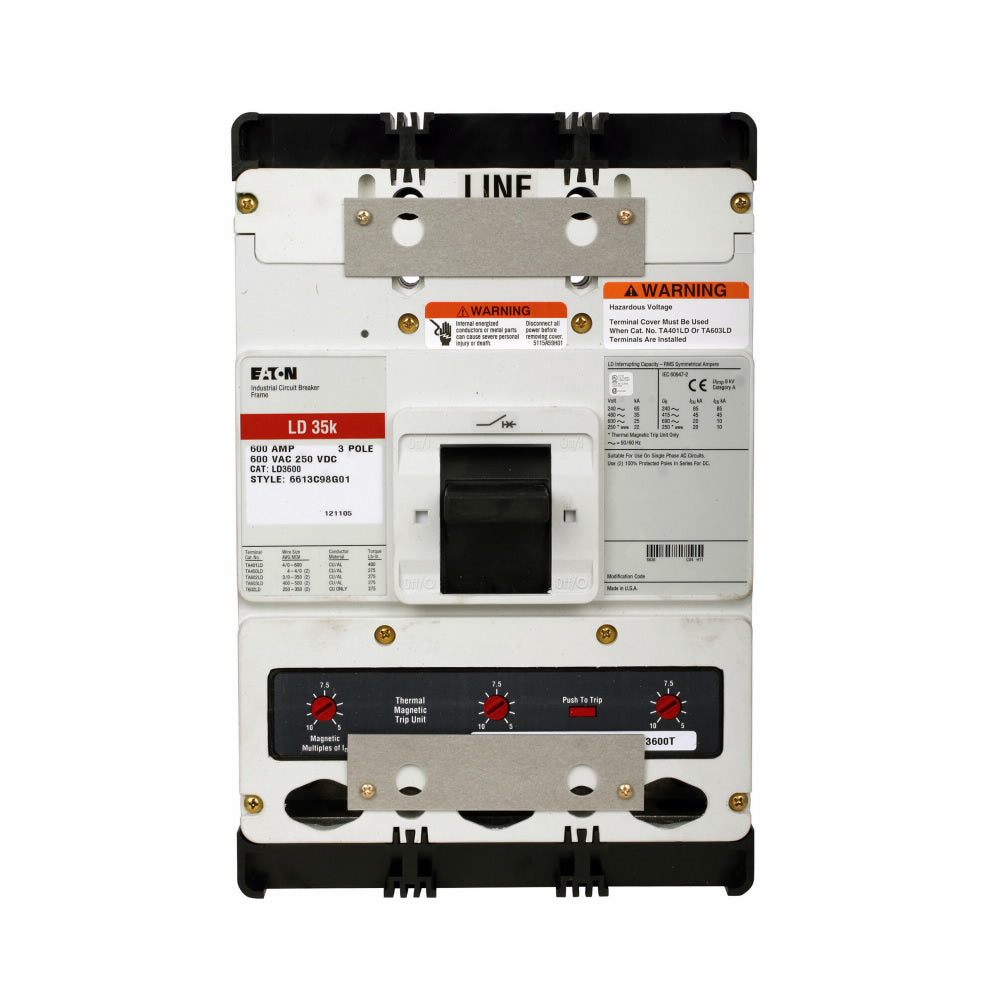

CHLD3600T106W - Eaton Series C 600A 600VAC 3-Pole L-Frame Molded Case Circuit Breaker

CHLD3600T106W

CHLD3600T106W is an Eaton Series C molded case circuit breaker designed for industrial power distribution applications requiring reliable overcurrent protection. This three-pole, L-frame breaker combines robust construction with electronic trip technology for precise fault detection and interruption.Technical Overview

The CHLD3600T106W features a 600-ampere rating at 600 VAC (250 VDC) with an electronic LSIG trip unit for selective coordination in complex electrical systems. The breaker delivers 100 kAIC interrupt rating at 240 VAC and 65 kAIC at 480 VAC, making it suitable for main distribution and feeder applications. Its L-frame design provides compact mounting while maintaining full operational capacity across 50/60 Hz frequencies.

Key Specifications

• Amperage Rating: 600 A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Frame Size: L-Frame
• Series: C
• Trip Type: Electronic LSIG
• Interrupt Rating: 100 kAIC at 240 VAC; 65 kAIC at 480 VAC
• Frequency Rating: 50/60 Hz
• Circuit Breaker Type: LD (Complete Breaker)
• Terminals: Without terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHLD3600T106W
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : CHLD
• Voltage : 600
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Bolt-On
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 78667905489
• GTIN : 00786679054895
• Country of Origin : United States
• Dimensions : 8.25 in x 8.25 in x 8.25 in (Length/Depth x Height x Width)
• Weight : 23
• Certification : UL Listed
