Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
CHKD3400T52W

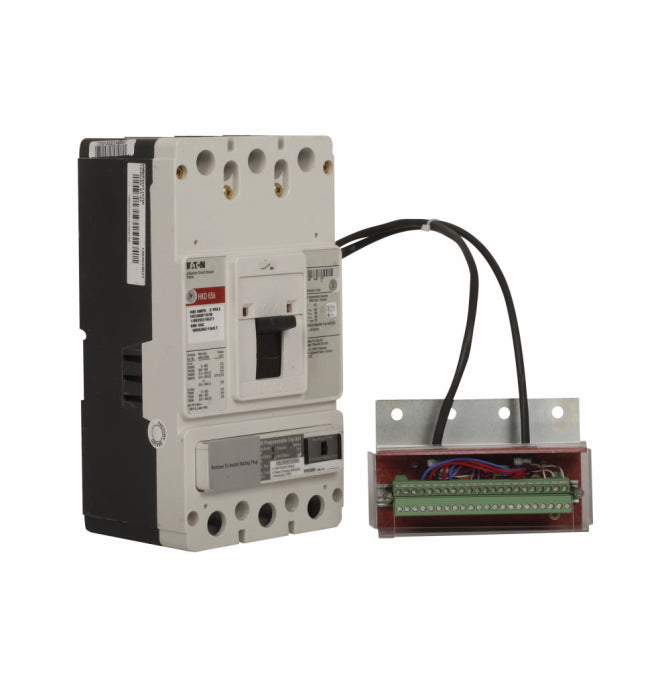

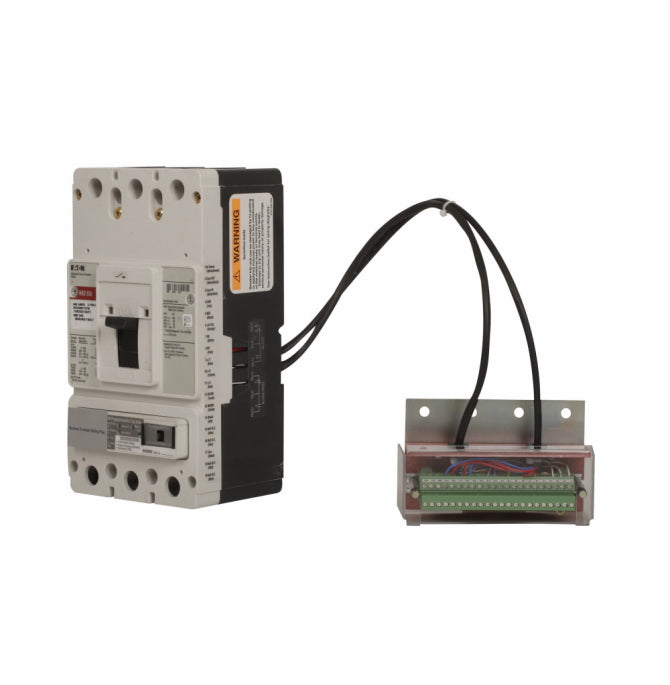

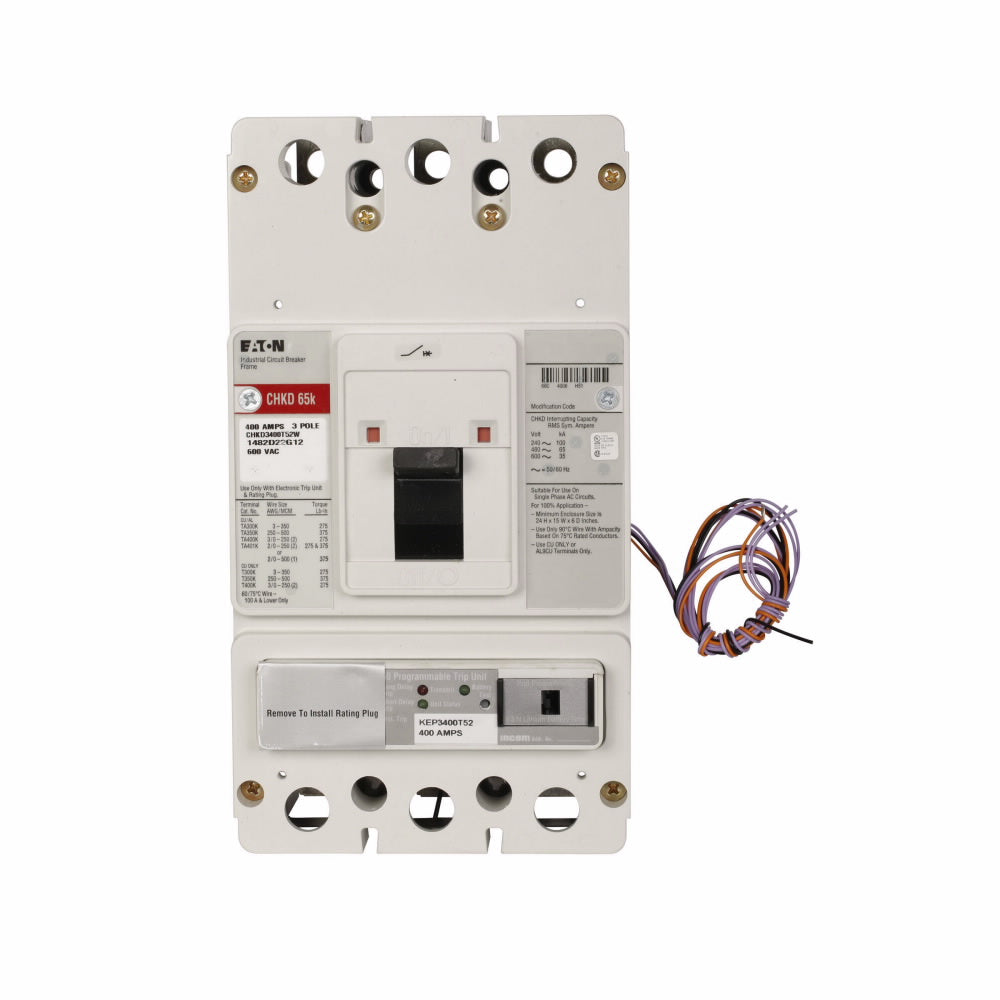

CHKD3400T52W is a Westinghouse 400 Amp, 600 Volt, 3 Pole Molded Case Circuit Breaker with Series C frame and electronic LSI trip unit.This circuit breaker features a 65kA interrupting rating at 480VAC, panel mount design, and is UL listed for industrial applications. It supports 240/480/600 VAC and 250 VDC operation, with a 100% rated electronic trip and RMS 310 trip functions. The breaker includes load lugs and is designed for reliable protection in demanding electrical systems.
- Amperage: 400 A
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Interrupting Rating: 65kA @ 480VAC
- Series/Frame: Series C (CHKD Frame)
- Trip Unit: Electronic LSI (RMS 310)
- Mounting Type: Panel Mount
- Certifications: UL Listed
- Load Lugs Included
- Dimensions: 5.5" W x 4.063" D x 10.125" H
- Industrial Grade
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: CHKD3400T52W
- Manufacturer : Westinghouse
- Brand : Westinghouse
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Protection : Solid State
Product Data
- UPC : 782114404003
- GTIN : 00782114404003
- Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 11.5
