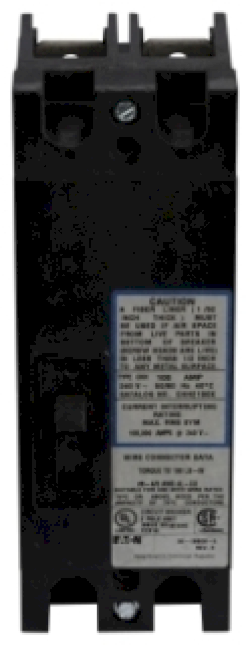

CHH2150 - Cutler Hammer 150A 240V 2-Pole Bolt-On Circuit Breaker, 100kAIC, CHH Series

CHH2150

CHH2150 is a Cutler Hammer 2-pole bolt-on circuit breaker rated for 150 amps and 240 volts with a 100 kA interrupt rating.

This CHH series molded case circuit breaker features a bolt-on mounting method, thermal magnetic trip unit, and is UL 489 certified. It is designed for use with Type CH loadcenters and provides reliable protection with a 100 kA interrupting capacity at 240 volts. The breaker measures 9 inches in length, 5.5 inches in height, and 4.5 inches in width, weighing approximately 4.5 pounds.

Key Specifications
• Amperage: 150 A
• Voltage Rating: 240 V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 100 kAIC
• Series/Frame: CHH
• Trip Unit: Thermal Magnetic
• Certifications: UL 489
• Dimensions (HxWxD): 5.5 x 4.5 x 9 in
• Weight: 4.5 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHH2150
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHH Series
• Type : CHH
• Voltage : 240
• Amperage : 150
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782113132556
• GTIN : 00782113132556
• Dimensions : 9 in x 5.5 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 4.5
• Certification : UL
