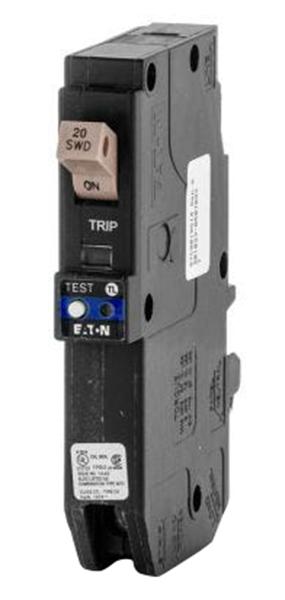

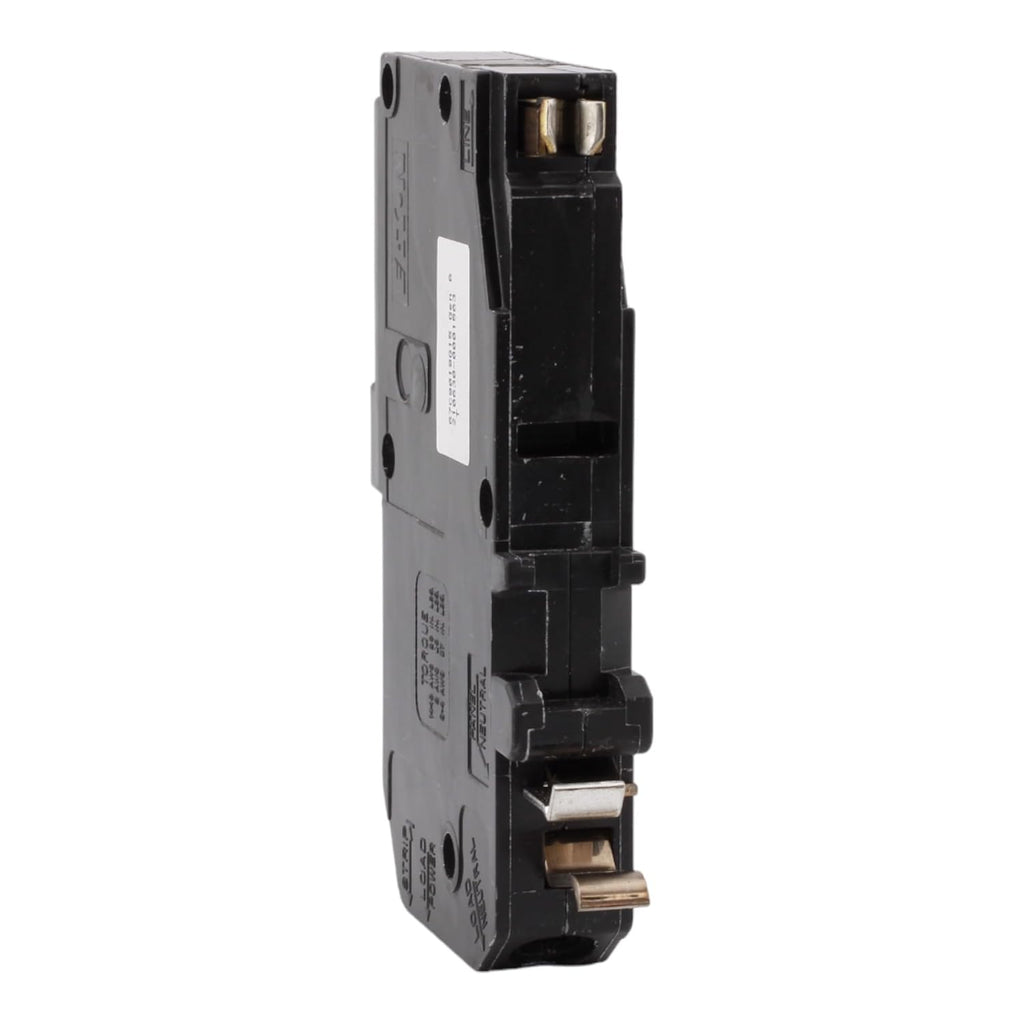

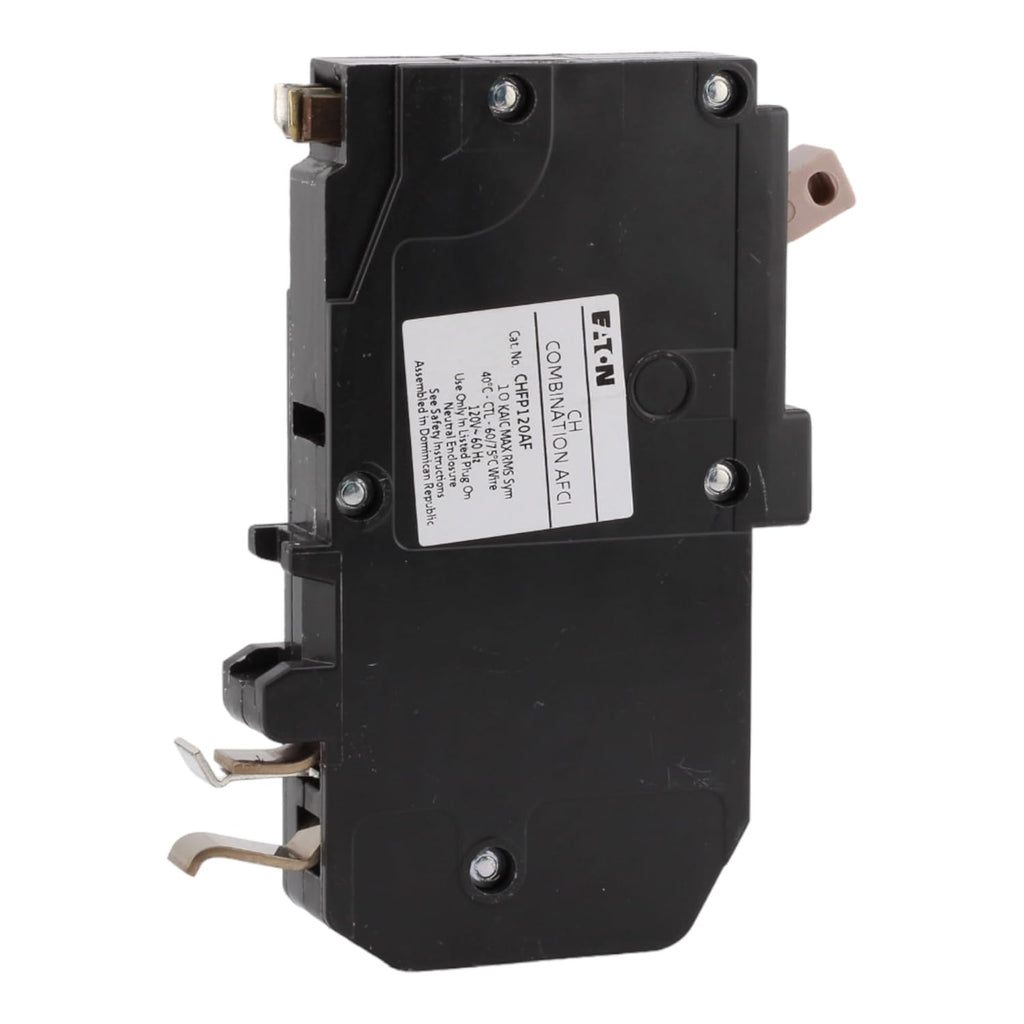

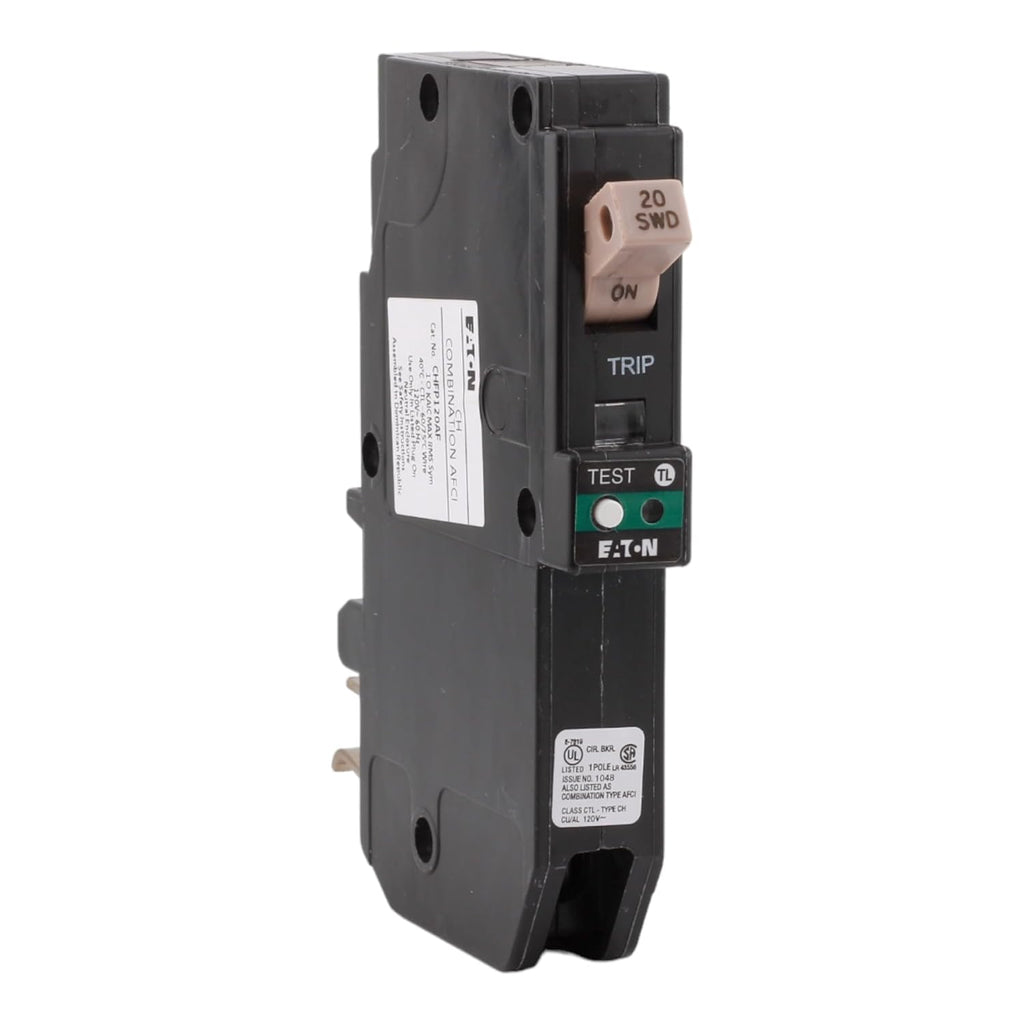

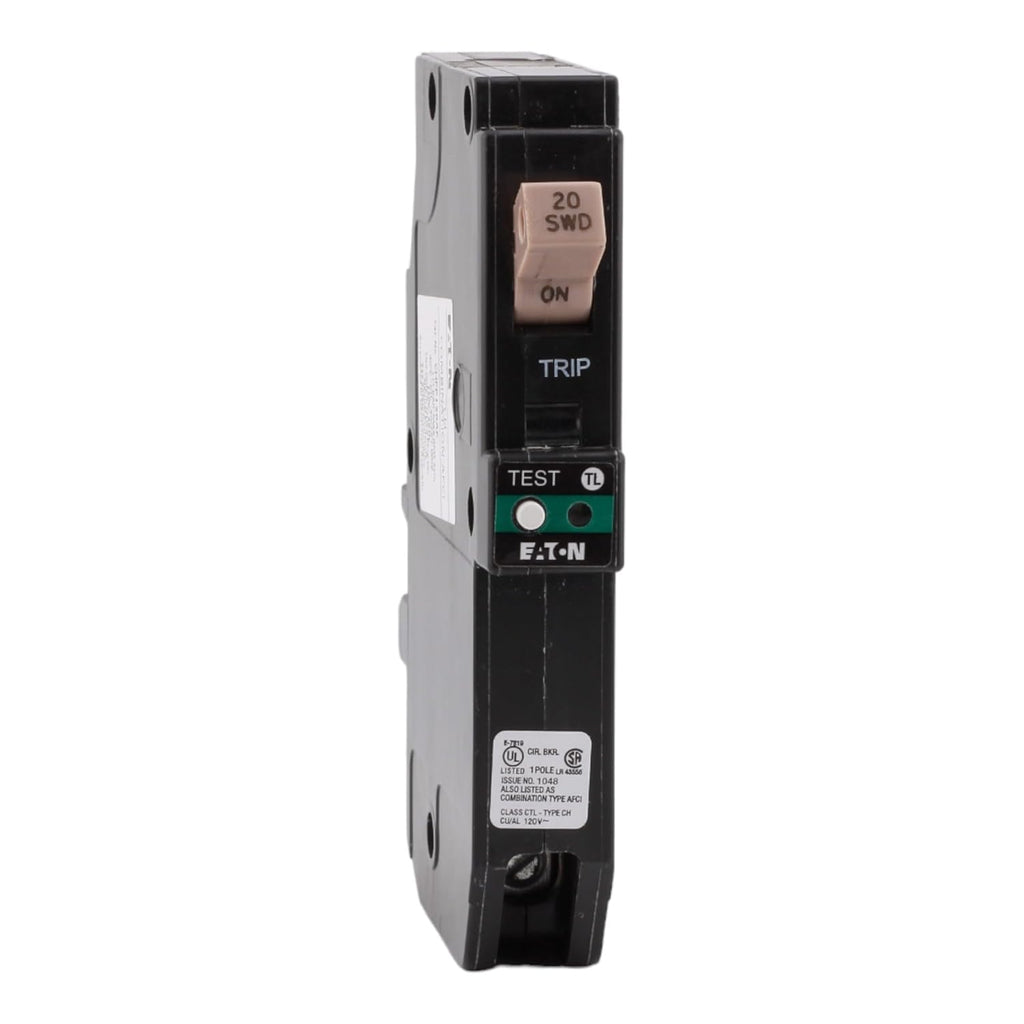

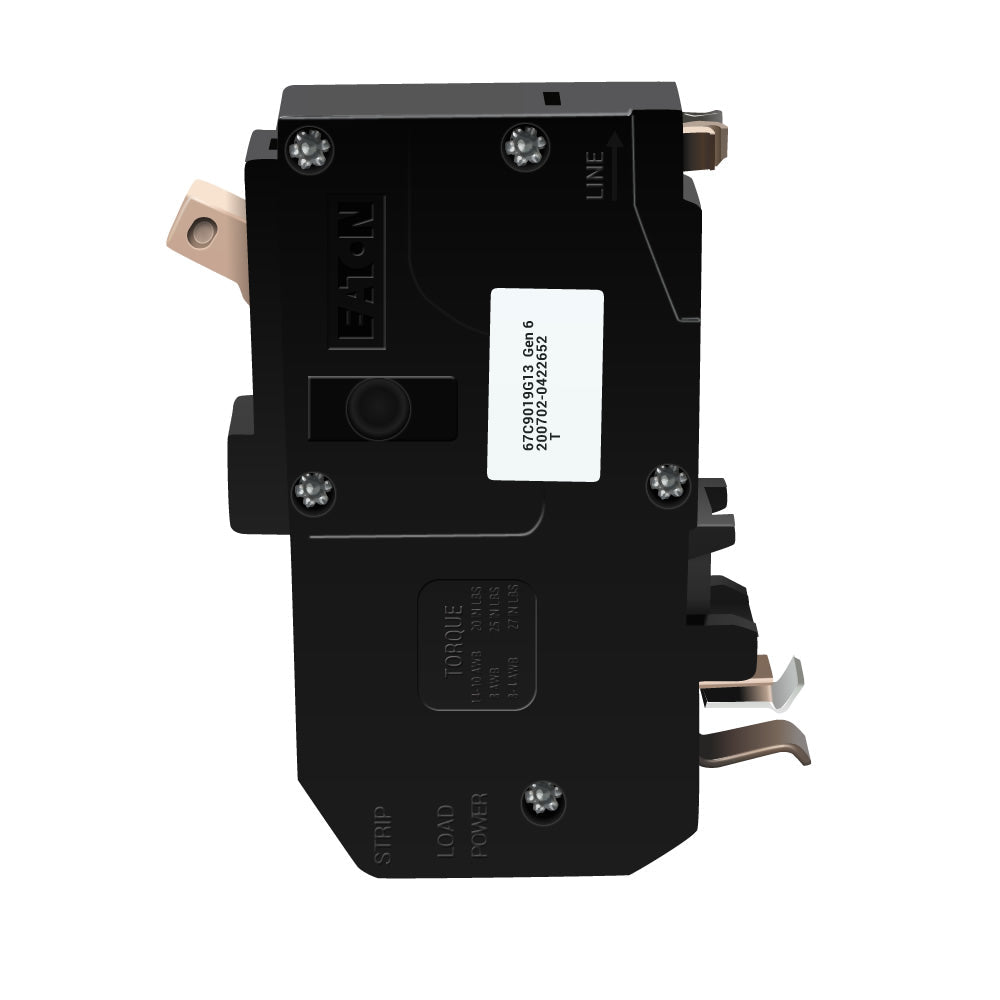

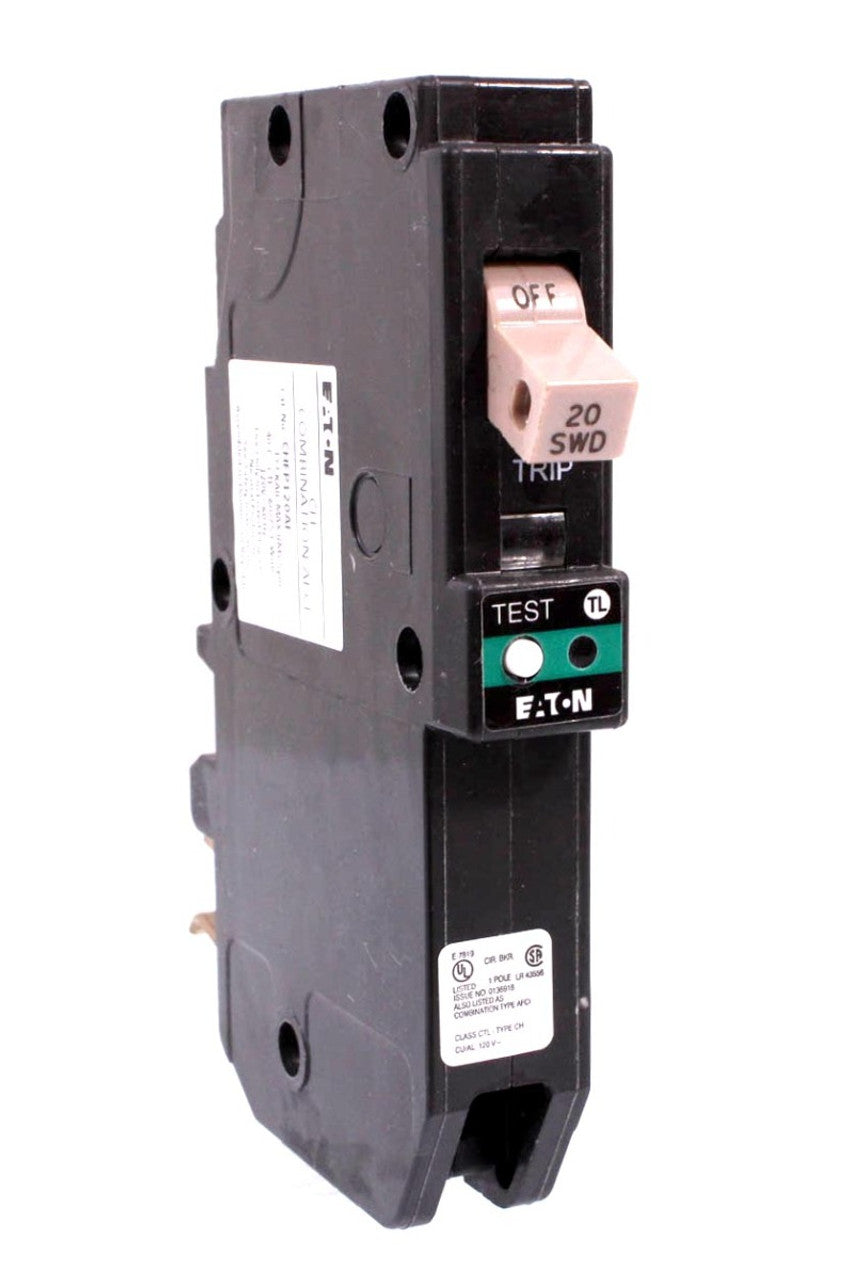

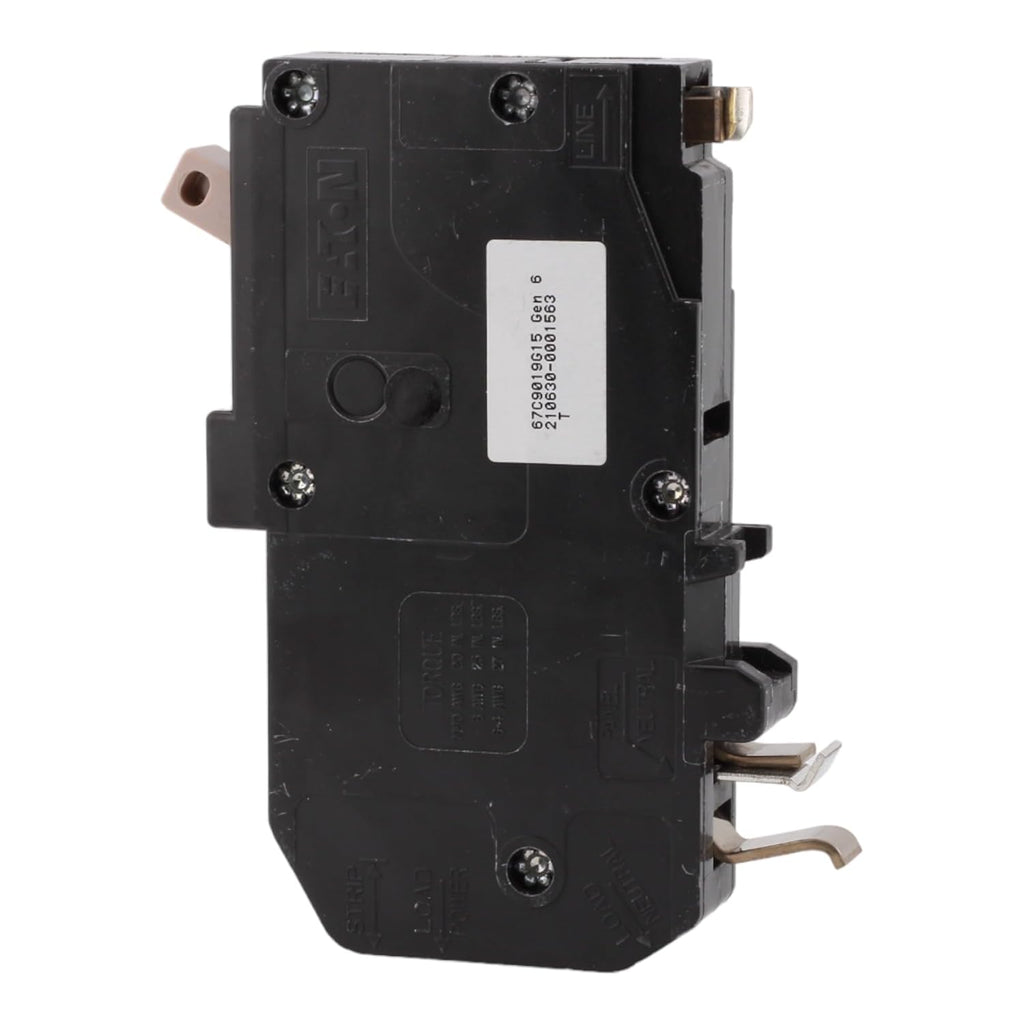

CHFP120AF - Cutler Hammer 20 Amp 1-Pole 120/240V CH Series Plug-On Neutral Combination Arc Fault Circuit Breaker, 10 kAIC, UL Listed

CHFP120AF

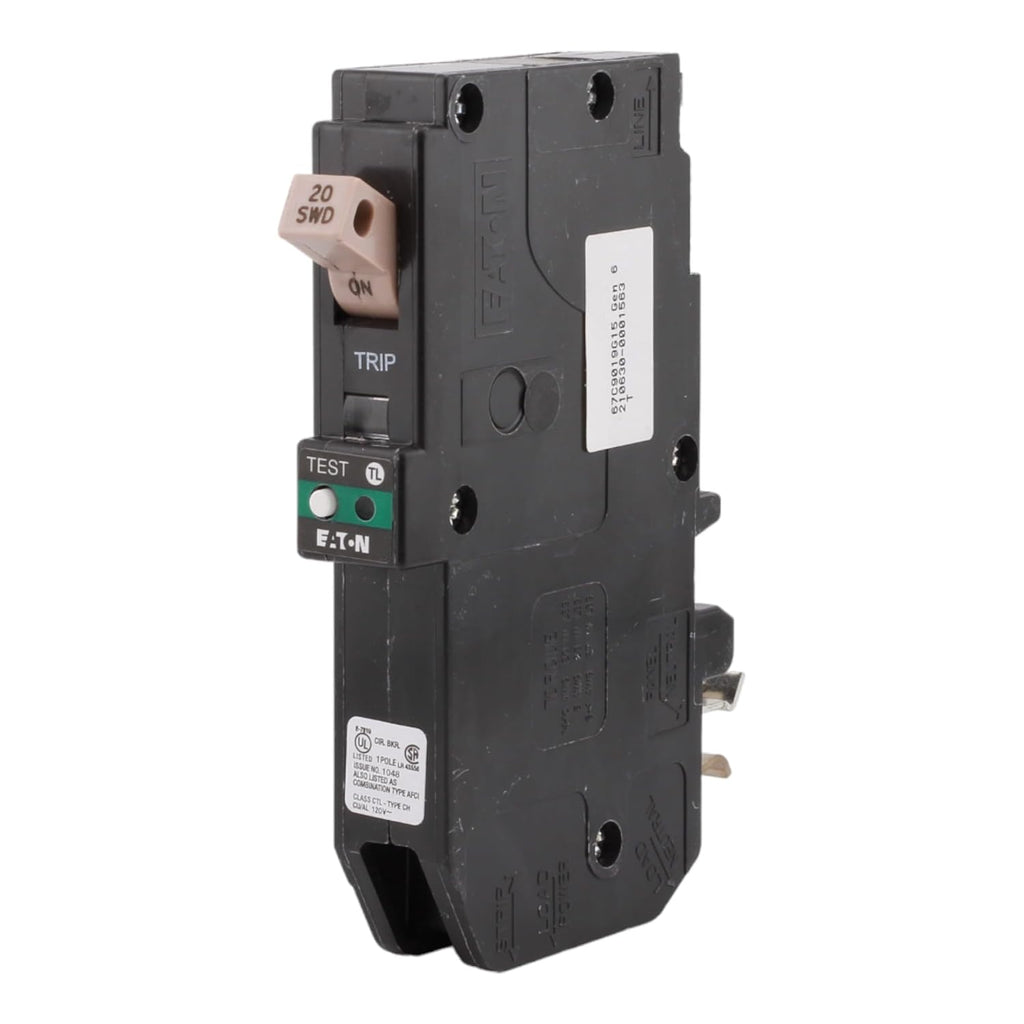

CHFP120AF is a Cutler Hammer 20 Amp, 1-pole, 120/240V combination arc fault circuit breaker designed for reliable protection in residential and light commercial applications.

This CH Series breaker features a plug-on neutral (PON) mounting type for easy installation, a 10 kAIC interrupting rating for enhanced safety, and a thermal-magnetic trip unit that minimizes nuisance tripping while responding quickly to severe faults. It is UL Listed for compliance with North American safety standards.

Key Specifications
• Amperage: 20 A
• Voltage: 120/240 V
• Poles: 1
• Mounting Type: Plug-on neutral (PON)
• Interrupt Rating: 10 kAIC
• Series/Frame: CH
• Trip Unit: Thermal-magnetic (LI - Long-time and instantaneous)
• Certifications: UL Listed
• Dimensions: 4.5 in L x 0.75 in W x 3.25 in H
• Weight: 0.5 lb
• Application: Combination arc fault protection
• Temperature Rating: 40°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHFP120AF
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 2
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Plug-On Neutral
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
• Breaker Type : CH
• Protection : Thermal Magnetic

Product Data

• UPC : 786689058951
• GTIN : 00786689058951
• Country of Origin : Dominican Republic
• Dimensions : 4.5 in x 3.25 in x 0.75 in (Length/Depth x Height x Width)
• Weight : 0.5
• Panel Type : Type CH Loadcenters
• Standards : UL Listed
• Certification : UL Listed
