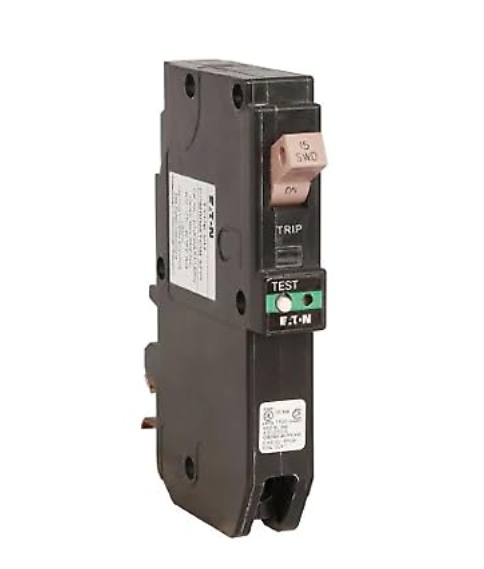

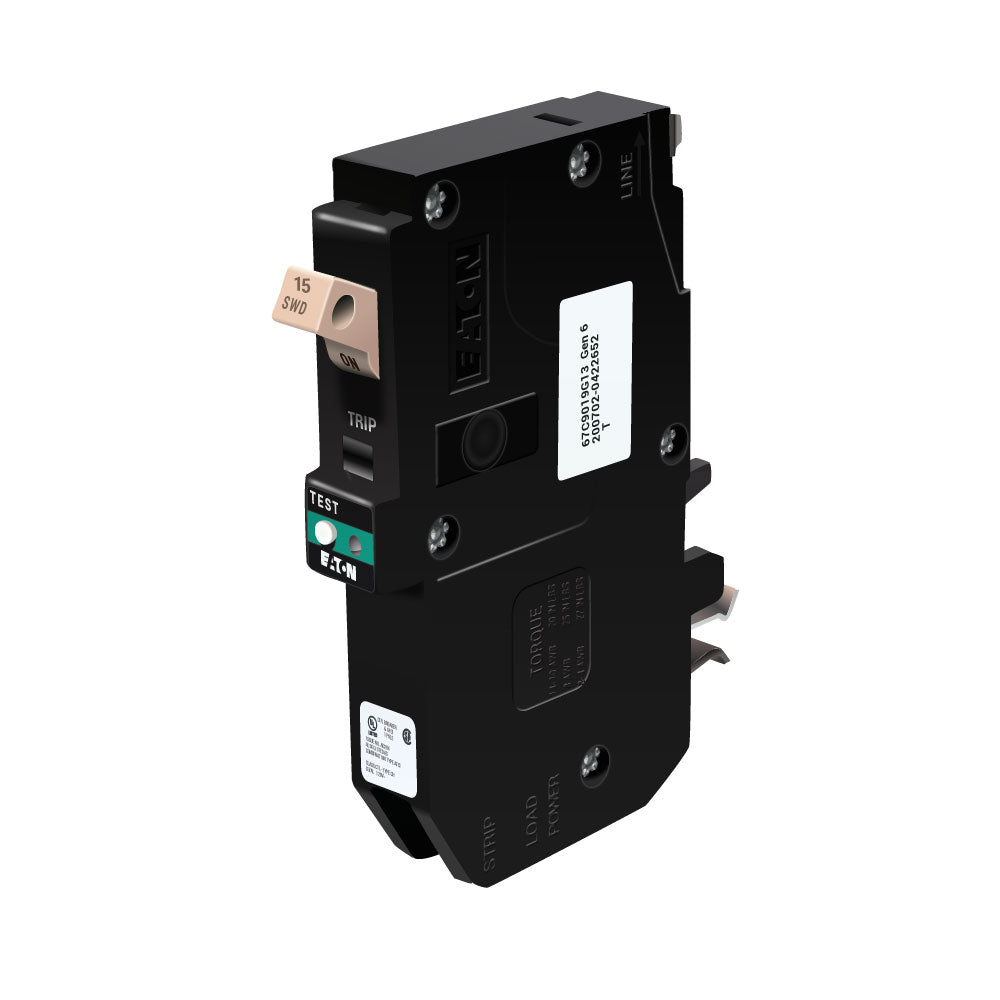

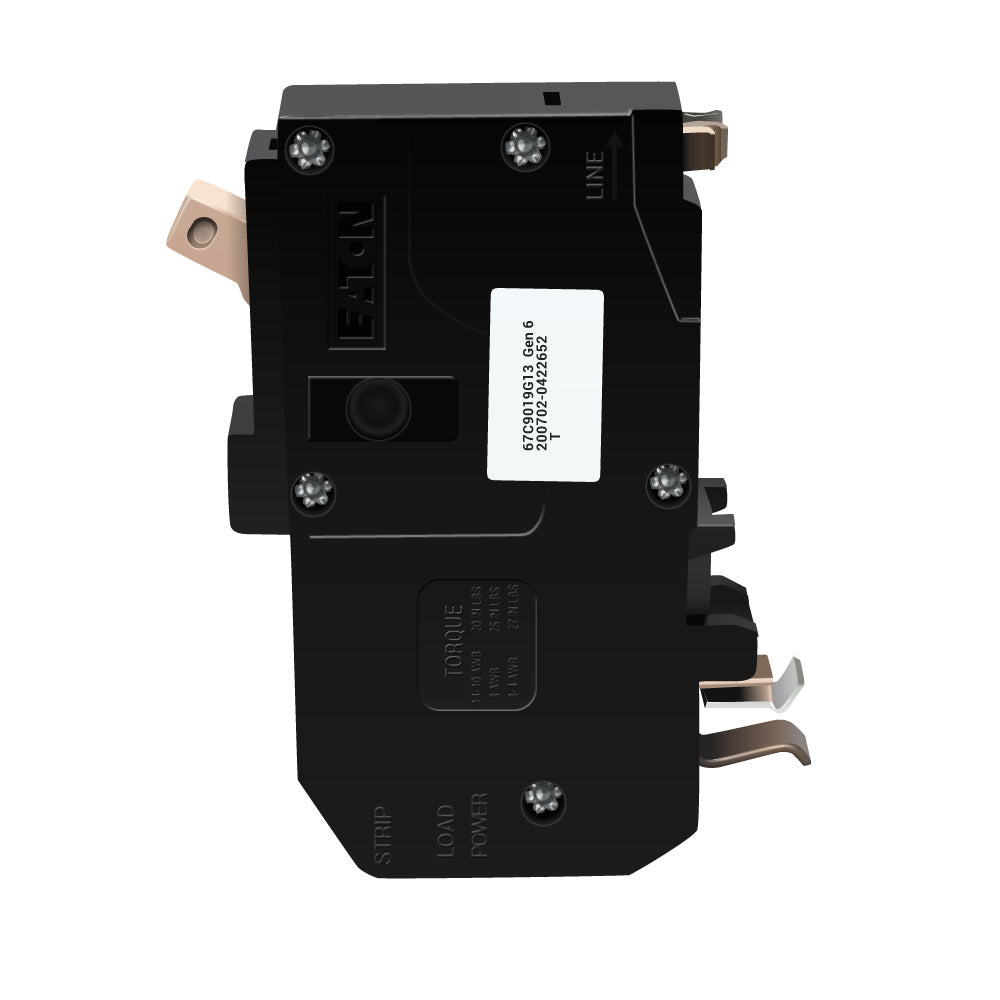

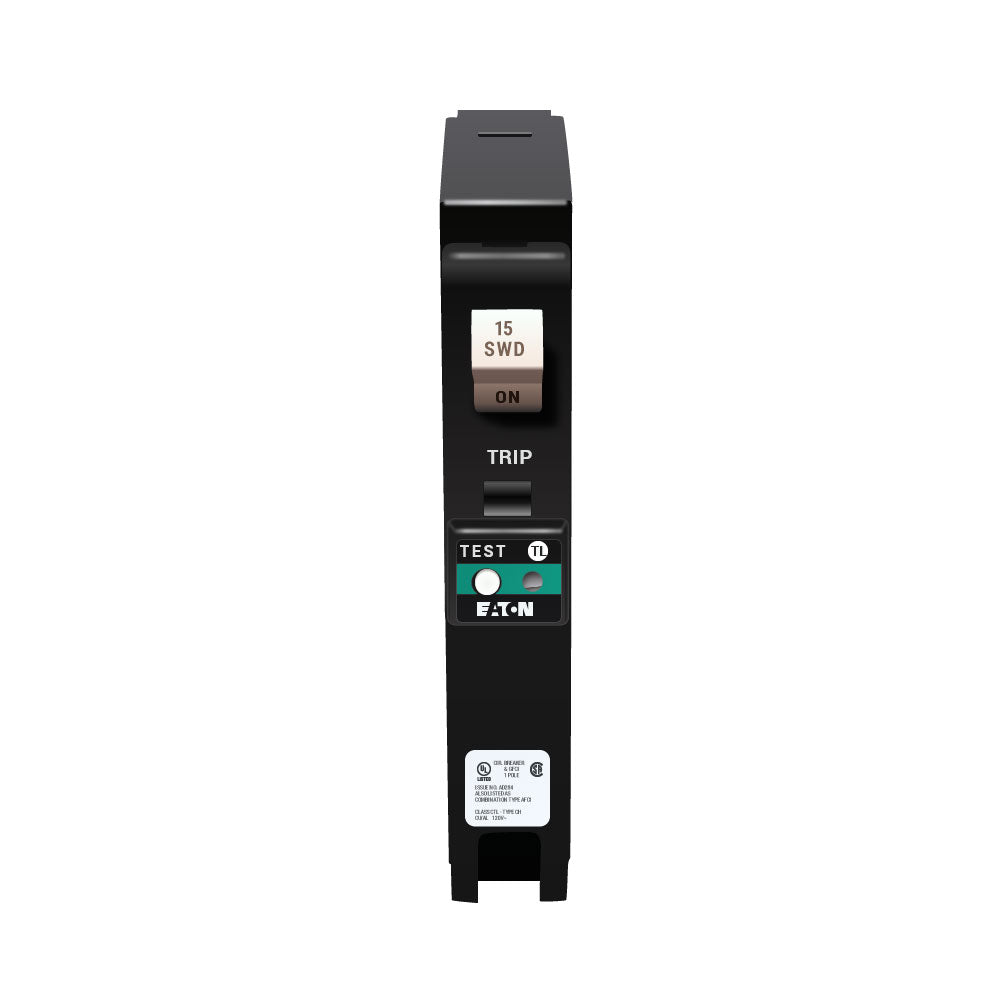

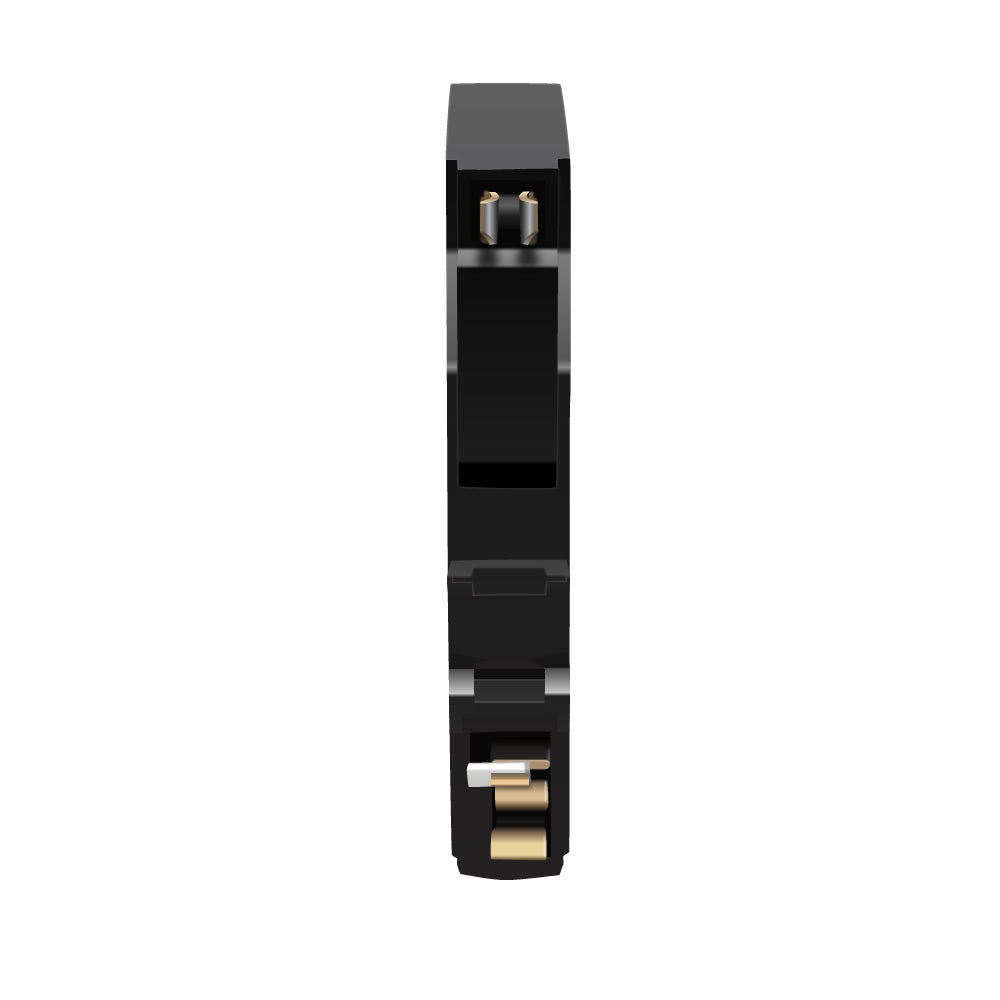

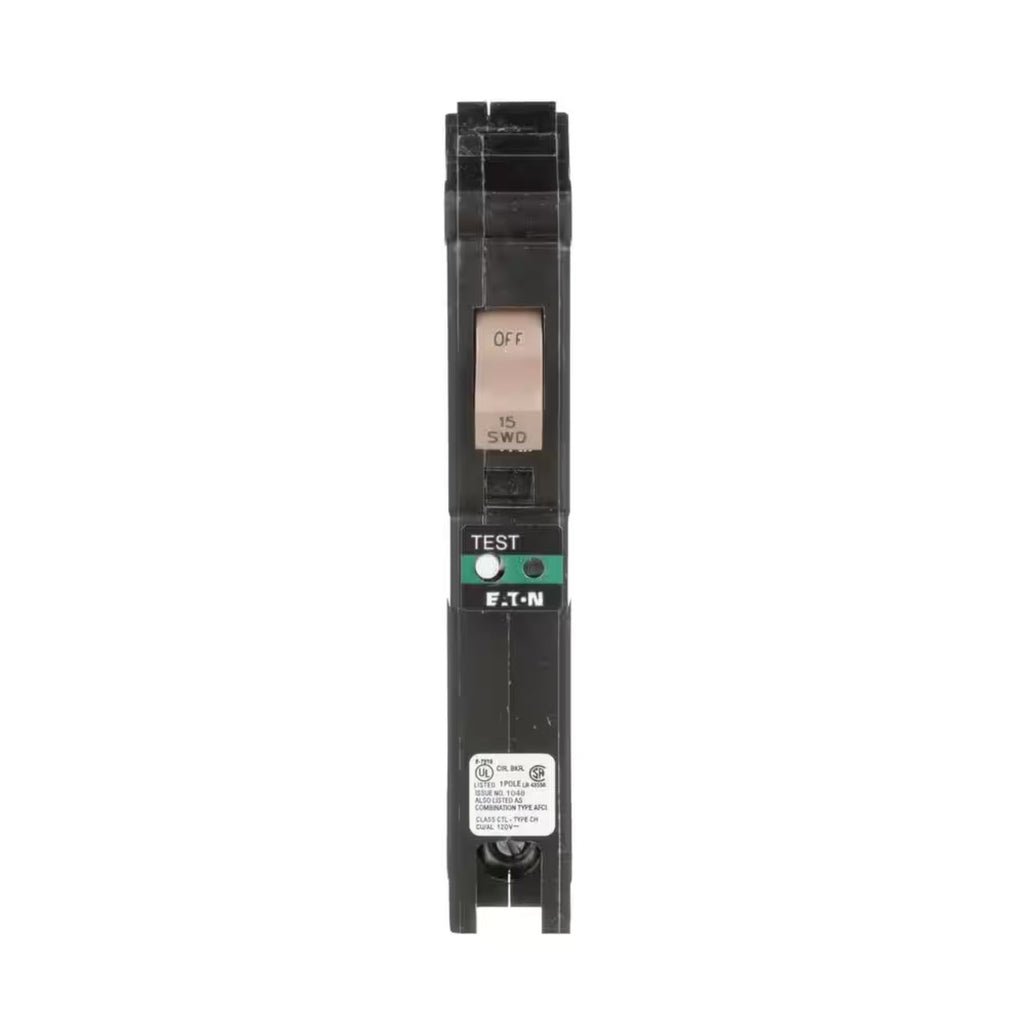

CHFP115AF - Cutler Hammer 15A 120/240V 1-Pole CH Combo AFCI Circuit Breaker 10 kAIC Plug-On Neutral

CHFP115AF

CHFP115AF is a Cutler Hammer 15 Amp, 1-pole CH series combination arc fault circuit breaker designed for residential electrical protection.This CHFP115AF breaker features a 120/240 Volt rating, 10 kA interrupting capacity, and plug-on neutral mounting for easy installation. It provides reliable thermal-magnetic trip protection with long-time and instantaneous functions to prevent nuisance tripping and respond quickly to short circuits. The breaker is UL listed and HACR rated, ensuring compliance with safety standards.

• Amperage: 15 A
• Voltage: 120/240 V
• Poles: 1
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-On Neutral
• Series/Frame: CH
• Trip Unit: Thermal-Magnetic with Long-Time and Instantaneous
• Certifications: UL Listed, HACR Rated
• Connection Type: Plug-On
• Type: Combination AFCI Breaker

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHFP115AF
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Pigtail
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 6 AWG
• Breaker Type : CH
• Protection : Thermal Magnetic
• Trip Type : Arc Fault (AFCI)

Product Data

• UPC : 786689058920
• GTIN : 00786689058920
• Country of Origin : Dominican Republic
• Dimensions : 3.5 in x 1.2 in x 6.1 in (Length/Depth x Height x Width)
• Weight : 0.45 lb
• Panel Type : Type CH Loadcenters
• Standards : UL 489, HACR Rated
• Certification : UL 489, HACR Rated
