Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CHFN130GF

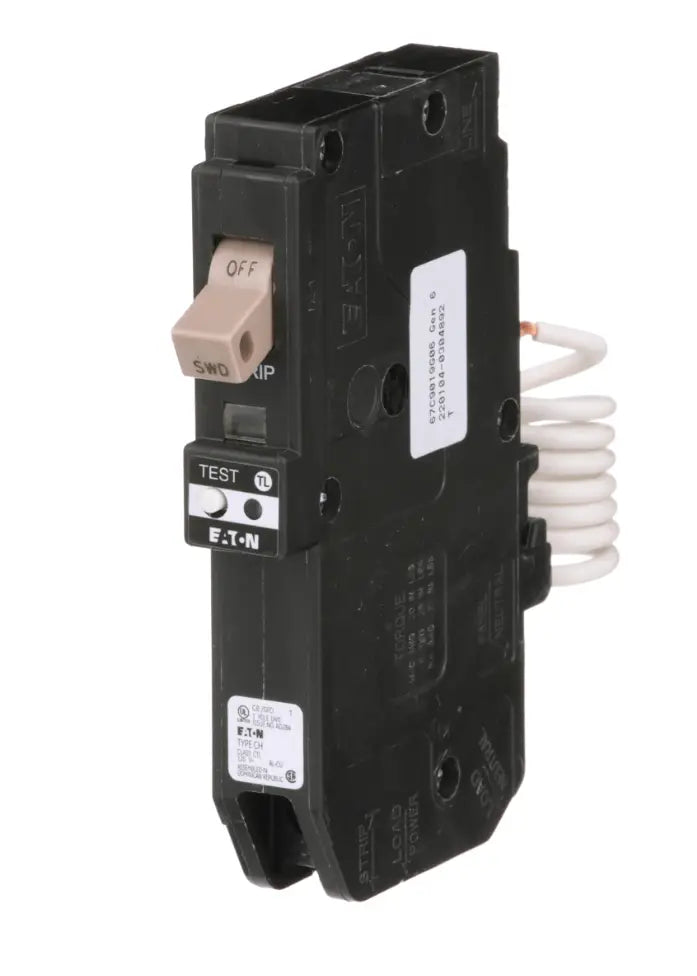

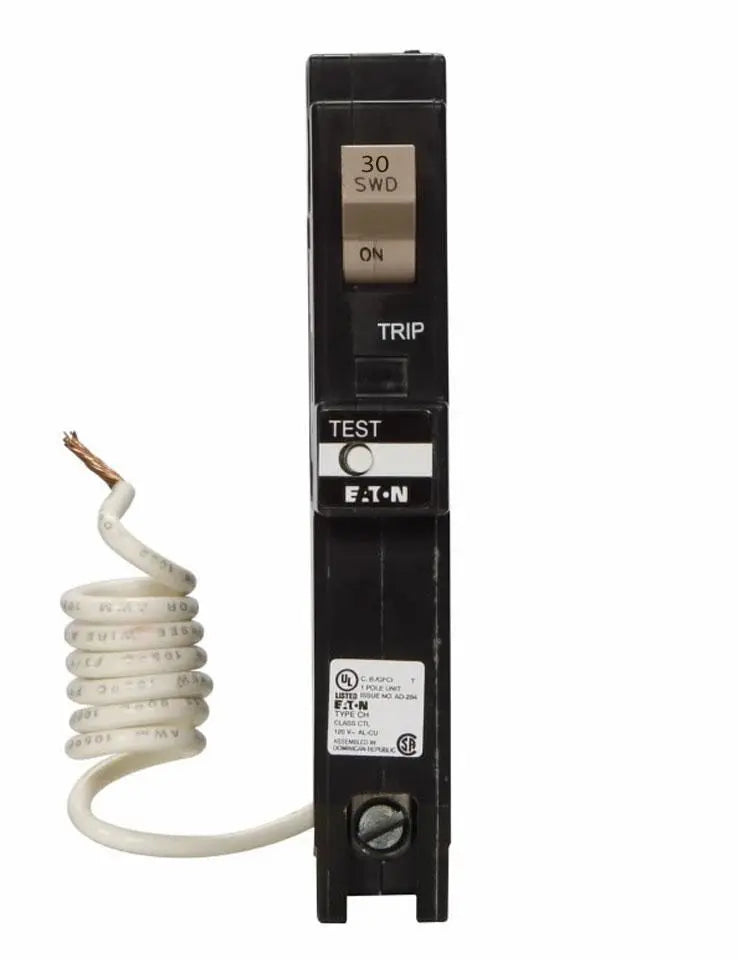

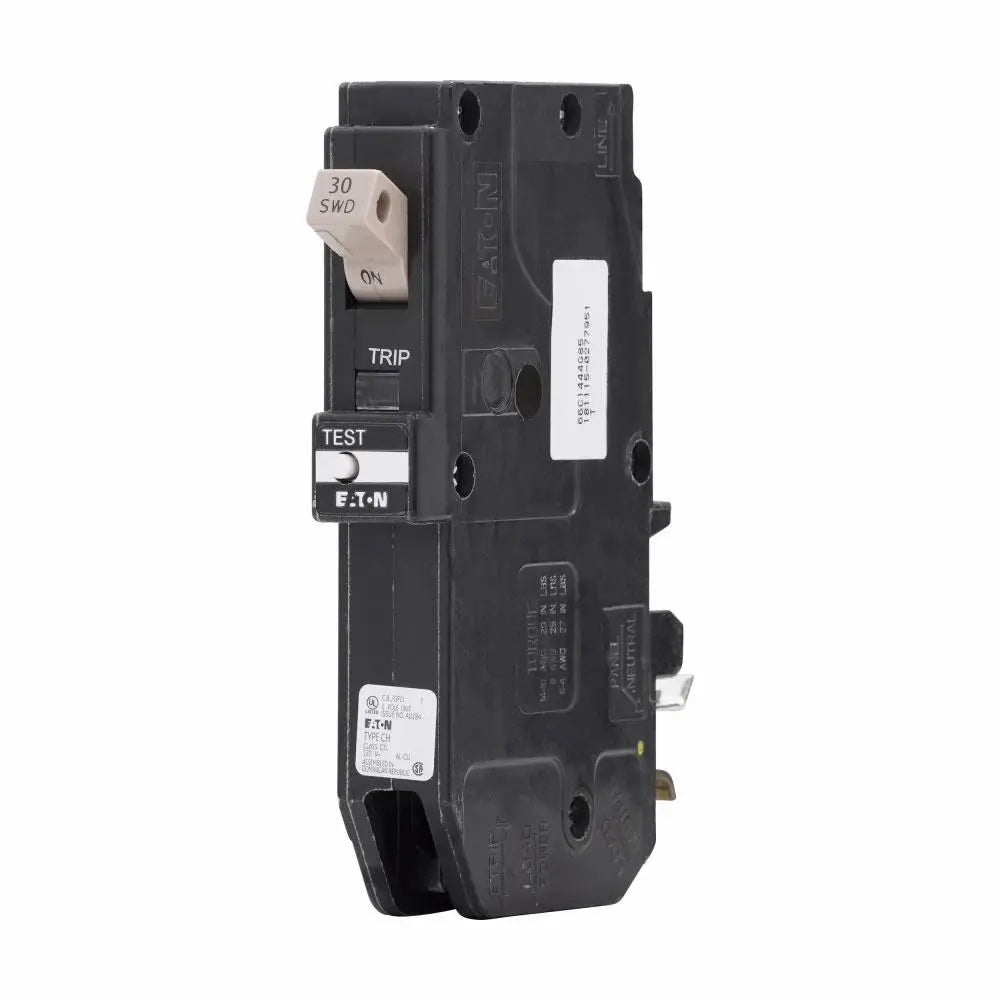

CHFN130GF is a Cutler Hammer 30 Amp, 1-pole GFCI circuit breaker designed for ground fault protection in residential, commercial, and industrial applications.CHFN130GF features a thermal magnetic trip unit with long-time and instantaneous trip functions, a 10kA interrupting rating at 120V, and a plug-in mounting type with pigtail neutral connection. It is UL listed and part of the CH frame series, supporting 120/240VAC single-phase circuits.
- Amperage: 30 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Mounting Type: Plug-In
- Interrupt Rating: 10 kAIC at 120V
- Frame/Series: CH
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Connection: Pigtail Neutral
- Certifications: UL Listed
- Circuit Breaker Type: GFCI (Ground Fault Circuit Interrupter)
- Phase: Single-phase
- Application: Residential, Commercial, Industrial
Specifications
- Part Number: CHFN130GF
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CH Series
- Type : CHFN
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78668905891
- GTIN : 00786689058913
- Dimensions : 4.5 in x 3.25 in x 0.75 in (Length/Depth x Height x Width)
- Weight : 0.5 lb
