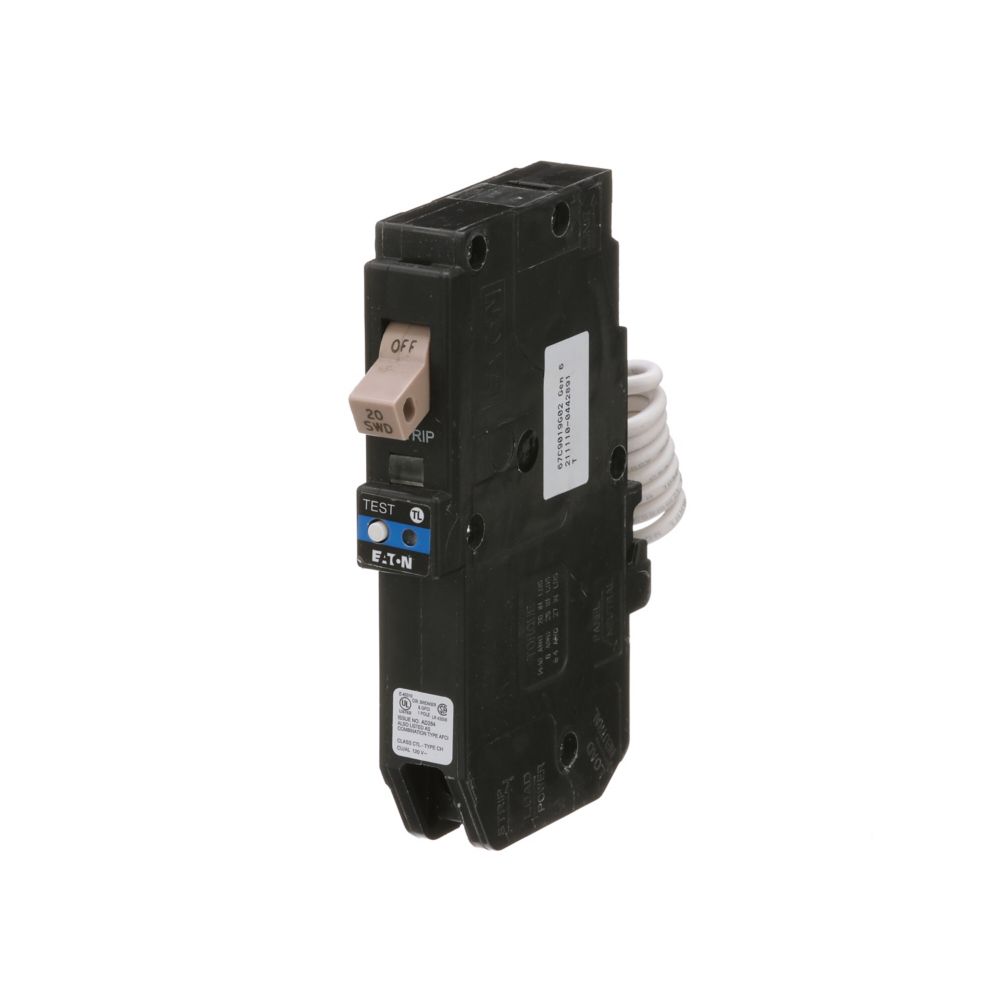

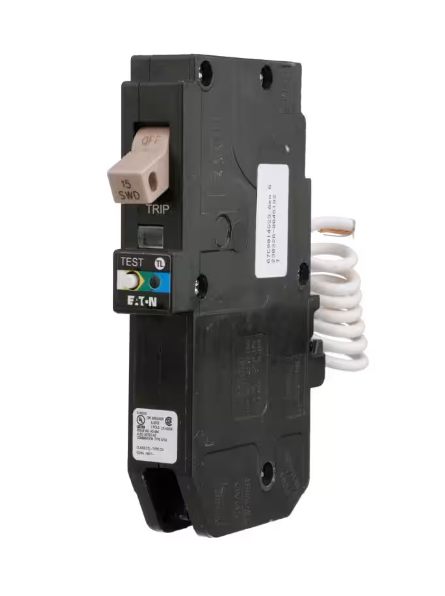

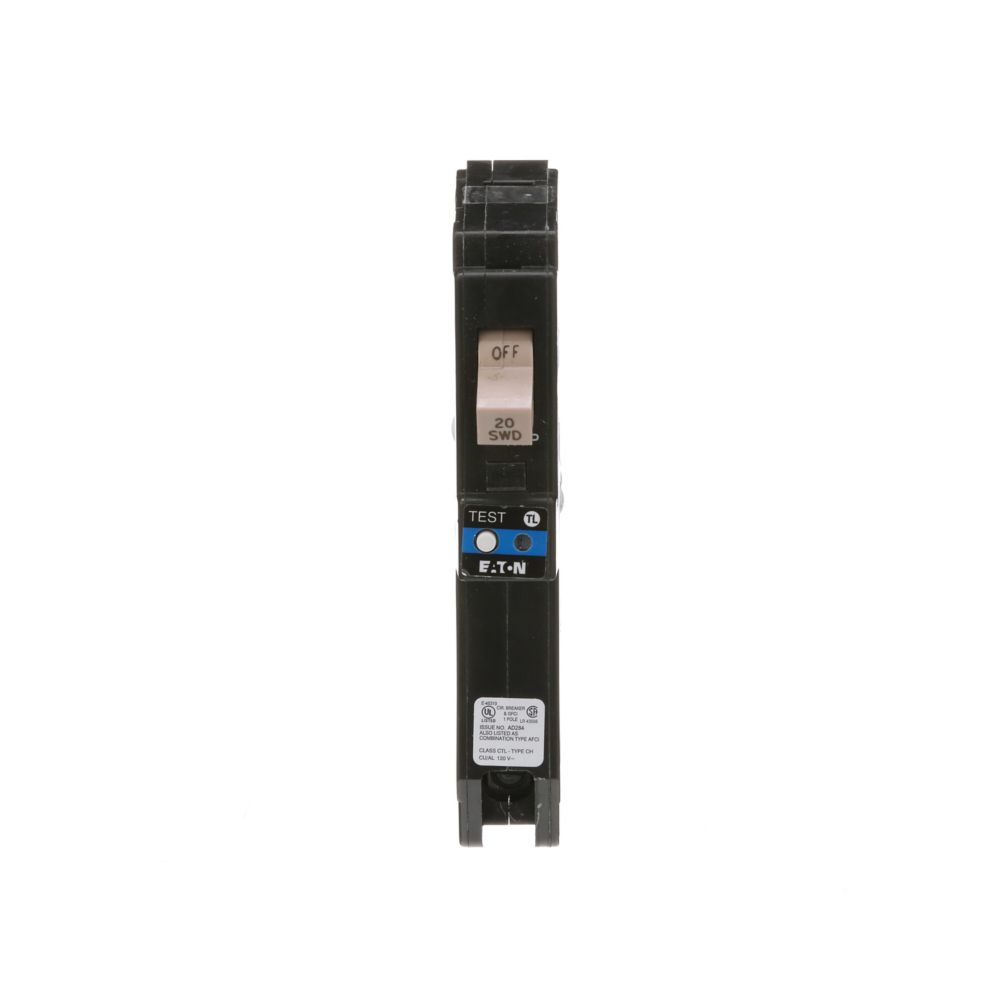

CHFN115A1CS - Eaton 15 Amp 1 Pole 120/240V Dual Function AFCI/GFCI Circuit Breaker Plug-On

CHFN115A1CS

CHFN115A1CS is a 15 Amp, 1 Pole dual function circuit breaker from Eaton designed for 120/240V applications with plug-on mounting.This Eaton CH series breaker features thermal magnetic protection with long time and instantaneous trip functions. It provides combined arc fault and ground fault interruption (AFCI/GFCI) with a 10 kA interrupting rating at 120V. The breaker includes a pigtail neutral connection and is UL listed and HACR rated for residential and commercial use.

Key Specifications
• Amperage: 15 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 1
• Mounting Type: Plug-On
• Interrupting Rating: 10 kAIC @ 120V
• Series/Frame: CH
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Connection Type: Pigtail Neutral
• Protection Type: Dual Function AFCI/GFCI
• Certifications: UL Listed, HACR Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHFN115A1CS
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH
• Type : CH
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kAIC@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Breaker Type : AFCI/GFCI Pigtail
• Protection : Thermal Magnetic
• Shipping Dimensions : 3.25 in x 0.75 in x 4.5 in

Product Data

• UPC : 786689166359
• GTIN : 00786689166359
• Country of Origin : Dominican Republic
• Dimensions : 3.25 in x 0.75 in x 4.5 in (Length/Depth x Height x Width)
• Weight : 0.4 lb
• Certification : UL Listed
