CHF220ST - Eaton 20A 120/240V 2-Pole Thermal Magnetic Circuit Breaker Plug-On Type CHF with Shunt Trip 10kAIC

CHF220ST

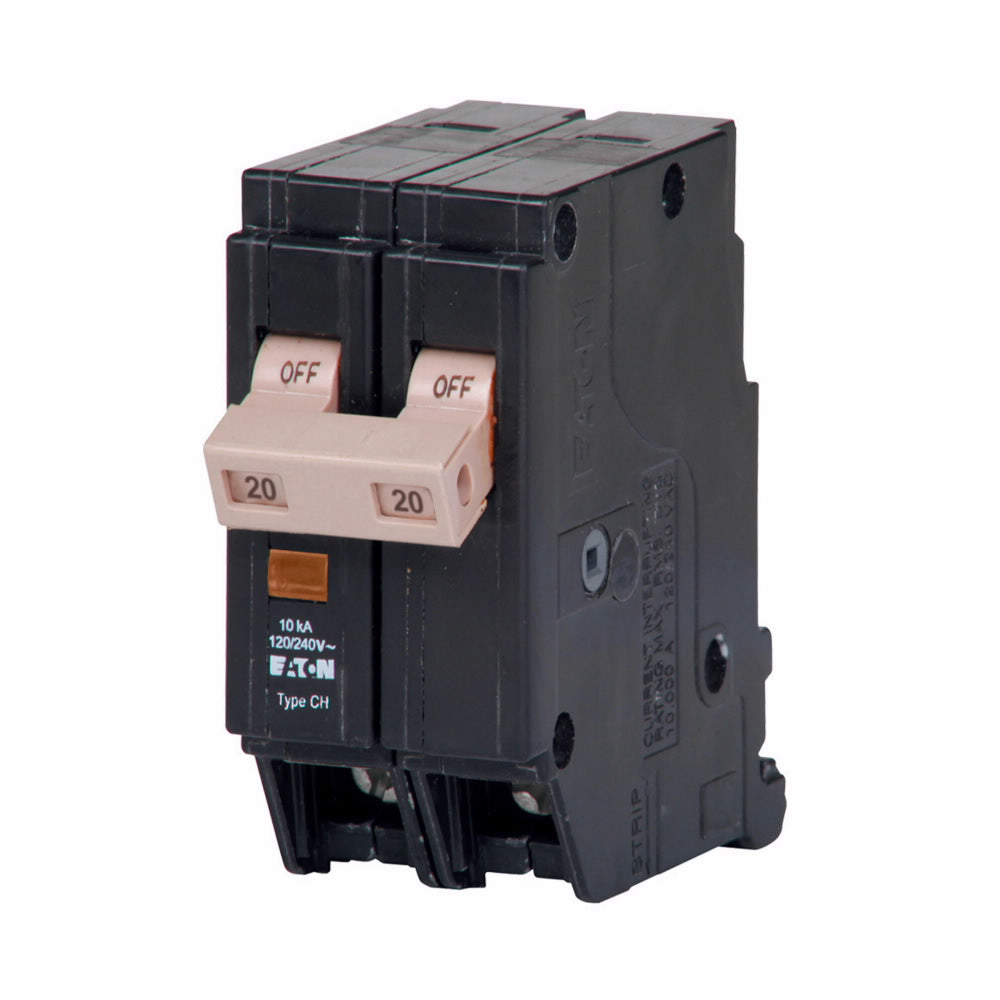

CHF220ST is a 20 Amp, 120/240 Volt, 2-pole thermal magnetic circuit breaker from Eaton's Type CHF series featuring a plug-on mounting design and shunt trip capability.This Eaton CHF220ST circuit breaker offers a 10 kA interrupt rating and includes a mechanical trip flag for easy trip indication. It is UL Listed to UL 489 standards and HACR rated, designed for use with Type CH loadcenters. The breaker supports solid and stranded copper/aluminum wiring from #14 to #8 AWG and provides reliable protection with a limited lifetime warranty.

Key Specifications
• Amperage Rating: 20 A
• Voltage Rating: 120/240 V AC
• Number of Poles: 2
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC
• Series/Frame: Type CHF
• Trip Unit: Mechanical trip flag with common/shunt trip
• Certifications: UL Listed UL 489, HACR Rated
• Wire Size: (1) #14-8 AWG, (2) #14-10 AWG Cu/Al
• Compatible Loadcenters: Type CH
• Warranty: Limited lifetime
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CHF220ST
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 786685708379
• GTIN : 00786685708379
• Country of Origin : Dominican Republic
• Dimensions : 3.563 in x 6 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 0.75
• Certification : UL Listed,UL 489,HACR Rated
• Wire Size : 1x AWG 14 to AWG 8, 2x AWG 14 to AWG 10, Cu/Al
