Product Info
- Manufacturer:Eaton
Description
CHF115CS

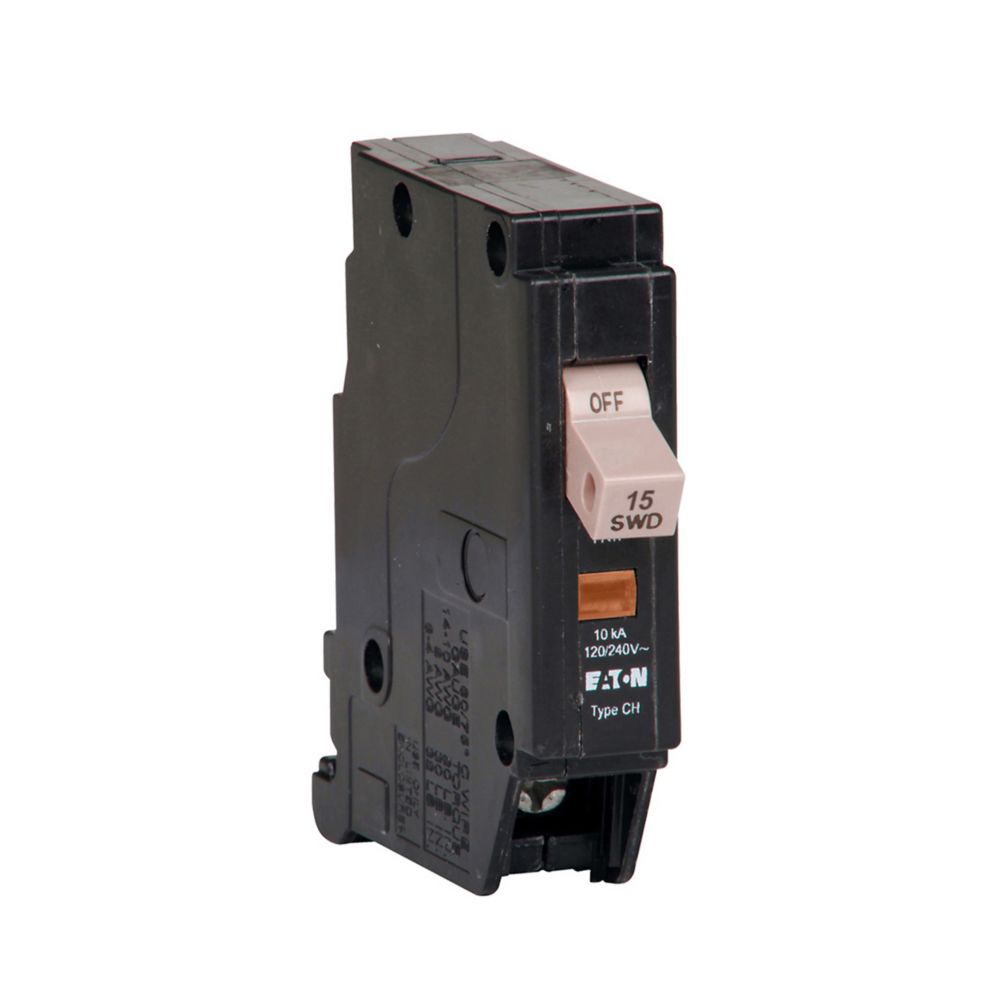

CHF115CS is an Eaton CH thermal magnetic circuit breaker designed for residential and light commercial circuit protection applications. This single-pole breaker features a plug-on mounting style and is rated for 120/240 VAC operation with a 15 ampere trip setting. The Type CHF 3/4-inch standard clamshell pack design provides reliable overcurrent protection with a 10 kAIC interrupt rating at 120 VAC. Key Specifications
- Amperage: 15 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 1
- Trip Type: Thermal Magnetic
- Interrupt Rating: 10 kAIC @ 120VAC
- Mounting Type: Plug-On
- Wire Size: 14 to 8 AWG (line side), 14 to 10 AWG (load side)
- Series: Type CHF 3/4-Inch Standard
- Load Side Termination: Lugs
- Warranty: Limited Lifetime
Specifications
- Part Number: CHF115CS
- Manufacturer : Eaton
- Brand : Cutler Hammer
- MCM Size : Min. Wire Size (2) 14 AWG (Cu/Al) Max. Wire Size (2) 10 AWG (Cu/Al)
- Breaker Type : CHF
Product Data
- UPC : 786685683218
- Country of Origin : Dominican Republic
- Dimensions : 7.25 in x 6.5 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 0.4
- Certification : CSA Certified, HACR Rated
