Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
CHCC3DU

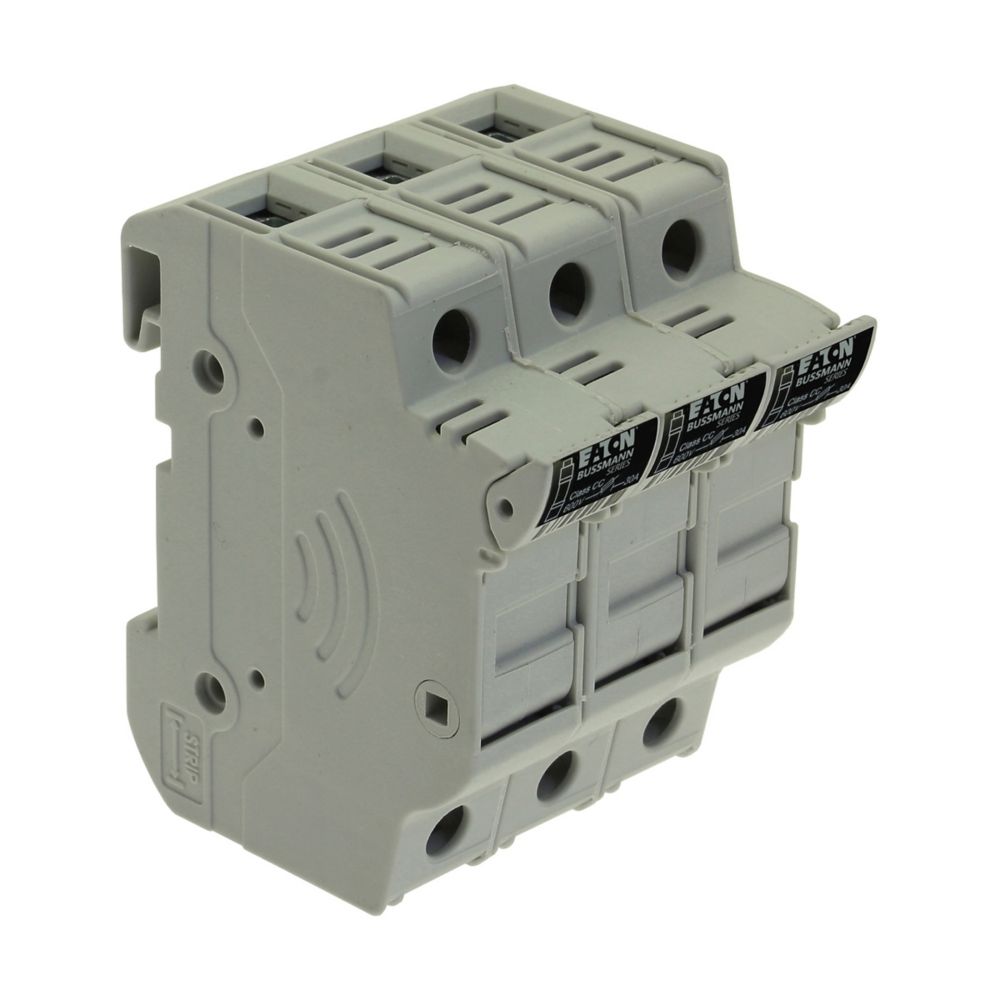

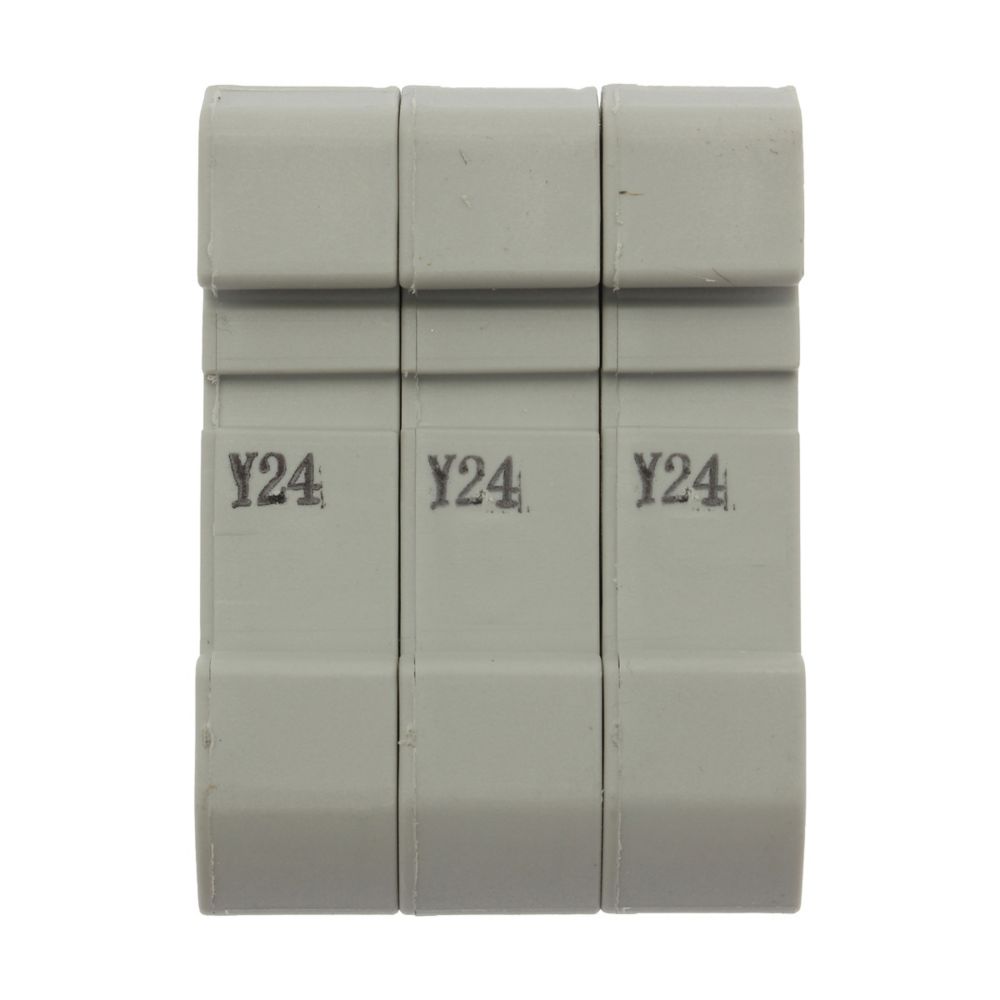

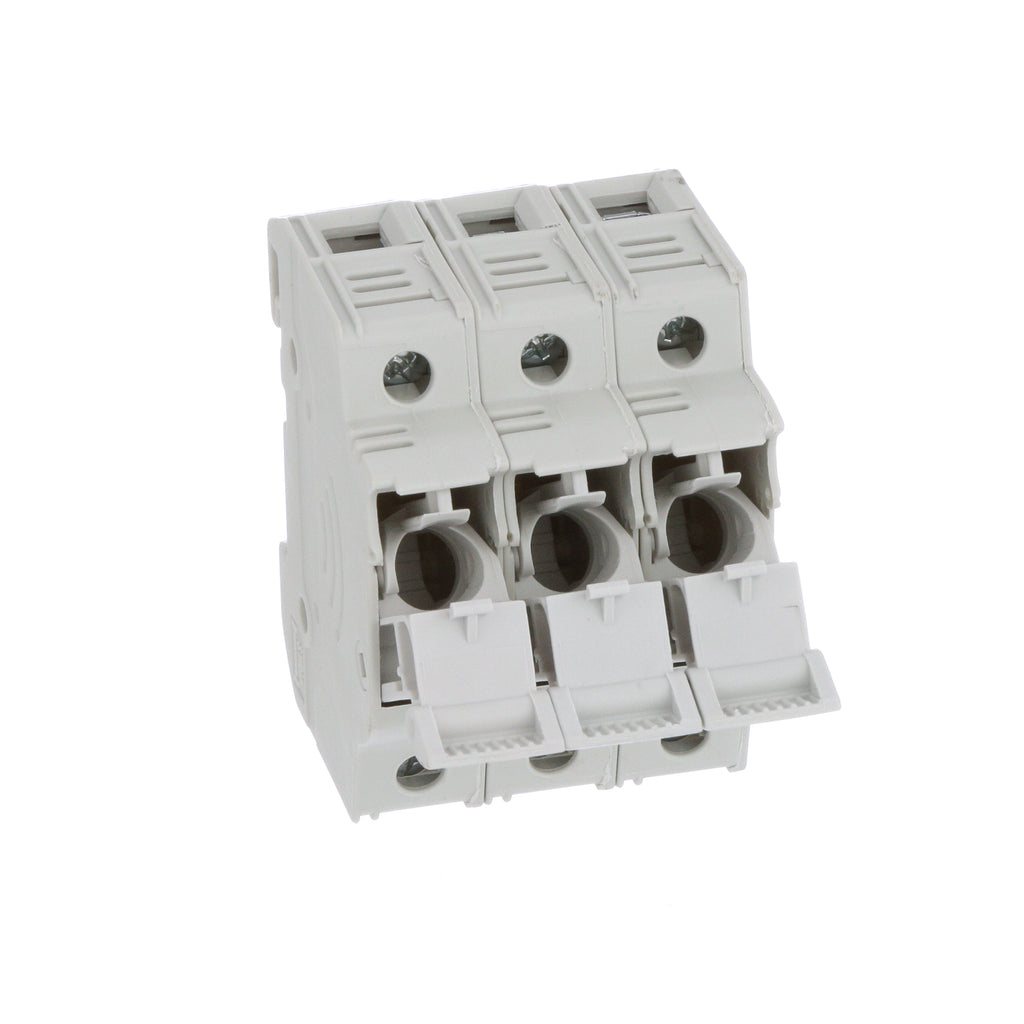

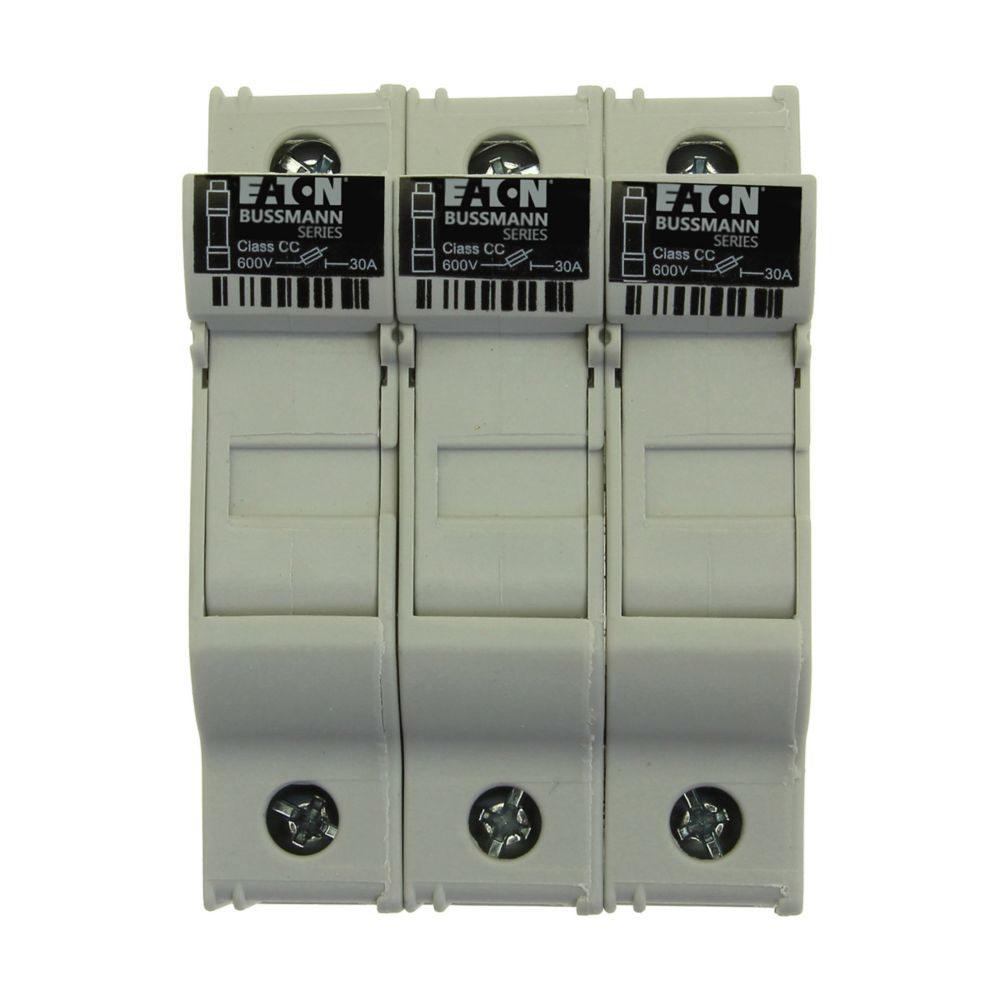

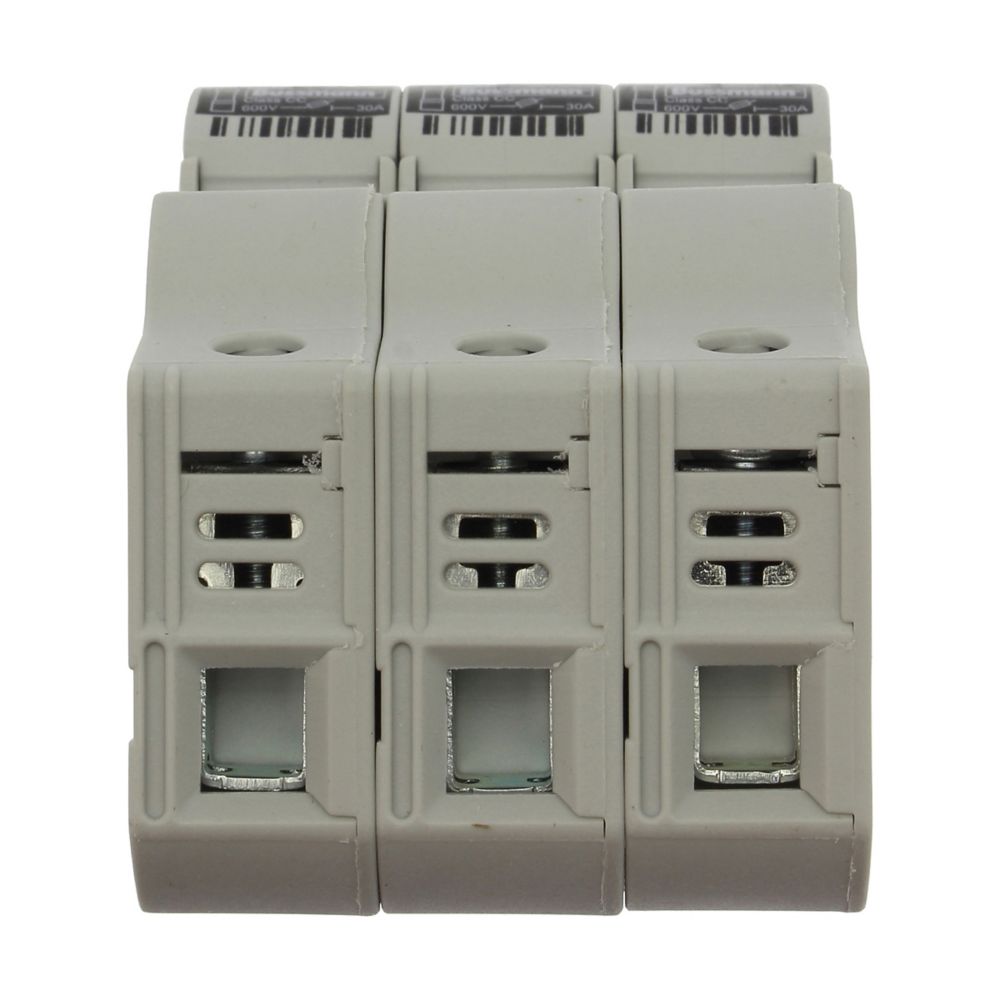

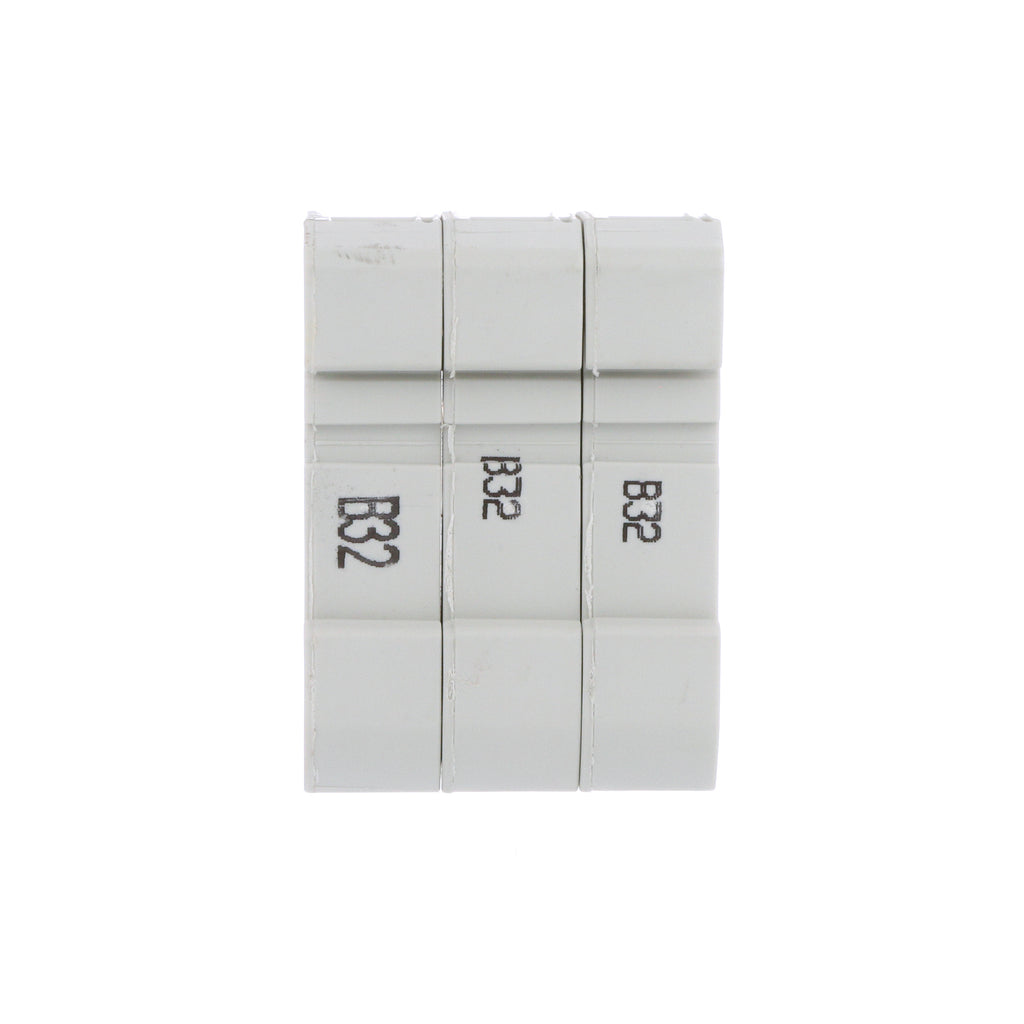

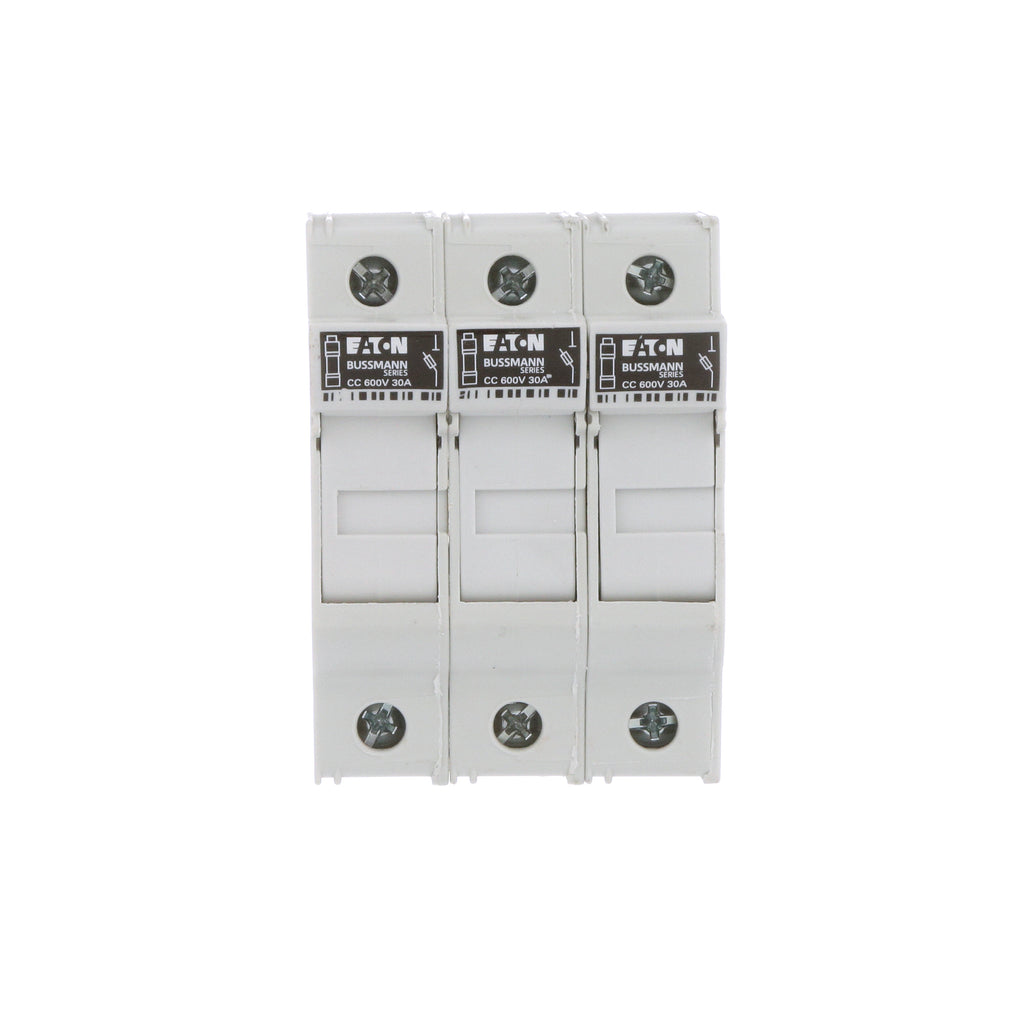

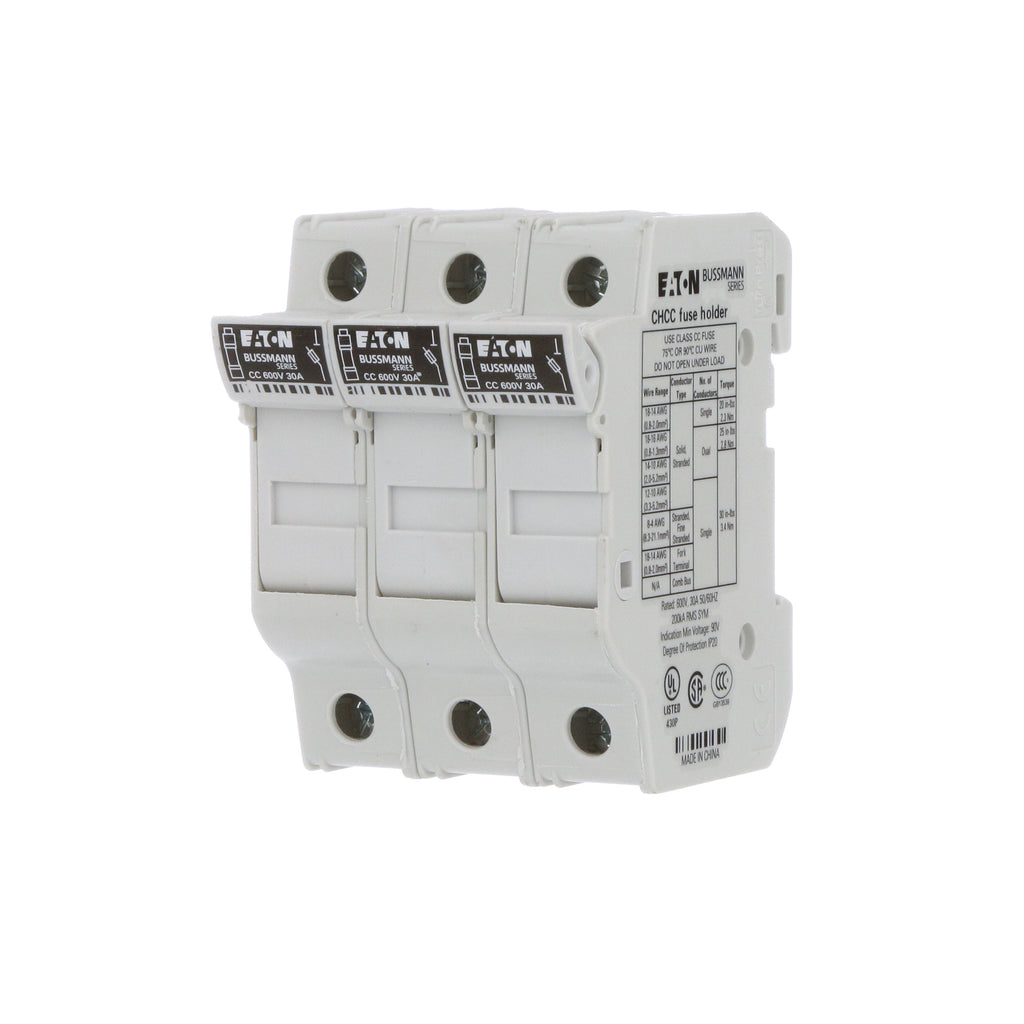

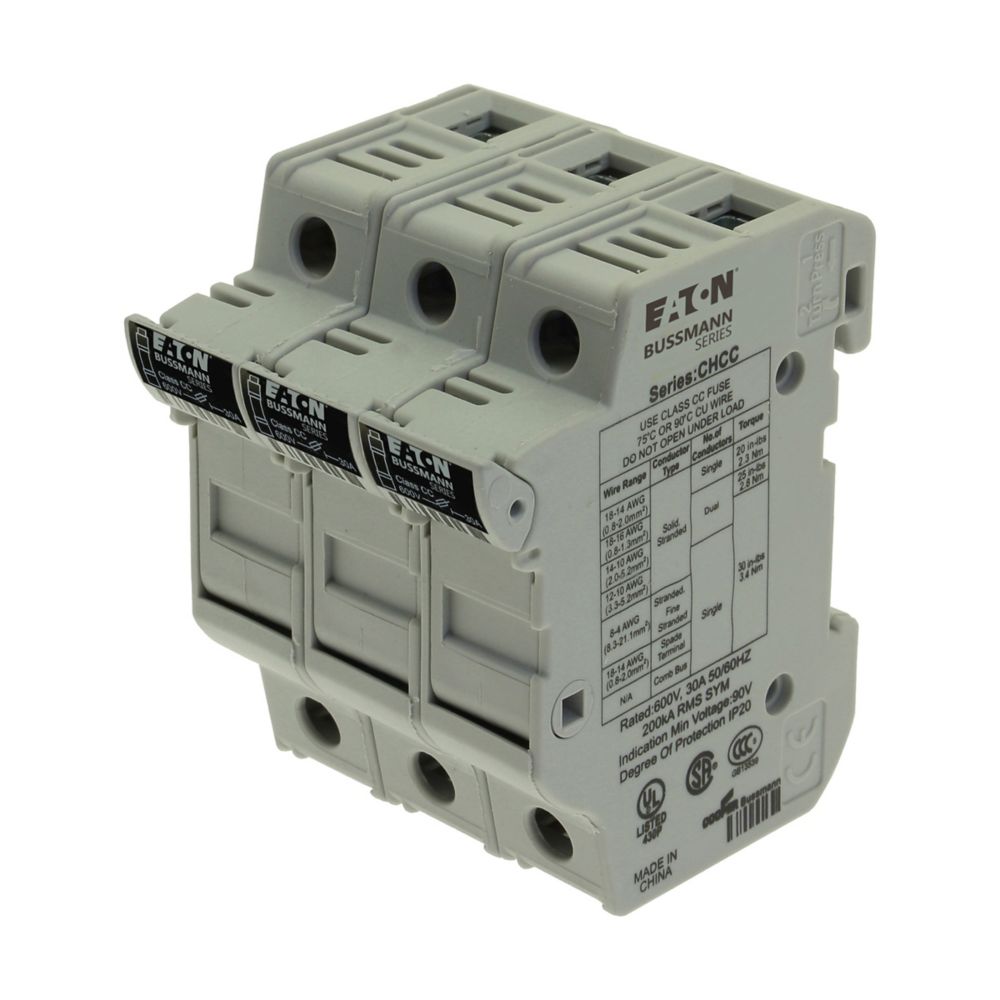

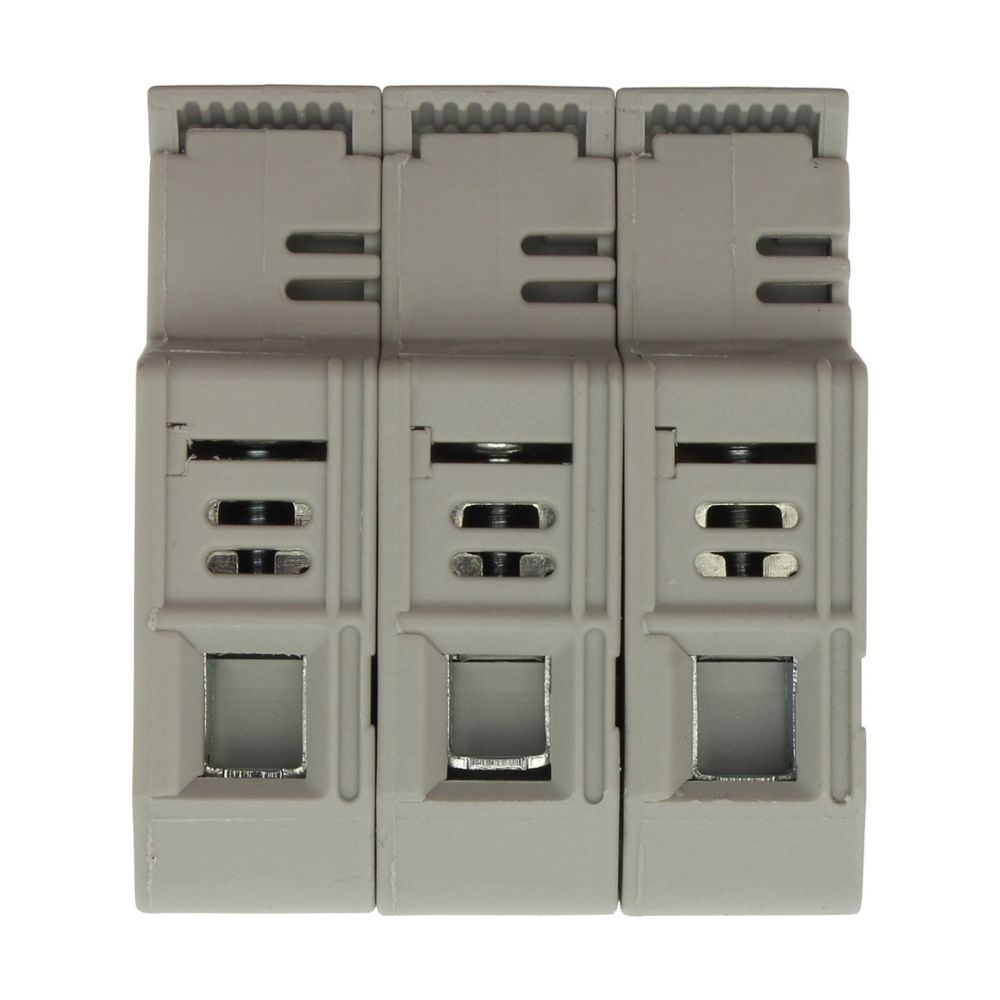

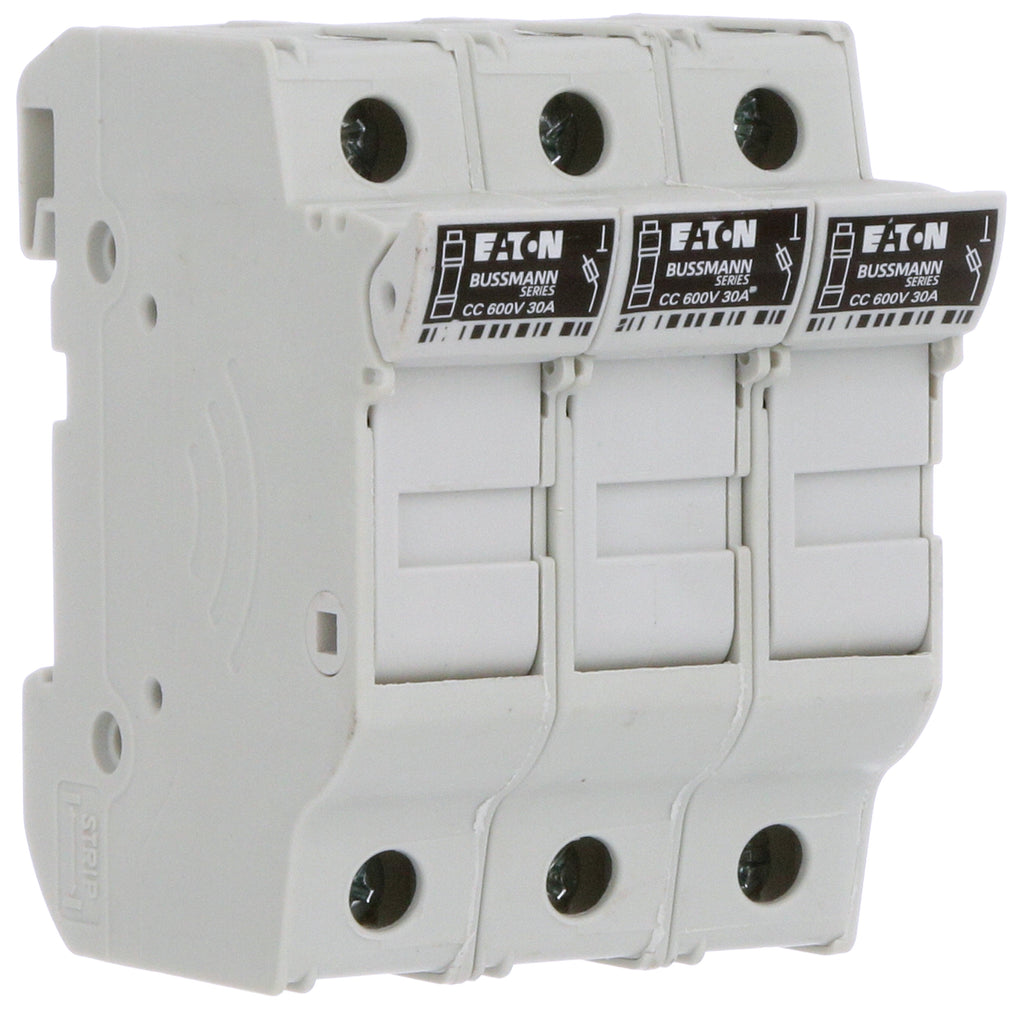

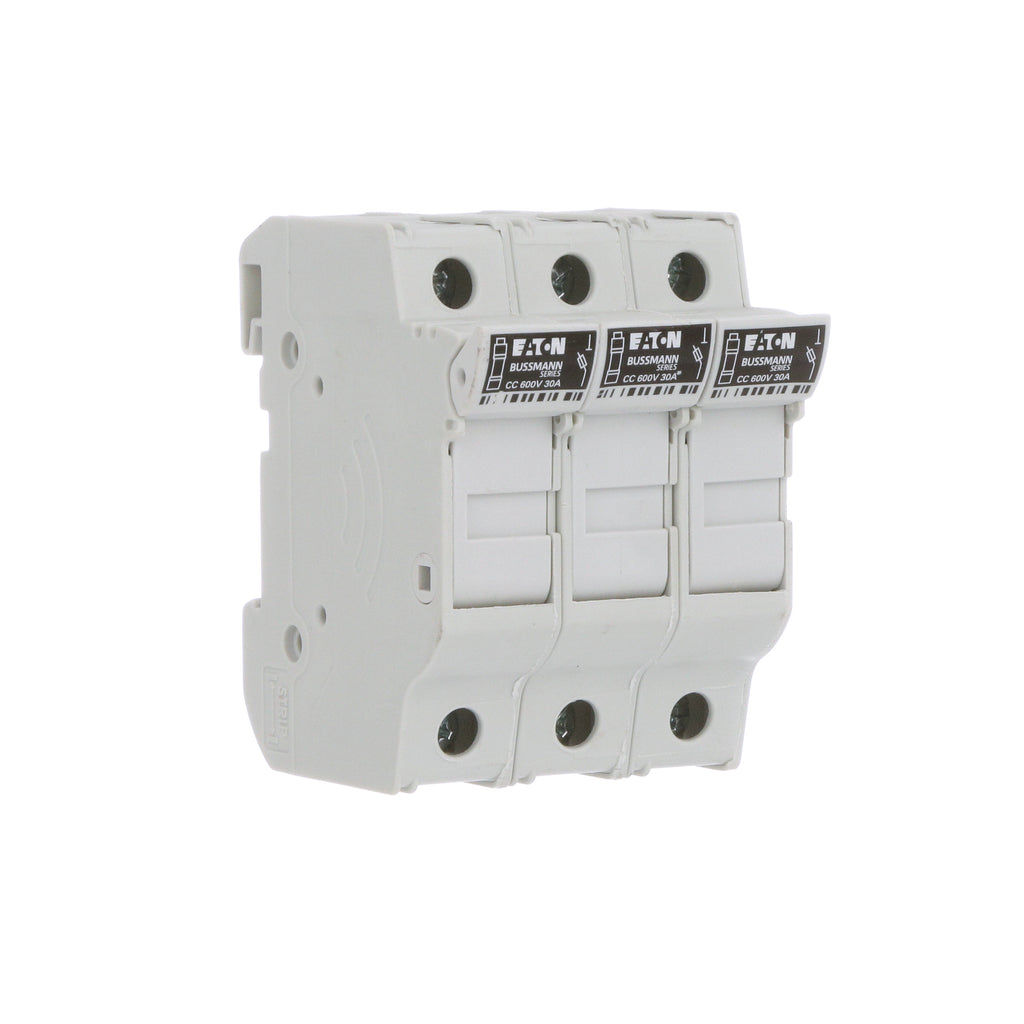

CHCC3DU is an Eaton Bussmann series CHCC modular fuse holder designed for 30 amp, 600 Vdc applications with three poles.This modular fuse holder supports Class CC fuses and features a finger-safe IP20 rated design for enhanced safety. It is suitable for use with 18 to 4 AWG wire and offers mounting flexibility with bolt-in, snap-in, and tight cluster options. The compact dimensions are approximately 2.71 in H x 2.91 in W x 3.26 in D, and it is UL Listed with a high short-circuit current rating (SCCR). This fuse holder is ideal for industrial and electrical distribution applications requiring reliable fuse protection.
- Key Specifications
- Amperage: 30 A
- Voltage Rating: 600 Vdc
- Poles: 3
- Fuse Type: Class CC
- Mounting Type: Bolt-in, Snap-in, Tight Cluster
- Wire Range: 18 to 4 AWG
- Safety Rating: IP20 Finger-Safe
- Dimensions: 2.71 in H x 2.91 in W x 3.26 in D
- UL Listed with High SCCR
- Manufacturer: Eaton Bussmann Series
- Part Number: CHCC3DU
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Section : Fuse Holder
- Family : CH Series
- Type : CHCC
- Voltage : 600
- Amperage : 30
- UPC : 05171236269
- GTIN : 00051712362696
- Country of Origin : China
- Dimensions : 69 mm x 74 mm x 83 mm (Length/Depth x Height x Width)
- Weight : 0.229517
- Certification : UL Listed
