Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
CHCC2DIU

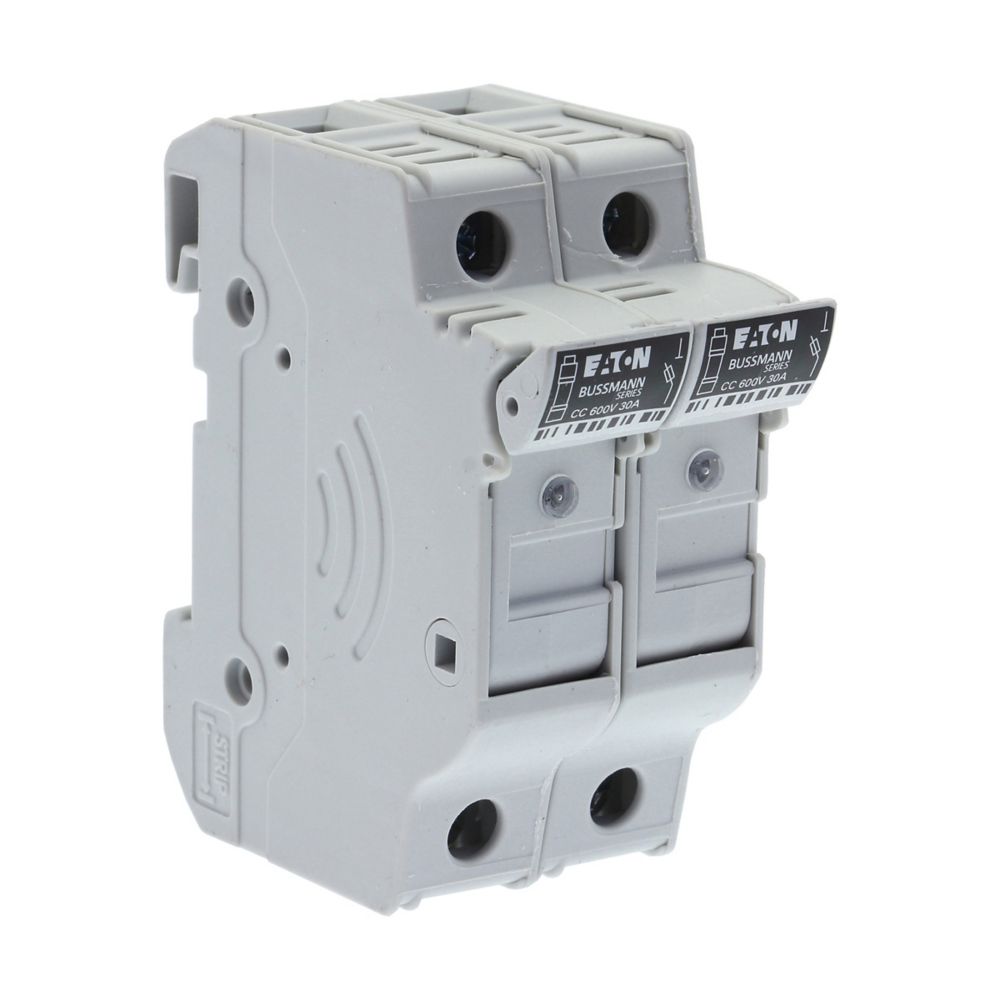

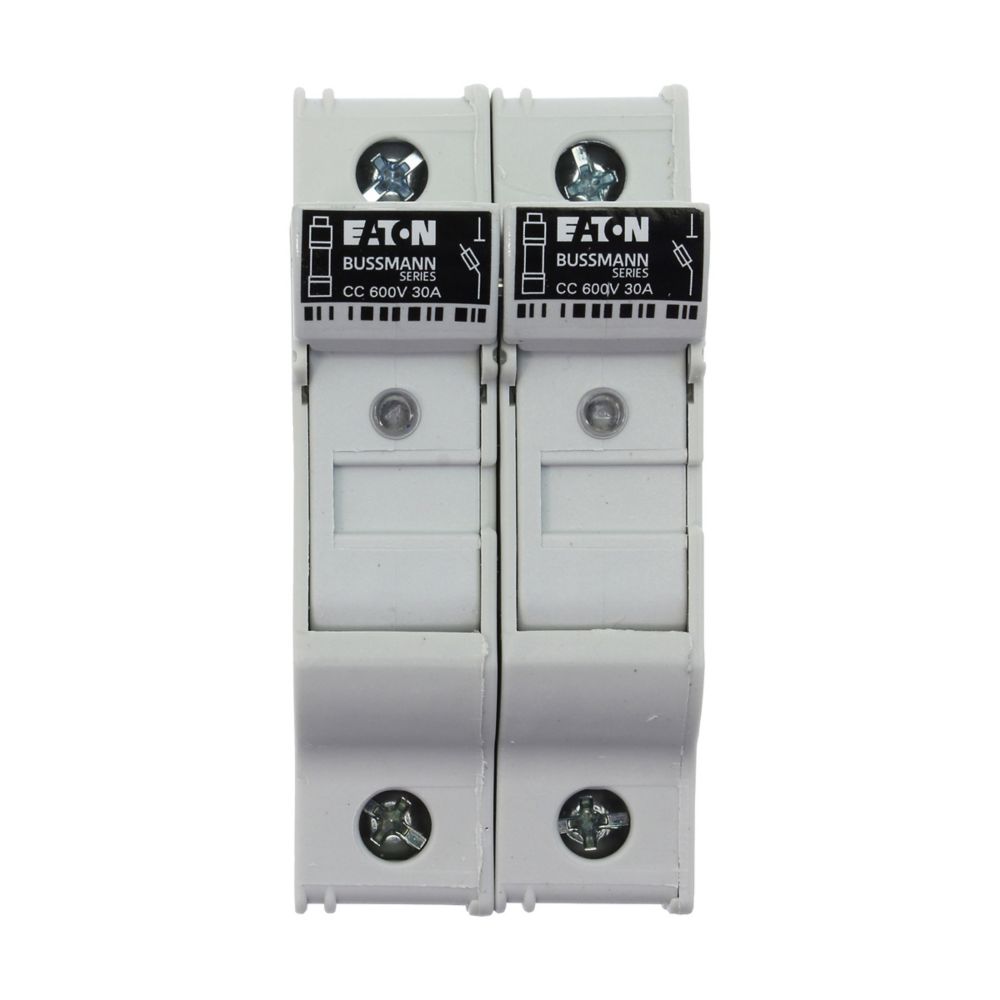

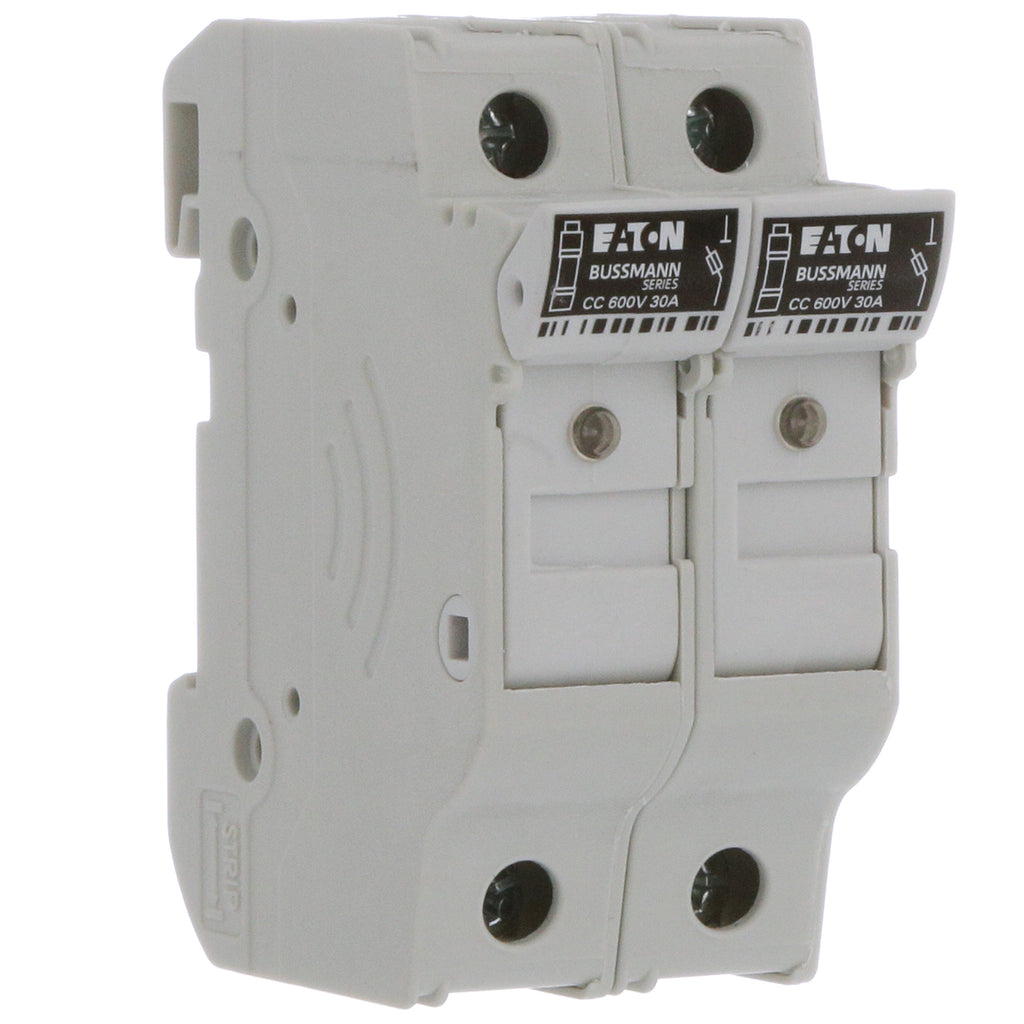

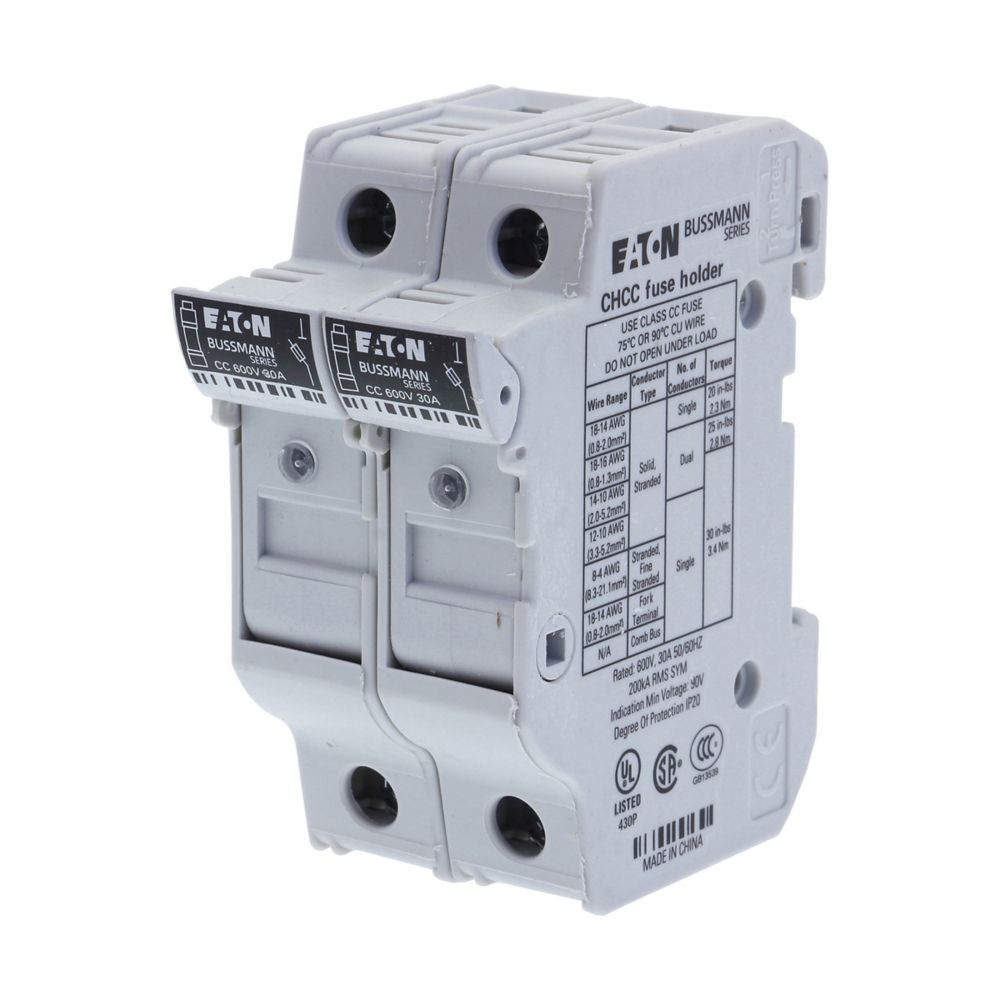

CHCC2DIU is an Eaton Bussmann series CHCC modular fuse holder rated for 30 amps and 48 Vdc with two poles and an indicator for fuse status.This Eaton modular fuse holder is designed for DIN rail mounting and supports Class CC fuses including KTK-R, LP-CC, and FNQ-R types. It features a finger-safe IP20 construction for enhanced safety, screw terminal connections compatible with 18 to 4 AWG wire, and operates within a temperature range of -20°C to 90°C. The holder is RoHS compliant and suitable for use in industrial and commercial electrical applications requiring reliable fuse protection.
- Amperage Rating: 30 A
- Voltage Rating: 48 Vdc (600 Vac/dc max)
- Number of Poles: Two-pole
- Mounting Type: DIN Rail
- Fuse Class: CC
- Indicator: Yes, fuse status indicator included
- Terminal Type: Screw terminals
- Operating Temperature: -20°C to 90°C
- Compliance: RoHS Compliant
- Dimensions (HxWxD): 2.91 x 3.28 x 1.38 inches
- Weight: 0.22 lb
Specifications
- Part Number: CHCC2DIU
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Section : Fuse Holder
- Family : CH Series
- Type : CHCC
- Voltage : 600
- Amperage : 30
Product Data
- UPC : 05171236268
- GTIN : 00051712362689
- Country of Origin : China
- Dimensions : 1.38 in x 2.91 in x 3.28 in (Length/Depth x Height x Width)
- Weight : 0.22
- Certification : UL Listed
