2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
CHCC2DI

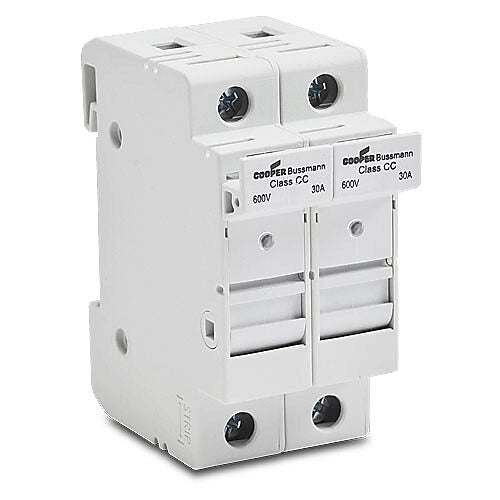

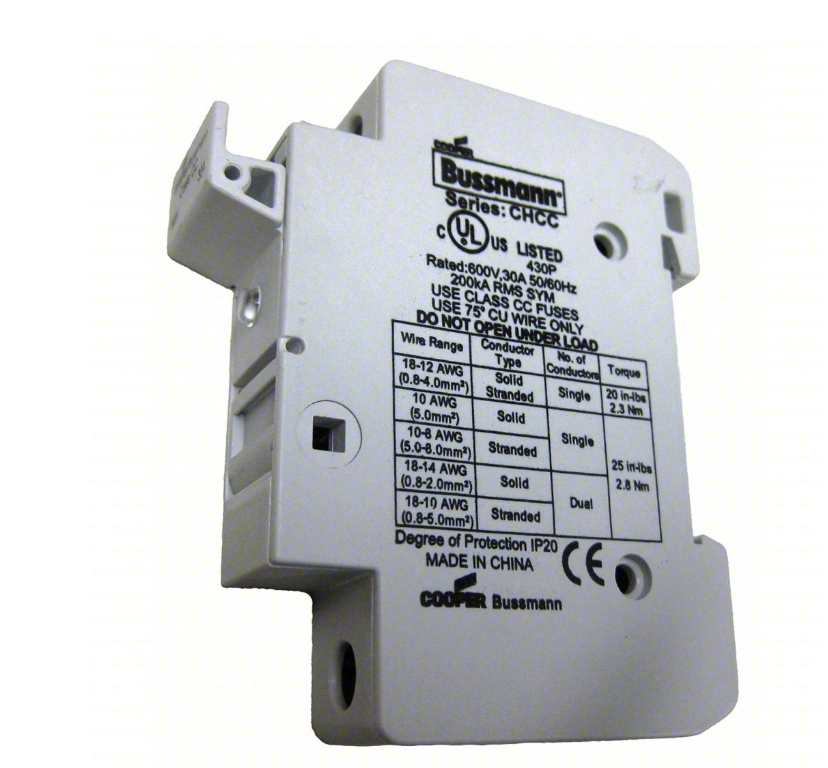

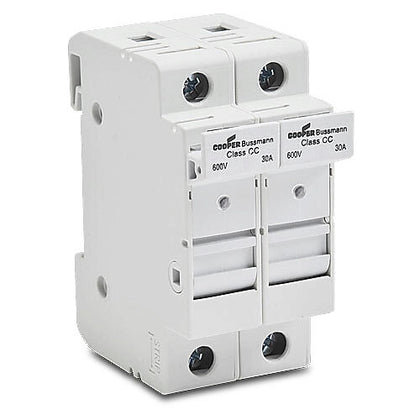

CHCC2DIU is an Eaton Bussmann series CHCC modular fuse holder designed for 30 amp, 48 Vdc applications with two poles and an indicator.This fuse holder supports Class CC fuses such as KTK-R, LP-CC, and FNQ-R, featuring finger-safe IP20 construction and DIN rail mounting. It operates within a temperature range of -20°C to 90°C and is RoHS compliant. The compact design measures 1.38 in depth, 2.91 in height, and 3.28 in width, weighing 0.22 lb.
- Amperage Rating: 30 A
- Voltage Rating: 48 Vdc
- Number of Poles: Two-pole
- Mounting Type: DIN Rail
- Class: Class CC
- Fuse Compatibility: KTK-R, LP-CC, FNQ-R Class CC fuses
- Operating Temperature: -20°C to 90°C
- Indicator: Yes, fuse status indicator included
- Certifications: RoHS Compliant; contact manufacturer for full certifications
- Dimensions (LxWxH): 1.38 x 3.28 x 2.91 inches
- Weight: 0.22 lb
Specifications
- Part Number: CHCC2DI
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Block
- Voltage : 600
- Amperage : 30
Product Data
- GTIN : 051712362689
- Weight : 0.08
