CHCC1DU - Eaton Bussmann 30A 48Vdc Single-Pole Class CC Modular Fuse Holder

CHCC1DU

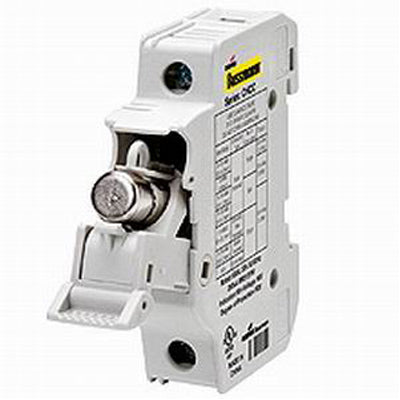

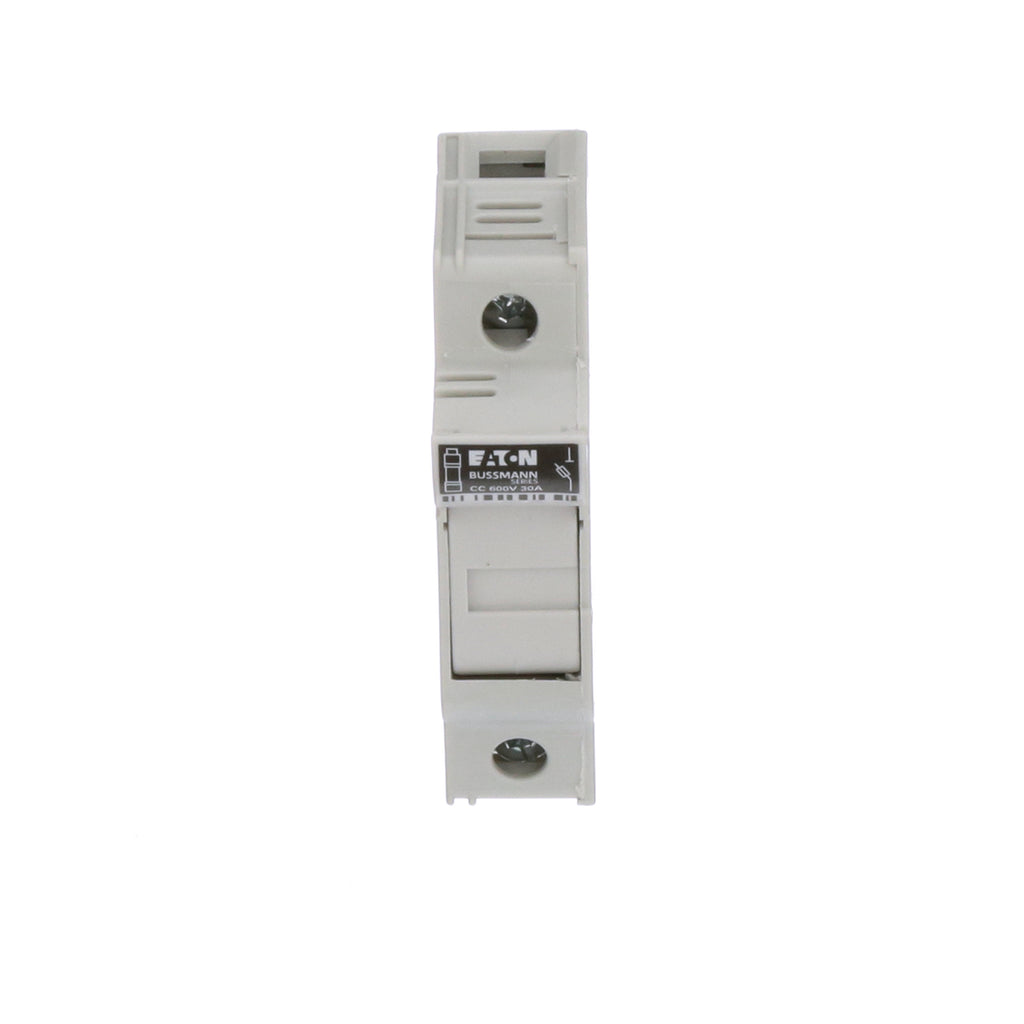

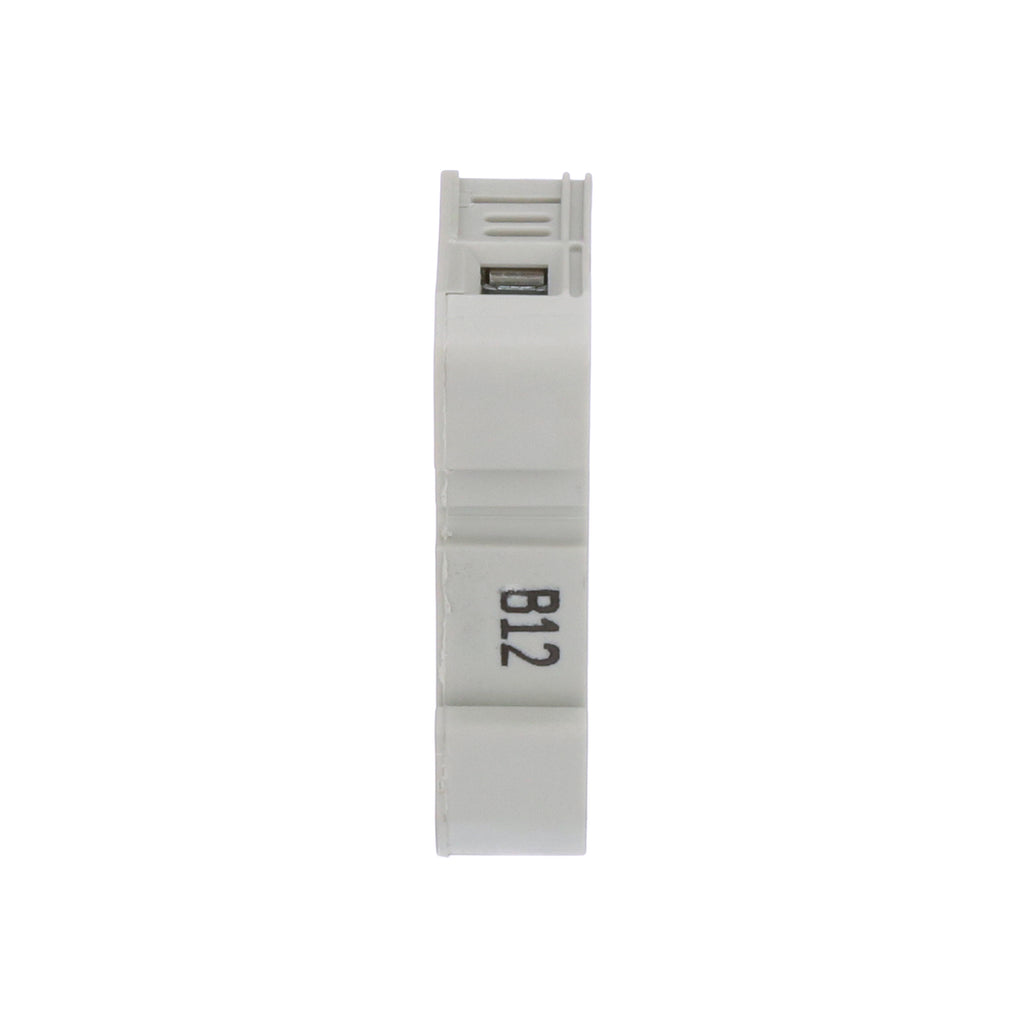

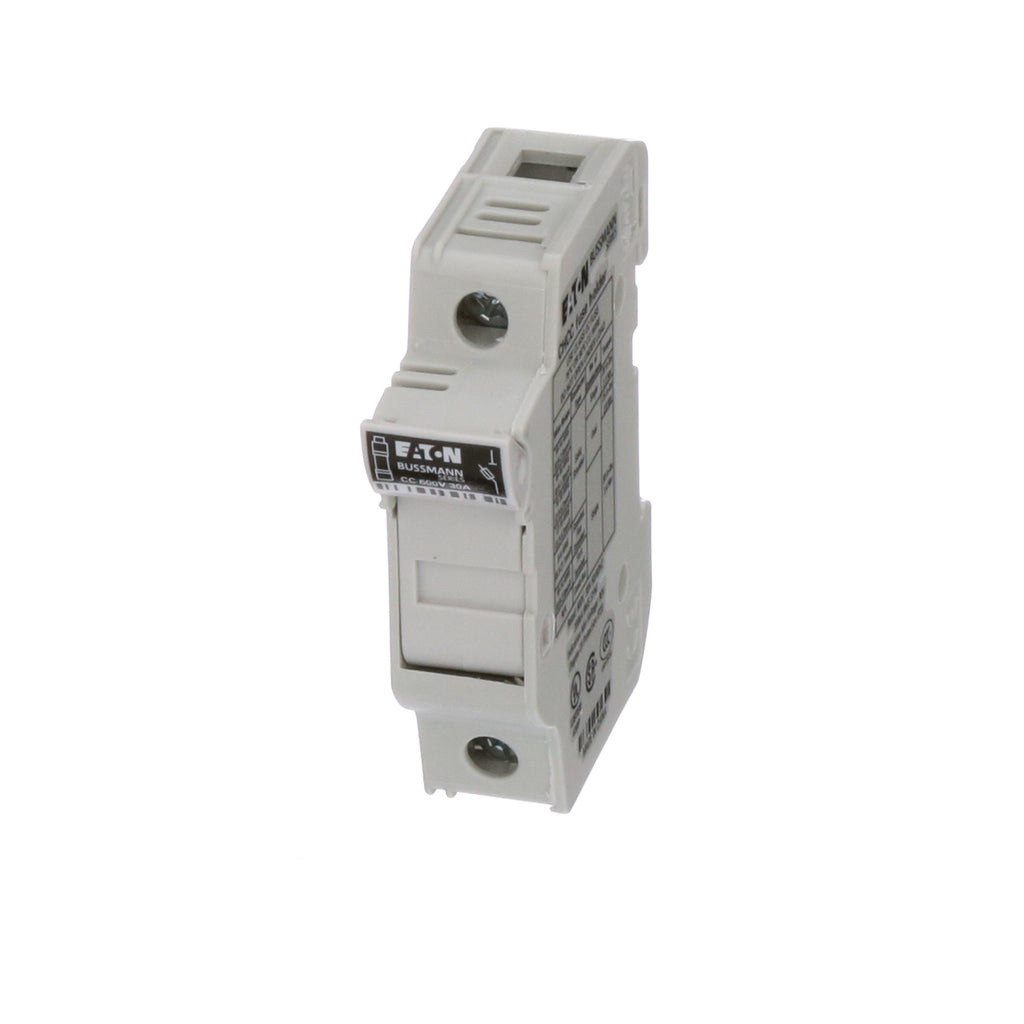

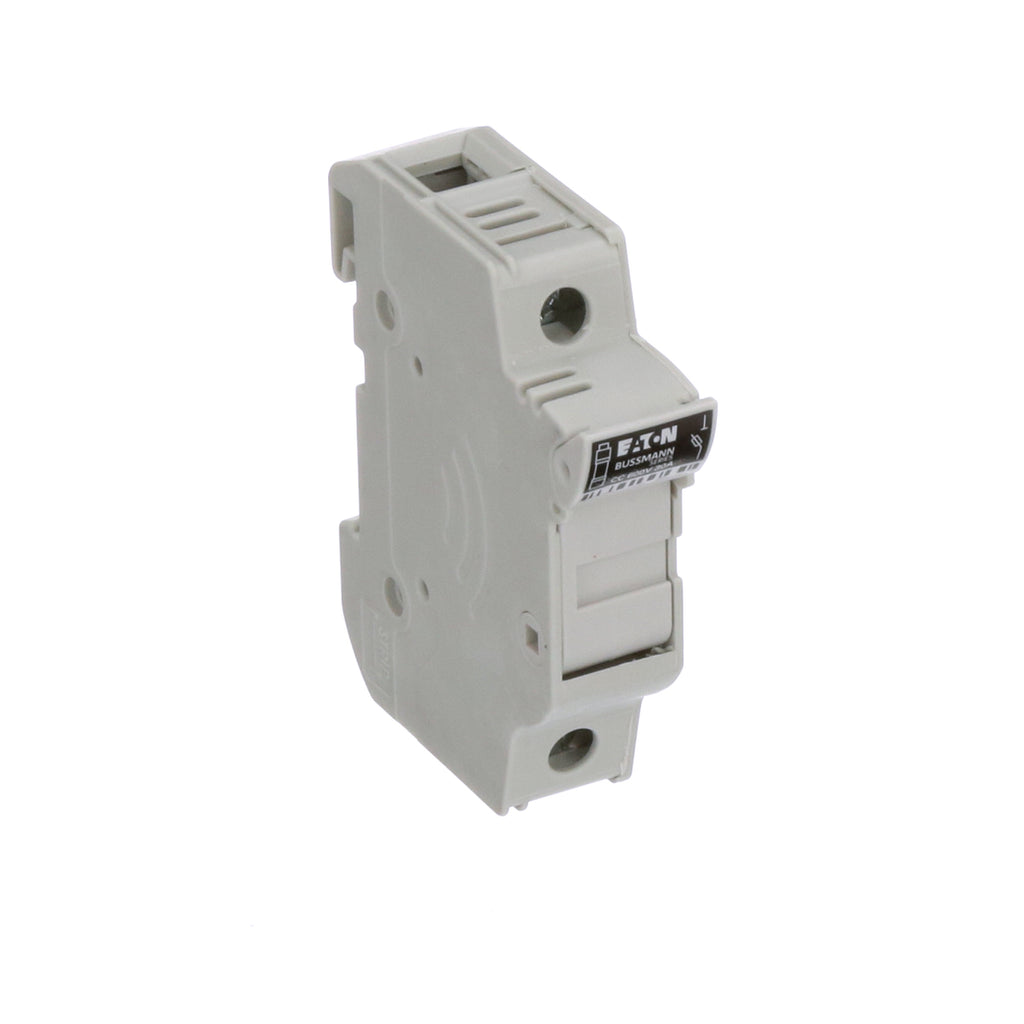

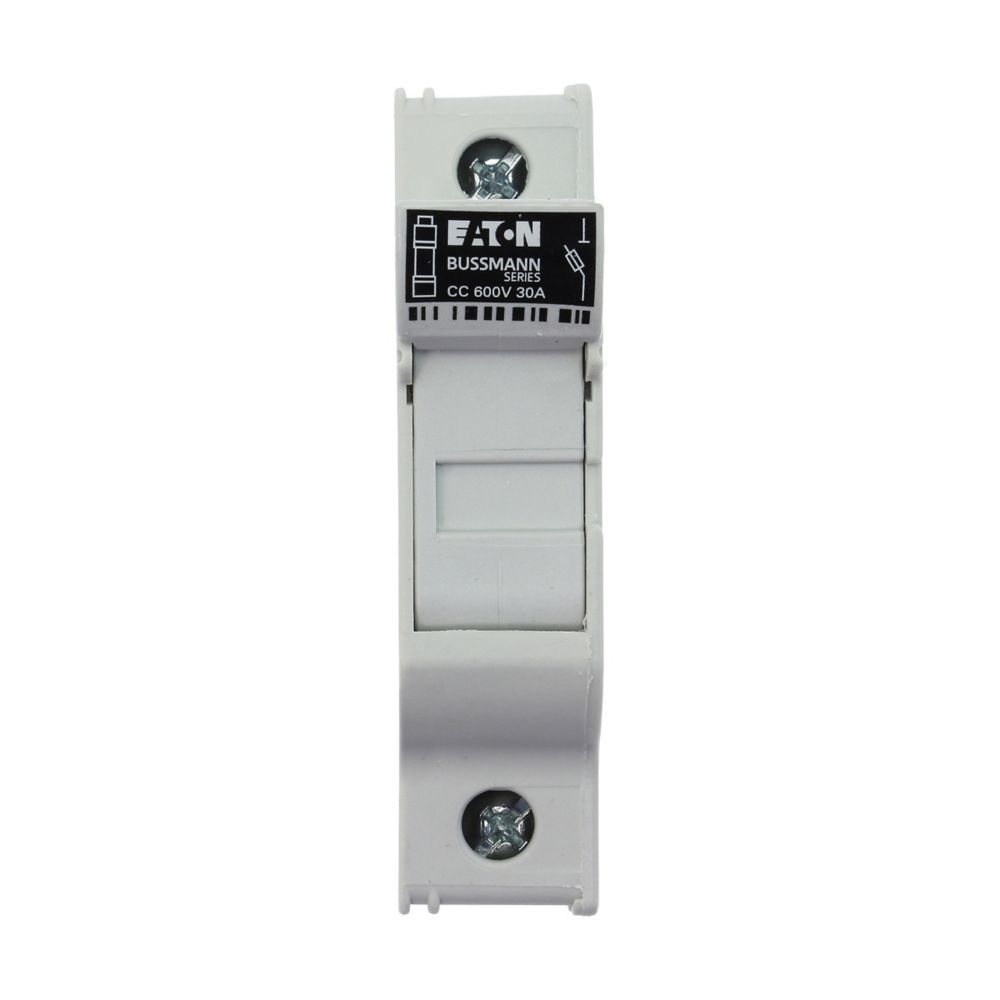

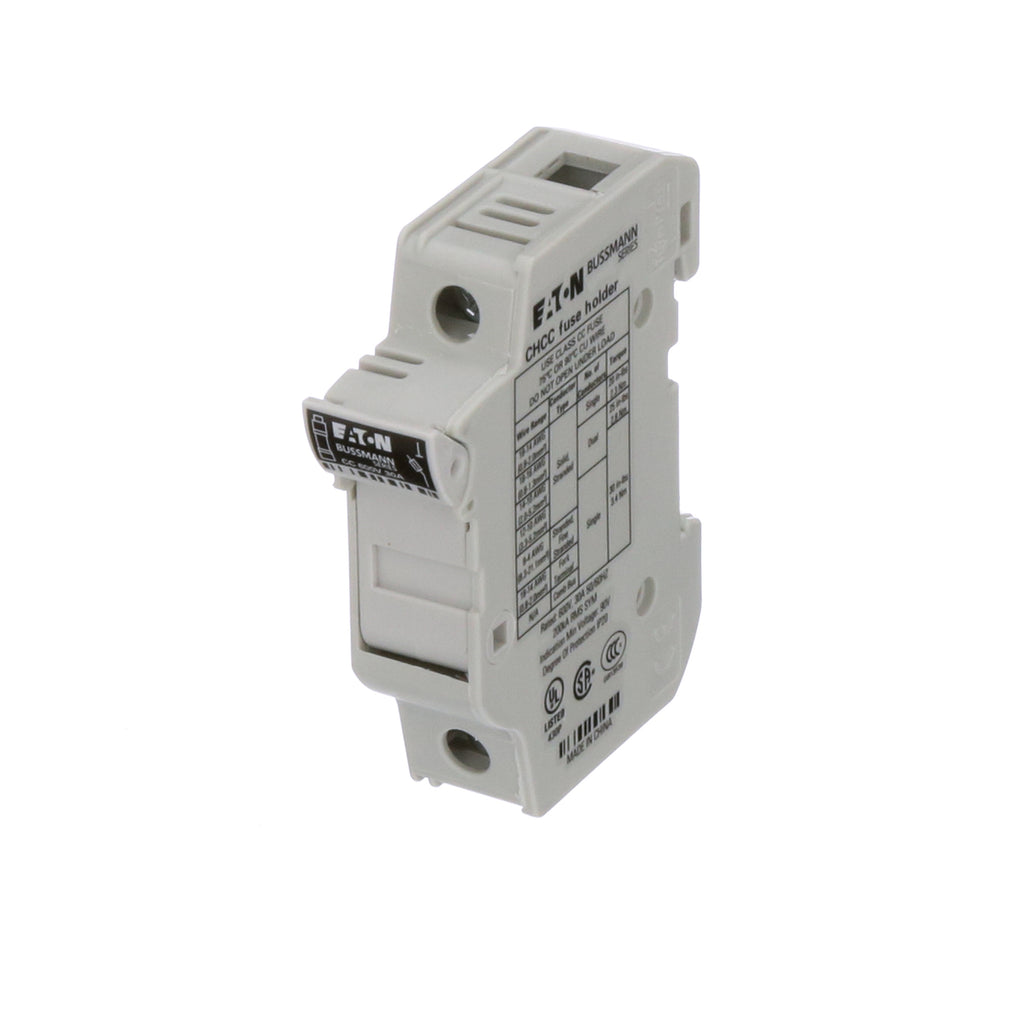

CHCC1DU is a single-pole, 30 amp, 48 Vdc Class CC modular fuse holder from Eaton Bussmann series designed for reliable fuse protection.CHCC1DU supports UL Class CC fuses such as KTK-R, LP-CC, and FNQ-R, with a compact design measuring 87mm length, 73mm height, and 17.5mm width. It features a 600 VAC rating, 200 kA interrupt rating, and is finger-safe with IP20 protection. The fuse holder operates in temperatures from -20°C to 120°C and accepts 18-4 AWG wire sizes with captive phil-slot screws for secure mounting.

Key Specifications
• Amperage: 30 A
• Voltage: 48 Vdc, 600 VAC rating
• Poles: Single-pole
• Fuse Class: Class CC
• Interrupt Rating: 200 kA RMS Symmetrical
• Mounting: DIN-Rail modular fuse holder
• Wire Range: 18-4 AWG
• Operating Temperature: -20°C to 120°C
• Finger-safe IP20 protection
• Compatible Fuses: KTK-R, LP-CC, FNQ-R
• RoHS Compliant
• Non-illuminated design
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CHCC1DU
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Block
• Section : Fuse Holder
• Family : CH Series
• Type : CHCC
• Voltage : 600
• Amperage : 30



Product Data

• UPC : 051712362658
• GTIN : 00051712362658
• Country of Origin : China
• Dimensions : 87 mm x 73 mm x 17.5 mm (Length/Depth x Height x Width)
• Weight : 0.118933
• Certification : CE, CSA Certified, UL Listed
