CHCAF120 - Cutler Hammer 20 Amp 120/240V 1-Pole Thermal Magnetic Circuit Breaker Plug-On Type CH Frame

CHCAF120

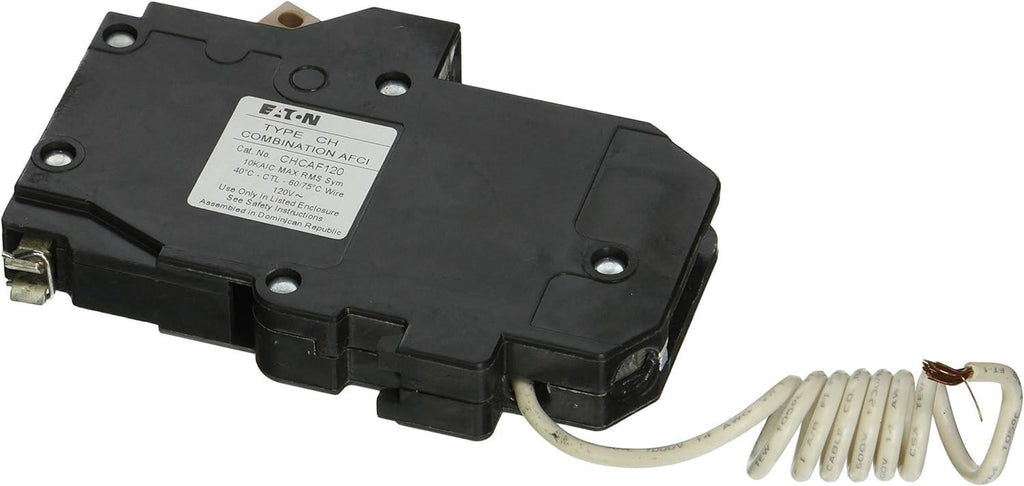

CHCAF120 is a Cutler Hammer 20 Amp 1-Pole thermal magnetic circuit breaker designed for 120/240 Volt applications with a plug-on mounting type.

This circuit breaker features a Type CH frame with a 10kA interrupting rating at 120V, providing reliable protection with long-time and instantaneous trip functions. It supports wire gauges from 14 to 8 AWG copper or aluminum and is UL listed for safety and performance. The breaker includes a trip flag for easy status indication and is compatible with Type CH loadcenters.

Key Specifications
• Amperage: 20 Amps
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10 kAIC at 120V
• Series/Frame: CH
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL Listed
• Wire Gauge: 1x AWG 14 to AWG 8, 2x AWG 14 to AWG 10 Copper/Aluminum
• Connection Type: Plug-In
• Dimensions: 3 in Height x 0.75 in Width x 3 in Length
• Trip Flag: Included

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CHCAF120
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CHCAF
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786685523750
• GTIN : 00696505473717
• Weight : 2
• Certification : UL Listed
