CHB270 - Cutler Hammer 70 Amp 2 Pole 120/240V Bolt-On Circuit Breaker 10kAIC UL Listed

CHB270

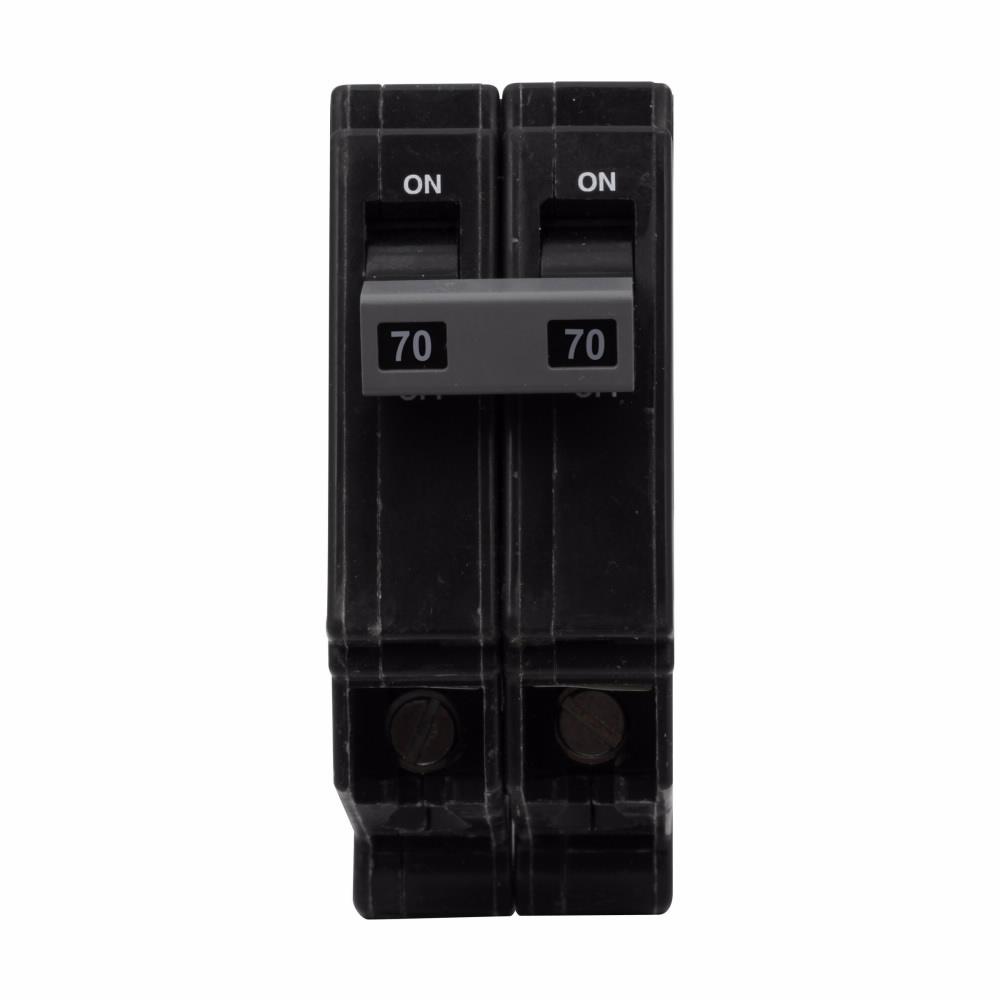

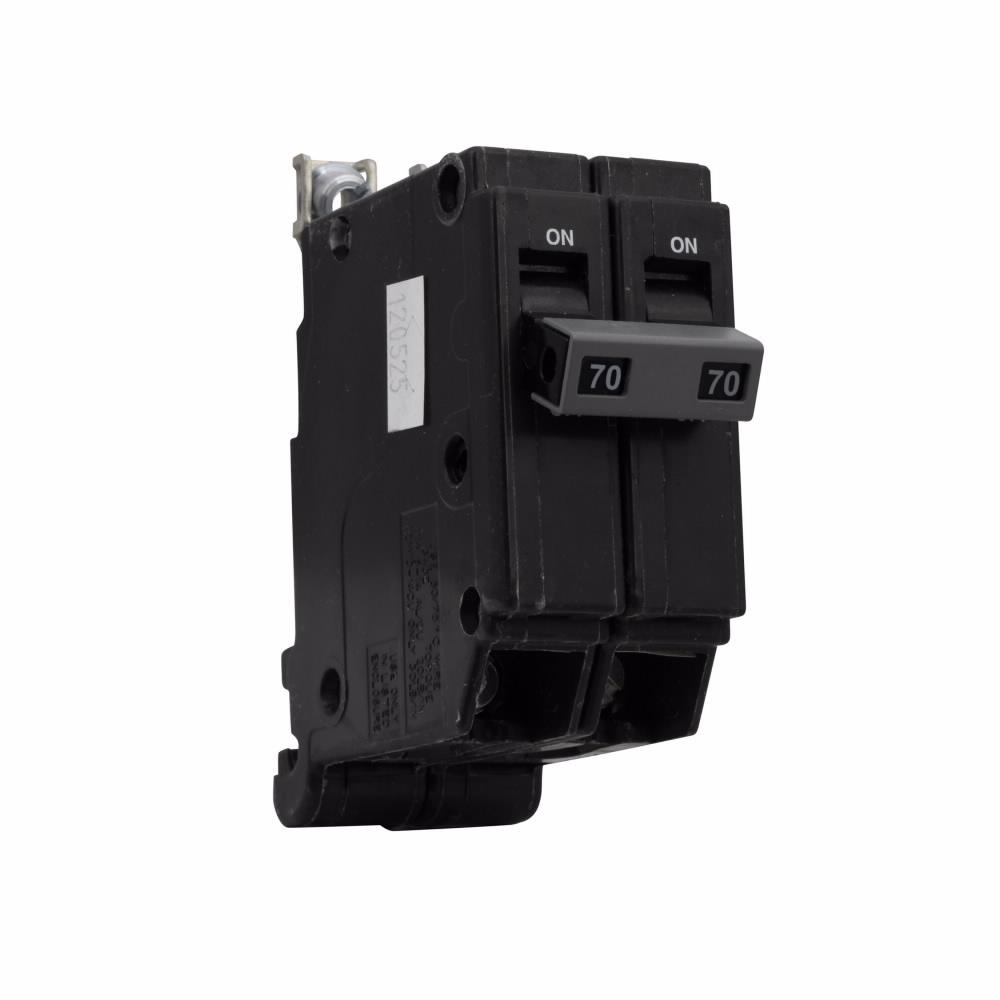

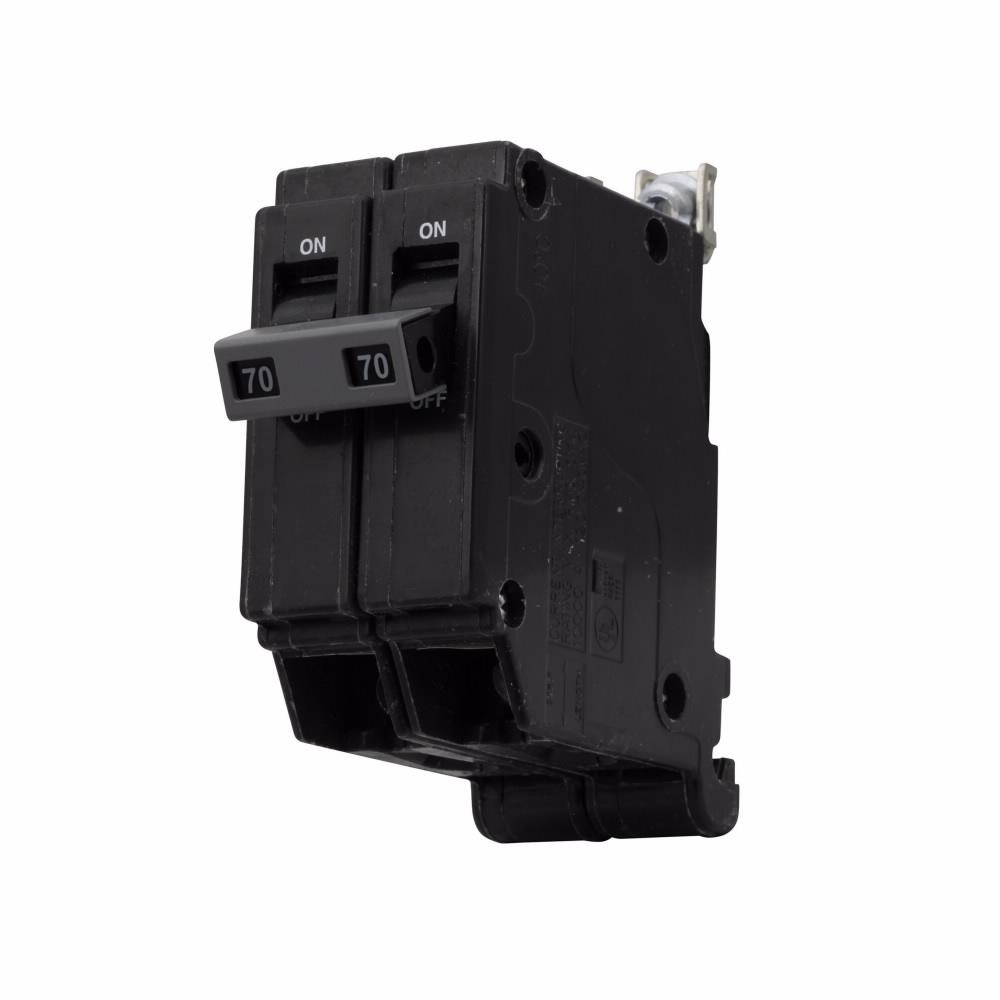

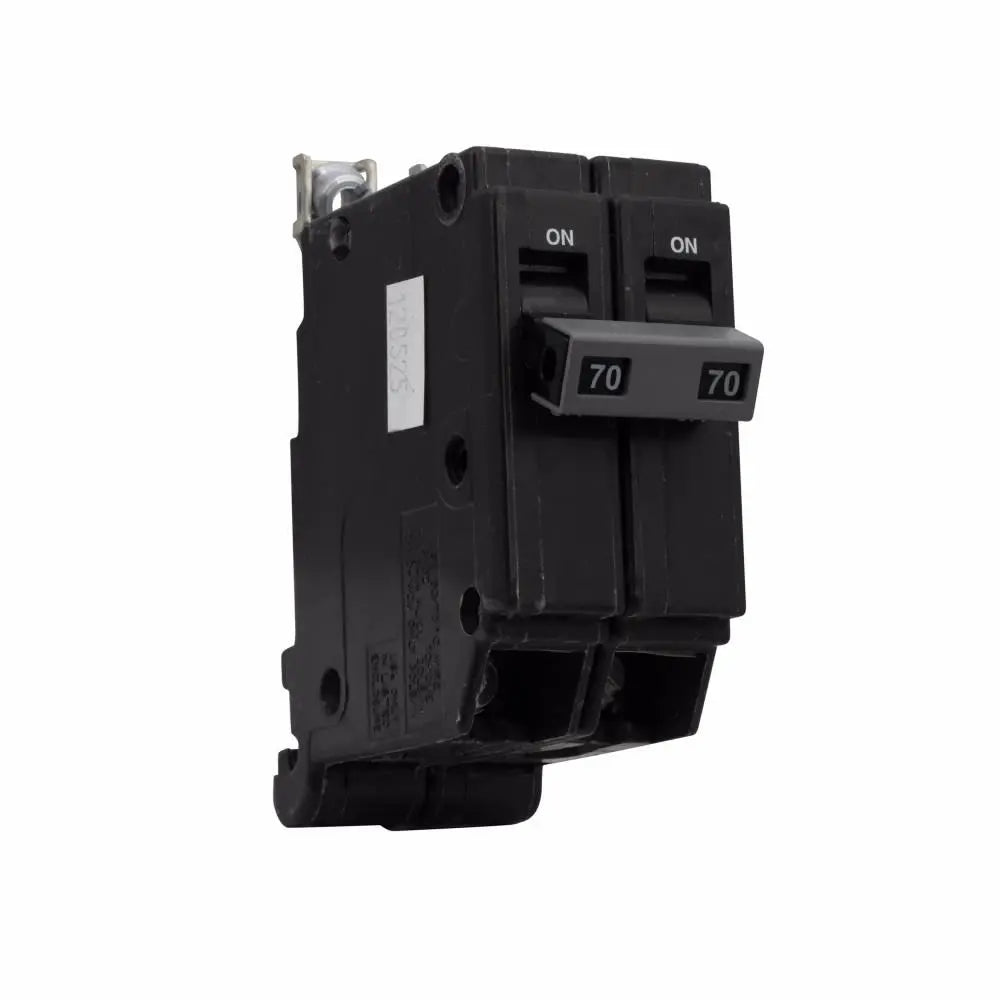

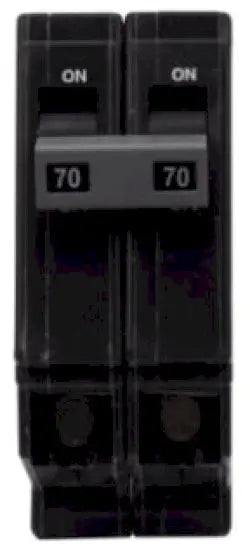

CHB270 is a Cutler Hammer 2 pole, 70 amp, 120/240 volt bolt-on circuit breaker designed for reliable thermal magnetic protection.This CHB270 circuit breaker features a 10kA interrupting rating at 240V, long-time and instantaneous trip functions, and is UL and CSA certified. It is compatible with CH load centers and supports wire sizes from AWG 8 to AWG 2. The breaker measures 3.2" height, 2.2" width, and 3.7" length, making it suitable for industrial and commercial panelboard applications.

Key Specifications
• Amperage: 70 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC at 240V
• Series/Frame: CHB
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Certifications: UL 489, CSA
• Wire Size: AWG 8 to AWG 2
• Dimensions (H x W x L): 3.2" x 2.2" x 3.7"
• For Use With: CH Load Centers
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CHB270
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CHB Series
• Type : CHB
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 782113112541
• GTIN : 00782113112541
• Country of Origin : Dominican Republic
• Dimensions : 3.7 in x 3.2 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.9
• Certification : UL 489
• Wire Size : AWG 8 to AWG 2
