Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
CHB220GF

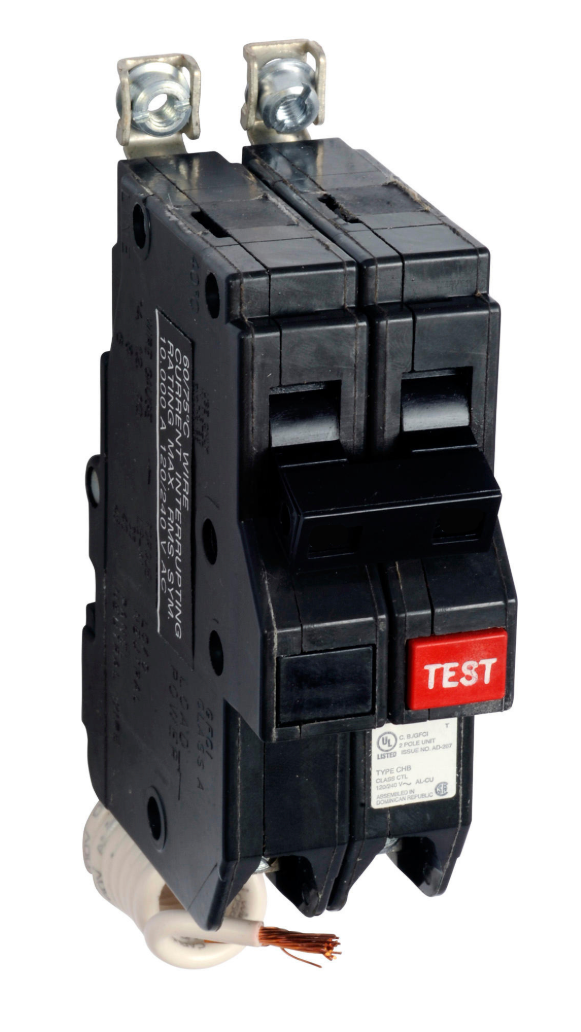

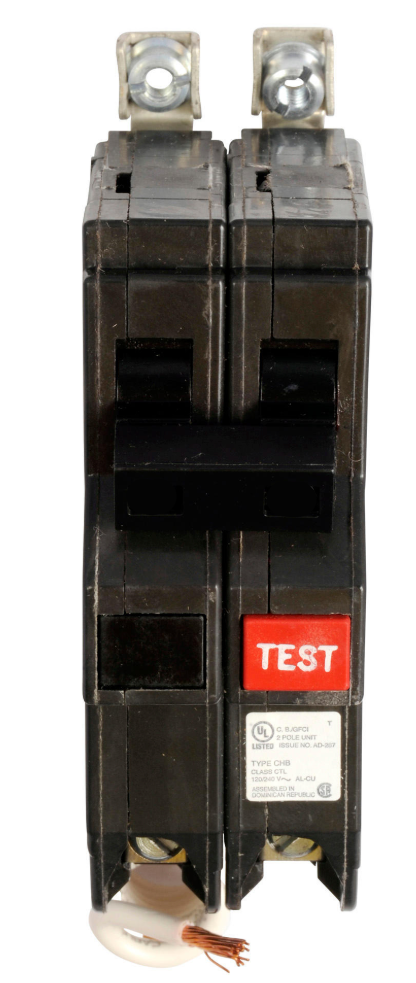

CHB220GF is a 2 pole, 20A ground fault circuit breaker designed for 120/240VAC applications with a 10kAIC interrupt rating and bolt-on mounting. This Cutler Hammer CHB series breaker provides reliable thermal magnetic protection with long time and instantaneous trip functions. It features ground fault protection and is suitable for use in CH load centers. The breaker is UL listed and supports wire sizes from #14 to #8 AWG.
- Part Number: CHB220GF
- Manufacturer: Cutler Hammer
- Series/Frame: CHB
- Amperage: 20A
- Voltage: 120/240VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10kAIC
- Trip Unit: Thermal Magnetic
- Protection: Ground Fault
- Wire Size: #14-8 AWG
- Certifications: UL 489
Specifications
- Part Number: CHB220GF
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : CHB Series
- Type : CHB
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 782113297774
- GTIN : 00782113297774
- Dimensions : 2 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.6
- Certification : UL
- Wire Size : #14 to 8 AWG
