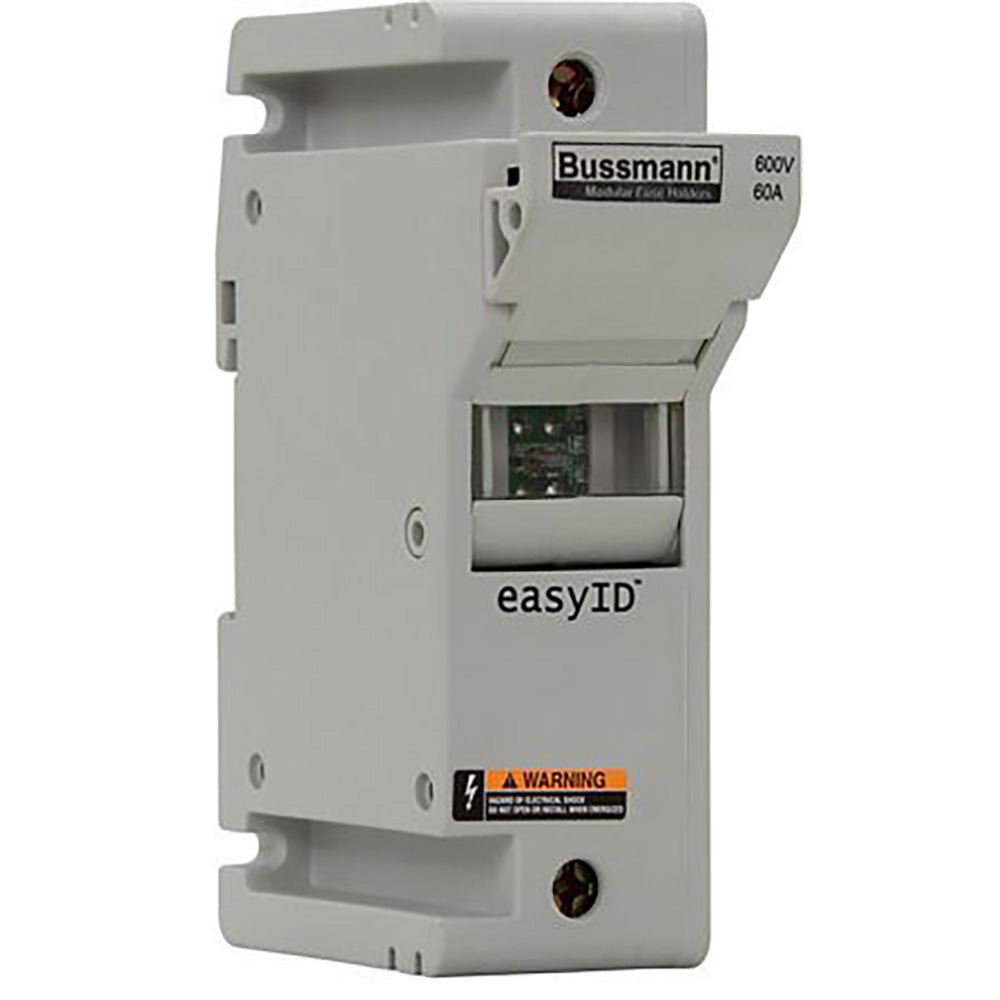

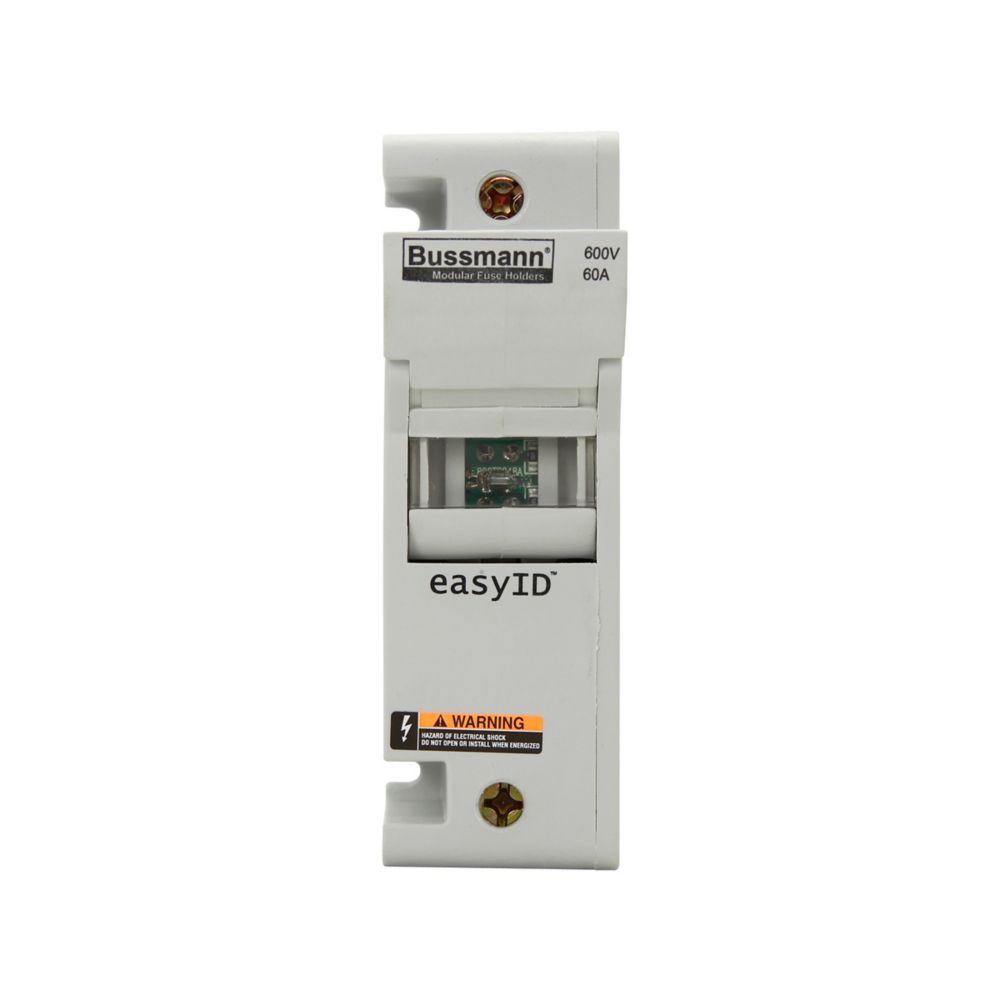

CH60J1I - Eaton Bussmann 60A 600V Single-Pole Class J Modular Fuse Holder with Neon Lamp

CH60J1I

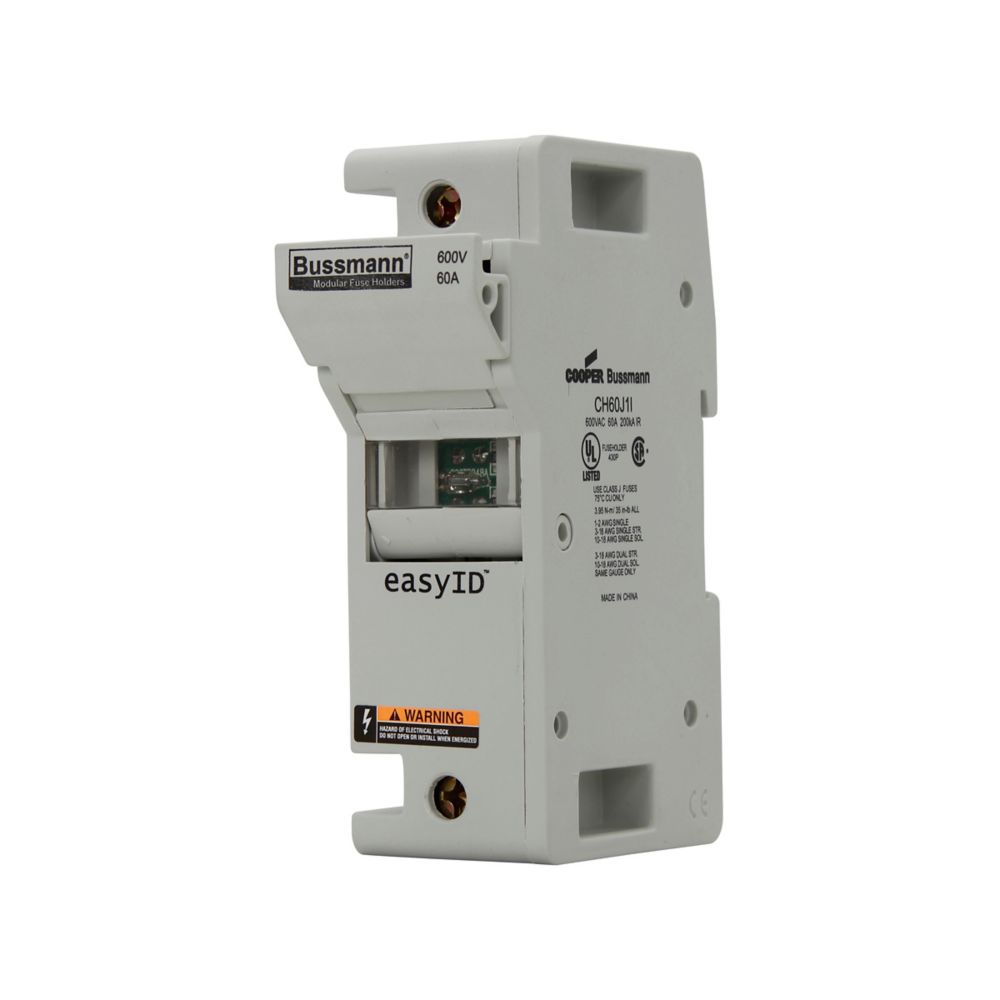

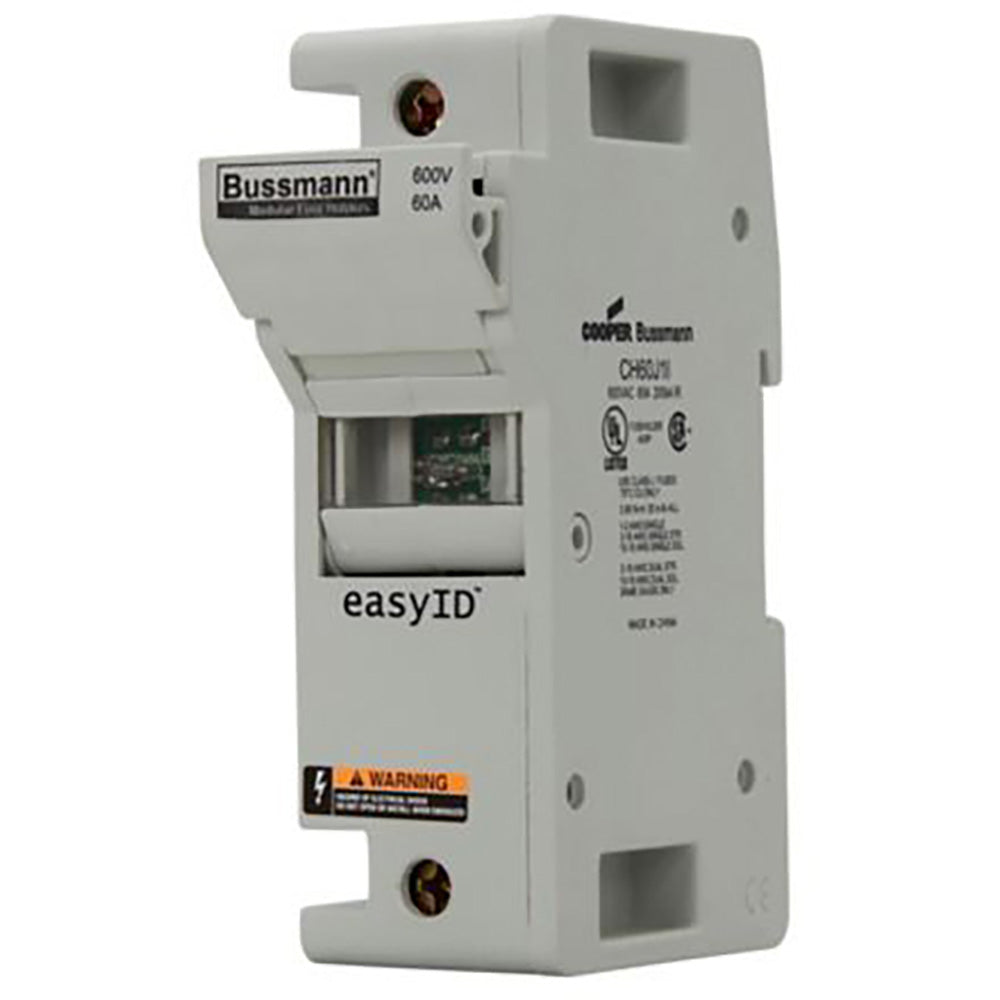

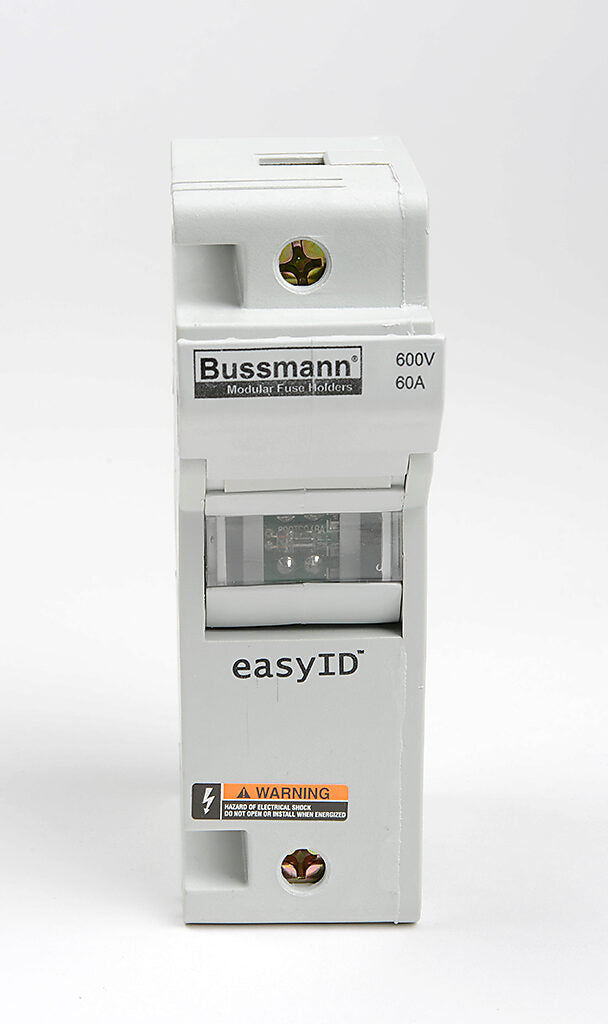

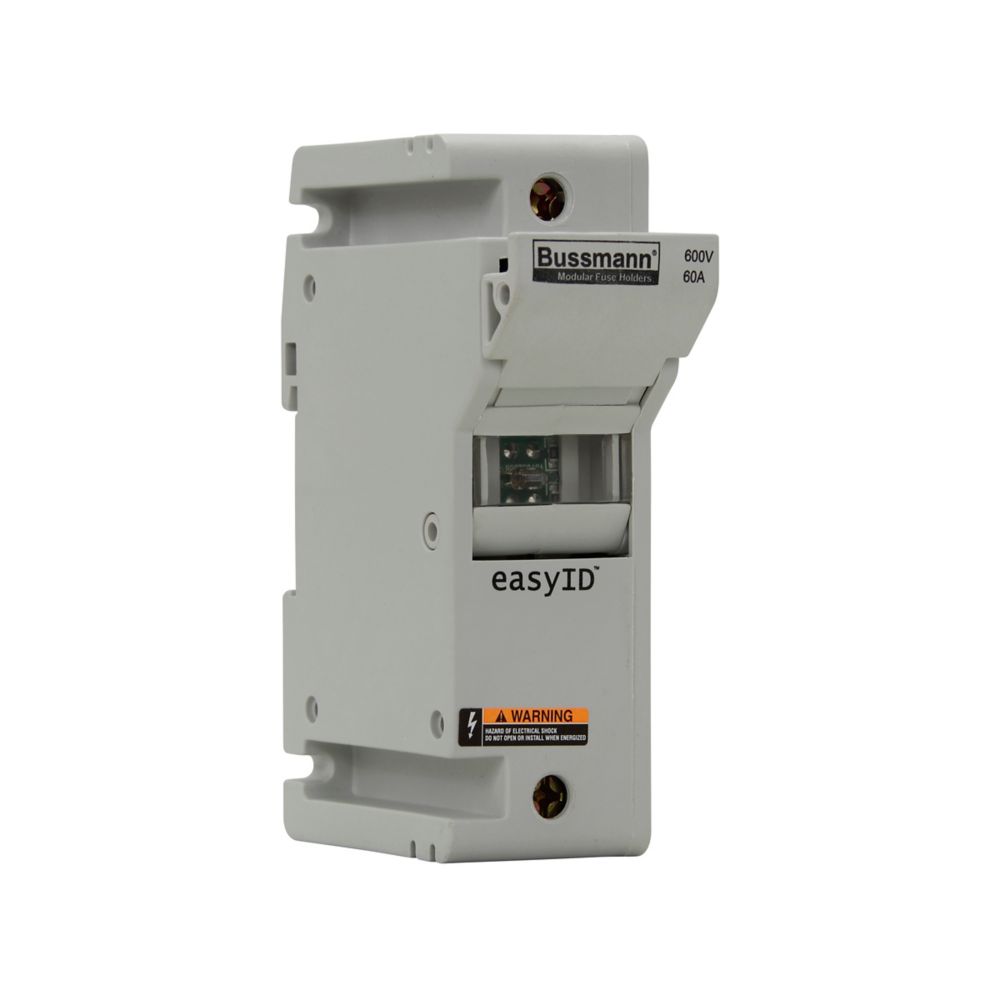

CH60J1I is an Eaton Bussmann series CH modular fuse holder designed for 60 amp single-pole Class J fuses with a neon lamp indicator.This fuse holder features a tin-plated copper clip and thermoplastic housing, suitable for panel or 35 mm DIN rail mounting. It supports 600 Vac/Vdc voltage rating and wire sizes from 18 to 1 AWG. The device is UL Listed, CSA Certified, CE marked, and RoHS compliant, with a withstand rating of 200kA RMS symmetrical short-circuit current rating (SCCR). Operating temperature is rated up to 85°C.

Key Specifications
• Amperage Rating: 60 A
• Voltage Rating: 600 Vac/Vdc
• Number of Poles: Single-pole
• Mounting Type: Panel or 35 mm DIN rail
• Class: Class J
• Material: Tin-plated copper clip, thermoplastic housing
• Special Feature: Neon lamp indicator
• Wire Range: 18 to 1 AWG
• Interrupt Rating (SCCR): 200kA RMS Symmetrical
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Operating Temperature: Up to 85°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: CH60J1I
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Part And Accessory
• Section : Fuse Holders
• Family : CH Series
• Type : CH
• Temp Rating : -13–158 °F (-25–70 °C)



Product Data

• UPC : 051712630894
• GTIN : 00051712630894
• Country of Origin : China
• Dimensions : 5 in x 2 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.511
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CE, CSA Certified, UL Listed
