CH60J1 - Eaton Bussmann 60A 600V Single-Pole Class J Modular Fuse Holder Panel Mount DIN Rail

CH60J1

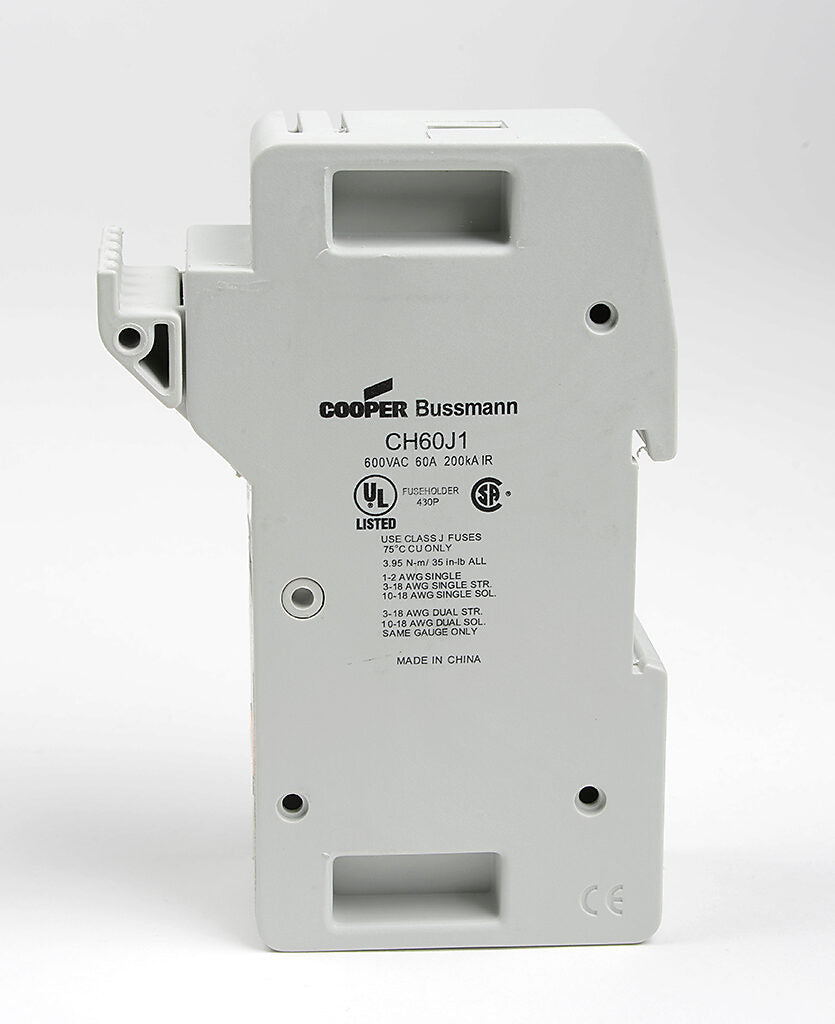

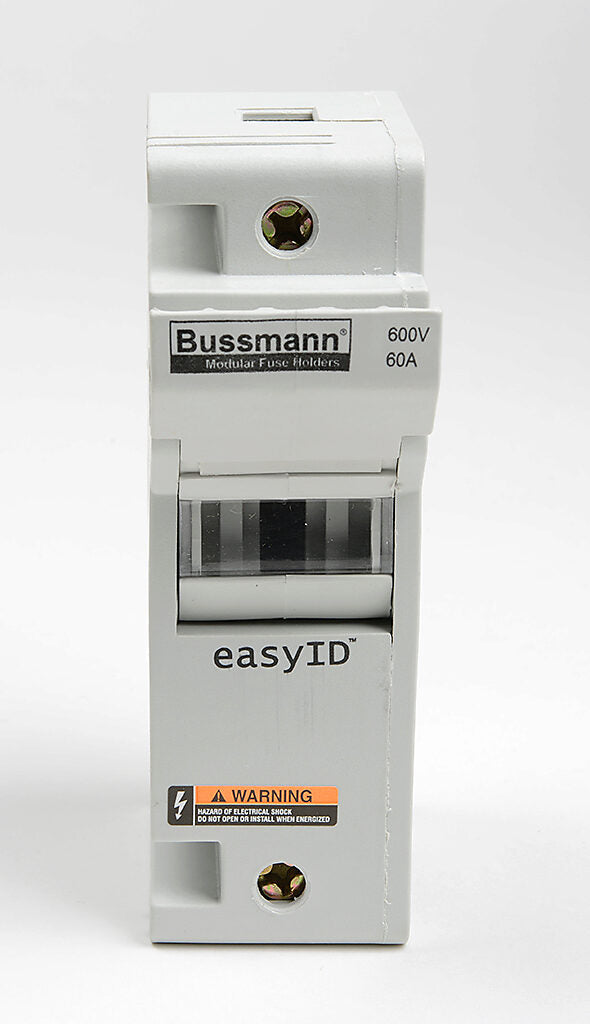

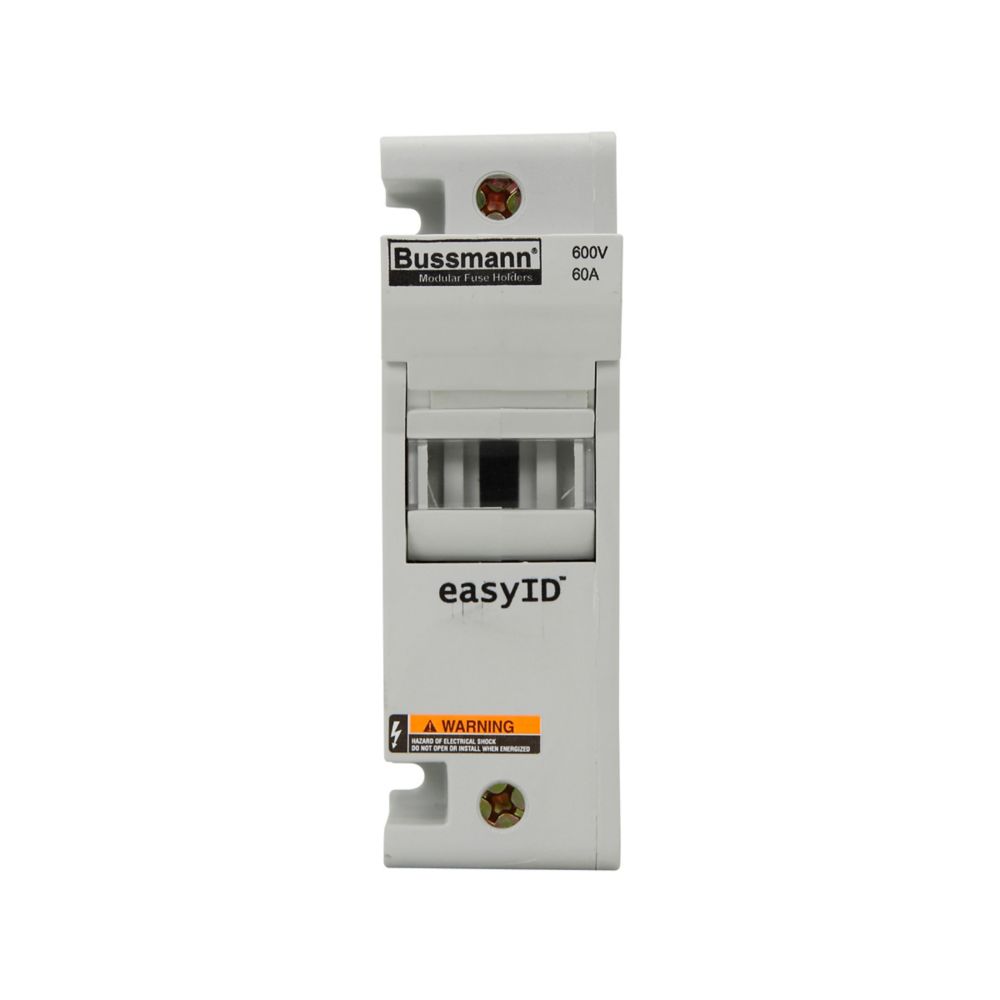

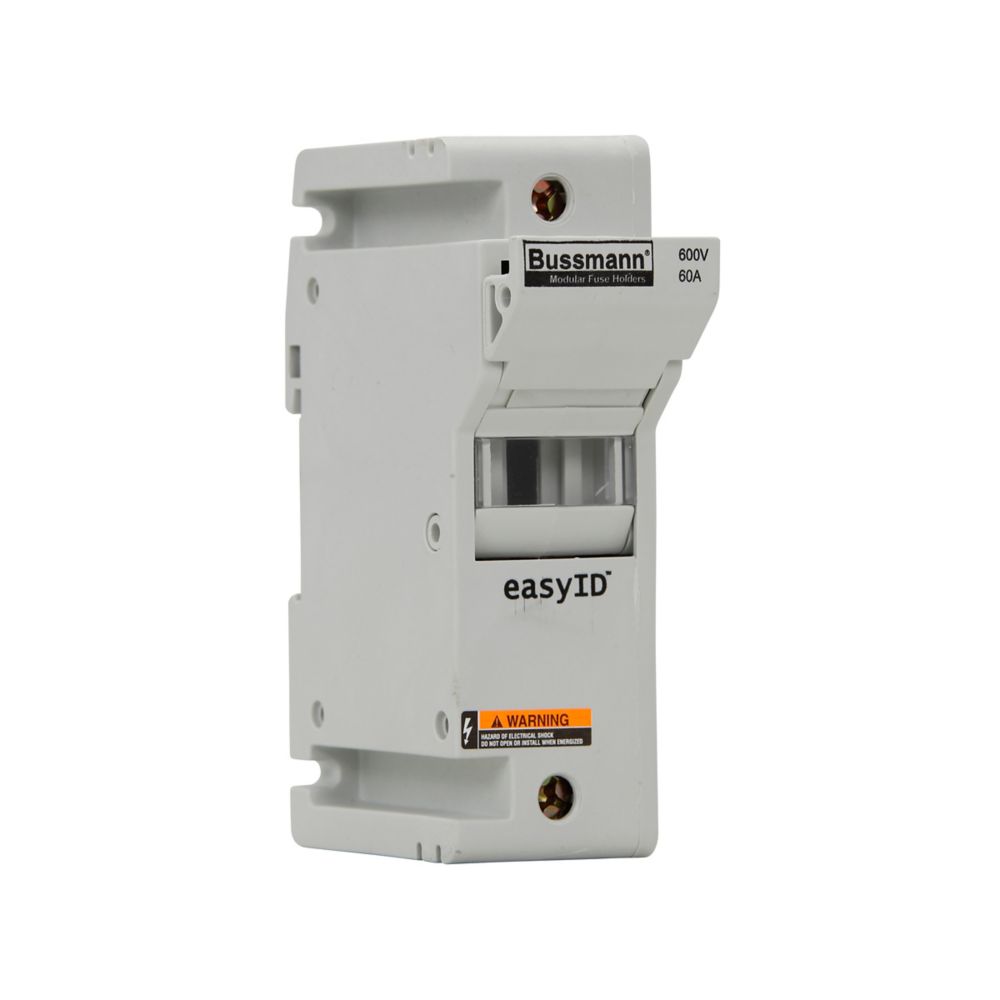

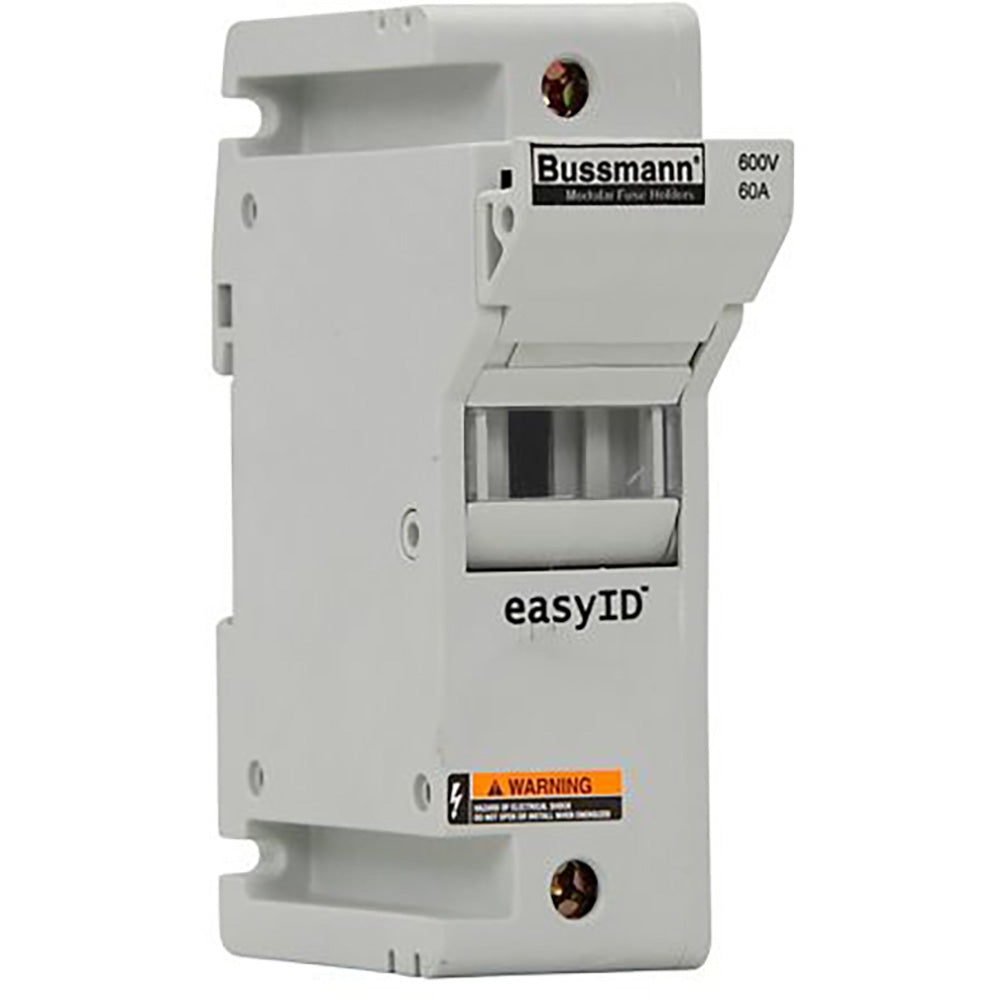

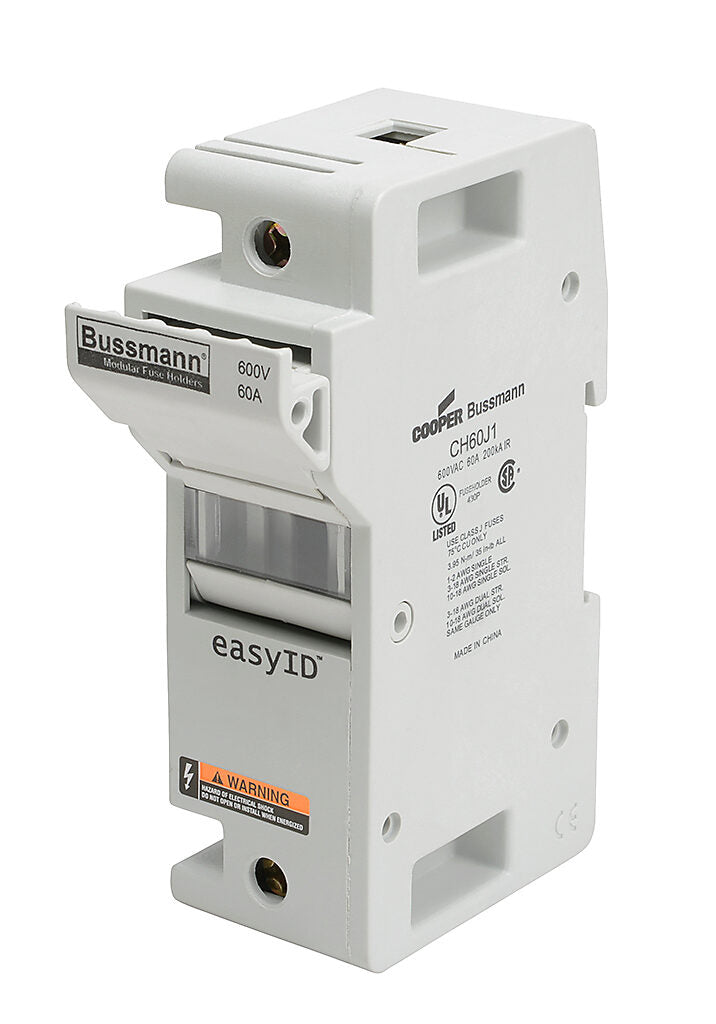

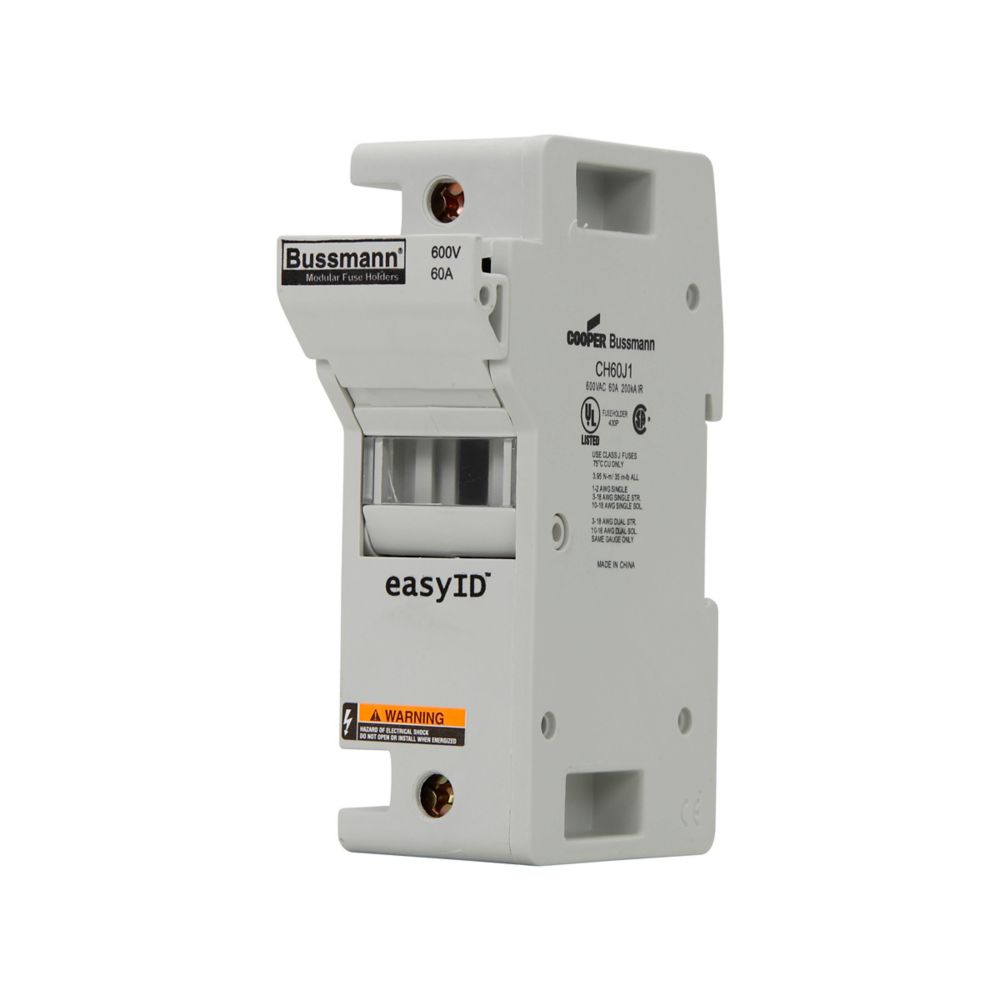

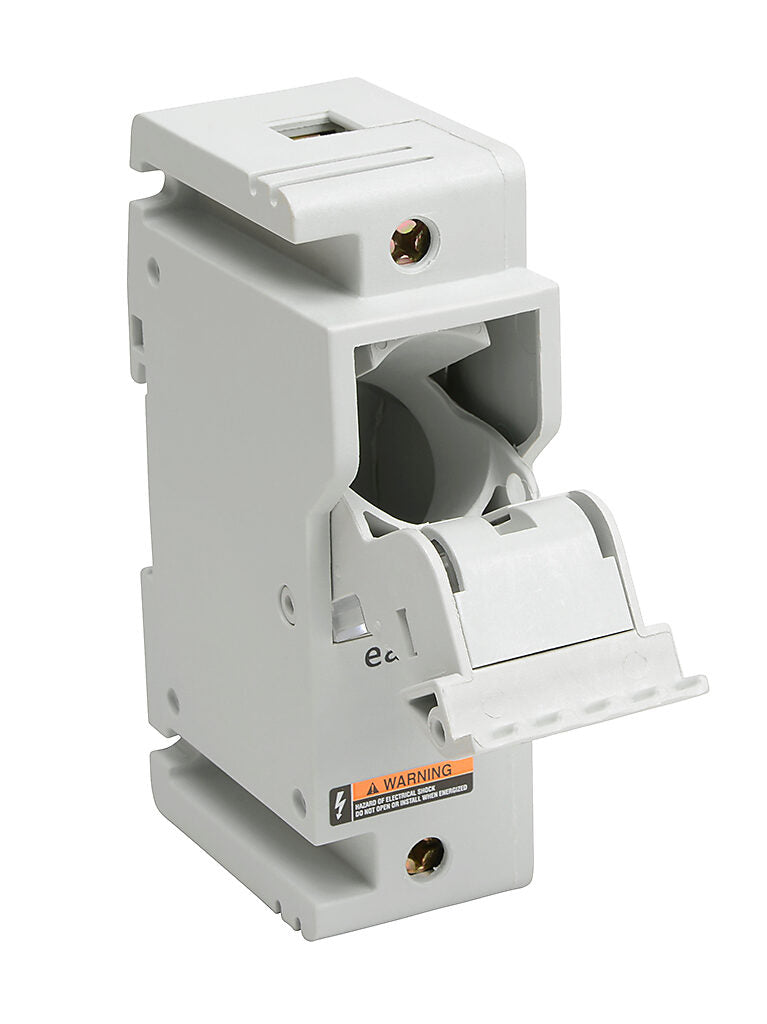

CH60J1 is an Eaton Bussmann series CH modular fuse holder designed for 60 amp Class J fuses with a 600 Vac/dc voltage rating.This single-pole fuse holder features a tin-plated copper clip and a thermoplastic housing. It supports panel mounting or 35 mm DIN rail installation and provides finger-safe protection to an IP20 grade. It is UL Listed, CSA Certified, RoHS Compliant, and CE Marked, with a withstand rating of 200kA RMS symmetrical short-circuit current rating.

Key Specifications
• Amperage Rating: 60 A
• Voltage Rating: 600 Vac/dc
• Number of Poles: Single-pole
• Mounting Type: Panel mount or 35 mm DIN rail
• Class: Class J
• Material: Tin-plated copper clip, thermoplastic housing
• Interrupt Rating (SCCR): 200kA RMS Symmetrical
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant
• Operating Temperature Max: 85 °C
• Finger-safe to IP20 IEC standard

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH60J1
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Part And Accessory
• Section : Fuse Holders
• Family : CH Series
• Type : CH

Product Data

• UPC : 051712630887
• GTIN : 00051712630887
• Country of Origin : China
• Dimensions : 5 in x 3 in x 2 in (Length/Depth x Height x Width)
• Weight : 0.511
• Certification : CE, CSA Certified, UL Listed
