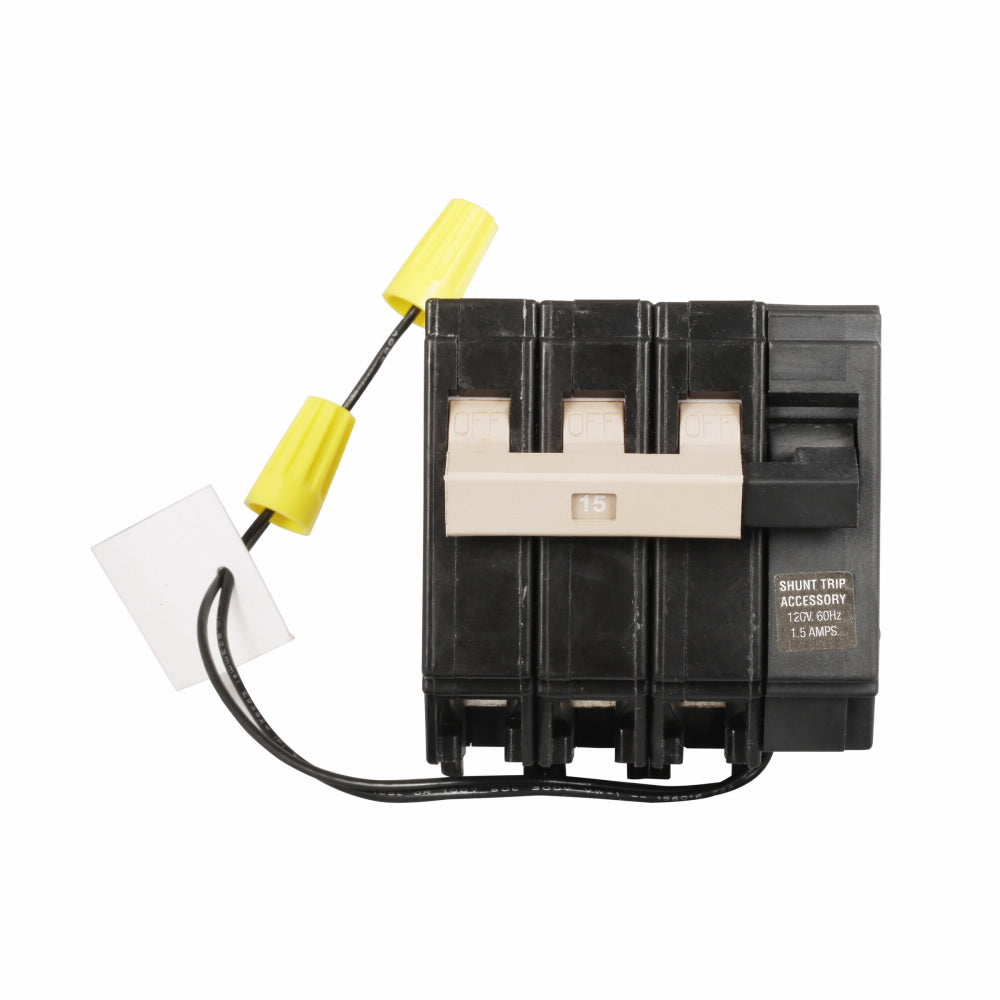

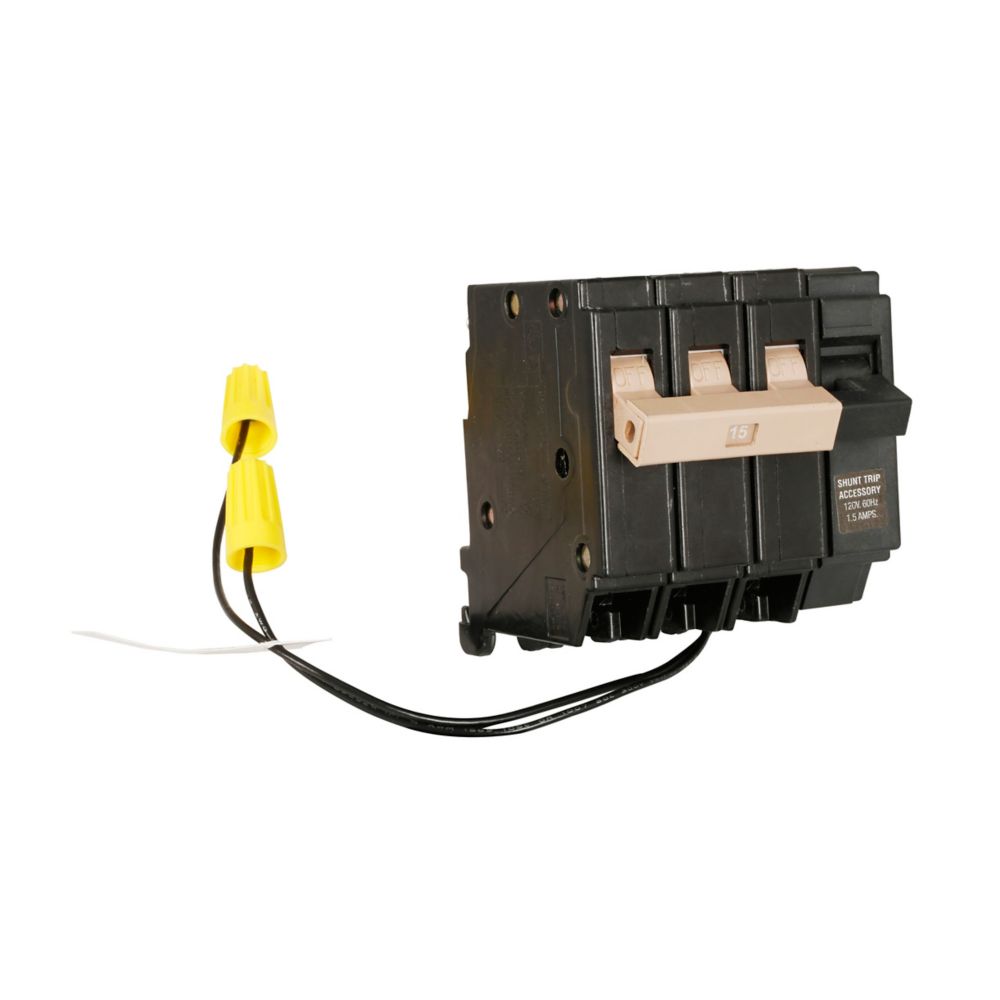

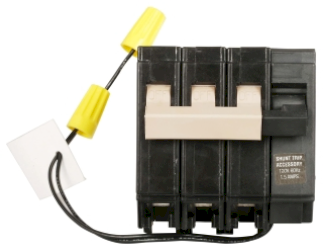

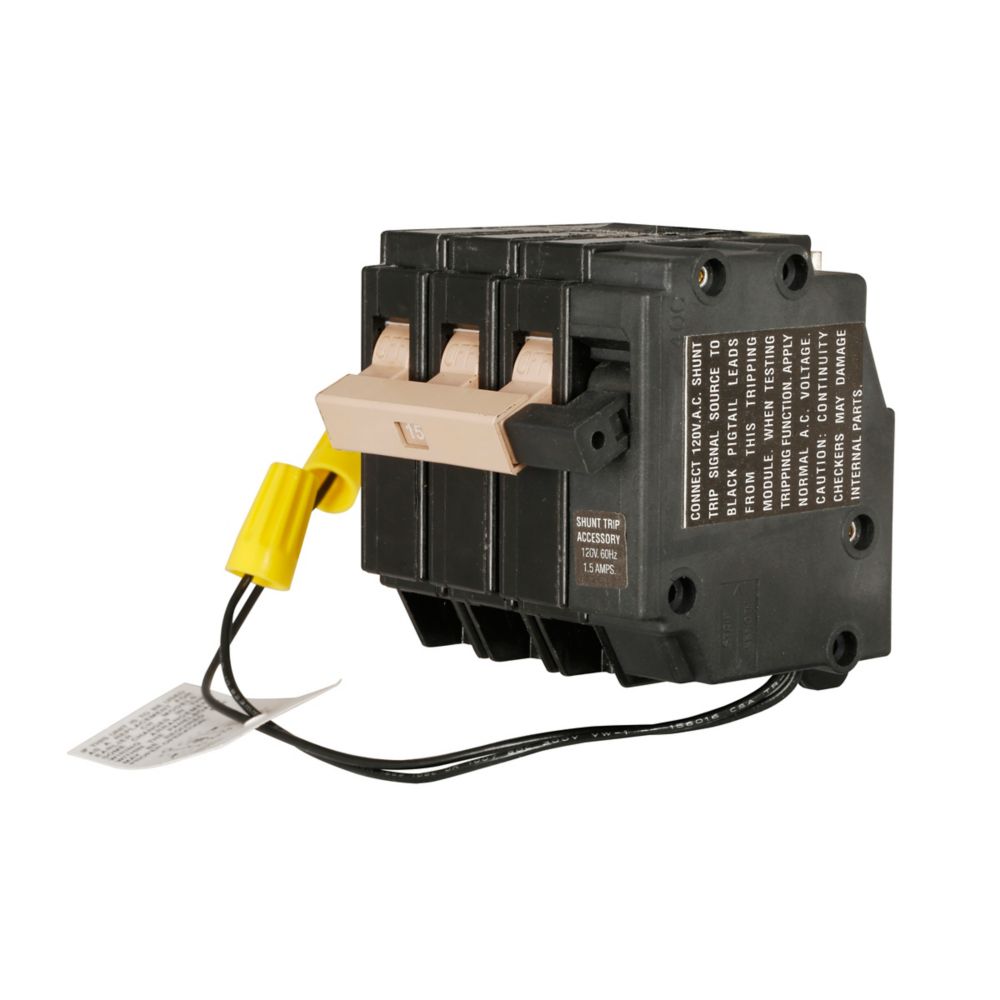

CH370ST - Cutler Hammer CH Series 70A 240V 3-Pole Thermal Magnetic Circuit Breaker with Shunt Trip

CH370ST

CH370ST is a three-pole, 70A, 240V thermal magnetic circuit breaker from the Cutler Hammer CH Series, designed for use in Type CH loadcenters and featuring a shunt trip for remote operation. This molded case circuit breaker offers reliable protection for three-phase circuits, with a 10 kAIC interrupt rating and compatibility with #10-1/0 AWG copper or aluminum wire. The breaker is built for common trip operation and is UL 489 listed for safety and compliance.

• Part Number: CH370ST
• Manufacturer: Cutler Hammer
• Series/Frame: CH Series
• Amperage Rating: 70A
• Voltage Rating: 240V
• Number of Poles: 3
• Interrupt Rating: 10 kAIC
• Mounting Type: Type CH Loadcenters
• Shunt Trip: Included
• Wire Size: #10-1/0 AWG Cu/Al
• Common Trip: Yes
• Certifications: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH370ST
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : CH Series
• Type : CH
• Voltage : 240
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous
• Frame Size : CH
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 782113328386
• GTIN : 00782113328386
• Country of Origin : Dominican Republic
• Dimensions : 4.8 in x 3.5 in x 3.5 in (Length/Depth x Height x Width)
• Weight : 1.15
• Certification : UL 489
• Wire Size : #10 - 1/0 AWG Cu/Al
