Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
CH366AWK

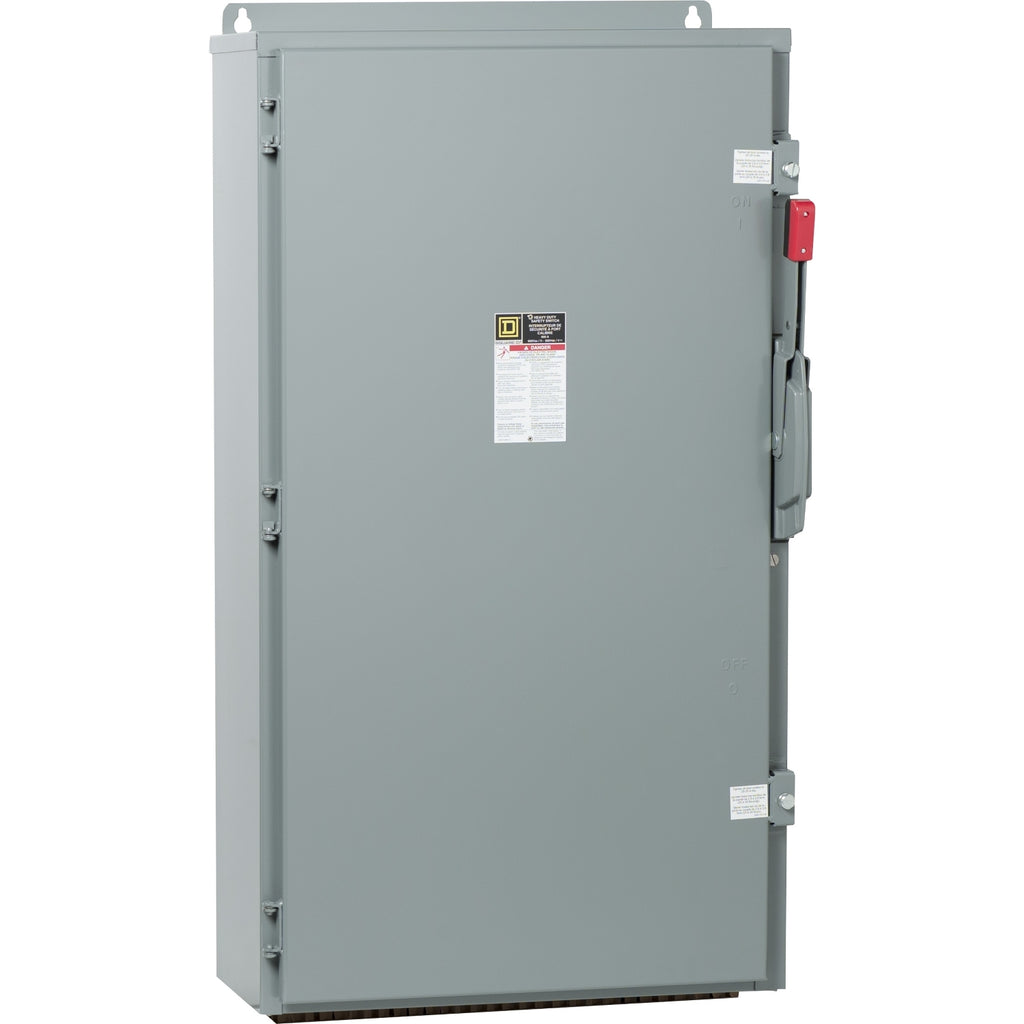

CH366AWK is a Square D Series E fusible safety disconnect switch rated for 600 amps and 600 volts with 3 poles and NEMA 3R/12 enclosure.
This heavy-duty switch is designed for three-phase applications, providing reliable disconnection and protection with fusible elements. It supports up to 500 horsepower and is suitable for surface mounting. The robust NEMA 3R/12 enclosure ensures durability and weather resistance for indoor or outdoor use.
- Manufacturer: Square D
- Series: Series E
- Type: CH
- Amperage: 600 A
- Voltage: 600 V AC/DC
- Poles: 3
- Enclosure: NEMA 3R/12
- Mounting Type: Surface
- Fusible: Yes
- Maximum Horsepower: 500 HP
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: CH366AWK
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : CH
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 10kA@600V
- Fuse Class : H,R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 3R/12
- Compatible Frames : RJF
Product Data
- UPC : 785901344674
- GTIN : 00785901344674
- Country of Origin : Mexico
- Dimensions : 46.25 in (1174.75 mm) x 26.25 in (666.75 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
- Weight : 170.001
