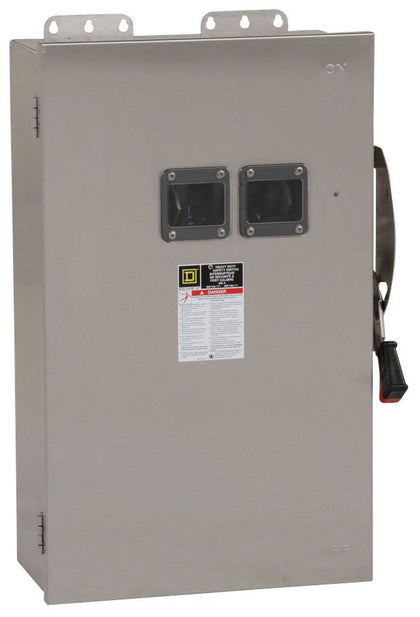

CH364DS - Square D 200 Amp 600 Volt 3-Pole Fusible Heavy Duty Safety Switch NEMA 4/4X

CH364DS

CH364DS is a Square D 200 Amp 600 Volt 3-Pole Fusible Heavy Duty Safety Switch with NEMA 4/4X enclosure rating.

This CH type disconnect switch is designed for heavy-duty applications, providing reliable safety switching with fusible protection. It supports 3-phase power and is rated for 200kA interrupt capacity at 600V, suitable for demanding industrial environments. The switch is surface mounted and accepts J and R type fuses, with a maximum horsepower rating of 150 HP. The enclosure is constructed to meet NEMA 4/4X standards, ensuring protection against dust, water, and corrosion.

Key Specifications
• Amperage: 200 Amp
• Voltage: 600 Volt AC/DC
• Poles: 3
• Type: CH Fusible Safety Switch
• Mounting Type: Surface
• Interrupt Rating: 200kA at 600V
• NEMA Rating: 4/4X
• Maximum Horsepower: 150 HP
• Fuse Type: Accepts J and R fuses

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: CH364DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : CH
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : J,R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 4/4X
• Compatible Frames : RJF

Product Data

• UPC : 785901995418
• GTIN : 00785901023753
• Country of Origin : United States
• Dimensions : 29 in (736.6 mm) x 19.25 in (488.95 mm) x 8.88 in (225.55 mm) (Height x Width x Depth)
• Weight : 57.001
