Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
CH364AWK

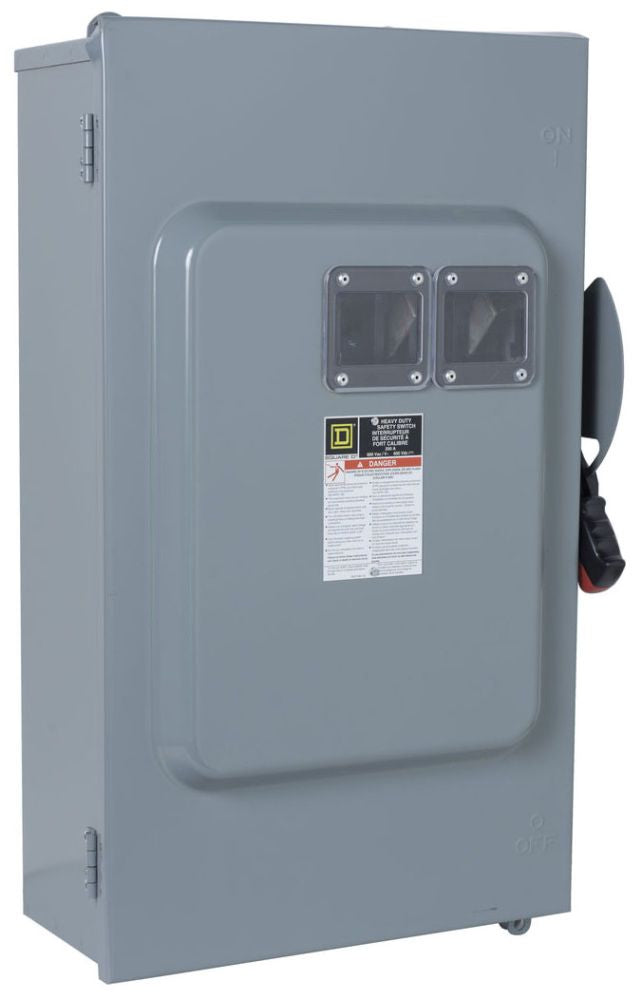

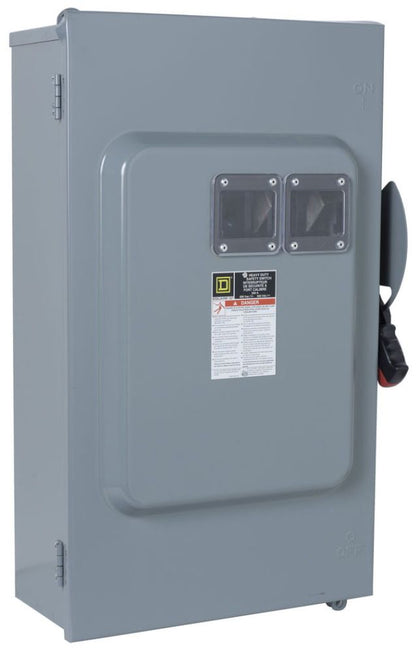

CH364AWK is a Schneider Electric fusible heavy duty safety switch designed for reliable power distribution and motor control applications.This 3-pole, 200 amp switch supports up to 600 volts AC/DC and features a robust NEMA 3R/12 rated enclosure suitable for indoor and outdoor use. It is engineered for heavy duty industrial environments with fusible protection and a single throw mechanism, capable of handling motor loads up to 150 horsepower.
- Manufacturer: Schneider Electric
- Part Number: CH364AWK
- Amperage: 200 A
- Voltage Rating: 600 VAC/VDC
- Number of Poles: 3
- Enclosure Type: NEMA 3R/12
- Switch Type: Fusible Heavy Duty Single Throw
- Horsepower Rating: Up to 150 HP
- Application: Safety Disconnect Switch
Specifications
- Part Number: CH364AWK
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : CH
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : J, R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 3R/12
- Compatible Frames : NSE
Product Data
- UPC : 078590199540
- GTIN : 00783164253634
- Dimensions : 29 in (736.6 mm) x 18.63 in (473.20 mm) x 8.75 in (222.25 mm) (Height x Width x Depth)
- Weight : 54
